Description:
Description:
This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product
Versatile angle gussets and heavy angles promote standardization and construction economy, and are compatible with Strong-Tie structural hardware. The Strong-Tie HL37GPC heavy angle with gusset features a highly aesthetic Black Powder Coating finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING

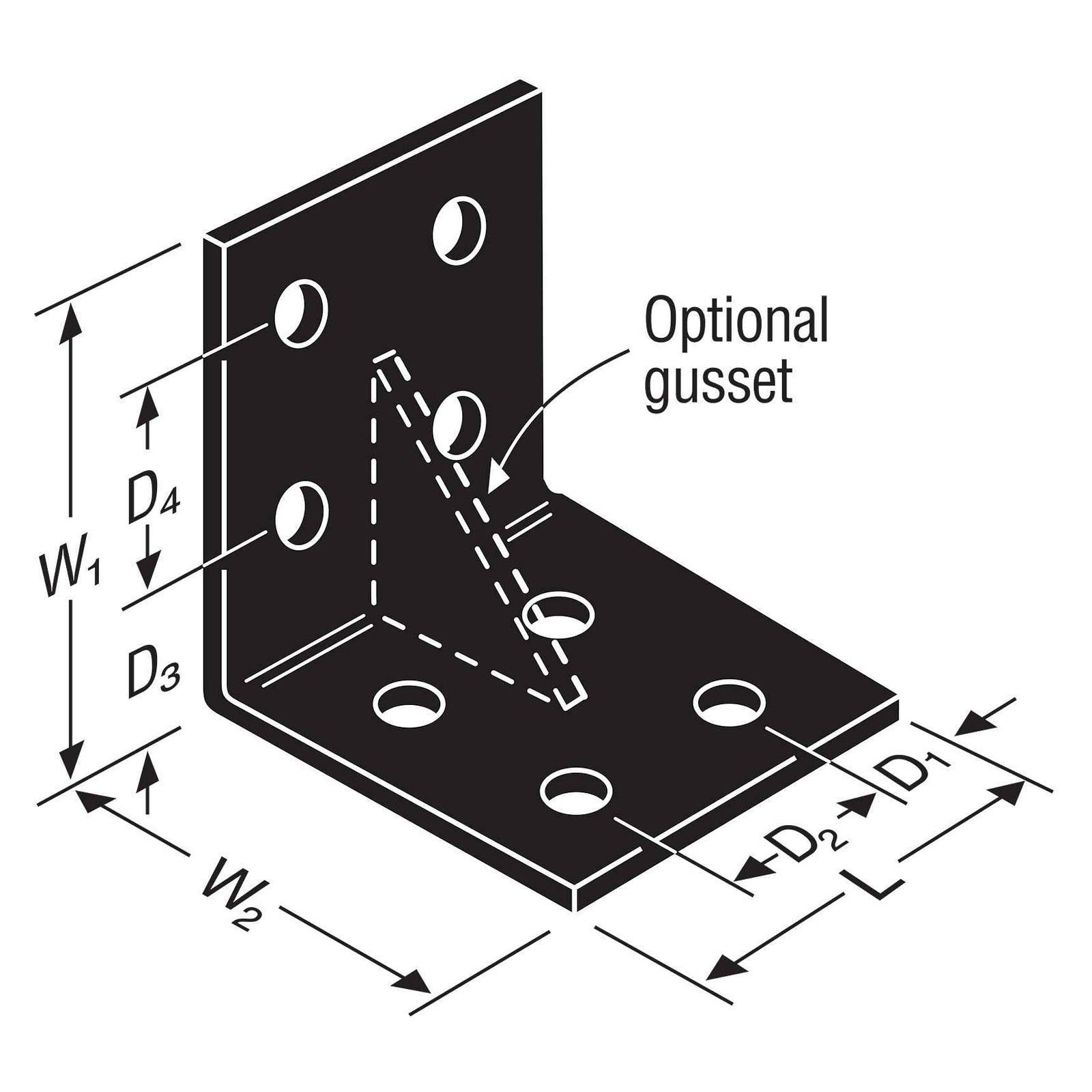

Specifications:
Specifications:
Fasteners required: Install with bolts or lag screws minimum 5" long
Thickness: 7 Gauge
Quantity: 1
Width: 3-1/4"
Finish: Black Powder Coat
Length: 7-1/2"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Features
Features

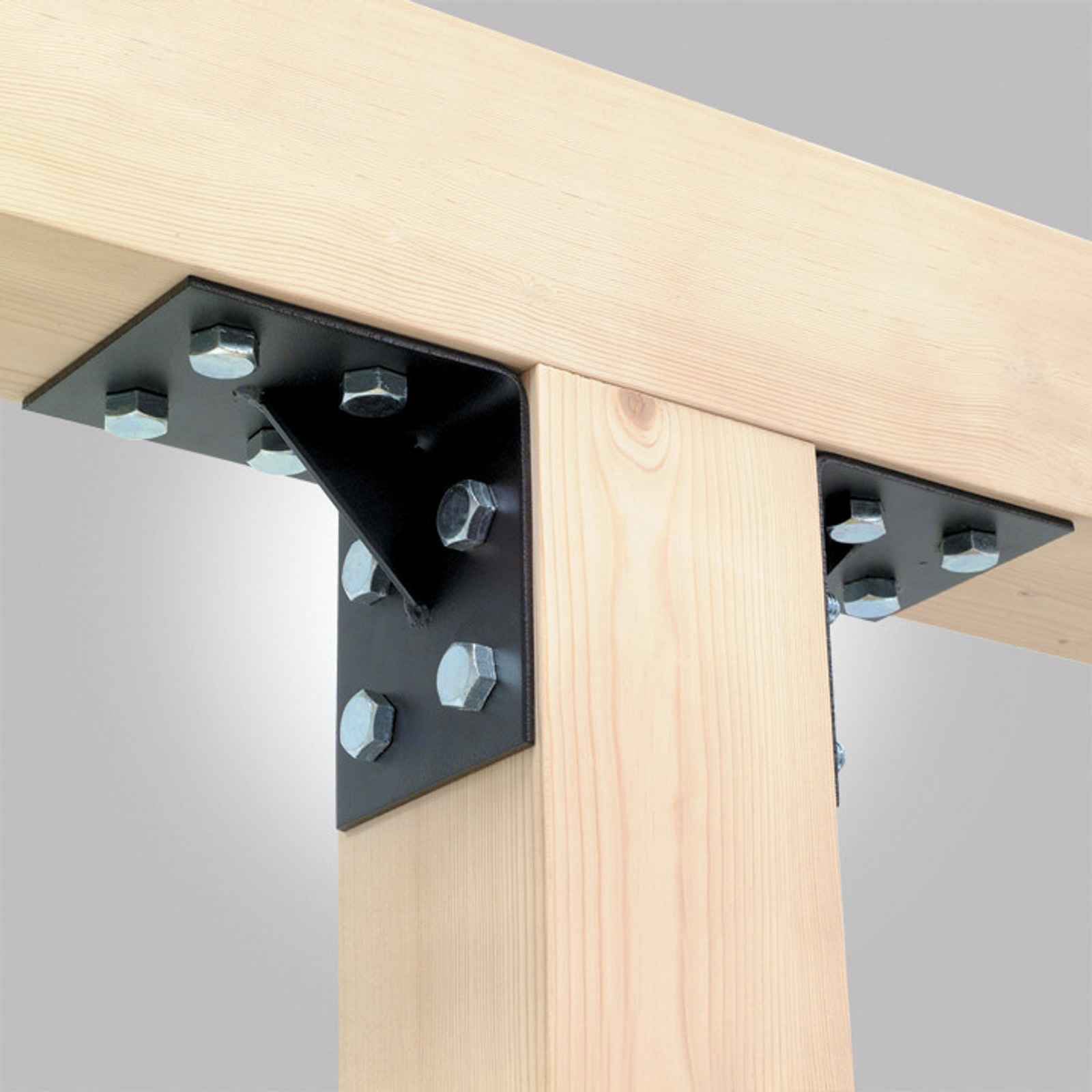

•Helps reinforce wood members in right-angle connections
•Resists uplift and lateral forces
•Achieves lateral loads in both directions when installed in pairs
Installation
Installation
• Install with bolts.
• Lag screws of equal diameter (minimum 5" long) may be substituted for bolts in the beam with no reduction in load.
• Helps reinforce wood members in right-angle connections.
• Resists uplift and lateral forces.
• Achieves lateral loads in both directions when installed in pairs.
