SKU: HSUR46

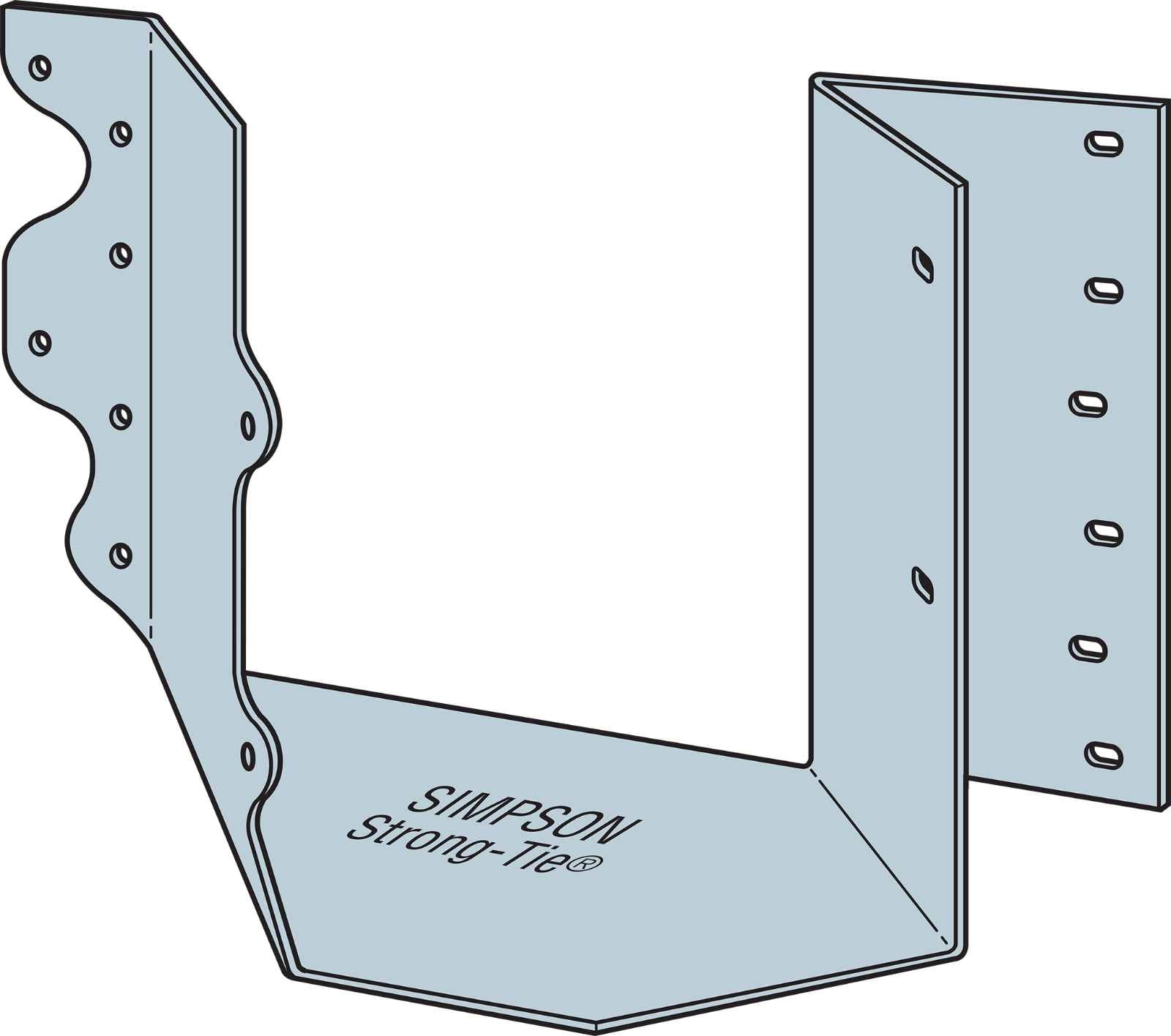

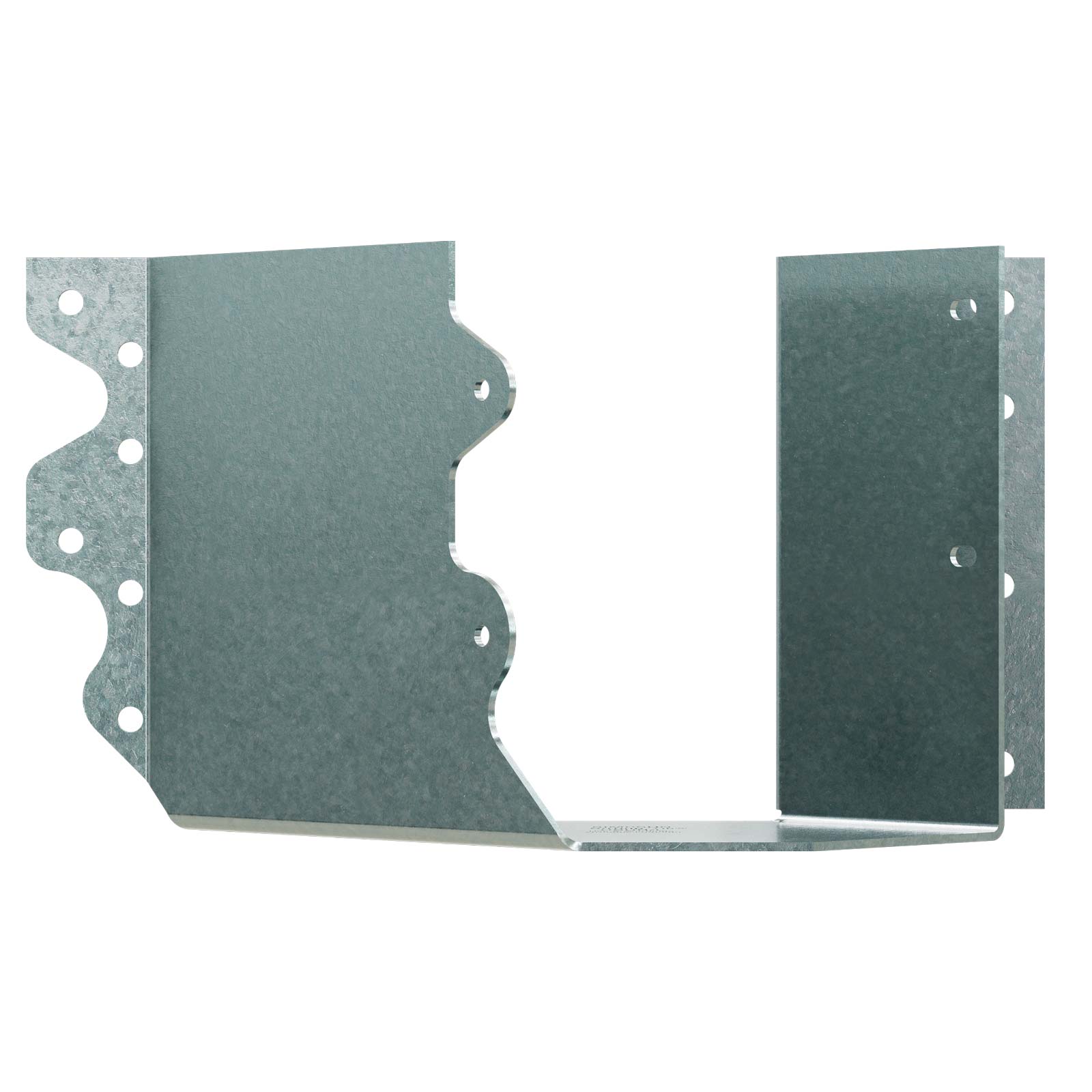

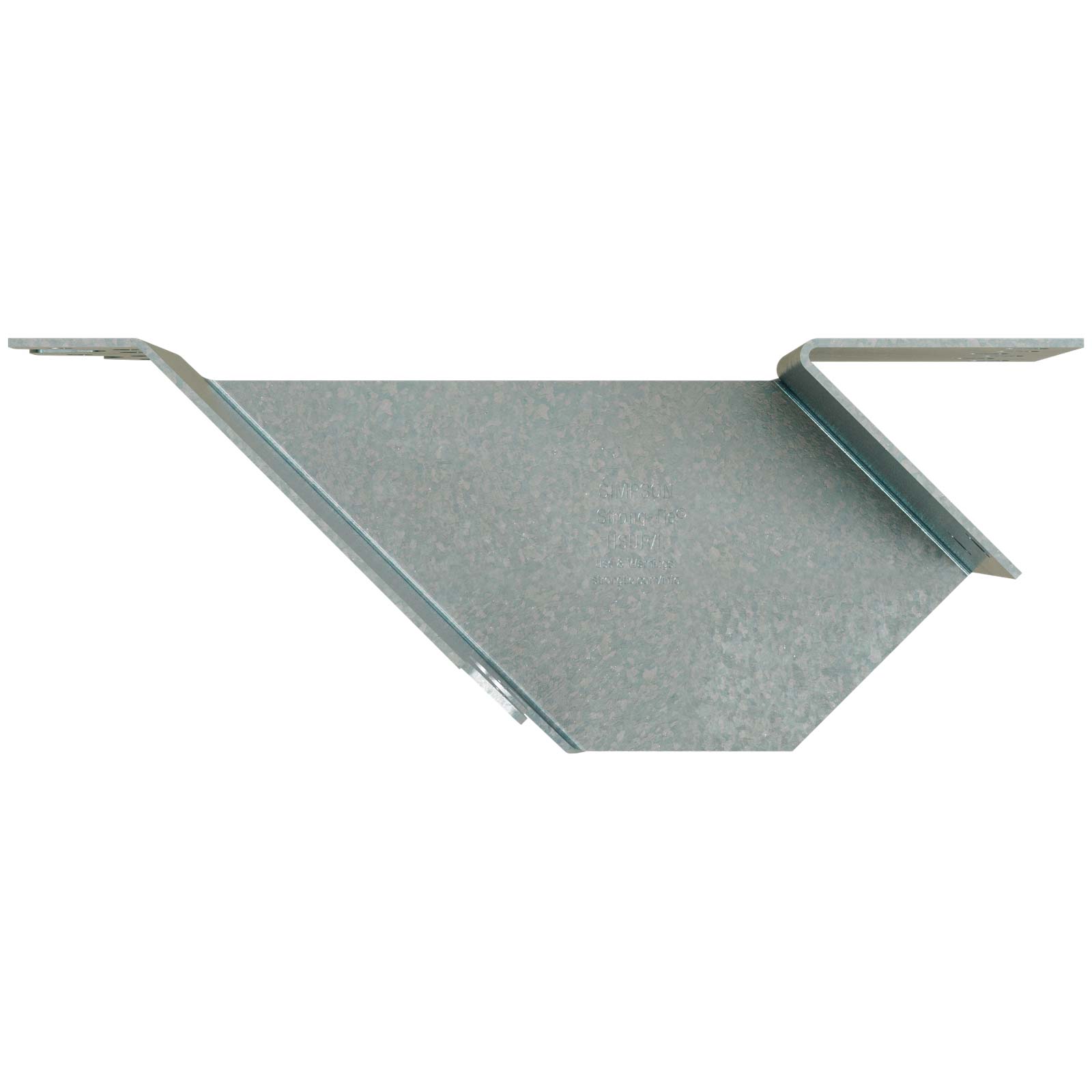

Simpson HSUR46 Joist Hanger Skewed Right - Galvanized

Simpson HSUR46 Joist Hanger Skewed Right - Galvanized!

Skip to product information
$38.64

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 16 when you add 6 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Fasteners required: Face - (12) 0.162" x 3-1/2" Nails Joist - (4) 0.162" x 3-1/2" Nails
For Treated Lumber: No
Height: 4-3/4"
Joist size: 4X6
Manufacturer name: Simpson Strong-Tie
Width: 3-9/16"
Description

Simpson Strong-Tie HSUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-Tie HSUR46 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.

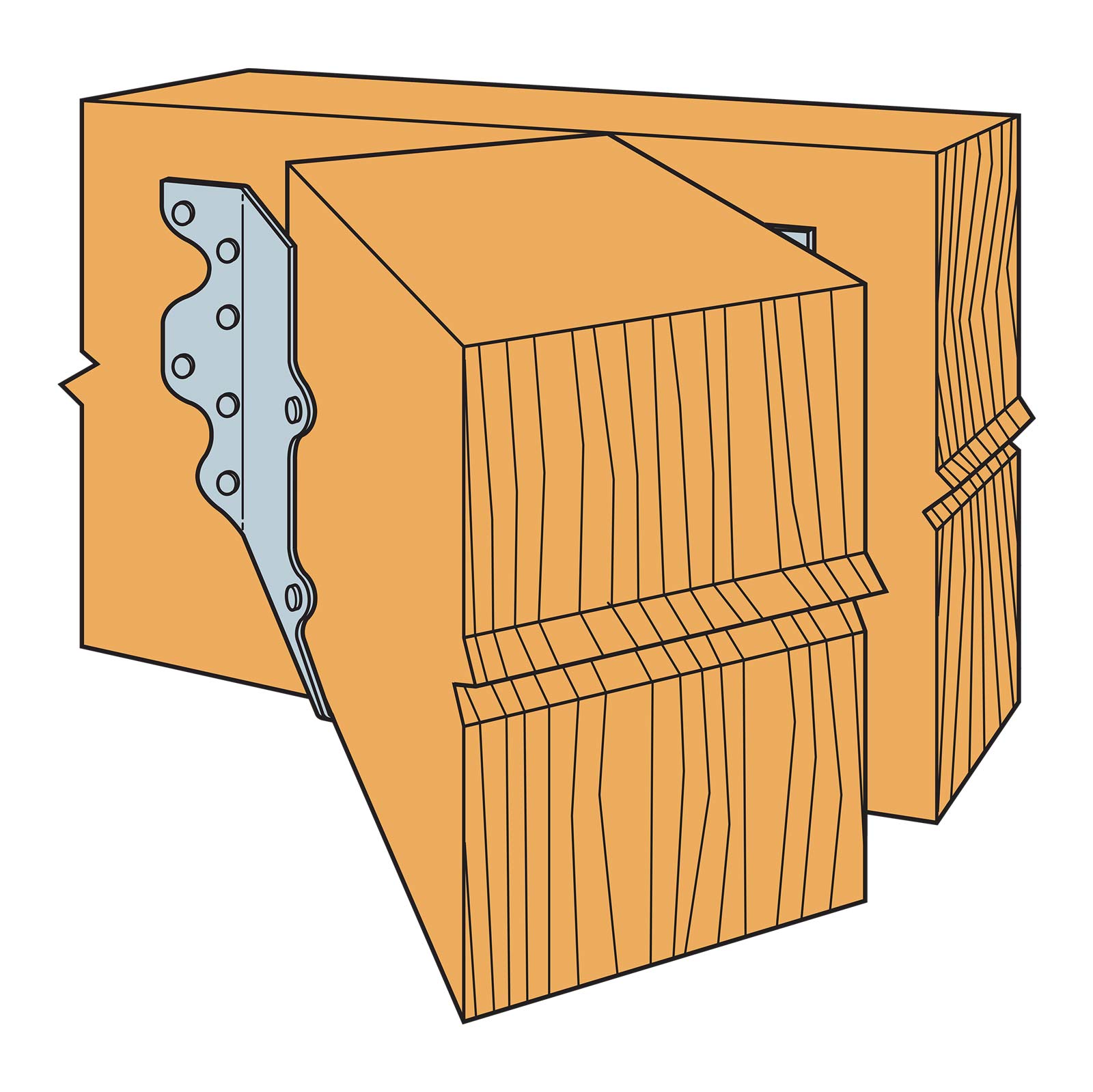

  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
