SKU: HU3.25/12

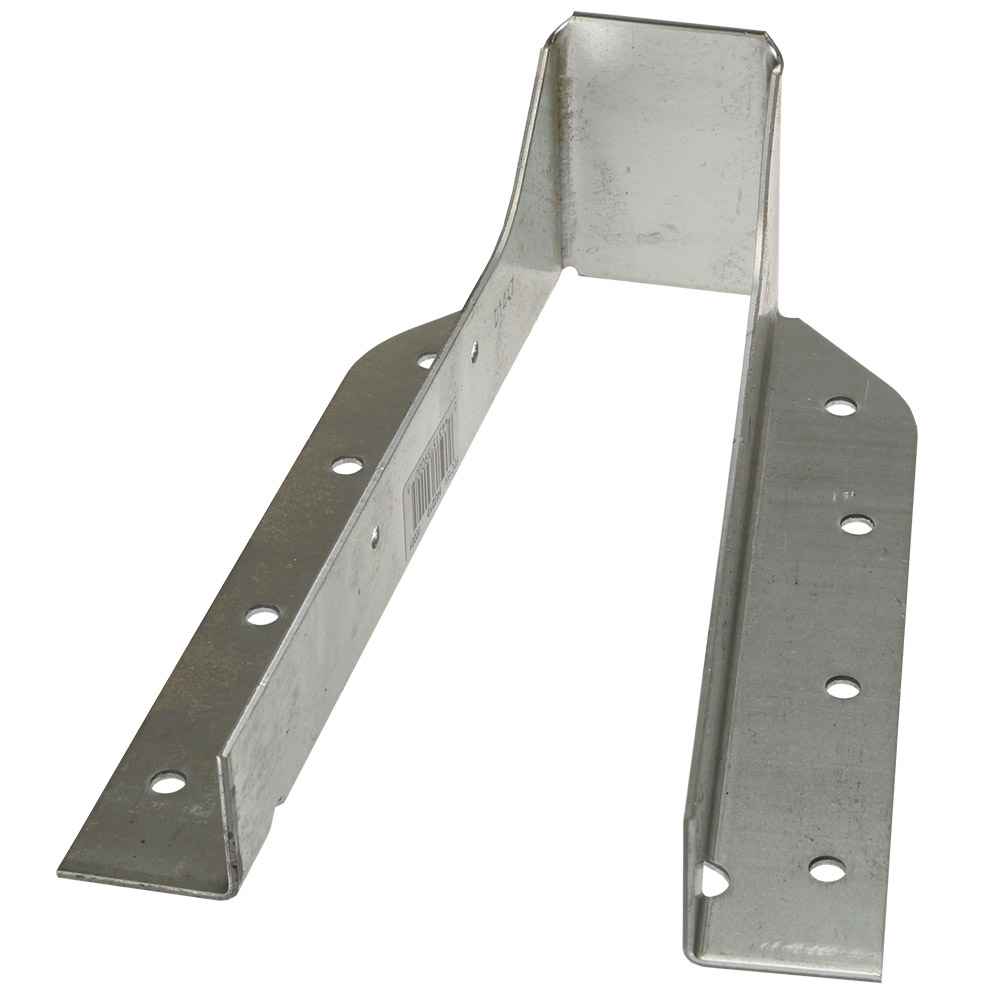

Simpson HU3.25/12 Face Mount Glulam Beam Hanger, Made to Order Non-Returnable

Simpson HU3.25/12 Face Mount Glulam Beam Hanger, Made to Order Non-Returnable!

Skip to product information
1 of 2
$34.52

Request Bulk Pricing
Request Bulk Pricing
Made to Order
Ships in 2-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Fast Shipping

Shipping & Returns

Bulk Pricing Discounts

Business Solutions

Payment Options

American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Finish: G90 Galvanized
Material: Carbon Steel
Additional Info: Carried Member Width: 3-1/8 Glulam
Fasteners required: Face - (24) 0.162" x 3-1/2" Nails Joist - (12) 0.148" x 3" Nails
For Treated Lumber: No
Height: 11-3/4"
Joist size: 3-1/4" X 12"
Manufacturer name: Simpson Strong-Tie
Quantity: 1
Thickness: 14 Gauge
Description

The Simpson Strong-Tie HU Heavy Face-Mount Joist Hangers are engineered for robust support in various construction applications. These heavy-duty, face-mount hangers are crafted from 14-gauge steel, ensuring durability and reliability in both residential and commercial projects.

Key Features:

  • G90 Galvanized Finish: Provides standard corrosion resistance suitable for most indoor and dry applications.
  • Versatile Applications: Designed to accommodate a wide range of joist sizes, these hangers are suitable for solid sawn lumber, engineered wood products, and cold-formed steel (CFS) joists.
  • Code Compliance: HU-series hangers are tested, load-rated, and comply with building codes, ensuring reliable performance in structural applications.

Installation:

  • Fasteners: For G90 galvanized hangers, use hot-dip galvanized nails to ensure maximum corrosion resistance.
  • Masonry and Concrete Attachment: These hangers can be installed into masonry and concrete using the appropriately specified Titen HD screws.

Applications:

The HU Heavy Face-Mount Joist Hangers are designed for a variety of wood-to-wood and wood-to-masonry connections, making them ideal for:

  • Deck Framing: Securely fastens joists to beams for added structural support.
  • Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
  • Roof Framing: Used in truss and rafter connections for enhanced stability.
  • Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
  • Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
  • Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

View full details
× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.

Customer Reviews

Based on 9 reviews
89%
(8)
0%
(0)
0%
(0)
0%
(0)
11%
(1)
L
Lisa Day Baker

Excellent service and fast shipping

S
Steven Pollack
great for restoration work

these heavy duty hangers work great on old houses with full 2x joists when you need to sister the joists, be they cracked, dry rot, and occasionally when the notched timber headers have shifted outward

E
Edward Pulsifer
strong

These hangers are exactly what I needed to support floor joists in my basement. Used the correct simpson screws for this also. They are strong and durable

R
Rick Bosak
Perfect fit

You won't find these at the big box store. These are perfect for hanging an LVL beam. They fit an LVL perfectly and have plenty of holes for support screws.

S
Sean Chaulklin
Fastnersplus Service

Extremely fast service! The delivery was within 2 days of the purchase order!
