SKU: HUC3.25/16

Simpson HUC3.25/16 Heavy Concealed-Flange Face-Mount Joist Hanger

Simpson HUC3.25/16 Heavy Concealed-Flange Face-Mount Joist Hanger!

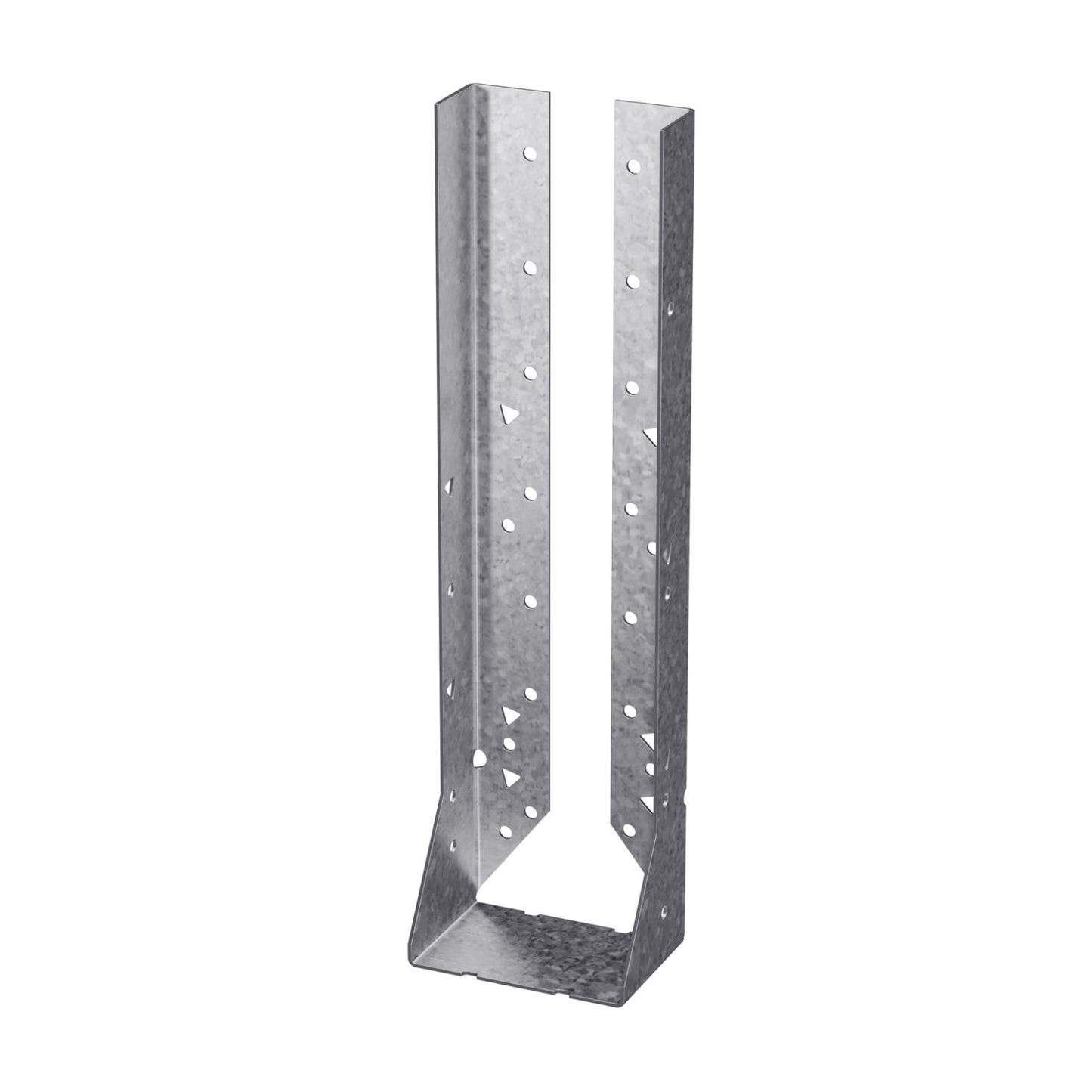

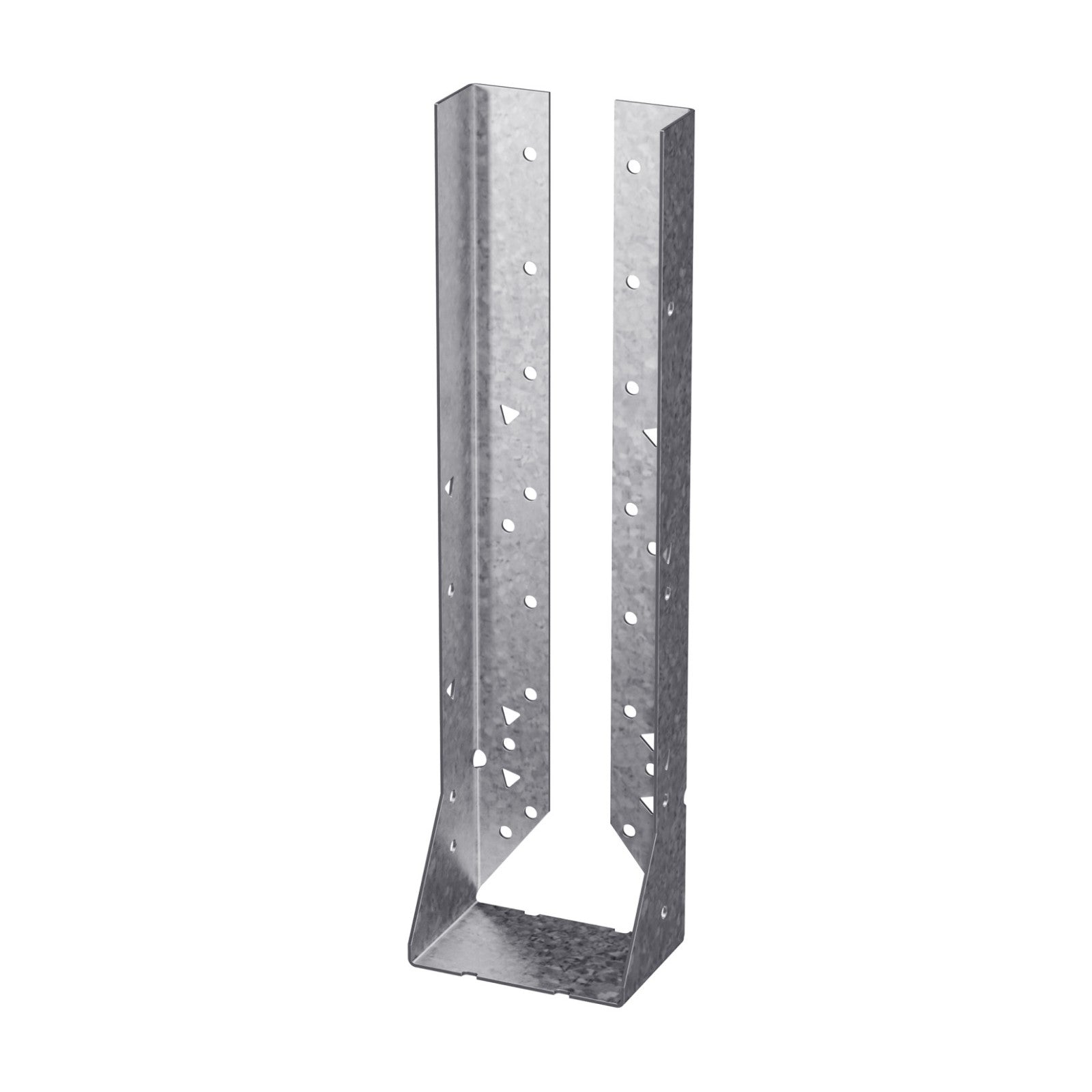

  • HUC-HUC416 Shown

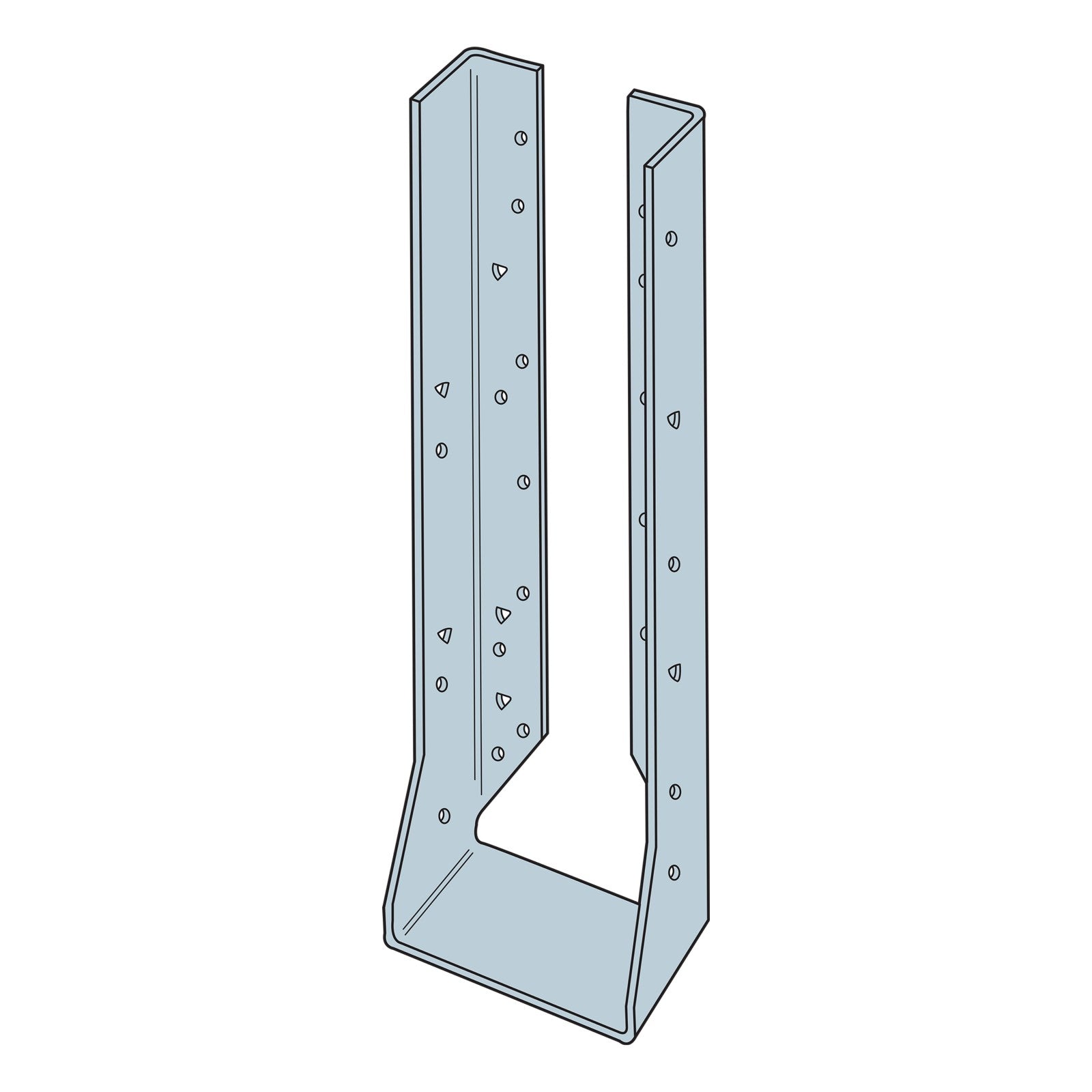

  • HUC-HUC414 Illustration
1 5

Continue Browsing

HUC/HUCQ Concealed Face Mount Hangers
SKU: HUC3.25/16

Simpson HUC3.25/16 Heavy Concealed-Flange Face-Mount Joist Hanger

$51.49

Request Bulk Pricing
Request Bulk Pricing
Made to Order
Ships in 1-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Material: Galvanized Steel
Fasteners required: Face - (24) 0.162" x 3-1/2" Nails Joist - (12) 0.148" x 3" Nails
Height: 16"
Manufacturer name: Simpson Strong-Tie
Quantity: 1
Thickness: 12 Gauge
Width: 3-1/4"
Description
  • This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product.

Simpson Strong-Tie HUC hangers are heavy duty connectors designed for schools and other structures requiring additional strength, longevity and safety factors. Most models can be installed filling round holes only, or filling round and triangle holes for maximum values. The Strong-Tie HUC3.25/16 face mount joist hanger features a G90 galvanized finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
