Specifications

Fasteners required: Refer to Spec Sheet
For Treated Lumber: No
Manufacturer name: Simpson Strong-Tie
Description
  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

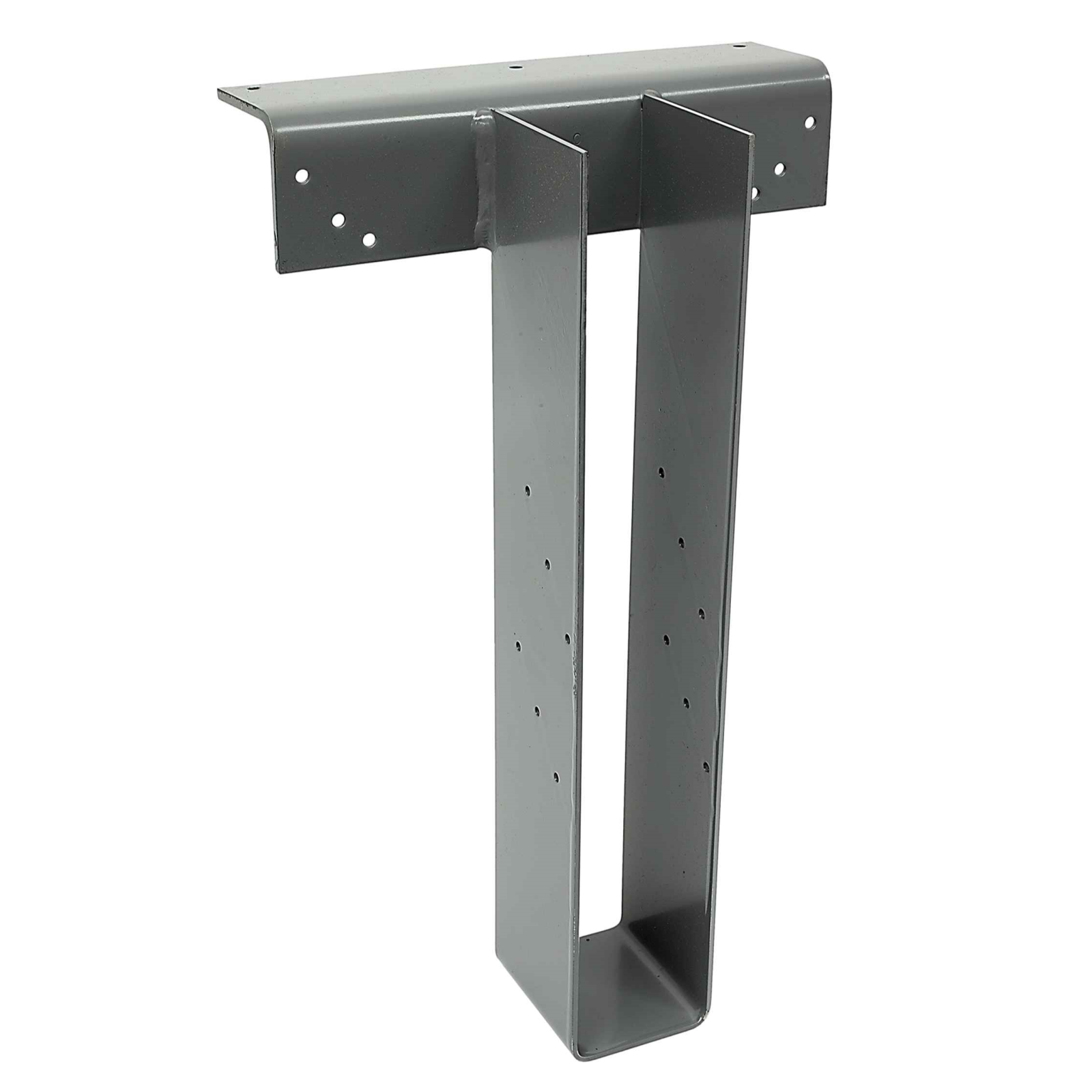

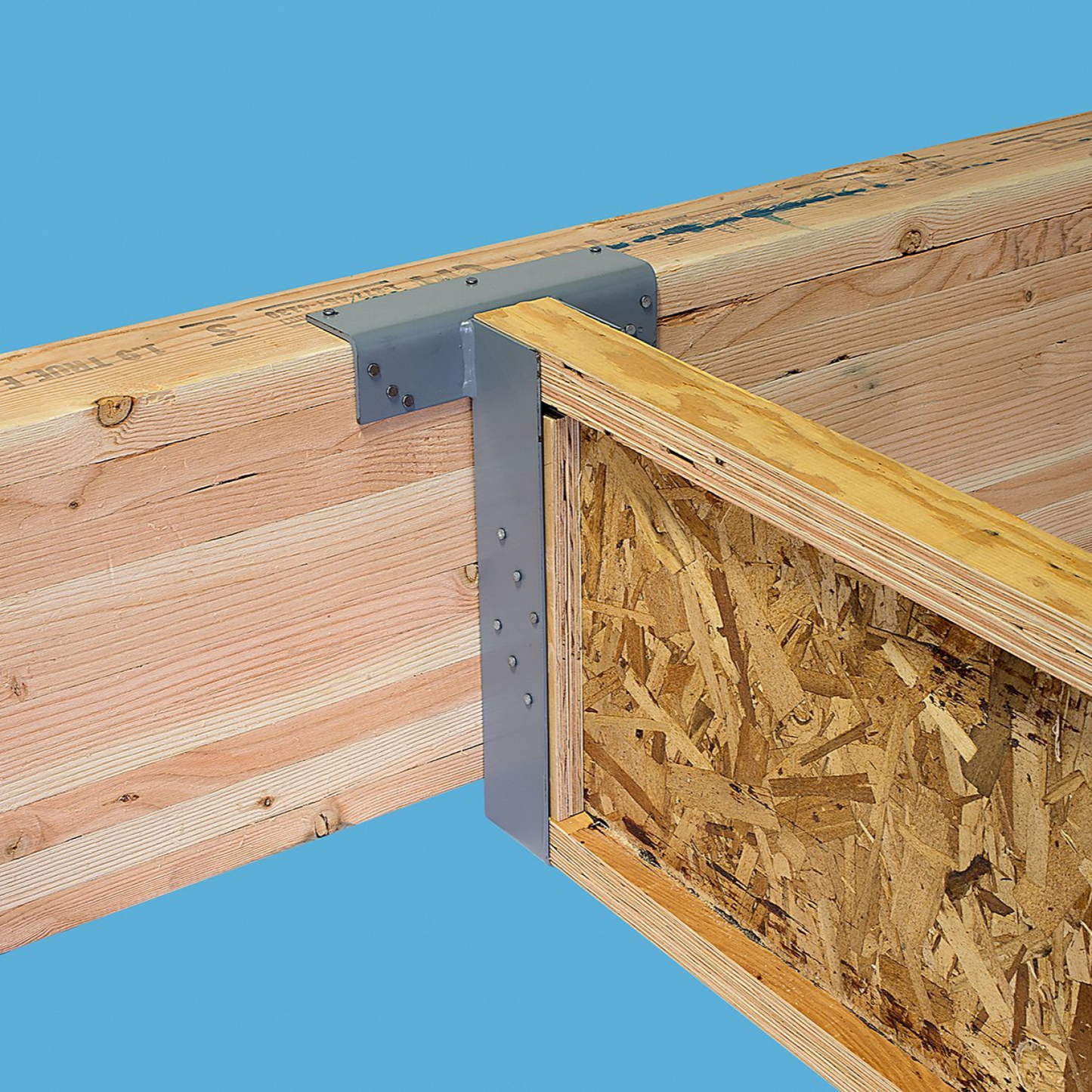

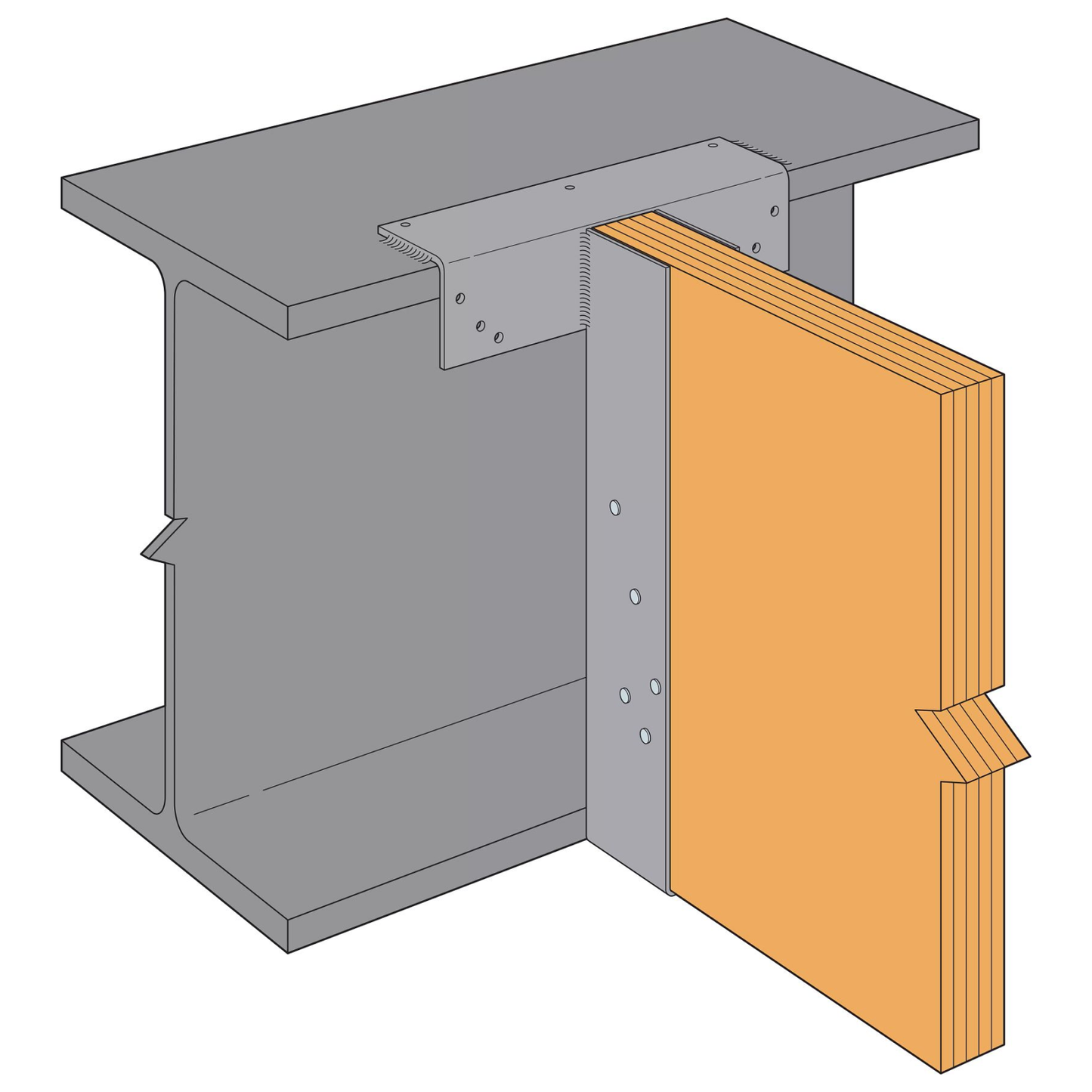

The HWP is designed to support joists on purlins or beams in both wood and cold-formed steel construction. This top-flange hanger has enhanced uplift and is ideal for high-wind applications. The HWP offers design flexibility and versatility in supporting trusses off of wood or steel and can have a sloped and/or skewed seat up to 45°.

Installation:

  • Use all Specified Fasteners
  • Modifiable with alteration options including opened/closed top-flange and offset top-flange
  • Top flange may be sloped to a maximum of 35° to accommodate a sloped header
  • Features a solid one-piece top flange that provides extra stability in panelized roof applications

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
