Shop more LSU/LSSU Adjustable Light Slopeable/Skewable I Joist Hangers
SKU: LSU5.12
Simpson LSU5.12 Adjustable Rafter Hanger - G90 Galvanized
Simpson LSU5.12 Adjustable Rafter Hanger - G90 Galvanized
No reviews
Regular price
$89.93
Sale price
$89.93
Regular price
Unit price
/
per
0% off
Ships Apr 29 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.
Description:
Description:

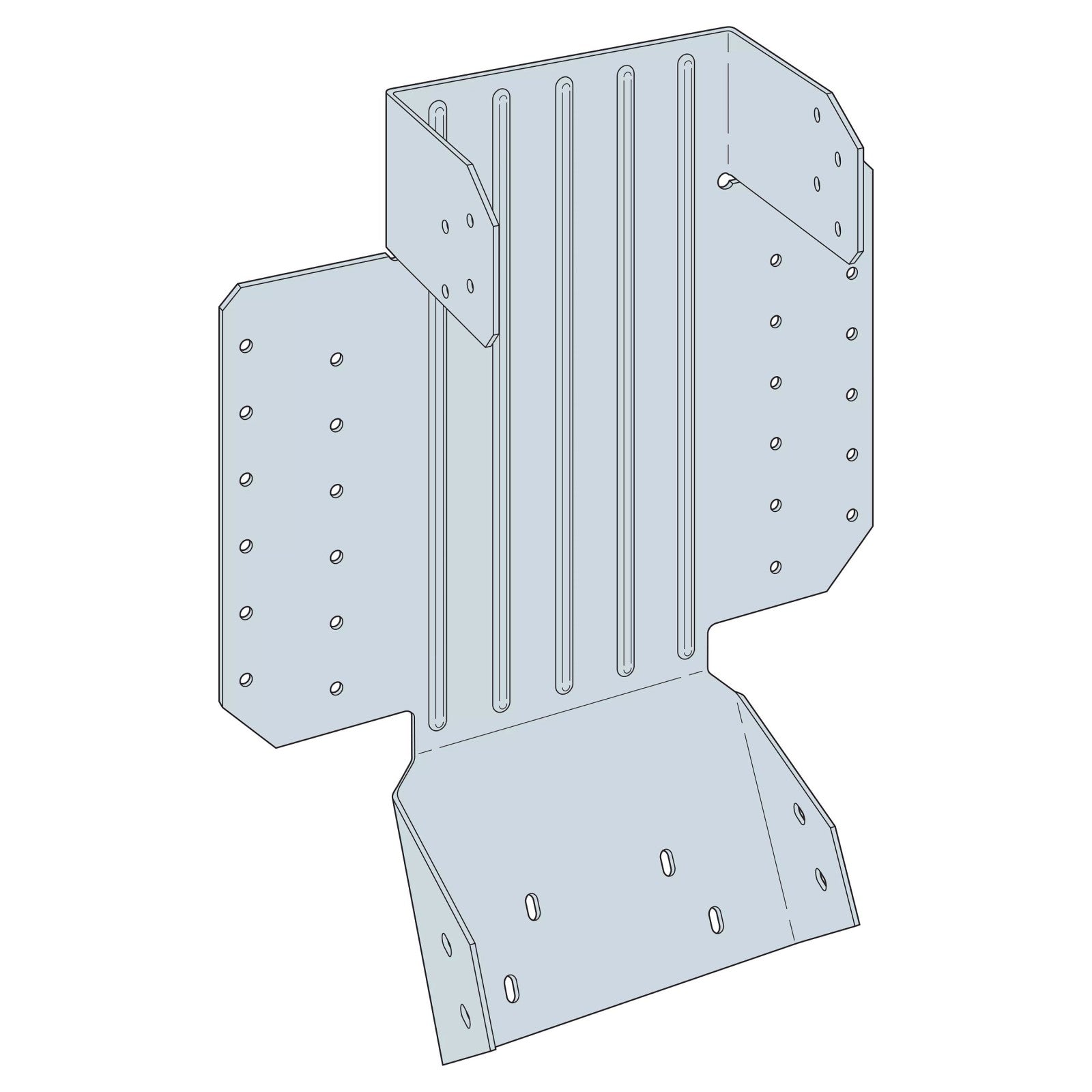

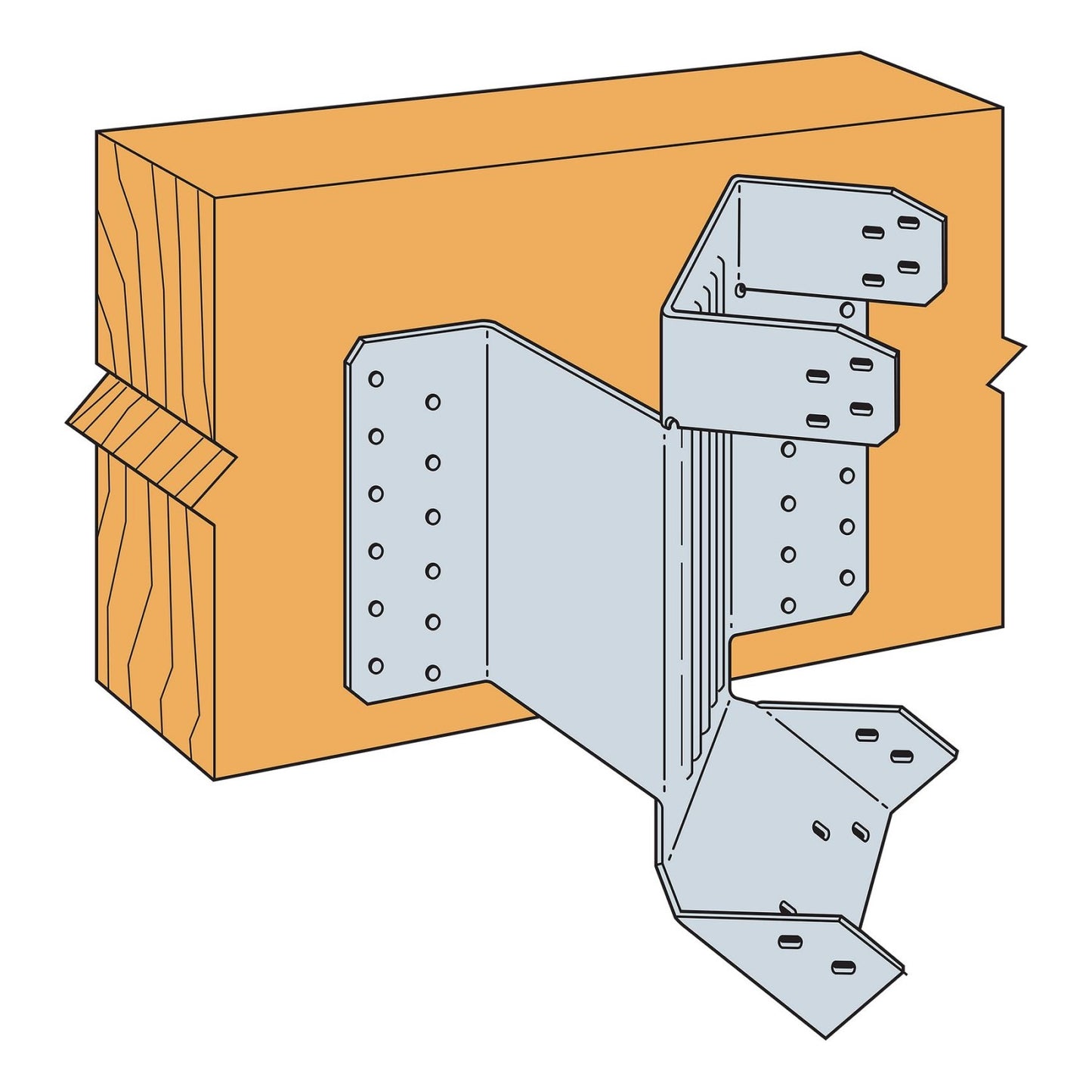

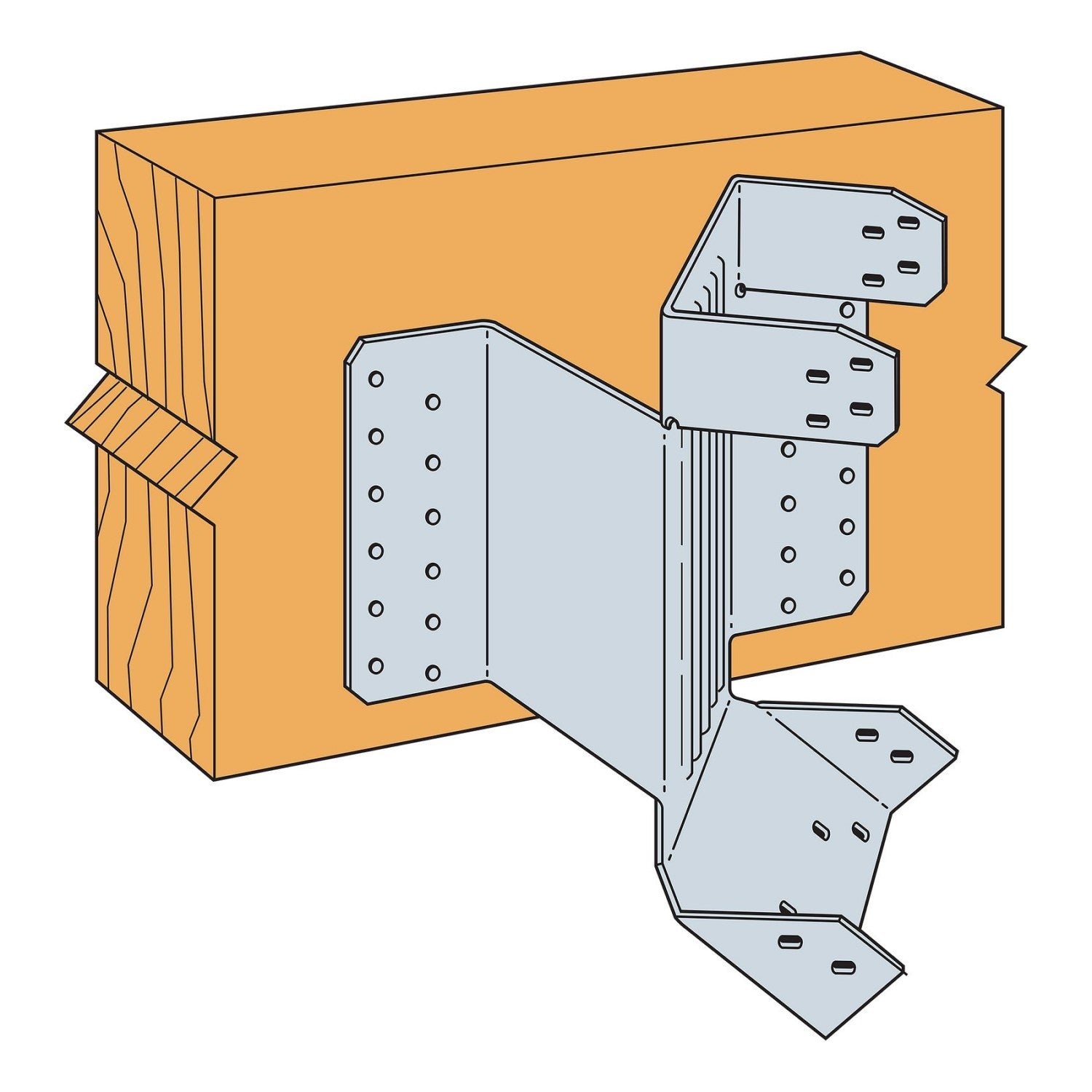

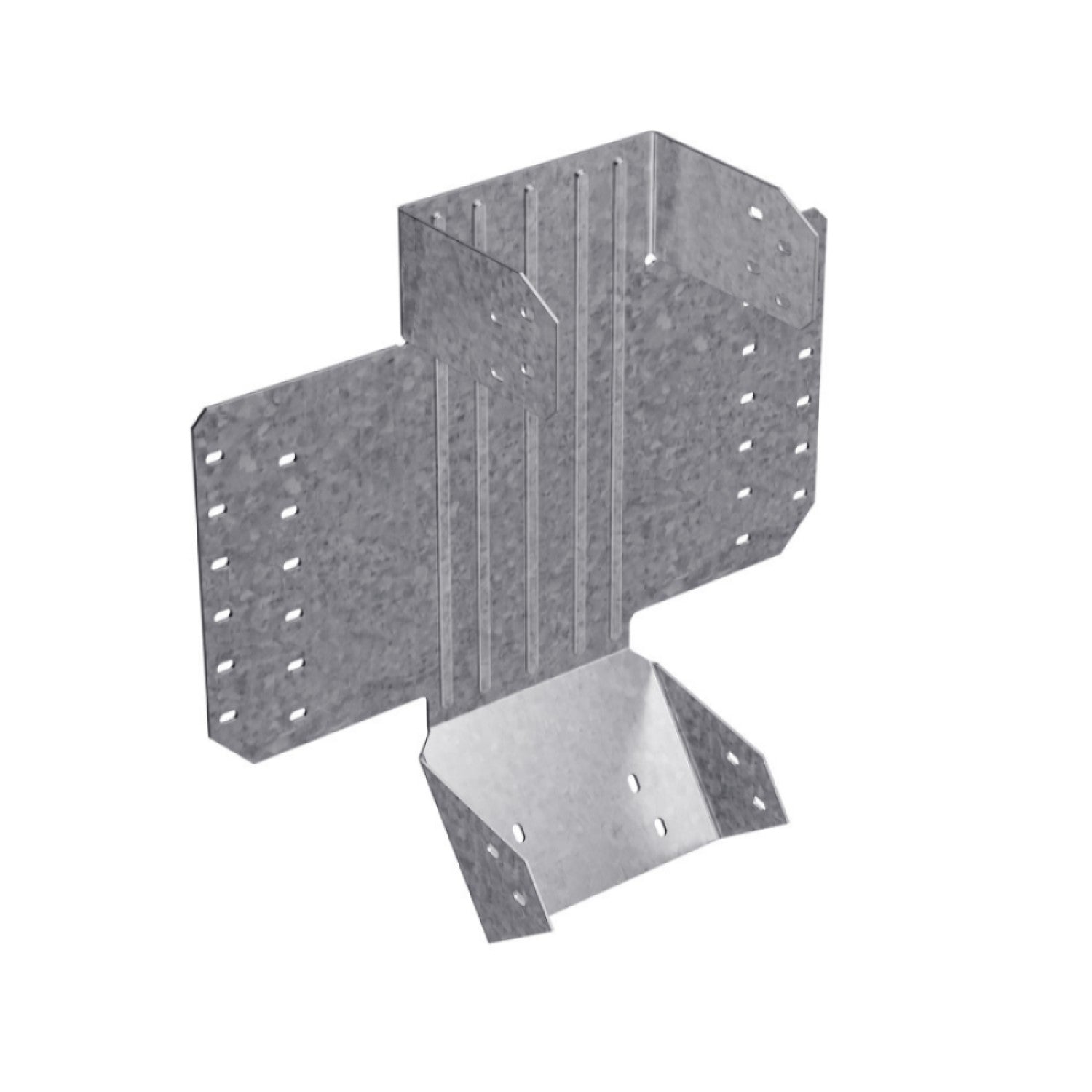

The LSU series attaches double joists or rafters to headers, sloped up or down, and skewed left or right, up to 45°. This product is preferable to similar connectors because of easier installation, higher loads, lower installed cost, or a combination of these features.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Material: Galvanized Steel
Height: 9"
Fasteners required: Face: (24) 0.162 X 3-1/2” Joist: (16) 0.148 X 1-1/2”
Thickness: 14 Gauge
Quantity: 1
Width: 5-1/8"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Height: 9"
Fasteners required: Face: (24) 0.162 X 3-1/2” Joist: (16) 0.148 X 1-1/2”
Thickness: 14 Gauge
Quantity: 1
Width: 5-1/8"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Features
Features
• Makes it possible to install after the rafters are already in place
• Web stiffeners required for I-joist applications
