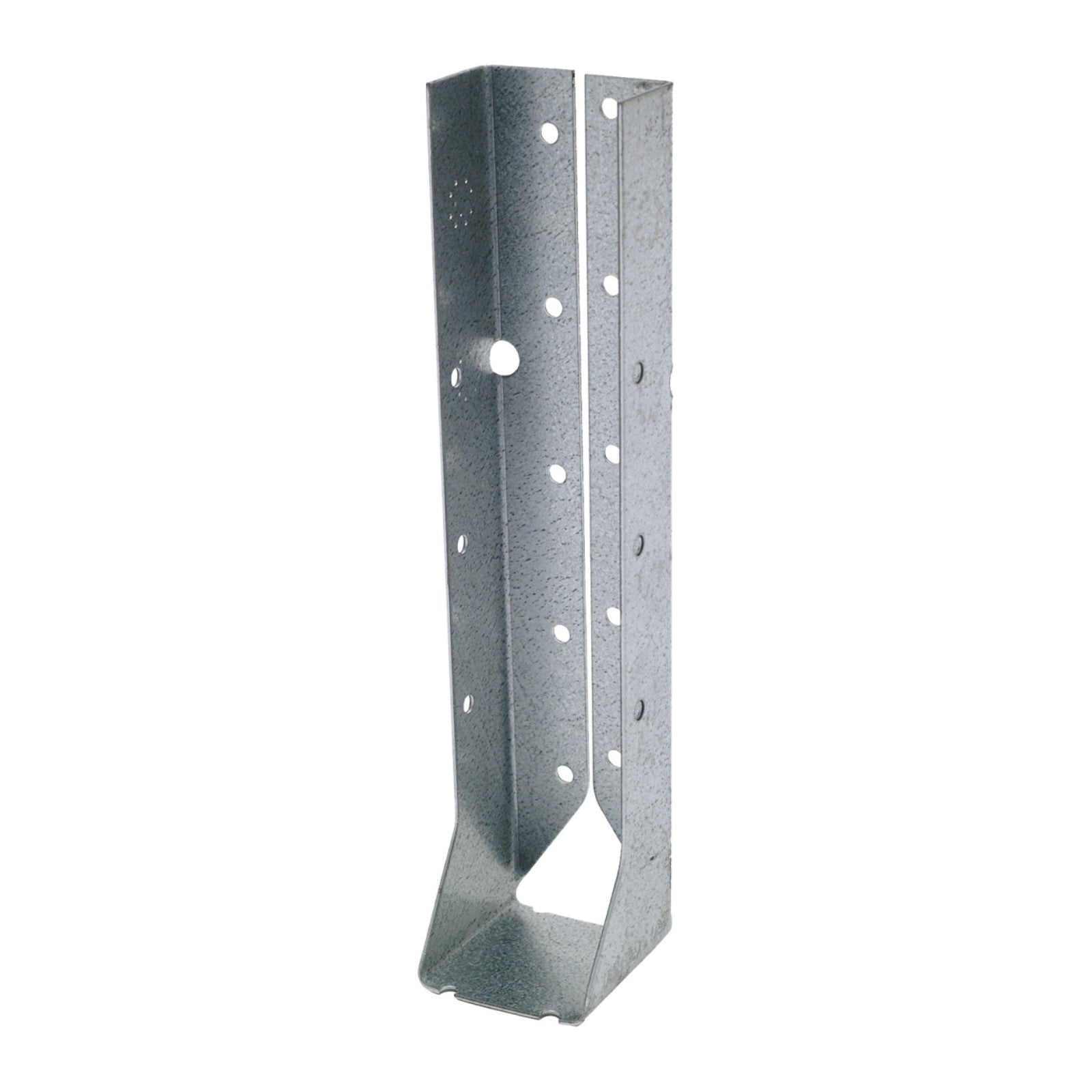

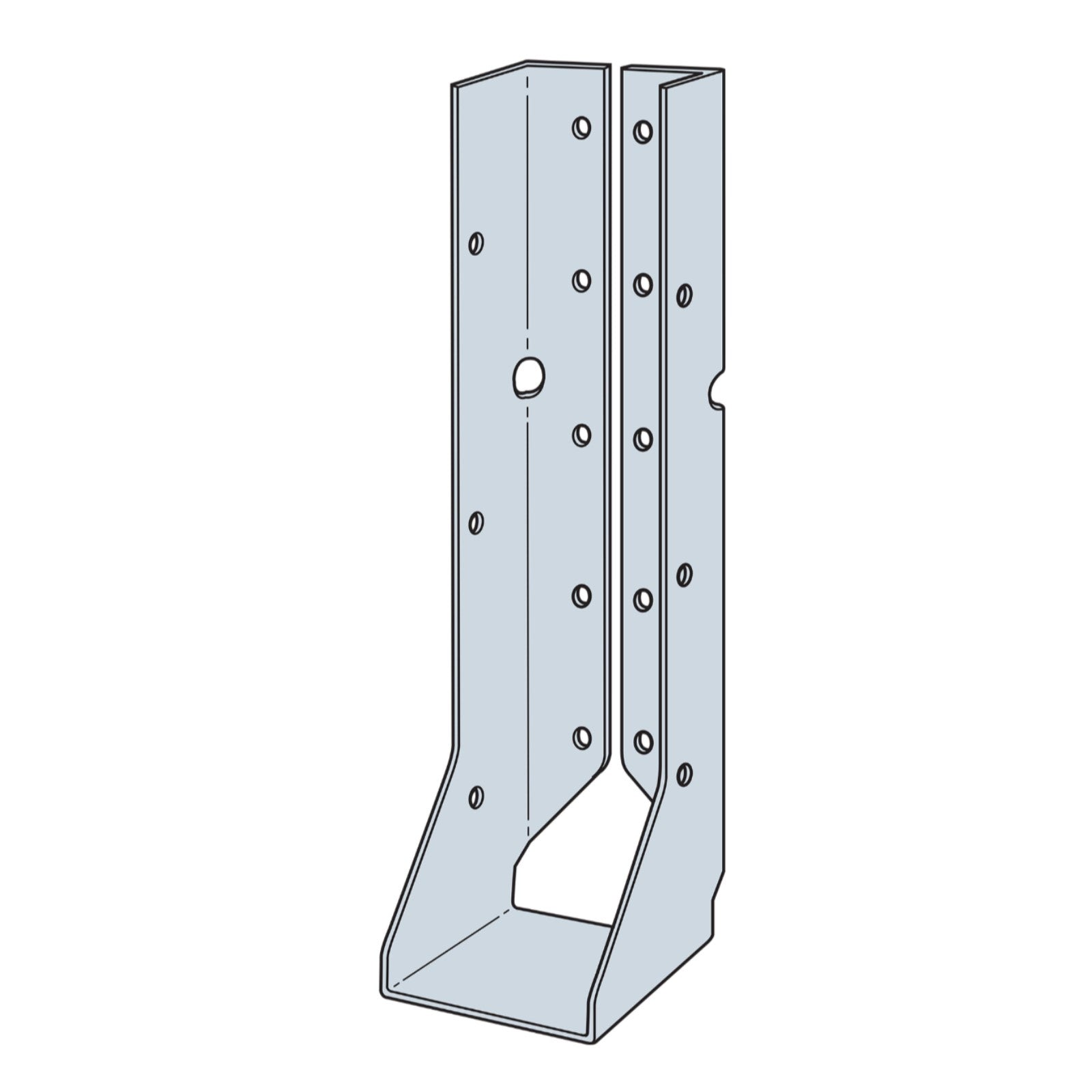

Simpson LUC210Z 2x10 Concealed Face Mount Hanger - Zmax Finish

SKU: LUC210Z

$2.73

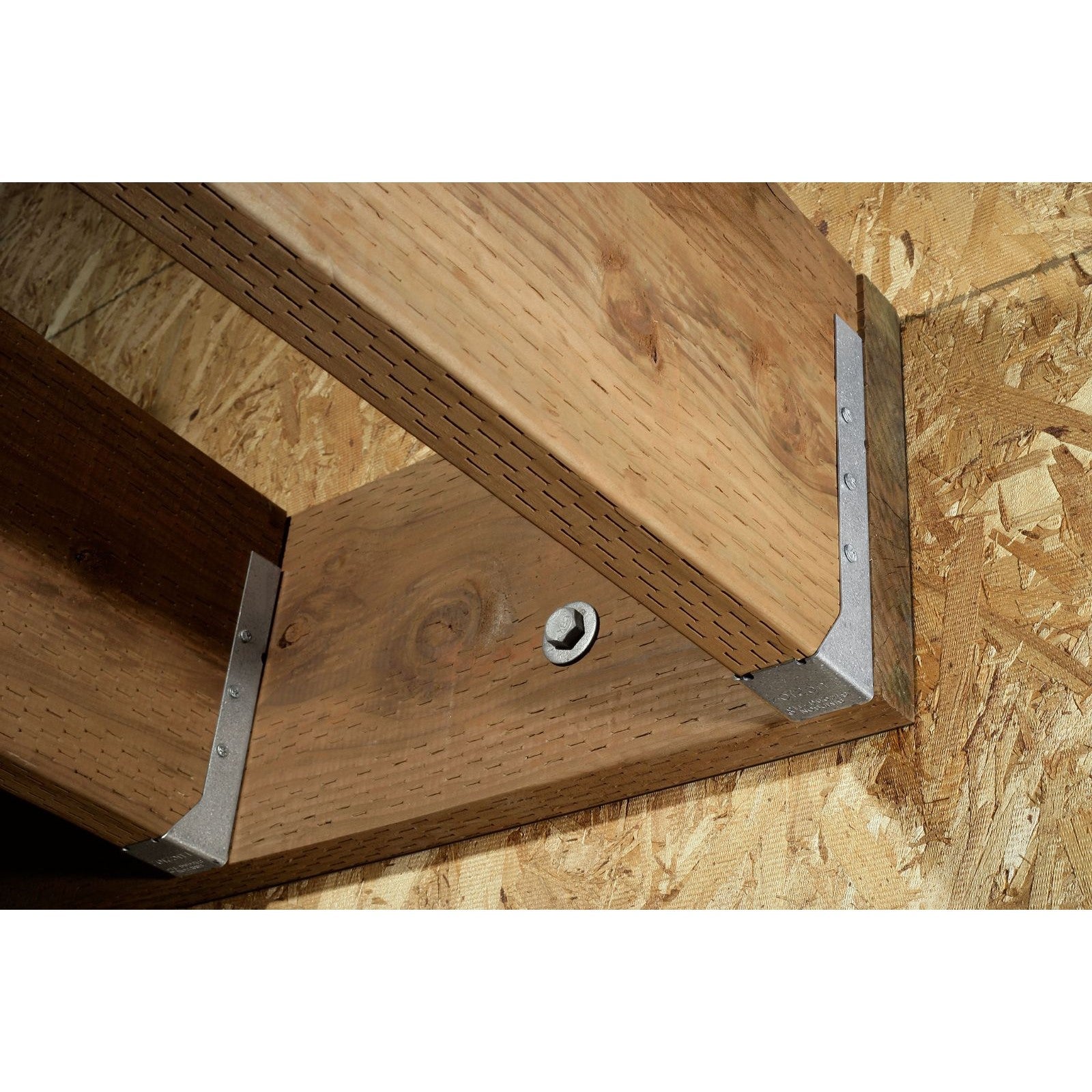

Simpson Strong-Tie LUC hangers are the concealed flange version of the LU joist hanger. Concealed flange hangers have the face flanges turned in for a clean finished look when installed. The Strong-Tie LUC210Z concealed flange hanger features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Joists sloped up to 1/4:12 achieve load tables.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie LUC hangers are the concealed flange version of the LU joist hanger. Concealed flange hangers have the face flanges turned in fo...

Read More

Simpson Strong-Tie LUC hangers are the concealed flange version of the LU joist hanger. Concealed flange hangers have the face flanges turned in for a clean finished look when installed. The Strong-Tie LUC210Z concealed flange hanger features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

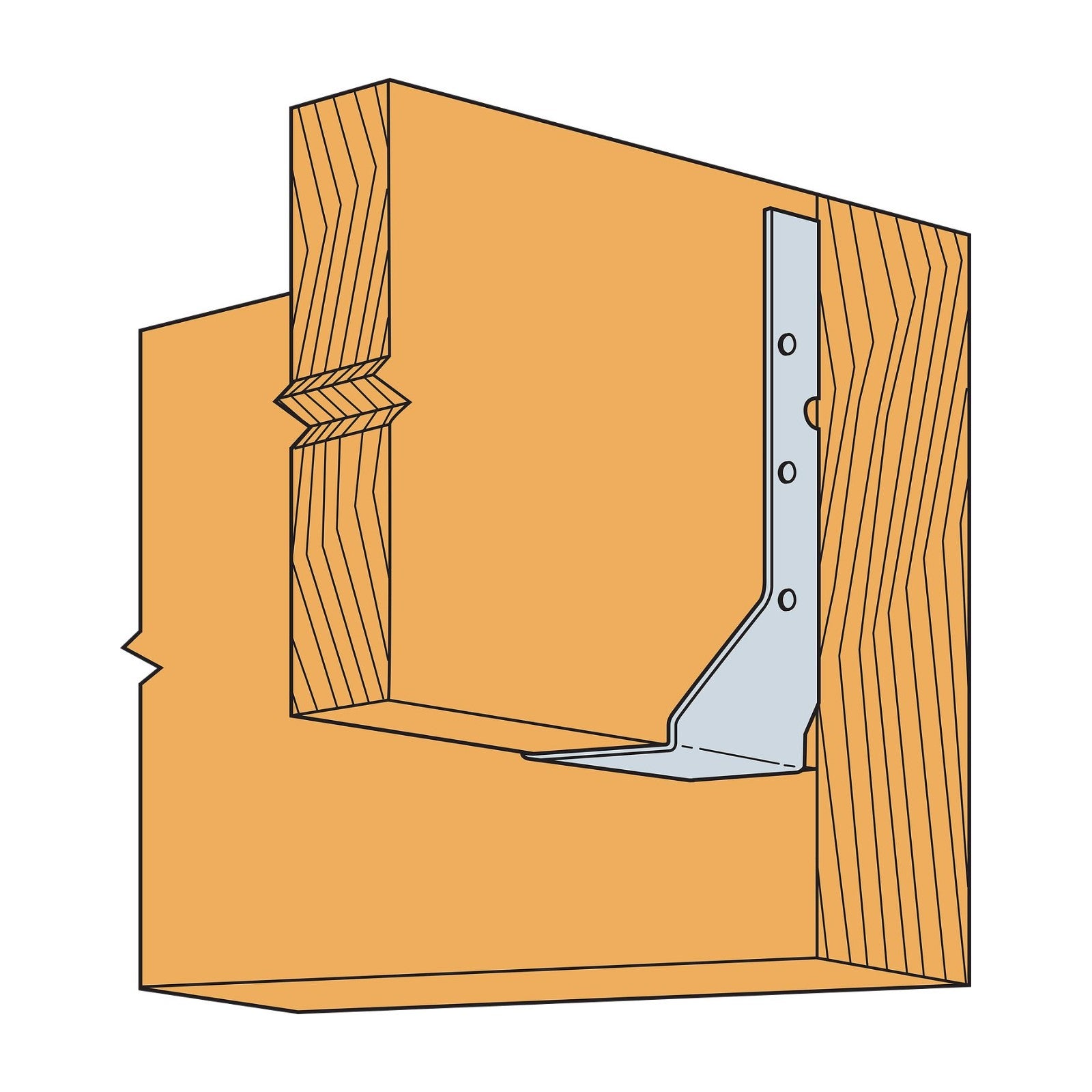

Installation:
  • Use all specified fasteners.
  • Joists sloped up to 1/4:12 achieve load tables.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
Header - (10) 0.162" x 3-1/2" Nails Joist - (6) 0.148" x 1-1/2" Nails

Finish Spec:
ZMAX

Manufacturer Name:
Simpson Strong-Tie

For Treated Lumber:
yes

Height:
7-3/4"

Joist Size:
2X10

Product Guide Document:
Face_Mount_Hangers_Load_Table_for_Solid-Sawn_Lumber.pdf

Thickness:
18 Gauge

Width Spec:
1-9/16"

Product Guide:
