SKU: LUS210-2SS

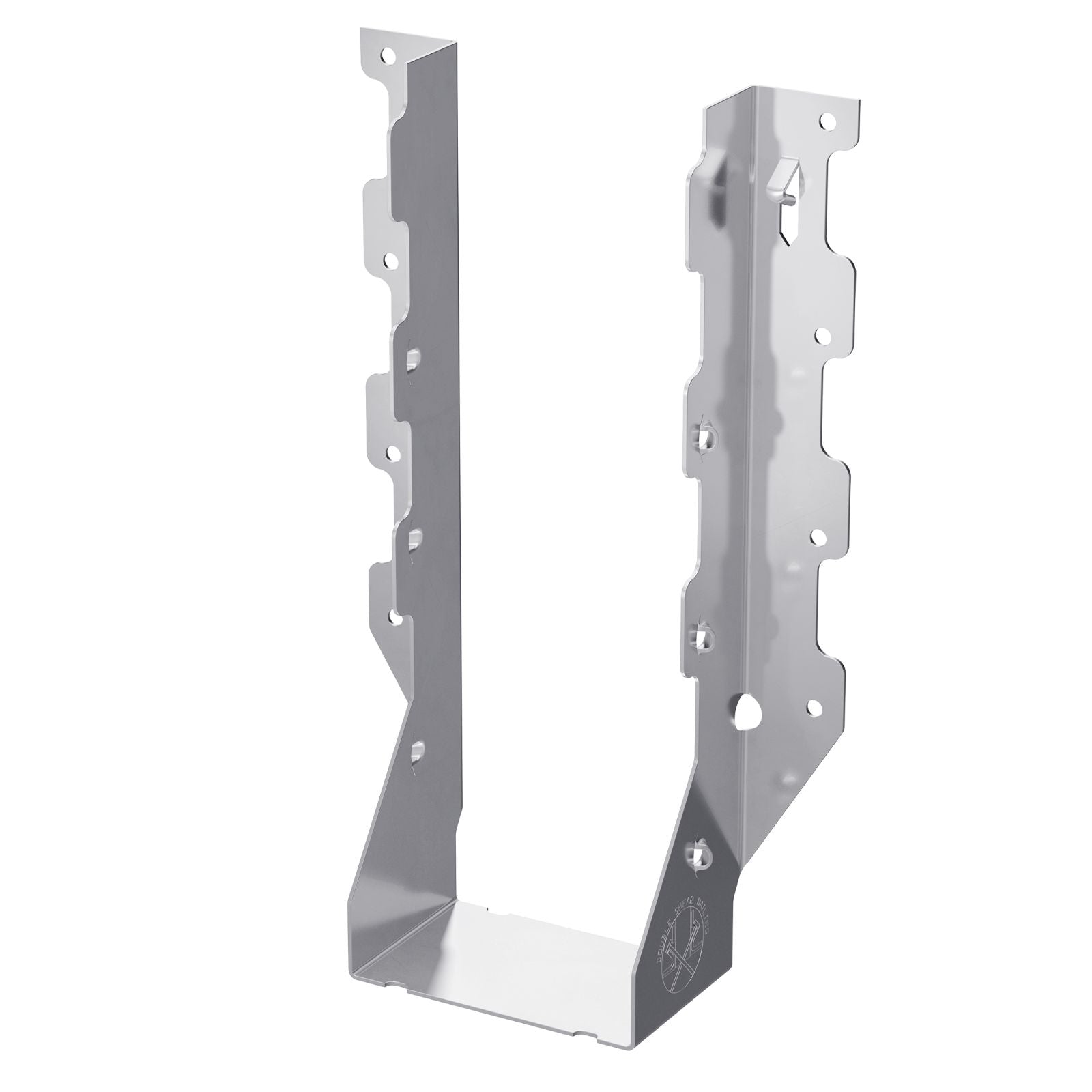

Simpson LUS210-2SS Double 2x10 Face Mount Hanger - Stainless Steel

Simpson LUS210-2SS Double 2x10 Face Mount Hanger - Stainless Steel!

Skip to product information
1 of 3

Continue Browsing

LUS Joist Hangers

$23.19

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 12 when you add 9 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Stainless Steel
Fasteners required: Header - (8) 0.162 x 3-1/2" Nails Joist - (6) 0.162 x 3-1/2" Nails
For Treated Lumber: Yes
Height: 9"
Joist size: Double 2X10
Manufacturer name: Simpson Strong-Tie
Width: 3-1/8"
Description

Simpson Strong-Tie LUS hangers are a light capacity joist hanger that utilize double shear nailing for added strength. This innovation distributes the load through two points on each joist nail for greater strength. It also allows the use of fewer nails, faster installation, and the use of standard nails for all connections. The Strong-Tie LUS210-2SS face mount hanger is made out of 316L stainless steel and offers maximum corrosion resistance in harsh exterior conditions.


Installation:
  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
  • Nails must be driven at an angle through the joist or truss into the header to achieve the table loads.
  • Not designed for welded or nailer applications.
  • 16d sinkers (0.148" dia. x 3 1/4" long) may be used where 10d commons are specified with no reduction in load. Where 16d commons are specified, 10d commons or 16d sinkers (0.148" dia. x 3 1/4" long) may be used at 0.85 of the table load.
  • With 2x carrying members, use 10d x 1 1/2" nails into the header and 10d commons into the joist, reduce the load to 0.64 of the table value.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
