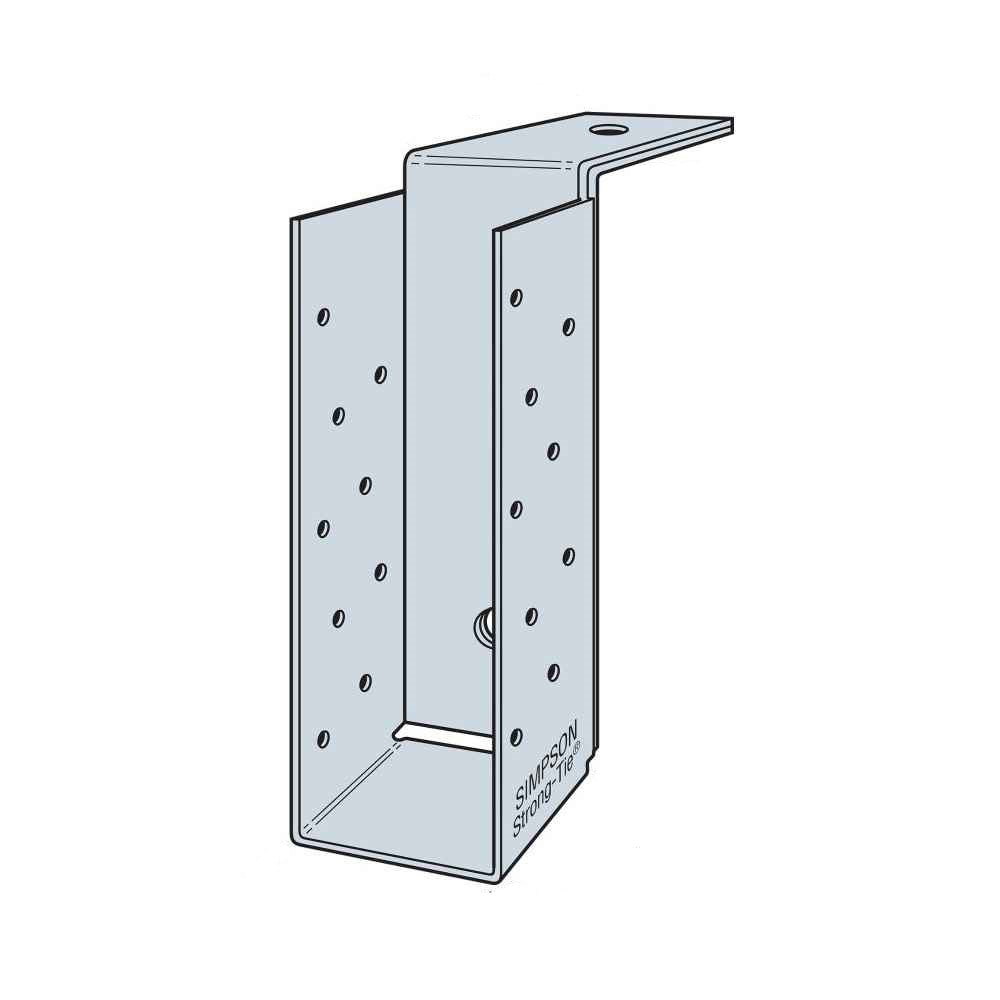

Simpson MBHAR3.56/14 Masonry Hanger - Skewed 45 Degrees Right

SKU: MBHAR3.56-14

$186.04
Made to Order
Standard Lead Time 2-3 days.

The MBHA is a single piece, non-welded connector available for solid sawn, truss and engineered wood products. The MBHA hangers feature a G90 galvanized coating which is not designed for use with treated lumber and should not be used for exterior applications.


  • Use all specified fasteners (included).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

The MBHA is a single piece, non-welded connector available for solid sawn, truss and engineered wood products. The MBHA hangers feature a G90 galva...

Read More

The MBHA is a single piece, non-welded connector available for solid sawn, truss and engineered wood products. The MBHA hangers feature a G90 galvanized coating which is not designed for use with treated lumber and should not be used for exterior applications.


  • Use all specified fasteners (included).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
Header - (2) All Thread Rod 3/4" Joist - (18) 0.148" x 3" Nails

For Treated Lumber:
no

Finish Spec:
G90 Galvanized

Height:
14"

Manufacturer Name:
Simpson Strong-Tie

Thickness:
10 Gauge

Product Guide:

Read More

Show Less
