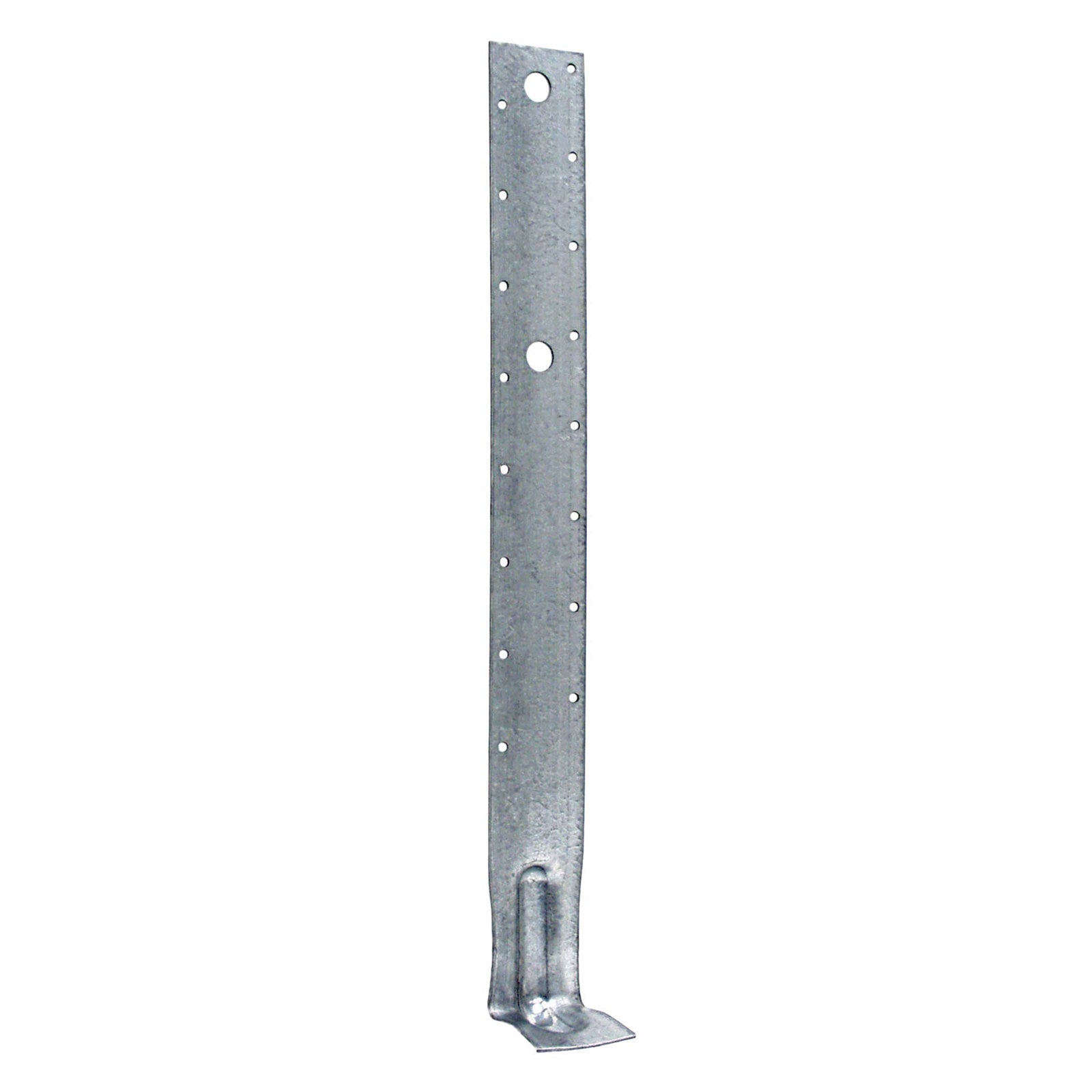

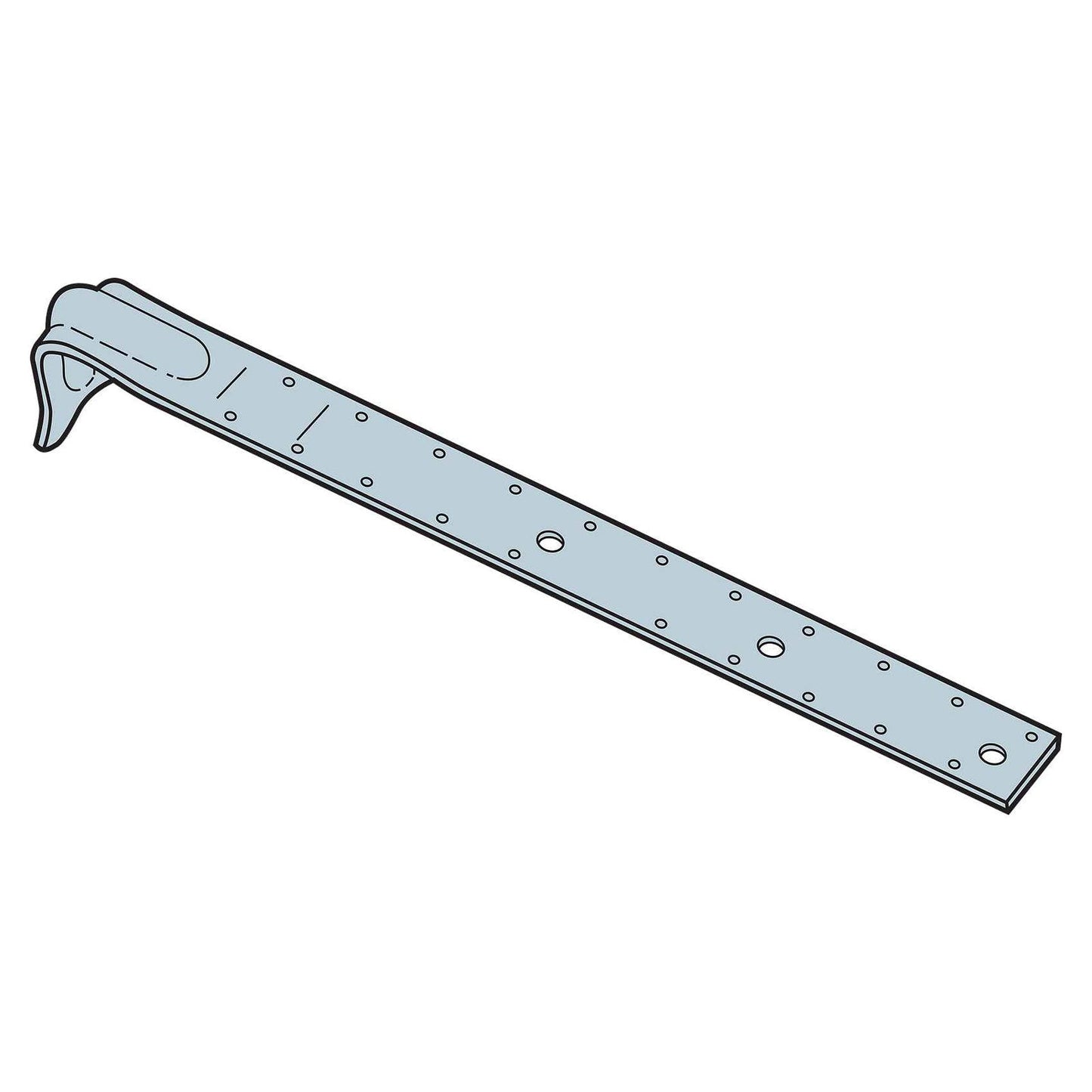

Simpson PA23HDG Purlin Anchor - Hot Dip Galvanized
Simpson PA23HDG Purlin Anchor - Hot Dip Galvanized
Description:
Description:
Simpson Strong-Tie PA23HDG purlin anchors offer solutions for wood-to-concrete and concrete-block connections which satisfy code requirements. The PA's dual-embedment line allows installation in concrete or concrete block.
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: SEE PRODUCT GUIDE DOCUMENT
Thickness: 12 Gauge
Quantity: 1
Width: 2-1/16"
Finish: Hot Dip Galvanized
Length: 23-3/4"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Features
Features
•Minimum embedment line indicators for both concrete and masonry installations
•Nailing pattern optimized for narrow face of nominal 3x or double 2x wood member
•Low design profile minimizes visibility
Installation
Installation
• Use all specified fasteners; some models have extra fastener holes. See General Notes.
• Purlin anchor must hook around rebar.
• Allowable loads are for a horizontal installation into the side of a concrete or masonry wall.
• Strap may be bent one full cycle (bent vertical 90å¡ then bent horizontal).
• PA51/PA68 for additional length, an MST strap can be attached using 1/2" bolts through existing holes.
• Refer to technical bulletin PA Foundation Straps for Uplift Resistance (T-PAUPLIFT) for additional information.
