Simpson PBV6 6" Hidden Standoff Post Base - G90 Galvanized
Simpson PBV6 6" Hidden Standoff Post Base - G90 Galvanized
Description:
Description:

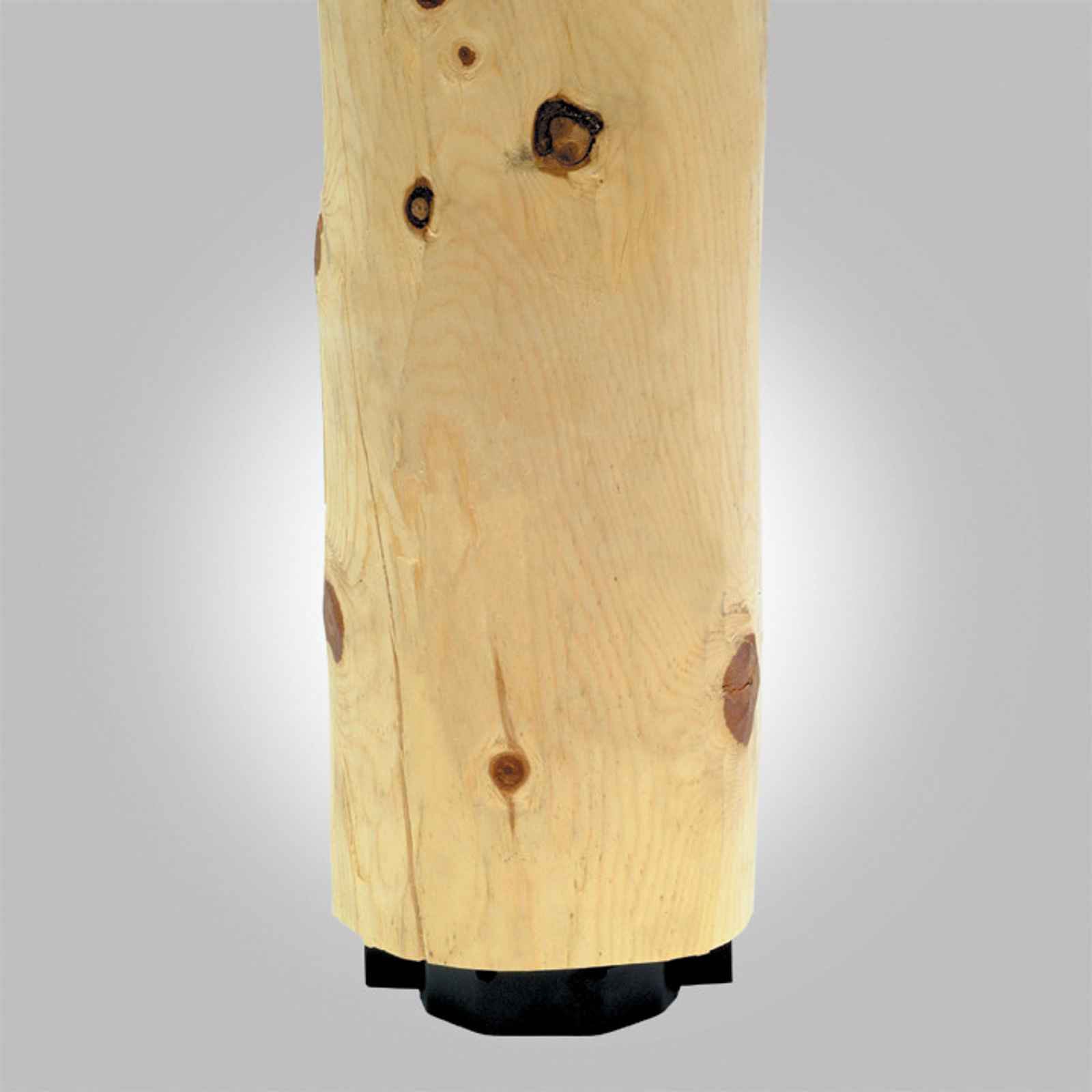

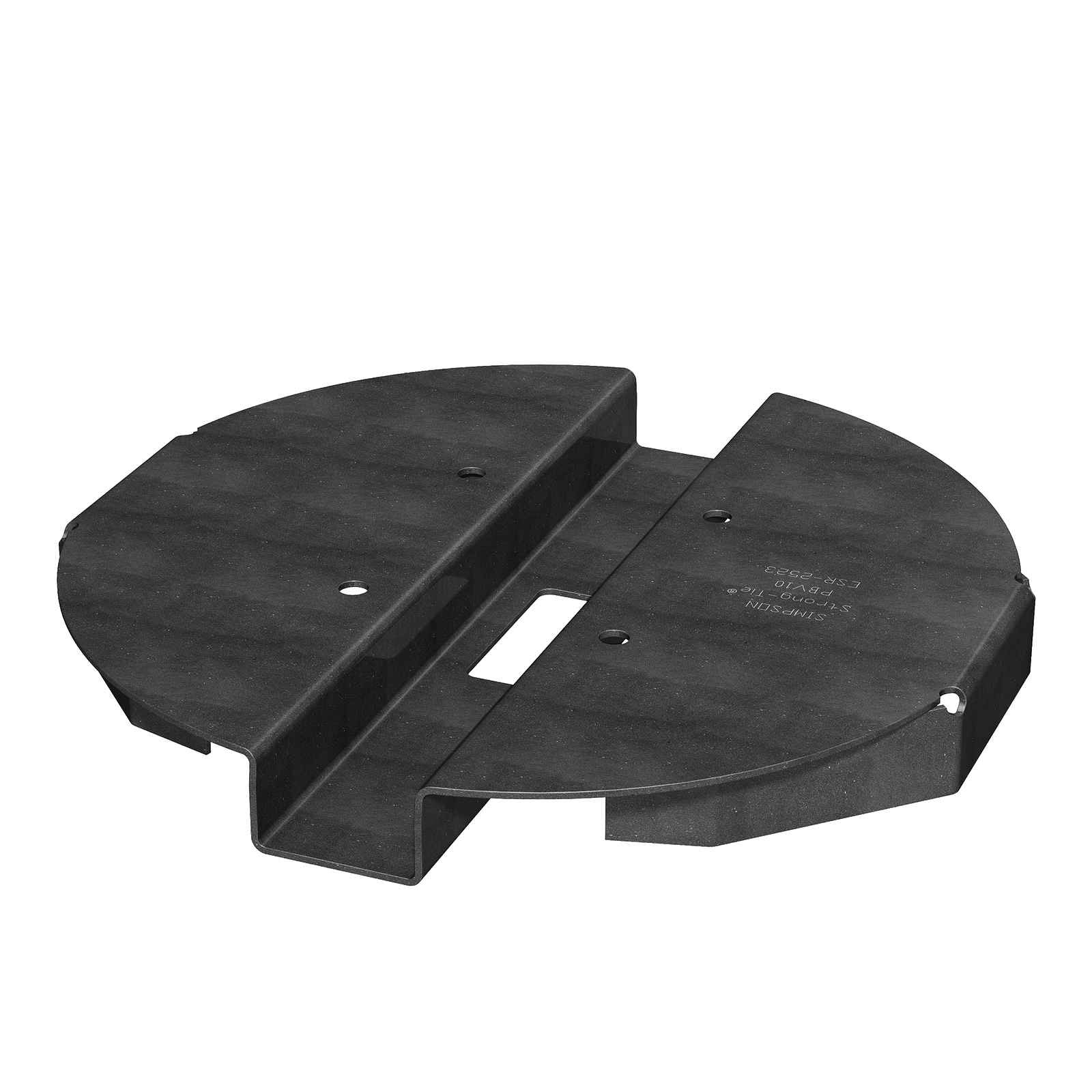

The Simpson Strong-Tie PBV post base is designed to make a hidden connection between viga posts and concrete. This circular hidden-standoff post base comes in two different sizes for a variety of post shapes. It attaches to concrete with threaded rod and epoxy to the bottom of the viga post with Strong-Drive® SDS Heavy-Duty Connector screws. The PBV6 post base features a G90 Galvanized finish which produces a much more durable than standard paint.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Post Size: 6"
Height: 1"
Fasteners required: (4) 1/4" x 3" SDS
Thickness: 14 Gauge
Quantity: 1
Finish: G90 Galvanized
Length: 5-1/4"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Features
Features
•Round shape to match viga-style posts
•Black powder-coated finish
•1" standoff to help prevent rot at the end of the pos
Installation
Installation
• Drill a 3/4" diameter hole, 10" into the center of the post.
• Clean out dust. Fill hole halfway with Simpson Strong-Tie SET epoxy anchoring adhesive.
• Insert all-thread rod and allow epoxy to set and cure.
• Secure standoff to post using four 10d nails except PBV which uses four Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws.
Concrete:
• Drill a 3/4" diameter hole per anchor design.
• Clean out dust. Fill hole halfway with Simpson Strong-Tie SET epoxy anchoring adhesive.
• Insert post subassembly into hole and allow epoxy to set and cure.
• Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).
