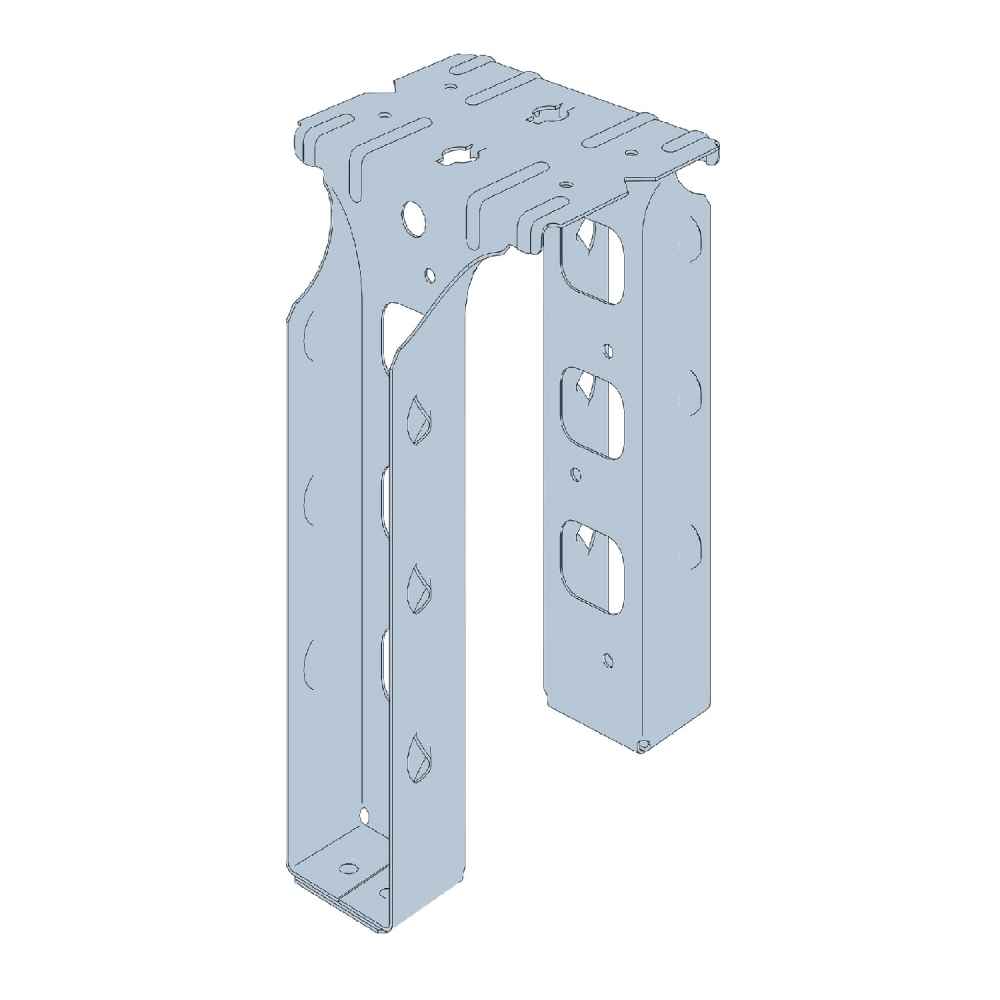

Simpson PFDS28B 2x8 Post Frame Double Saddle Hanger - G90 Galvanized

SKU: PFDS28B

$7.51

Simpson Strong-Tie PF/PFB/PFDB hangers have a patented double-shear nailing system. The PF series hangers can accommodate collated nails as well as 10d common purlin nails. The Strong-Tie PFDS28B post frame hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • 10d common purlin nails must be driven at an angle through the purlin into the header.
  • Combine with top nails to achieve table loads

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie PF/PFB/PFDB hangers have a patented double-shear nailing system. The PF series hangers can accommodate collated nails as well as...

Read More

Simpson Strong-Tie PF/PFB/PFDB hangers have a patented double-shear nailing system. The PF series hangers can accommodate collated nails as well as 10d common purlin nails. The Strong-Tie PFDS28B post frame hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • 10d common purlin nails must be driven at an angle through the purlin into the header.
  • Combine with top nails to achieve table loads

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
SEE PRODUCT GUIDE DOCUMENT

Finish Spec:
G90 Galvanized

Manufacturer Name:
Simpson Strong-Tie

For Treated Lumber:
no

Height:
7-1/8"

Joist Size:
2X8

Thickness:
20 Gauge

Product Guide:

Read More

Show Less
