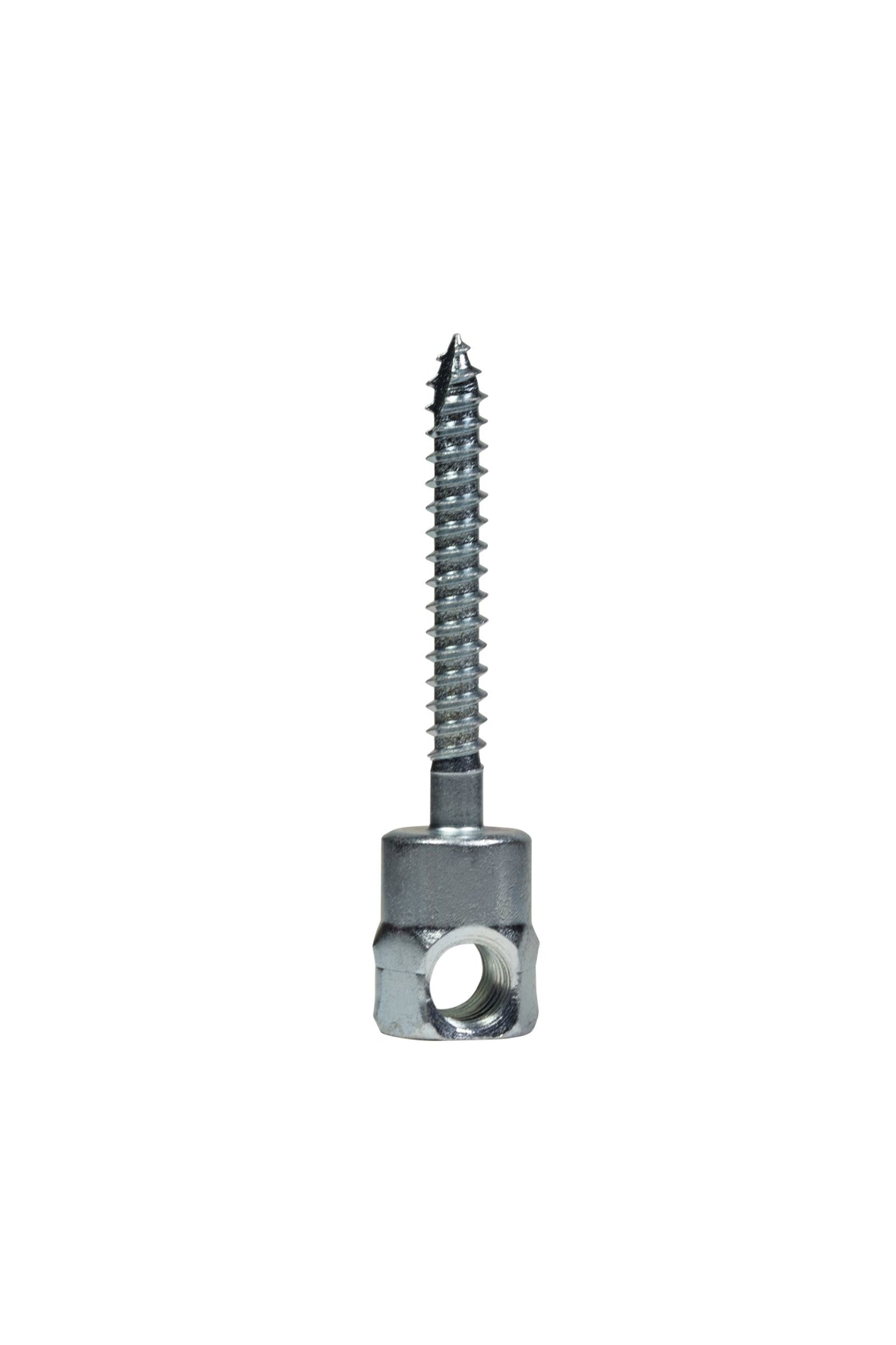

Simpson RWH37212 3/8" Horizontal Wood Rod Hanger - Zinc, Pkg 25

SKU: RWH37212
$23.17
The wood rod hanger from Simpson Strong-Tie is a one-piece fastening system for suspending 1/4" or 3/8" threaded rod. Horizontal rod hangers are available for applications requiring installation into the side of joists, columns and overhead members. The rod hanger provides attachment points for use in pipe hanging, fire protection, electrical conduit and cable-tray applications. The Type-17 point style allows for easy installation with a drill or screw gun and requires no predrilling. Recommended for use in dry, interior, non-corrosive environments only.
Installation:
  • Attach RND62 nut driver to a drill.
  • Insert rod hanger into the RND62 nut driver.
  • Using rotation-only mode, drive rod hanger until it contacts the surface. Do not over-tighten. RND62 nut driver will disengage the rod hanger at the appropriate depth to prevent over-driving.
  • Insert threaded rod. Minimum thread engagement should be equal to the nominal diameter of the threaded insert.

  • California Residents: WARNING

The wood rod hanger from Simpson Strong-Tie is a one-piece fastening system for suspending 1/4" or 3/8" threaded rod. Horizontal rod hangers are avail...

Read More

The wood rod hanger from Simpson Strong-Tie is a one-piece fastening system for suspending 1/4" or 3/8" threaded rod. Horizontal rod hangers are available for applications requiring installation into the side of joists, columns and overhead members. The rod hanger provides attachment points for use in pipe hanging, fire protection, electrical conduit and cable-tray applications. The Type-17 point style allows for easy installation with a drill or screw gun and requires no predrilling. Recommended for use in dry, interior, non-corrosive environments only.
Installation:
  • Attach RND62 nut driver to a drill.
  • Insert rod hanger into the RND62 nut driver.
  • Using rotation-only mode, drive rod hanger until it contacts the surface. Do not over-tighten. RND62 nut driver will disengage the rod hanger at the appropriate depth to prevent over-driving.
  • Insert threaded rod. Minimum thread engagement should be equal to the nominal diameter of the threaded insert.

  • California Residents: WARNING

Show Less

finish spec:
Zinc

length spec:
2-1/2"

manufacturer name:
Simpson Strong-Tie

accepts rod size:
3/8"

diameter:
5/16"

for treated lumber:
yes

material:
Carbon Steel

point type:
Type 17

type:
Horizontal

Product Spec Sheet:
