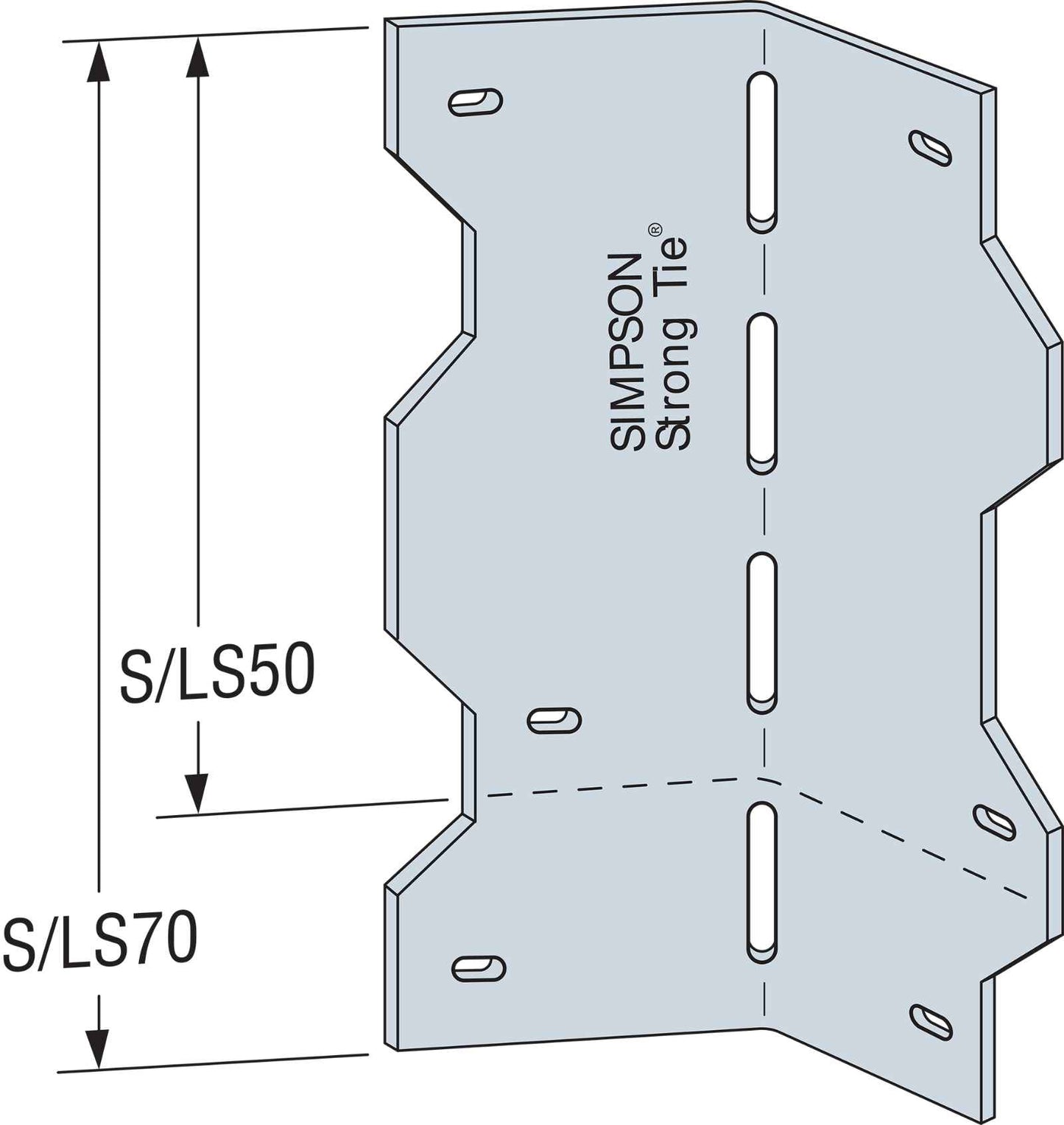

Simpson S/LS50 Simpson S/LS50 Light Gauge Steel Reinforcing Angle - G90 Galvanized

SKU: S-LS50

$2.70

L, LS, and S/LS angles are load-rated, providing the correct thickness and number of fasteners for the specifier compared with field-fabricated clip angles. These angles also have well-defined fastener locations, and testing ensures that the tabulated load values account for connection eccentricities. The connectors are general utility reinforcing angles with multiple uses. S/LS and LS connectors are skewable and can be used to attached members intersecting at angles.


Installation:
  • Use all specified fasteners.
  • S/LS and LS—field-skewable; bend one time only.
  • CFS framing must be constrained against rotation when using a single S/LS or LS per connection.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

L, LS, and S/LS angles are load-rated, providing the correct thickness and number of fasteners for the specifier compared with field-fabricated cli...

Read More

L, LS, and S/LS angles are load-rated, providing the correct thickness and number of fasteners for the specifier compared with field-fabricated clip angles. These angles also have well-defined fastener locations, and testing ensures that the tabulated load values account for connection eccentricities. The connectors are general utility reinforcing angles with multiple uses. S/LS and LS connectors are skewable and can be used to attached members intersecting at angles.


Installation:
  • Use all specified fasteners.
  • S/LS and LS—field-skewable; bend one time only.
  • CFS framing must be constrained against rotation when using a single S/LS or LS per connection.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Finish Spec:
G90 Galvanized

Length Spec:
4-7/8"

Manufacturer Name:
Simpson Strong-Tie

Thickness:
43 mil (18 ga.)

Product Guide:

Read More

Show Less
