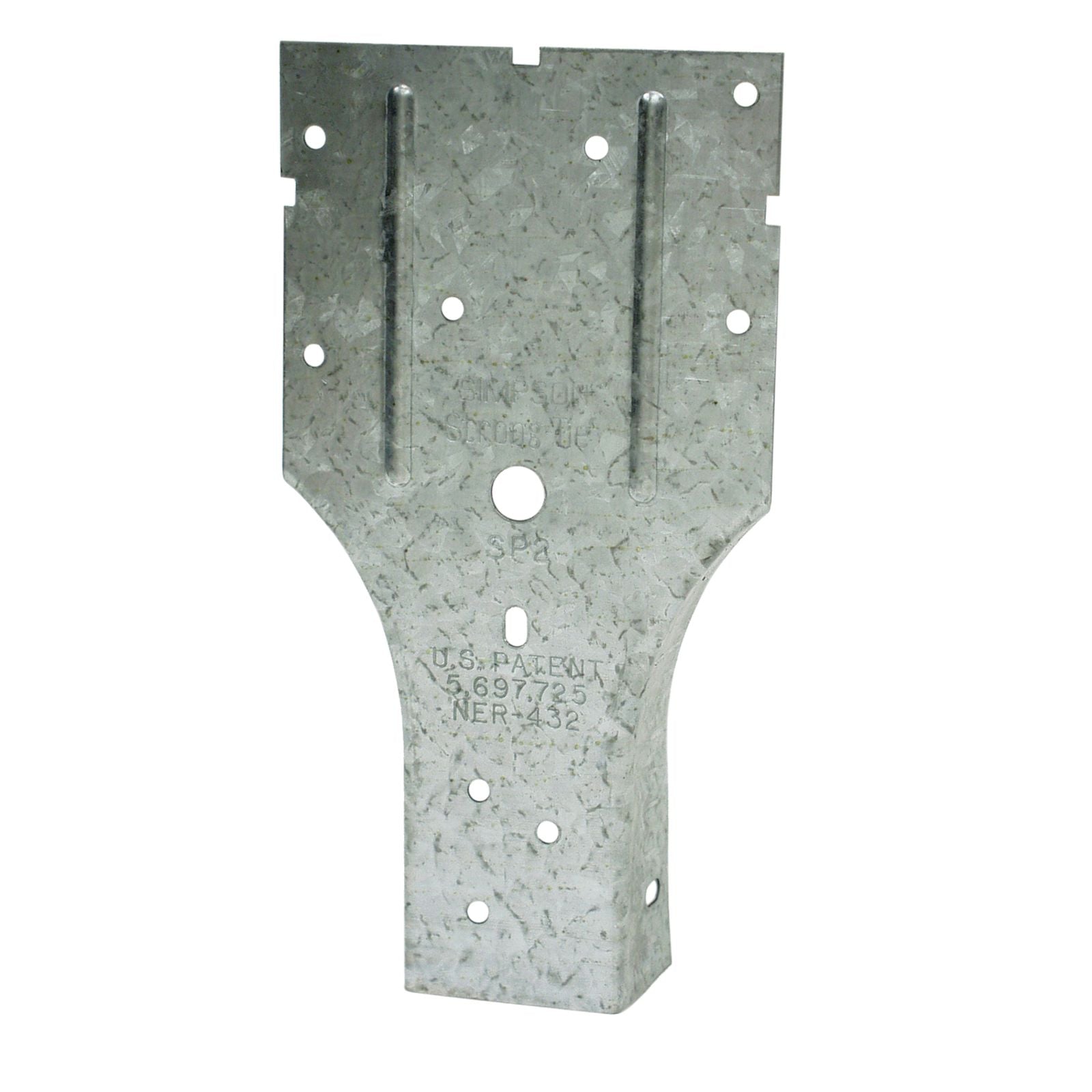

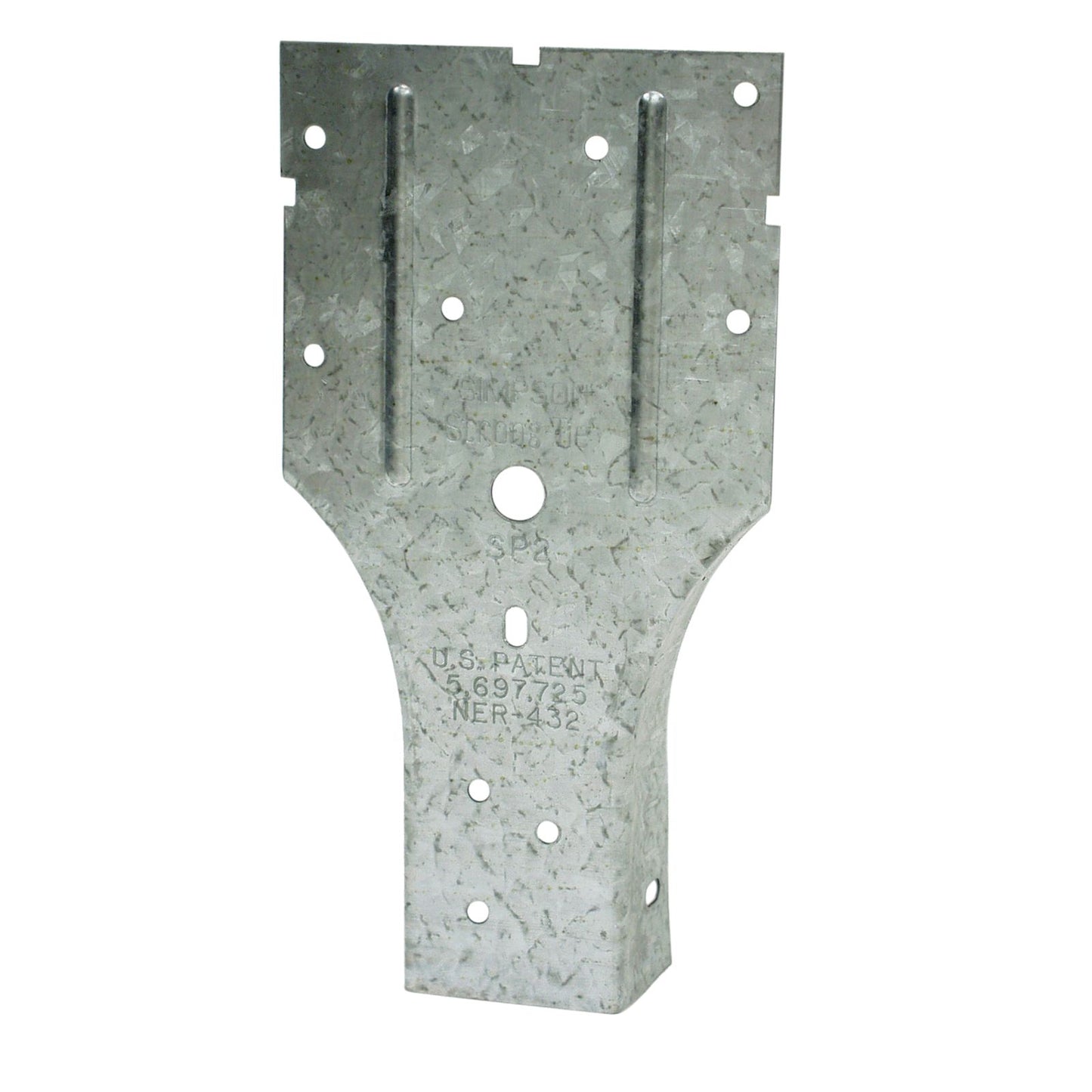

Simpson SP2Z 3-1/2" X 6-5/8" Stud Plate Tie - ZMAX Finish

SKU: SP2Z
$2.40

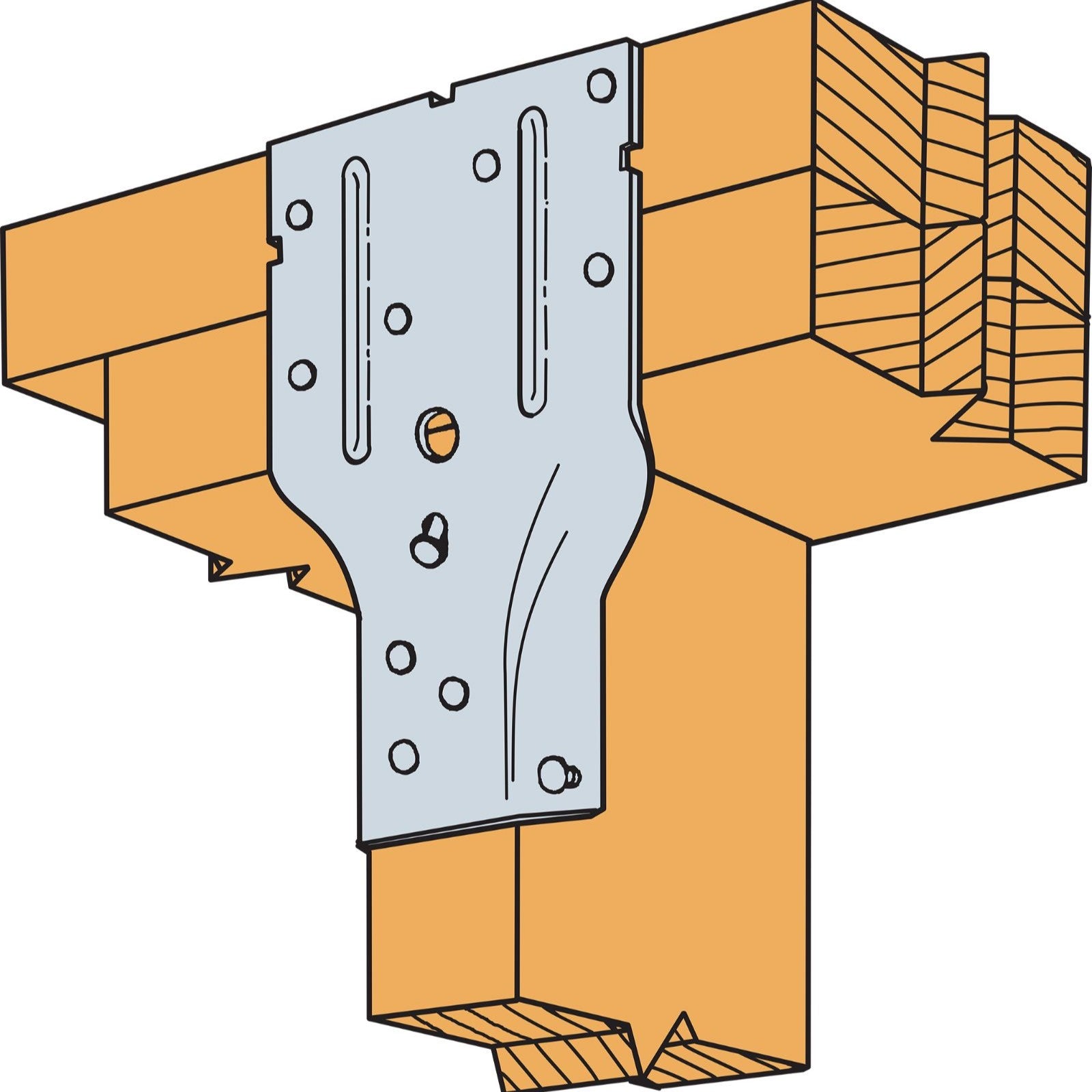

The SP stud plate tie is a plate-to-stud connection providing uplift resistance. Ideal for connecting studs plates at a ninety degree angle to provide additional support and strength. Stud plate ties are suitable for windy environments as the reinforced stud plates are protected from being pulled apart by high winds from hurricanes, tornados, etc. This unit attaches the stud to double top or double bottom plates stud for a low profile finish.
Installation:
  • Use all specified fasteners; see General Notes
  • SP1/SP2 — one of the 0.148" x 3" stud nails is driven at a 45° angle through the stud into the plate

  • California Residents: WARNING

The SP stud plate tie is a plate-to-stud connection providing uplift resistance. Ideal for connecting studs plates at a ninety degree angle to provide...

Read More

The SP stud plate tie is a plate-to-stud connection providing uplift resistance. Ideal for connecting studs plates at a ninety degree angle to provide additional support and strength. Stud plate ties are suitable for windy environments as the reinforced stud plates are protected from being pulled apart by high winds from hurricanes, tornados, etc. This unit attaches the stud to double top or double bottom plates stud for a low profile finish.
Installation:
  • Use all specified fasteners; see General Notes
  • SP1/SP2 — one of the 0.148" x 3" stud nails is driven at a 45° angle through the stud into the plate

  • California Residents: WARNING

Show Less

finish spec:
ZMAX

length spec:
6-5/8"

manufacturer name:
Simpson Strong-Tie

fasteners required:
Stud - (6) 0.148" x 3" Nails
Plate - (6) 0.148" x 3" Nails

for treated lumber:
yes

material:
Carbon Steel

thickness:
20 Gauge

width spec:
3-1/2"

Product Spec Sheet:
