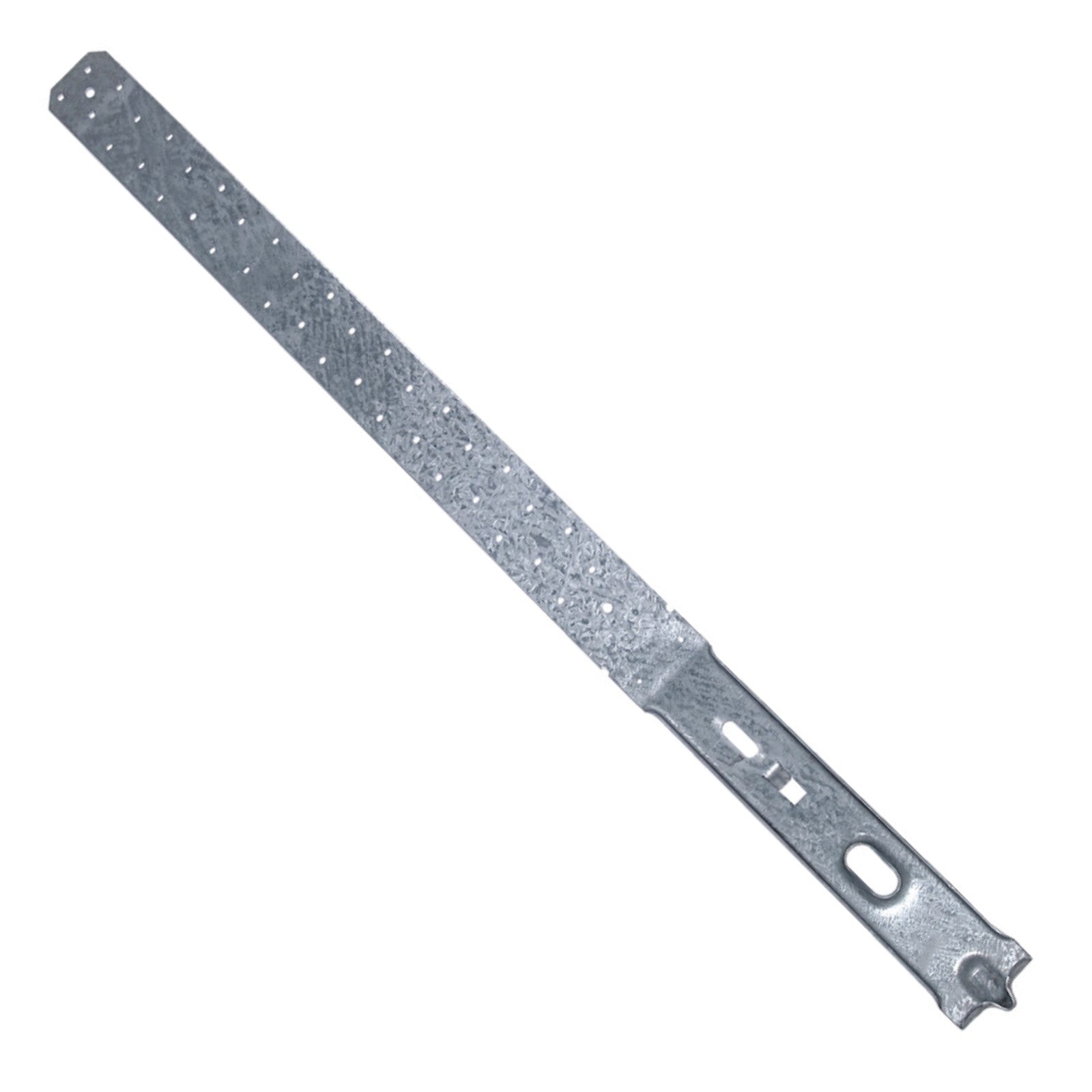

Simpson STHD10 24-5/8" Strap-Tie Holdown - Galvanized

SKU: STHD10
$14.03
The STHD is an embedded strap-tie holdown offering high loads and a staggered nail pattern to help minimize splitting. The STHD incorporates many features that aid correct installation and improve performance. When installed on the forms with the StrapMate® strap holder, the unique design of the STHD delivers enhanced stability before and during the pour to help prevent both parallel and perpendicular movement (relative to the form). This results in accurate positioning of the strap and reduced possibility of spalling. Front-to-back concrete bond is strengthened by the slots below the embedment line and also aids in reducing spalling.
Installation:
  • See General Notes for Holdowns and Tension Ties.
  • Use all specified fasteners; see General Notes.
  • Use tables for both standard concrete and post-tension slab installations.

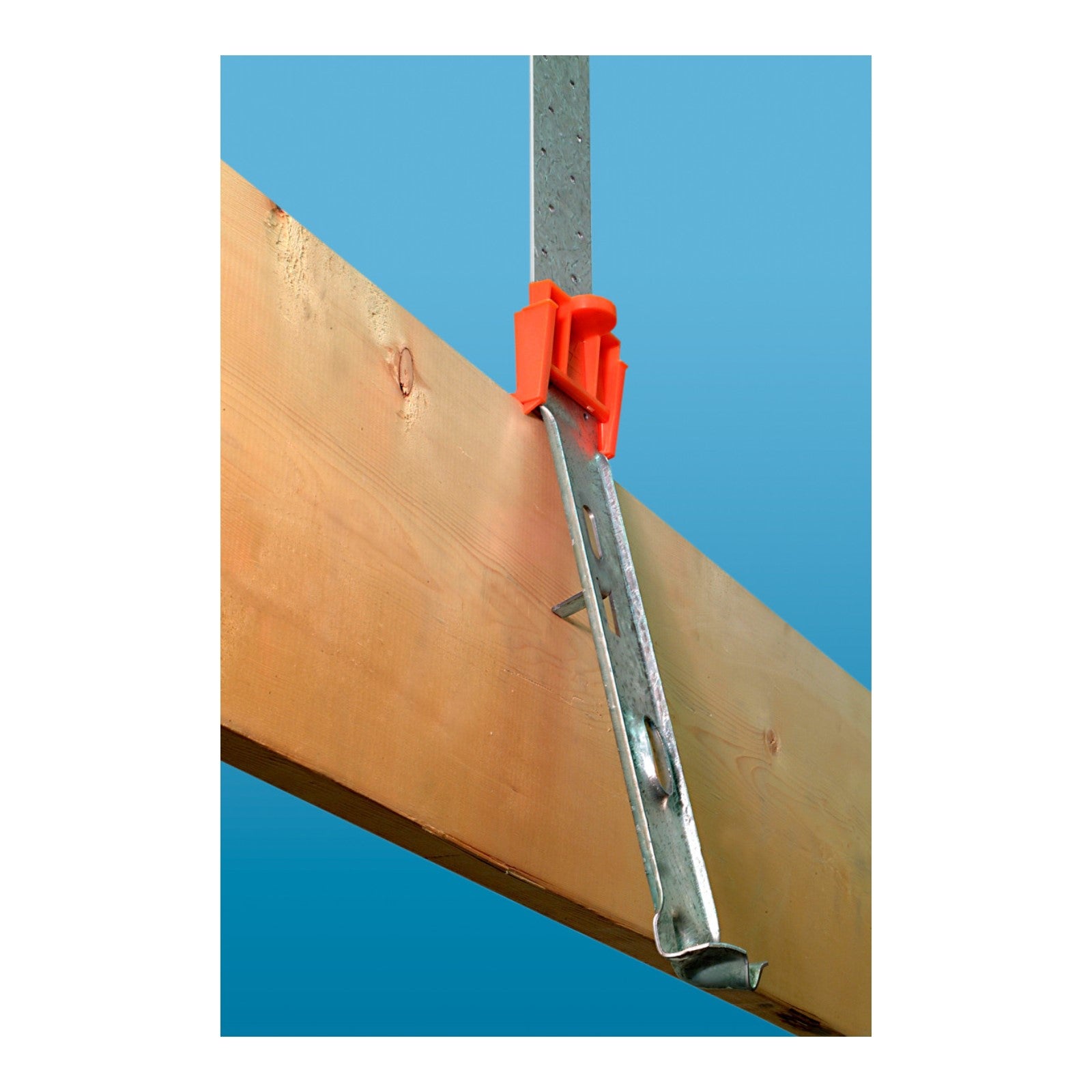

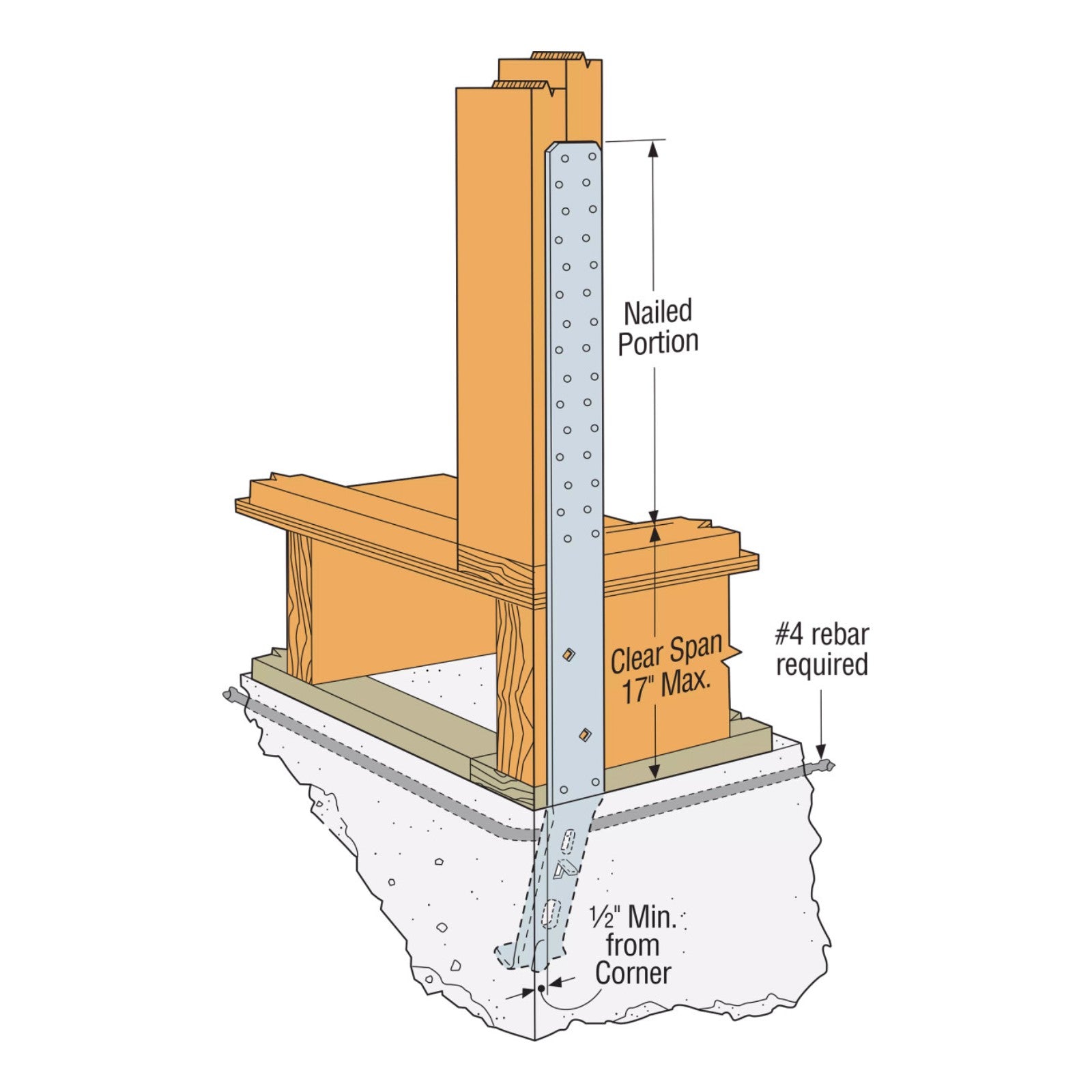

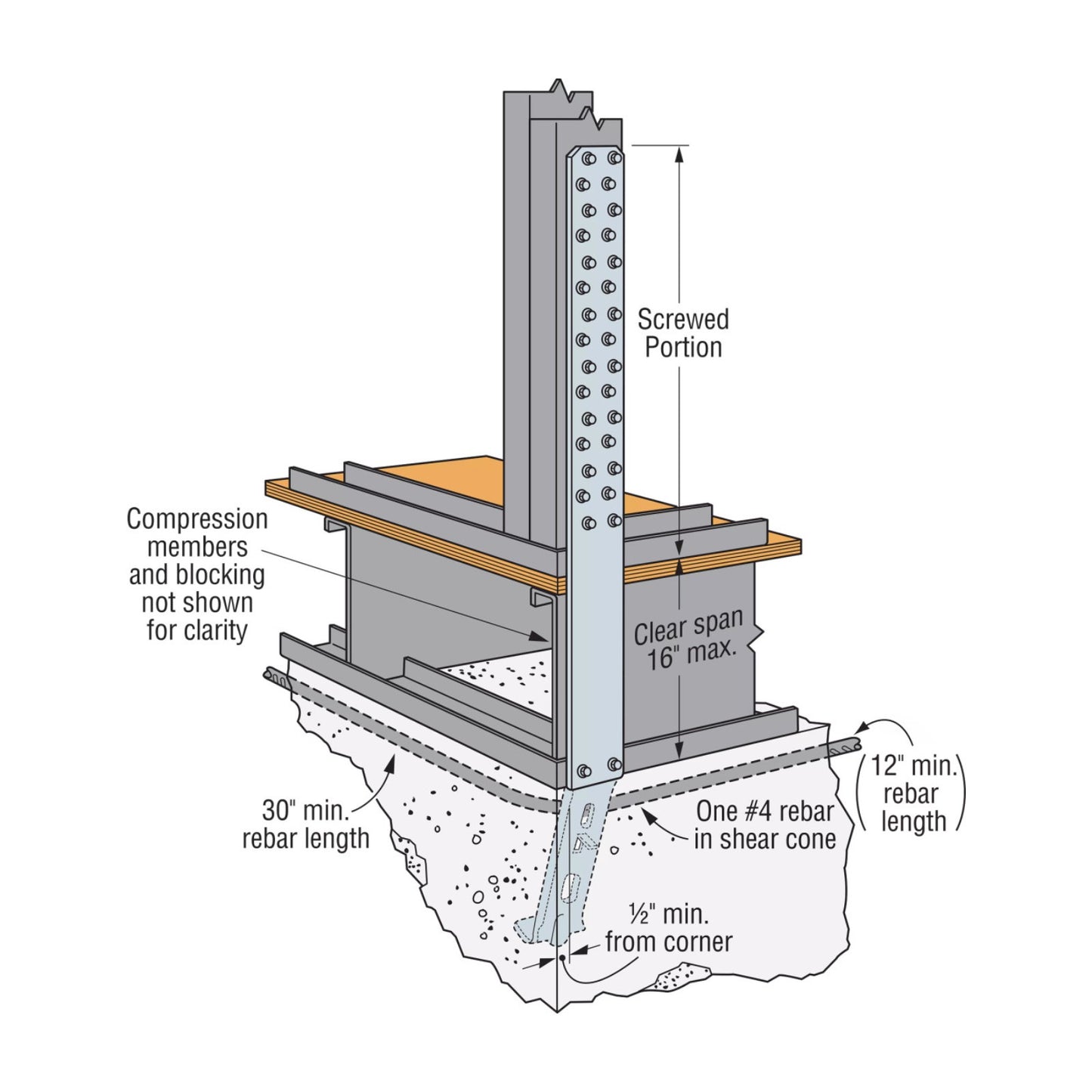

  • Install before concrete pour with a StrapMate, or other holding device.
  • Nail strap from the bottom up. Install strap plumb.
  • Strap may be bent one full cycle (bent horizontal 90° then bent vertical) to aid wall placement, but may cause spalling behind the strap. If the spall is 1" or less, measured from the embedment line to the bottom of the spall, full loads apply. 1" to 4" spalls for LSTHD8 achieve 0.9 times table loads. STHD10 and STHD14 achieve full load for spalls less than 4". Any portion of the strap left exposed should be protected against corrosion.
  • Other than where noted in the two-pour detail, do not install where: (a) A horizontal cold joint exists within the embedment depth between the slab and foundation wall or footing beneath, unless provisions are made to transfer the load, or the slab is designed to resist the load imposed by the anchor; or (b) Slabs are poured over concrete block foundation walls.
  • Additional studs attached to the shearwall studs or post may be required by the Designer for wall sheathing nailing.
  • Wood shrinkage after strap installation across horizontal members may cause strap to buckle outward.
  • For installations in severe corrosion environments, refer to General Corrosion Risks for additional considerations

  • California Residents: WARNING

The STHD is an embedded strap-tie holdown offering high loads and a staggered nail pattern to help minimize splitting. The STHD incorporates many feat...

Read More

The STHD is an embedded strap-tie holdown offering high loads and a staggered nail pattern to help minimize splitting. The STHD incorporates many features that aid correct installation and improve performance. When installed on the forms with the StrapMate® strap holder, the unique design of the STHD delivers enhanced stability before and during the pour to help prevent both parallel and perpendicular movement (relative to the form). This results in accurate positioning of the strap and reduced possibility of spalling. Front-to-back concrete bond is strengthened by the slots below the embedment line and also aids in reducing spalling.
Installation:
  • See General Notes for Holdowns and Tension Ties.
  • Use all specified fasteners; see General Notes.
  • Use tables for both standard concrete and post-tension slab installations.
  • Install before concrete pour with a StrapMate, or other holding device.
  • Nail strap from the bottom up. Install strap plumb.
  • Strap may be bent one full cycle (bent horizontal 90° then bent vertical) to aid wall placement, but may cause spalling behind the strap. If the spall is 1" or less, measured from the embedment line to the bottom of the spall, full loads apply. 1" to 4" spalls for LSTHD8 achieve 0.9 times table loads. STHD10 and STHD14 achieve full load for spalls less than 4". Any portion of the strap left exposed should be protected against corrosion.
  • Other than where noted in the two-pour detail, do not install where: (a) A horizontal cold joint exists within the embedment depth between the slab and foundation wall or footing beneath, unless provisions are made to transfer the load, or the slab is designed to resist the load imposed by the anchor; or (b) Slabs are poured over concrete block foundation walls.
  • Additional studs attached to the shearwall studs or post may be required by the Designer for wall sheathing nailing.
  • Wood shrinkage after strap installation across horizontal members may cause strap to buckle outward.
  • For installations in severe corrosion environments, refer to General Corrosion Risks for additional considerations

  • California Residents: WARNING

Show Less

finish spec:
Galvanized

length spec:
24-5/8"

manufacturer name:
Simpson Strong-Tie

fasteners required:
SEE PRODUCT GUIDE DOCUMENT

for treated lumber:
yes

material:
Carbon Steel

thickness:
12 Gauge

width spec:
3"

Product Spec Sheet:
