SKU: SUR26

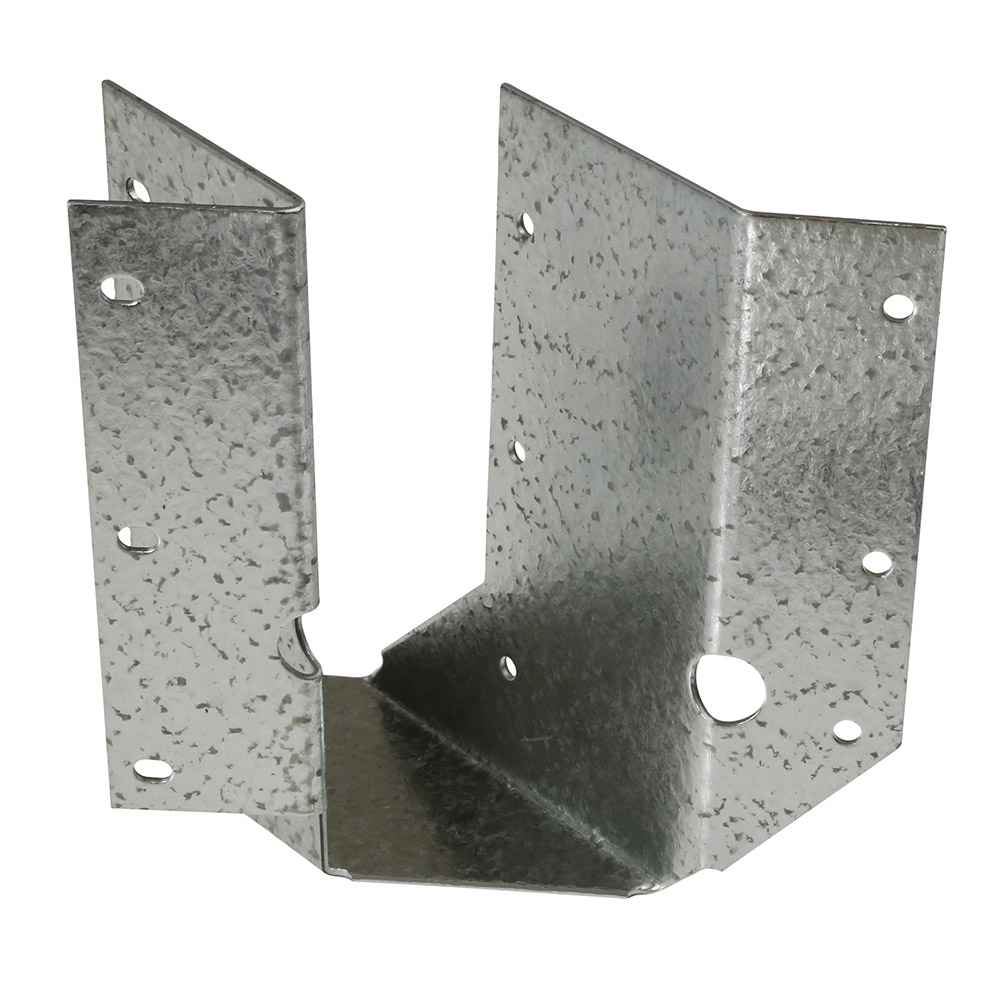

Simpson SUR26 Joist Hanger Skewed Right - Galvanized

Simpson SUR26 Joist Hanger Skewed Right - Galvanized!

Skip to product information
1 of 4
$9.47

Request Bulk Pricing
Request Bulk Pricing
Ships Dec 5
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Fasteners required: Face - (6) SD9112 Screws Joist - (6) SD9112 Screws
For Treated Lumber: No
Height: 5"
Joist size: 2X6
Manufacturer name: Simpson Strong-Tie
Width: 1-9/16"
Description

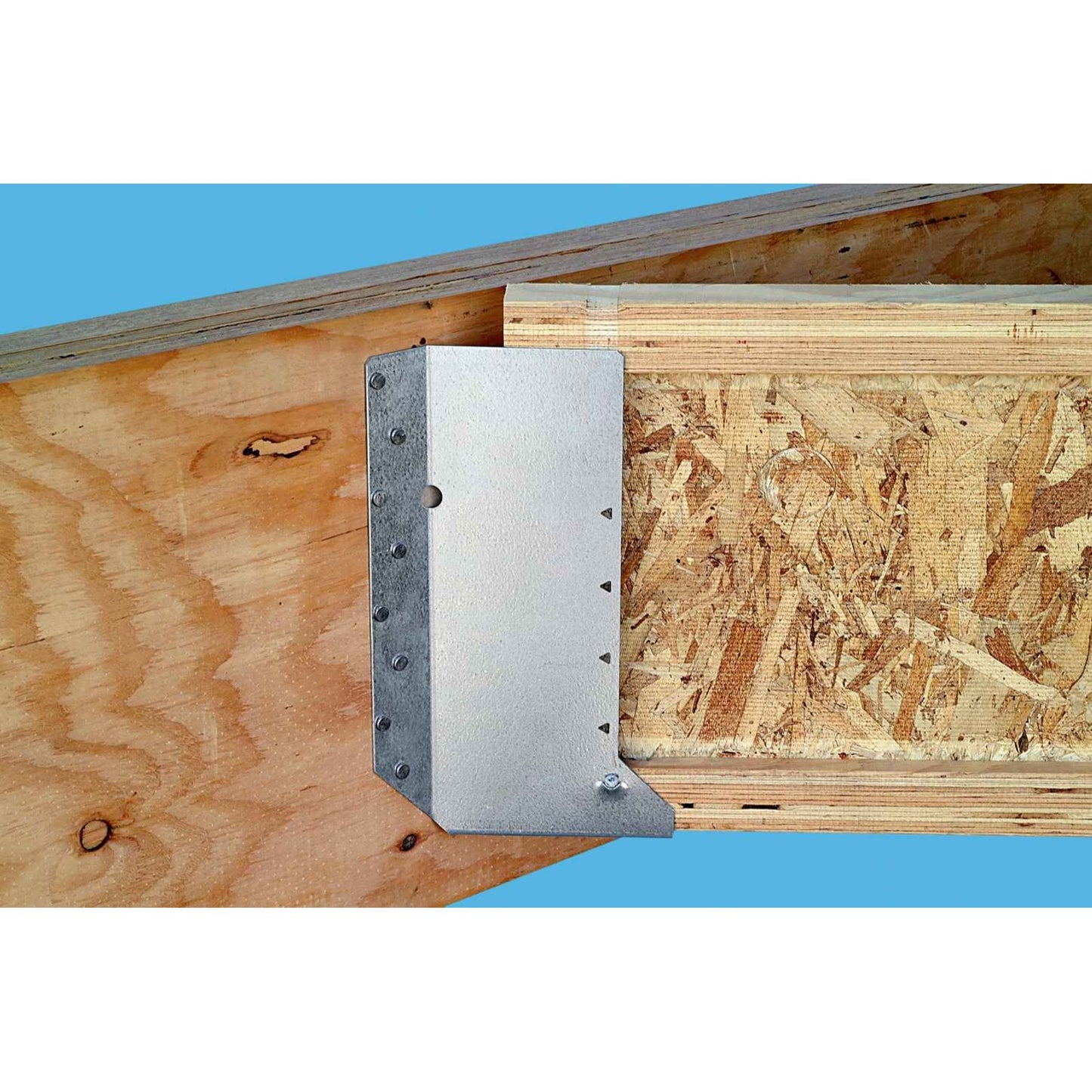

Simpson Strong-Tie SUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUR26 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.

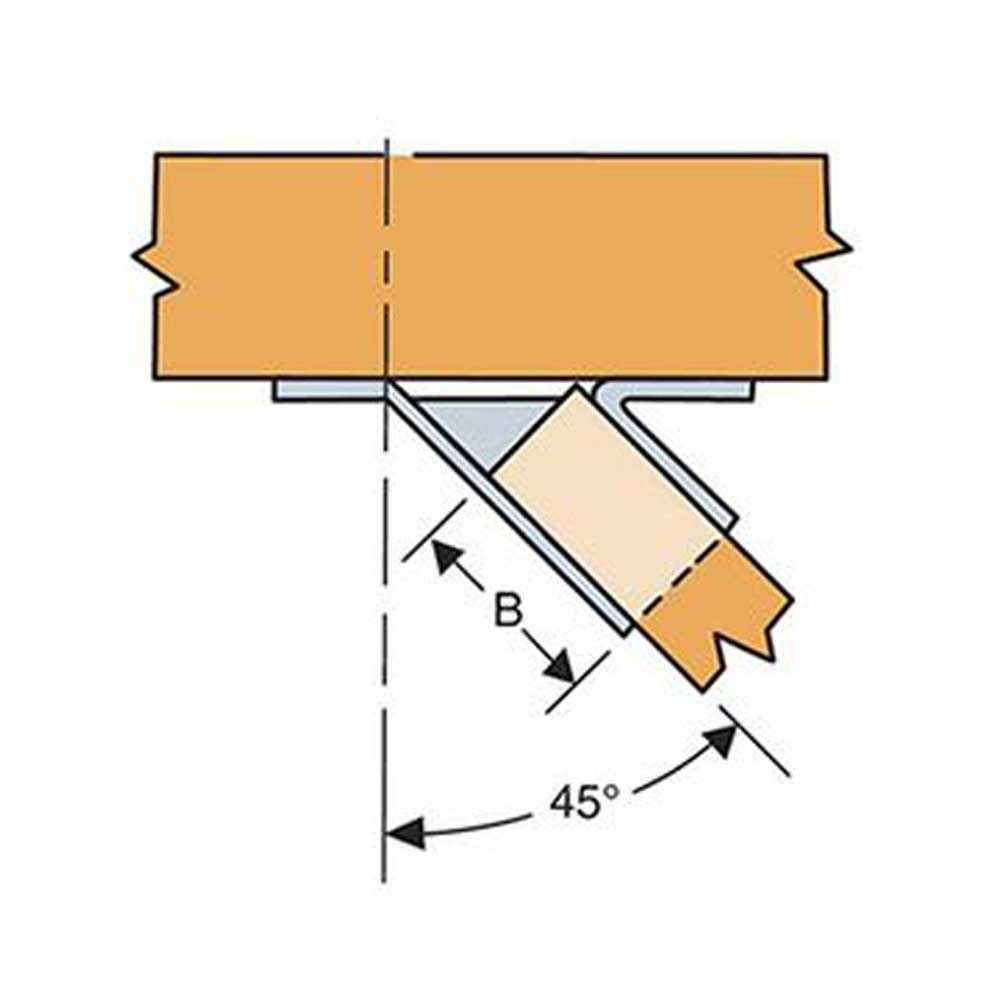

  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
