Shop more THASR/L Adjustable Truss Hangers
SKU: THASL29-2

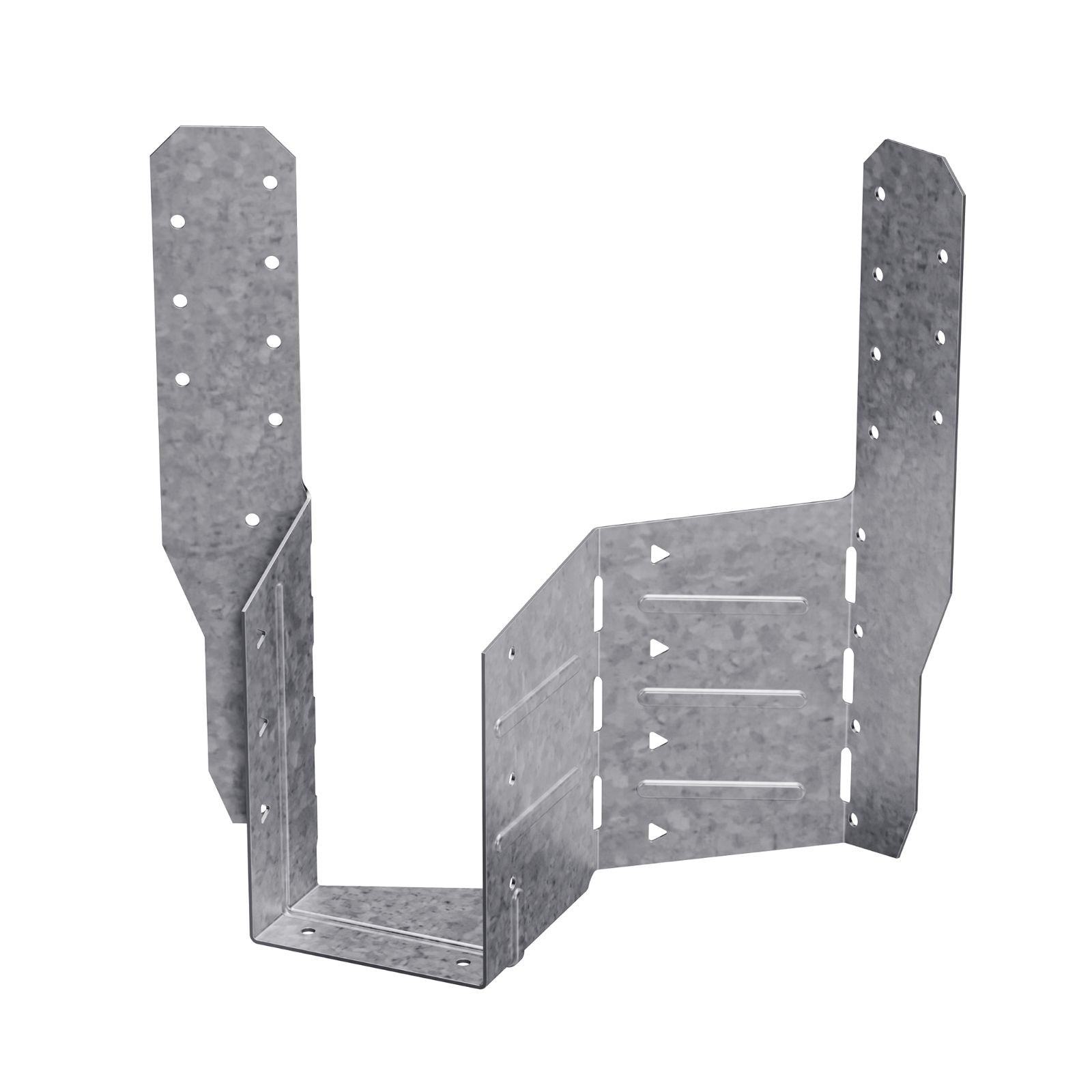

Simpson THASL29-2 Double 2x9 Adjustable Truss Hanger, Skewed Left - G90 Galvanized

Simpson THASL29-2 Double 2x9 Adjustable Truss Hanger, Skewed Left - G90 Galvanized

Regular price $77.13
Sale price $77.13 Regular price
0% off
shipping truck, lead time icon
Ships today when you order in the next 6 hours 8 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

Simpson Strong-Tie THASR/L hangers combine the height adjustability of THA hangers with field skewability, offering maximum flexibility for the installer, and eliminating the need for special orders. Shipped at 22 1/2 degrees left, the THASL29-2 hangers can be field skewed from 22 1/2 degrees or up to 75 degrees (up to 85° for the THASR/L29 and THASR/L29-2). The Strong-Tie THASL29-2 adjustable truss hangers features a G90 Galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.

  • Product is factory skewed to 22 1/2° and may be field skewed from 22 1/2° to 75° (up to 85° for the THASR/L29 and THASR/L29-2). See Installation Sequence below for skews greater than 22 1/2°.

  • For 22 1/2° skew installations, fill all triangle holes. Triangle holes do not need to be filled for skews greater than 22 1/2°.

  • For all installations, fill the fastener hole(s) in the bottom of the hanger seat (THASR/L29 has one and all other models have two).

  • For top flange installations, the straps must be field-formed over the header a minimum of 2".

  • THASR/L29 and THASR/L29-2—For installations where either strap cannot be field-formed over the header, install the strap(s) vertical and fill all holes. Loads must be reduced as noted in the table footnotes.

  • THASR/L422—For face-mount installations, install the carrying member fasteners into the lowest holes.


NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Height: 9-7/8"
Fasteners required: SEE PRODUCT GUIDE DOCUMENT
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Product Guide: View Spec Sheet

Installation

Installation:</b> <br> <ul>
-Use all specified fasteners.</p>
-Product is factory skewed to 22 1/2° and may be field skewed from 22 1/2° to 75° (up to 85° for the THASR/L29 and THASR/L29-2). See Installation Sequence below for skews greater than 22 1/2°.
-For 22 1/2° skew installations, fill all triangle holes. Triangle holes do not need to be filled for skews greater than 22 1/2°.
-For all installations, fill the fastener hole(s) in the bottom of the hanger seat (THASR/L29 has one and all other models have two).
-For top flange installations, the straps must be field-formed over the header a minimum of 2".
-THASR/L29 and THASR/L29-2—For installations where either strap cannot be field-formed over the header, install the strap(s) vertical and fill all holes. Loads must be reduced as noted in the table footnotes.</p>
-THASR/L422—For face-mount installations, install the carrying member fasteners into the lowest holes.
