Specifications

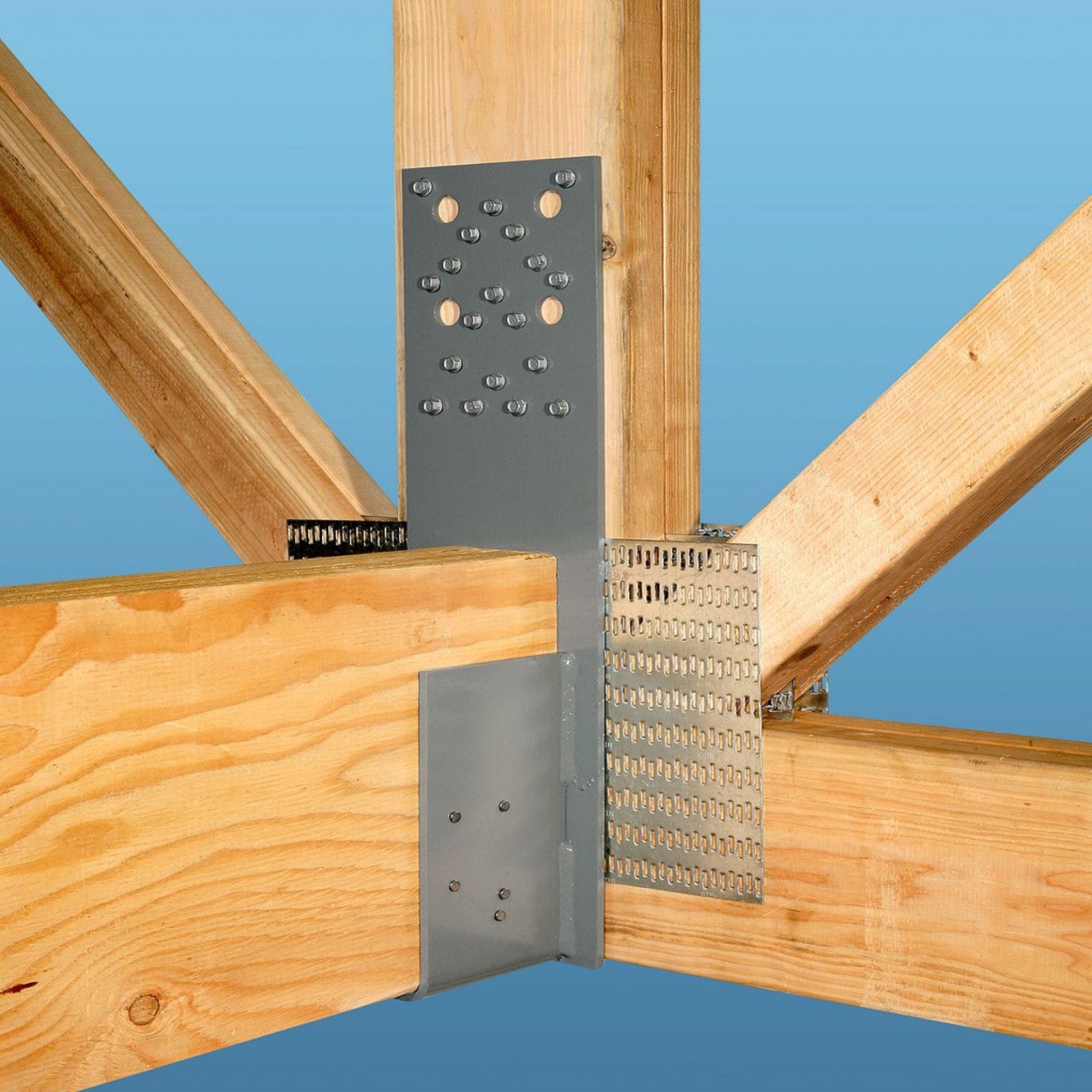

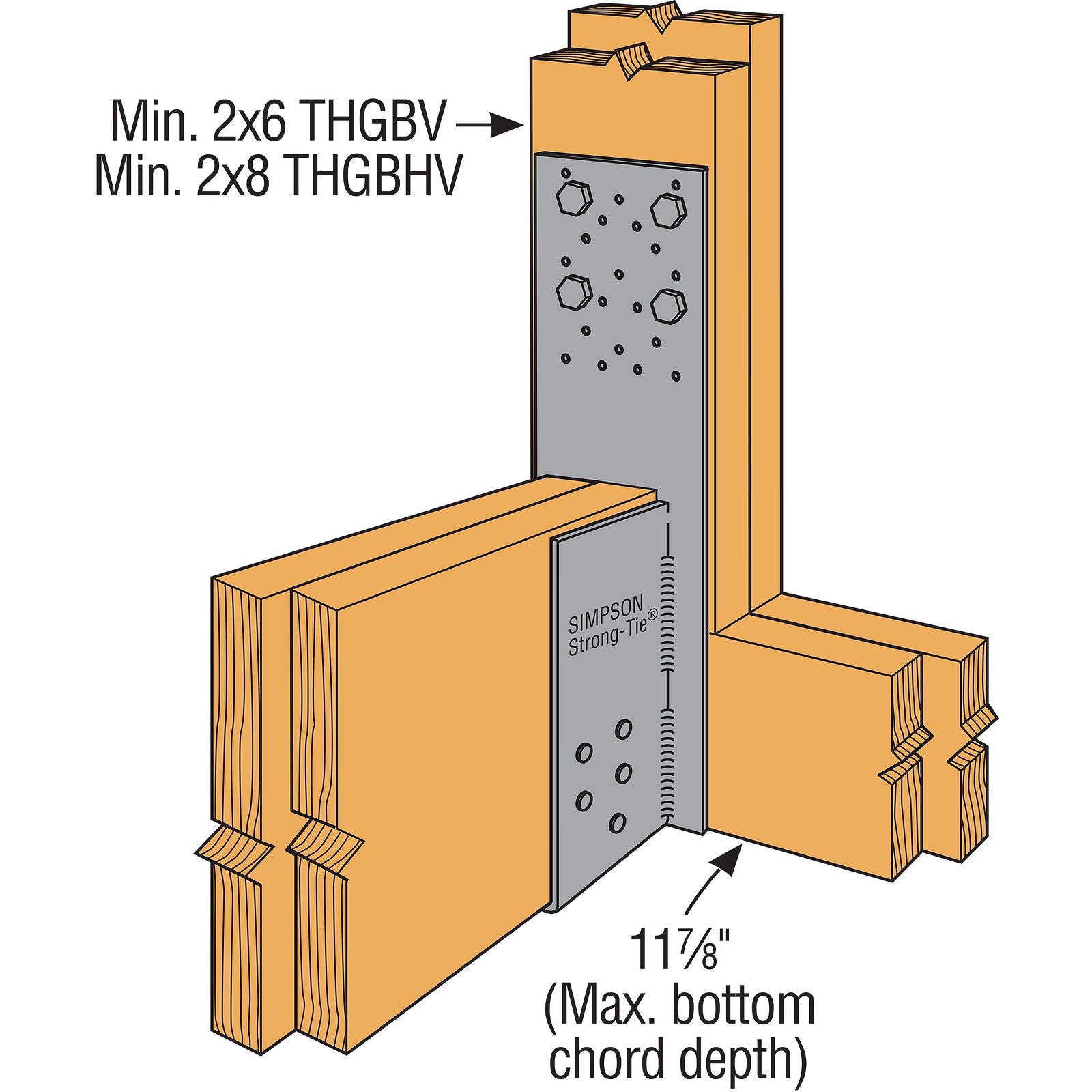

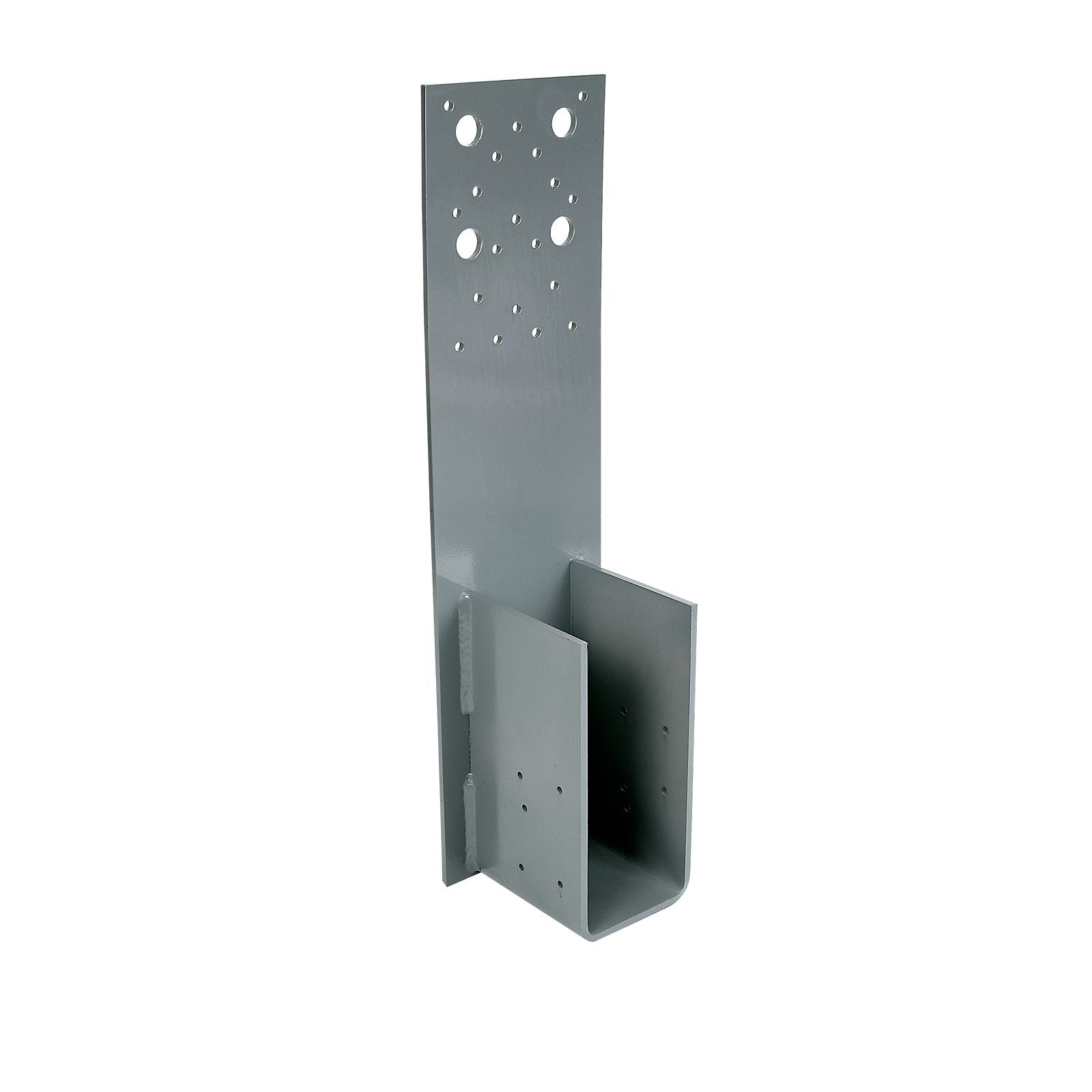

The THGBV3.62/11 is a bolted hanger designed for connecting multi-ply structural composite lumber (SCL) to girder trusses and attaches to a vertical web to support high loads. The THGBV has options for skewing or dropping the buckets to provide design flexibility for a variety of SCL-to-truss connections. This bolted hanger offers an installation option using Strong-Drive® SDS Heavy-Duty Connector screws.
Key Features
- Can be skewed to a maximum of 45°. The maximum allowable download and uplift load for skew is 0.87 of the table load.
- Backplates can be extended to allow for up to a 6" dropped bucket.

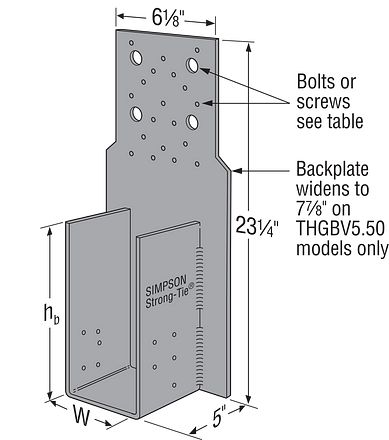

- Available in 9″ and 11″ bucket heights to accommodate a range of SCL sizes.
For custom options give us a call at (888) 794-1590 and we would be glad to custom order the truss hanger you need for your project!
Available Custom Options
Skewed Seat
- THGBV hangers can be skewed to a maximum of 45°.
- The maximum allowable download and uplift load for skew is 0.87 of the table load.

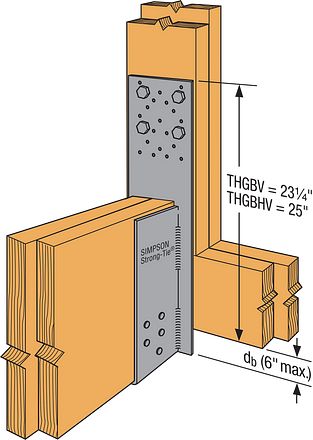

Dropped Bucket
- THGBV backplates can be extended to allow for up to a 6" dropped bucket.
- Allowable loads are 100% of the table loads.
- Will be ordered as “X” version, specifying the total backplate height, BK_PLT, equal to the hanger height (H) plus the dropped bucket amount (db). Ex: a THGBV3.62/9 with a 4" dropped bucket would have a total backplate height of 27 1/4".
