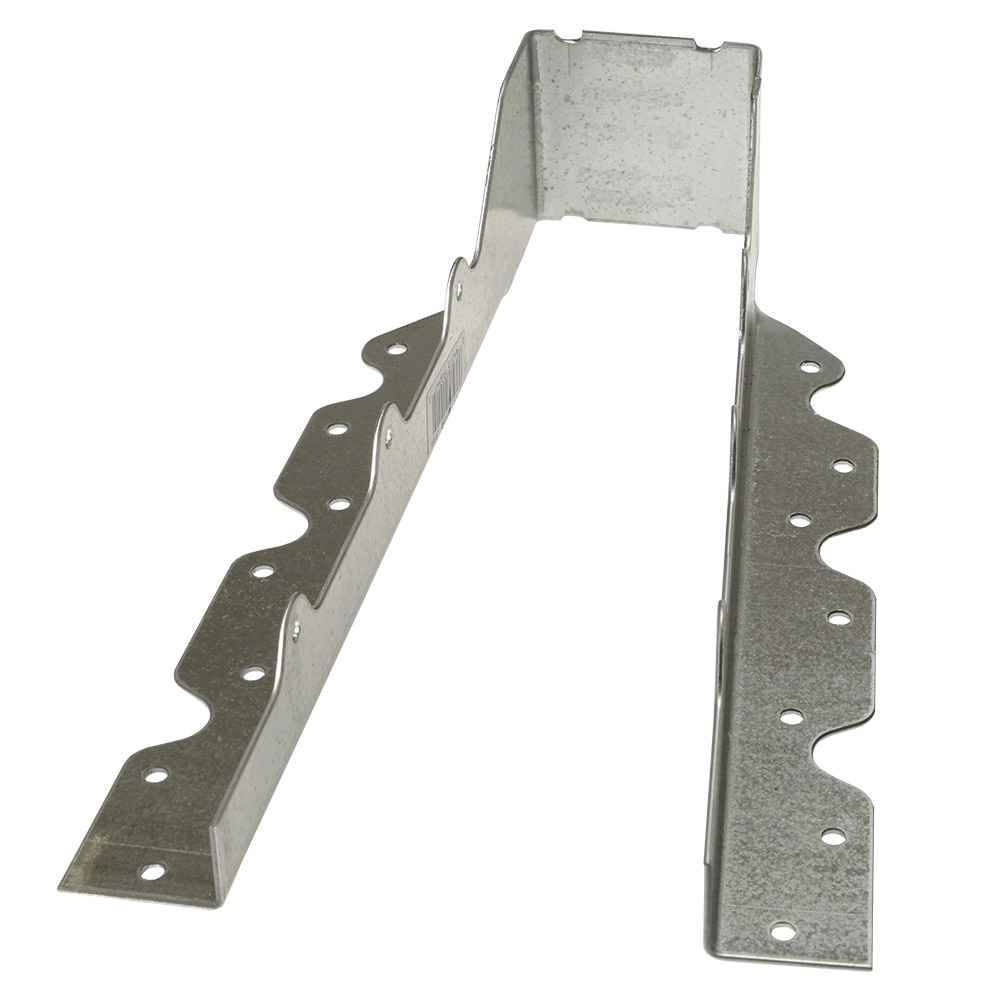

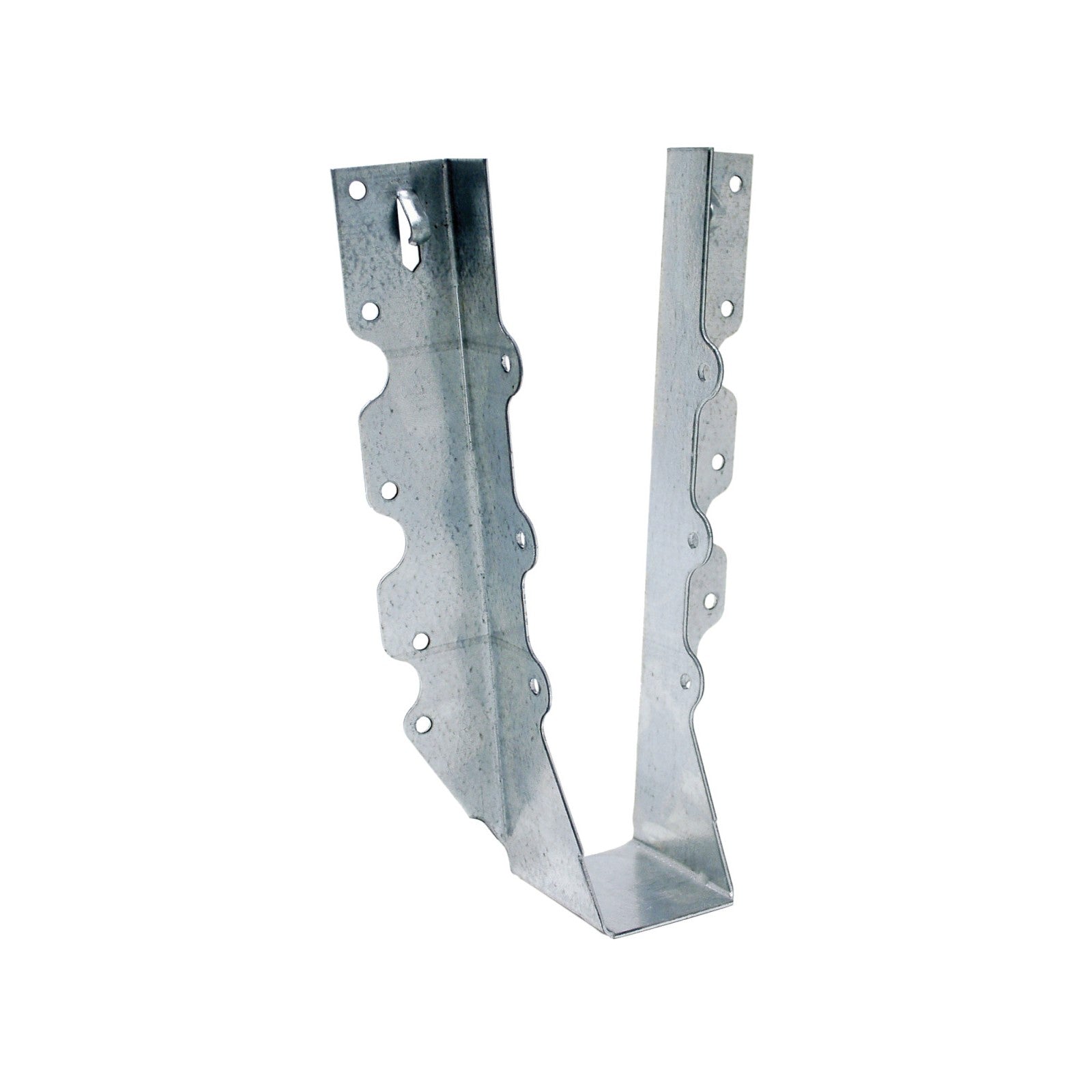

Simpson U210 2x10 Face Mount Joist Hanger - G90 Galvanized
Simpson U210 2x10 Face Mount Joist Hanger - G90 Galvanized
Description:
Description:
Simpson Strong-Tie U face mount hangers are a durable hanger designed for use with solid sawn lumber. The Strong-Tie U210 joist hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

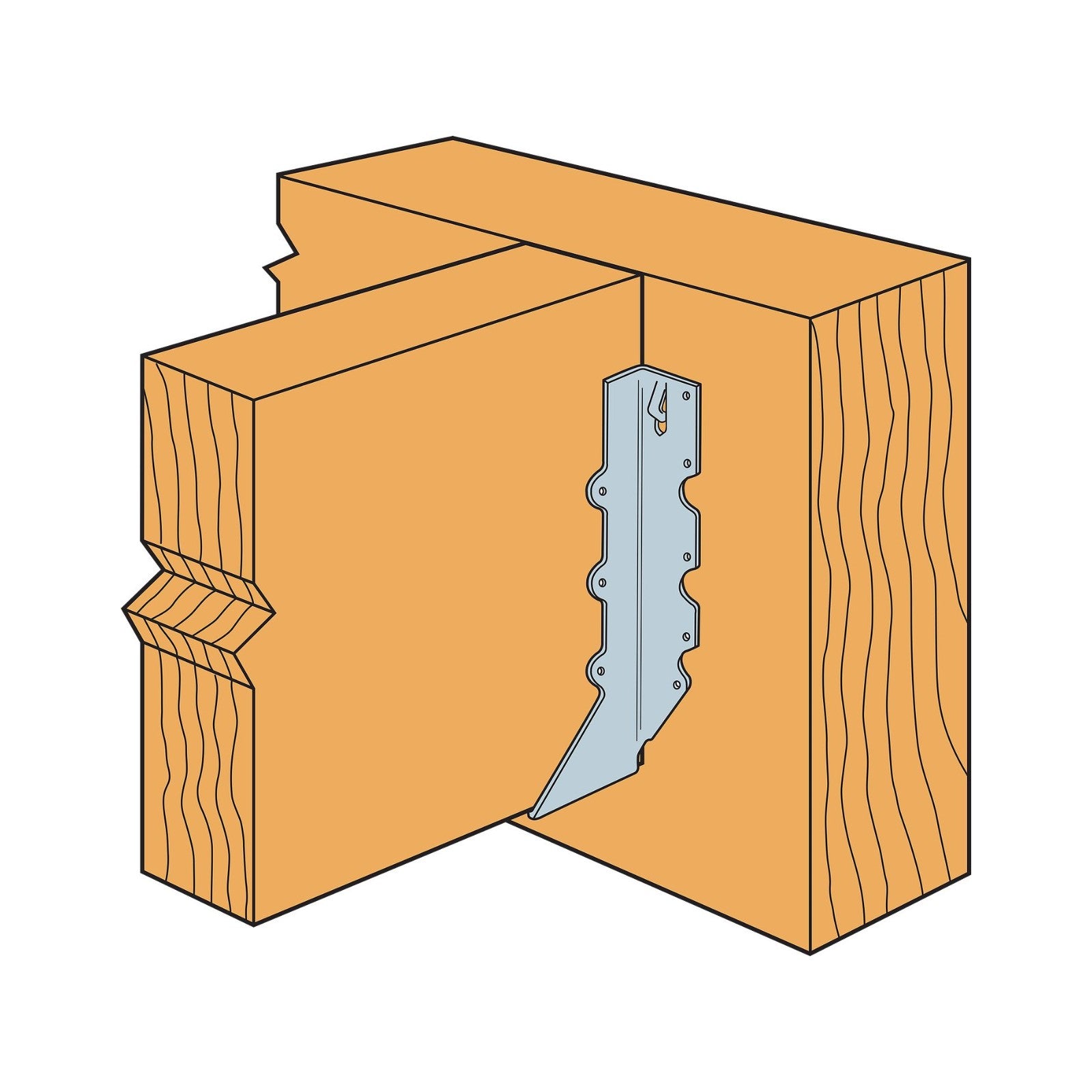

Installation:
- Use all specified fasteners.
- Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
- Joists sloped up to 1/4:12 achieve load tables.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:

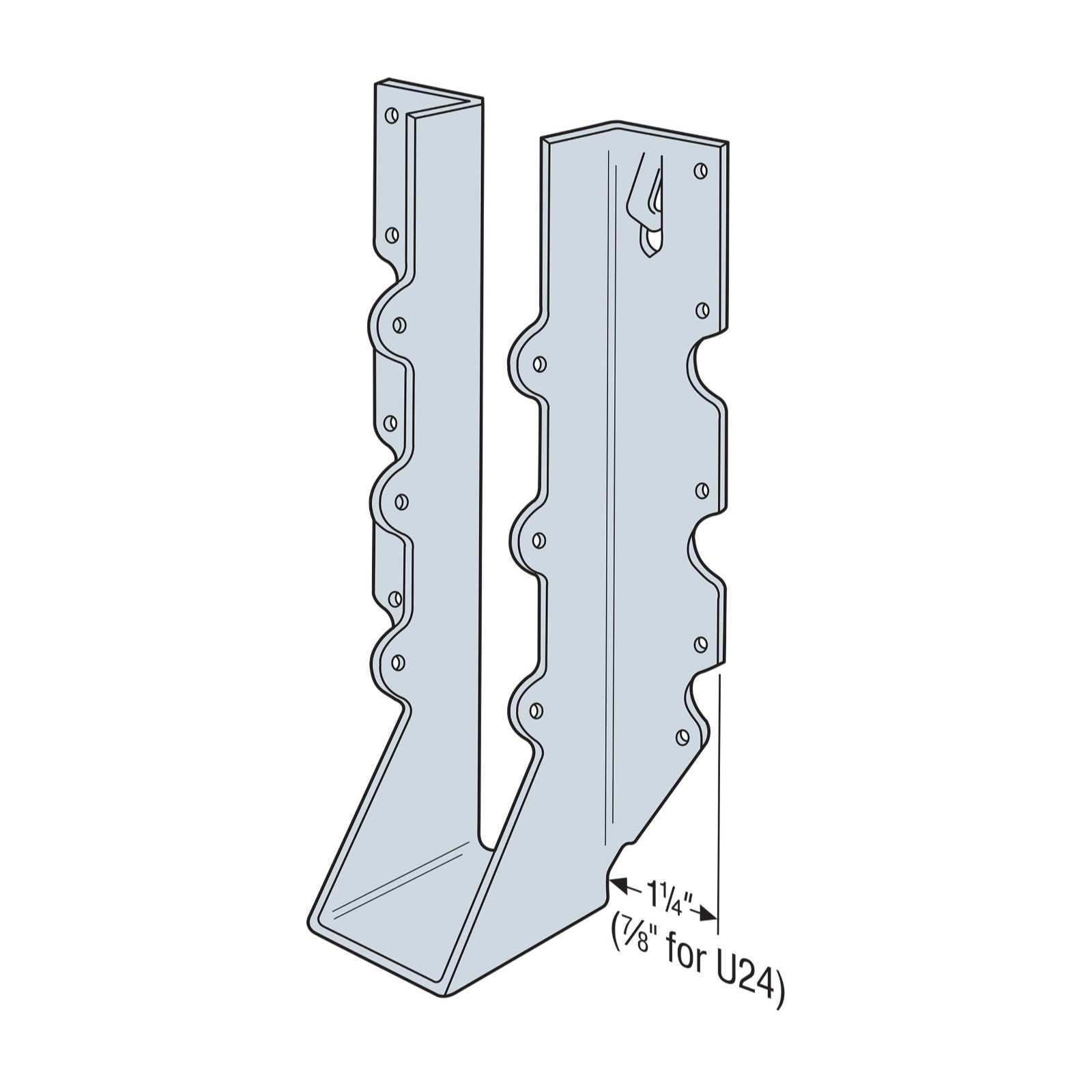

Height: 7-13/16"
Fasteners required: Header - (10) 0.162" x 3-1/2" Nails Joist - (6) 0.148" x 1-1/2" Nails
Width: 1-9/16"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: 2X10
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
-Joists sloped up to 1/4:12 achieve load tables.
Stay in touch
This is a dummy newsletter form so don't bother trying to test it. Not that I expect you to, anyways. :)
The joist brackets were the heavy duty (16 gauge thick) type.
They were packaged well and delivered promptly.
I purchased this joist hanger because it is fabricated out of 16-gauge steel. I am using these to reinforce the floor joists in a modular home where I plan to place a heavy antique piano and a brick hearth to place a wood stove. I am not happy with the quality of the construction of this home from Pennsylvania, and am undergoing efforts to remedy these deficiencies. Also, I cannot find these floor joist hangers at brick-and-mortar stores such as Home Depot, which only sell the 20-gauge version.
