SKU: U410R

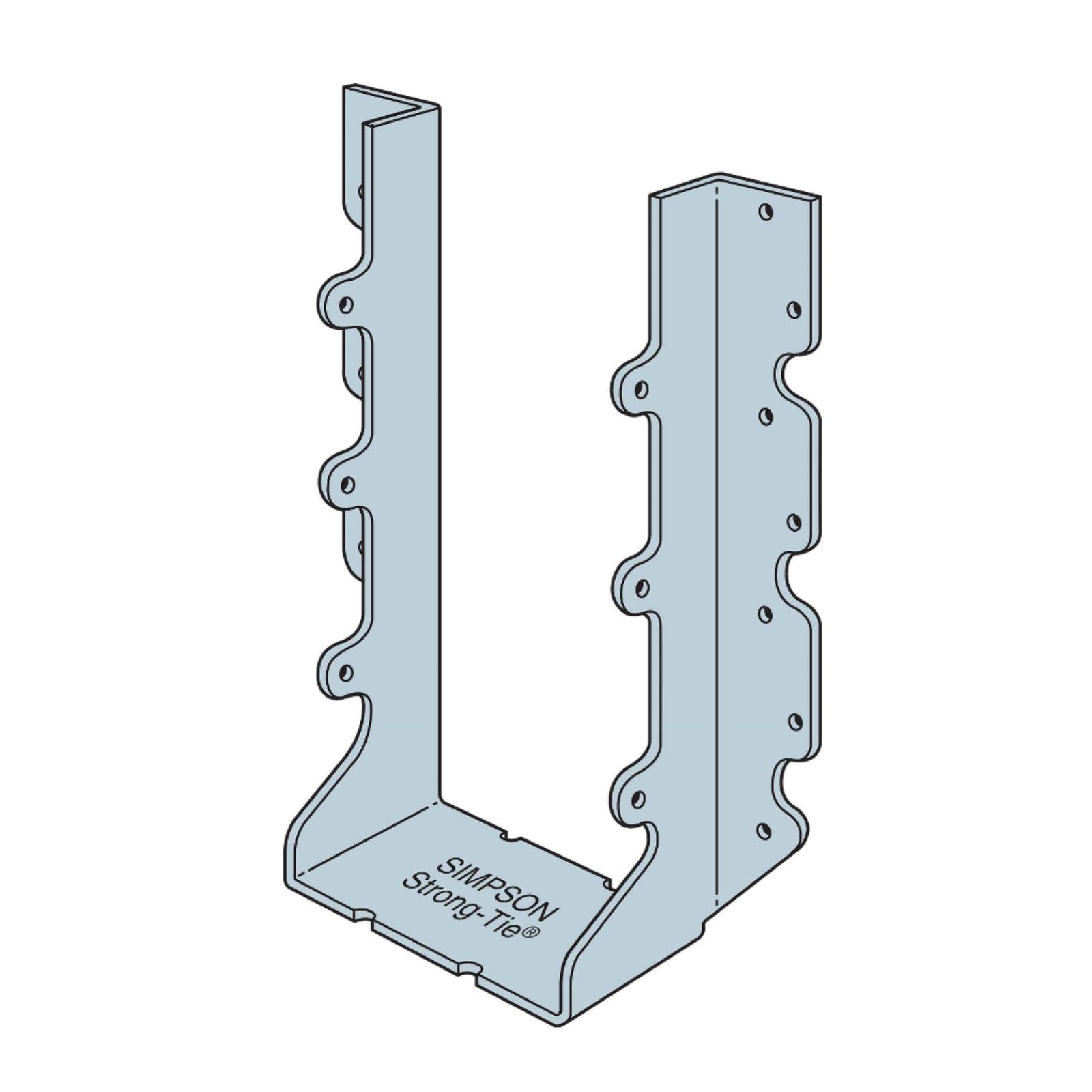

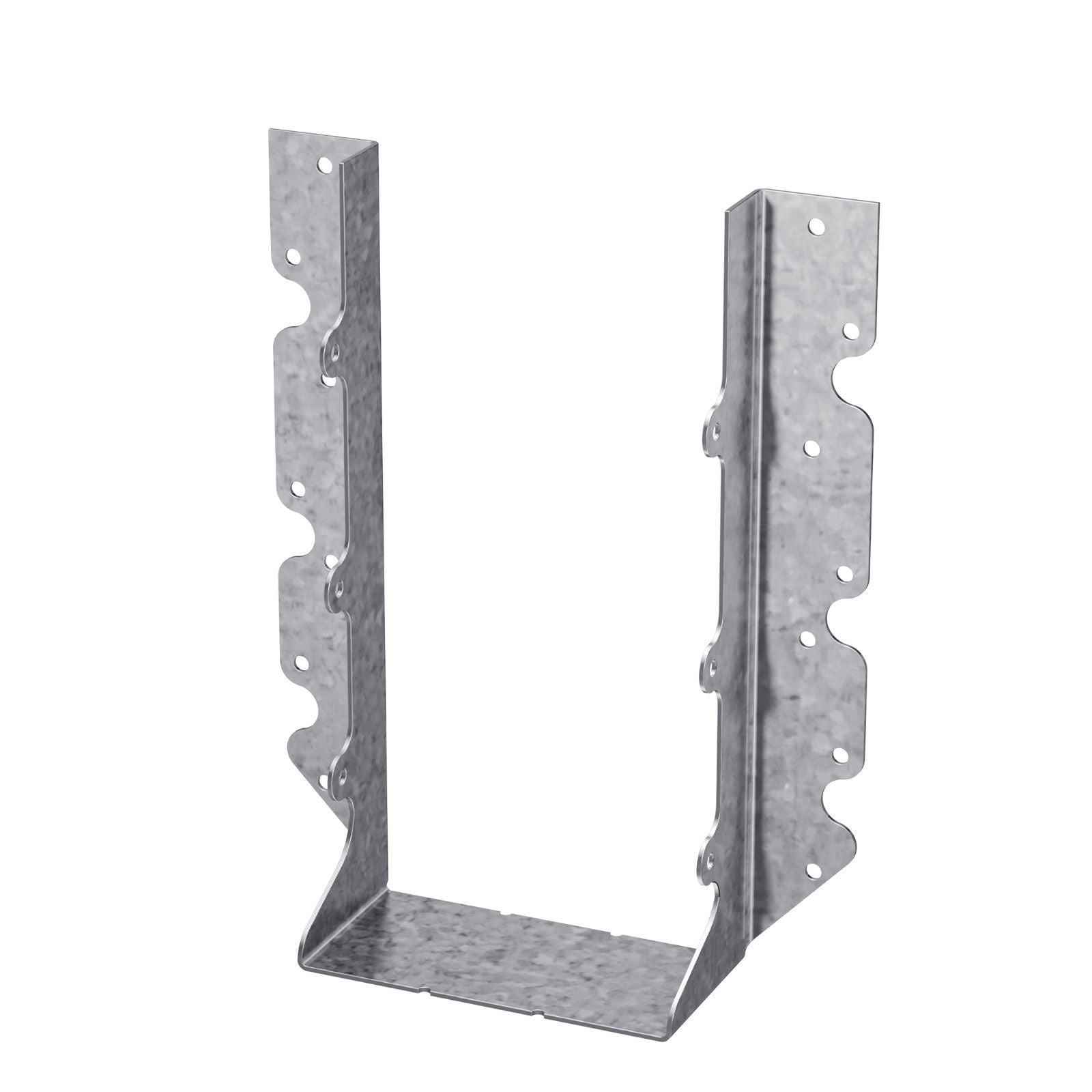

Simpson U410R Rough Cut 4x10 Face Mount Joist Hanger - G90 Galvanized

Simpson U410R Rough Cut 4x10 Face Mount Joist Hanger - G90 Galvanized!

Skip to product information
1 of 3
$10.14

Request Bulk Pricing
Ships today, order in the next 7 hours 48 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Fasteners required: Header - (14) 0.162" x 3-1/2" NailsJoist - (6) 0.162" x 3-1/2" Nails
For Treated Lumber: No
Height: 8-1/8"
Joist size: Rough 4X10
Manufacturer name: Simpson Strong-Tie
Width: 4"
Description

Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a joist that measures an actual 4x10". If you have a nominal joist measuring 3-1/2x9-1/2" you will need an U410 Joist Hanger


Simpson Strong-Tie U face mount hangers are a durable hanger designed specifically for use with rough cut lumber. The Strong-Tie U410R joist hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:

  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
  • Joists sloped up to 1/4:12 achieve load tables.


NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
