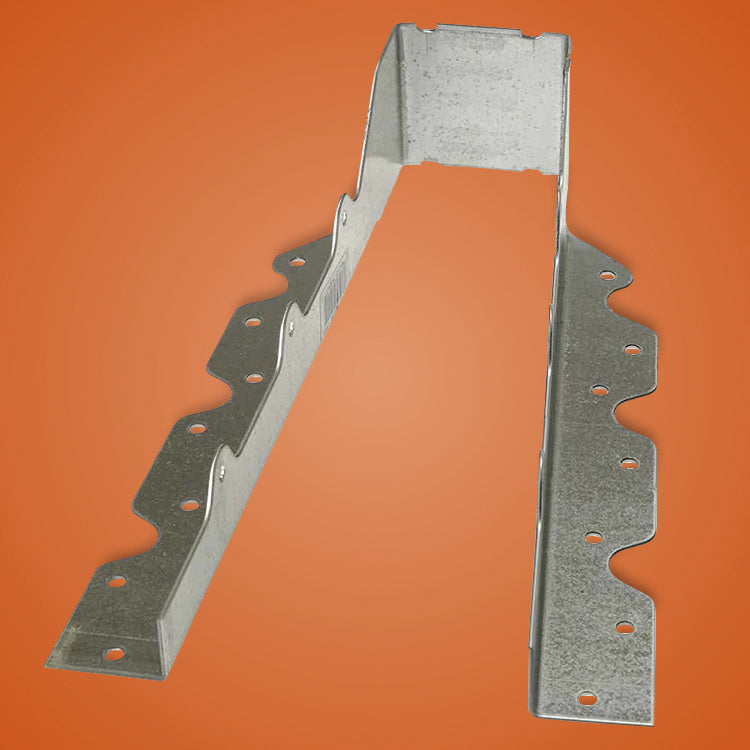

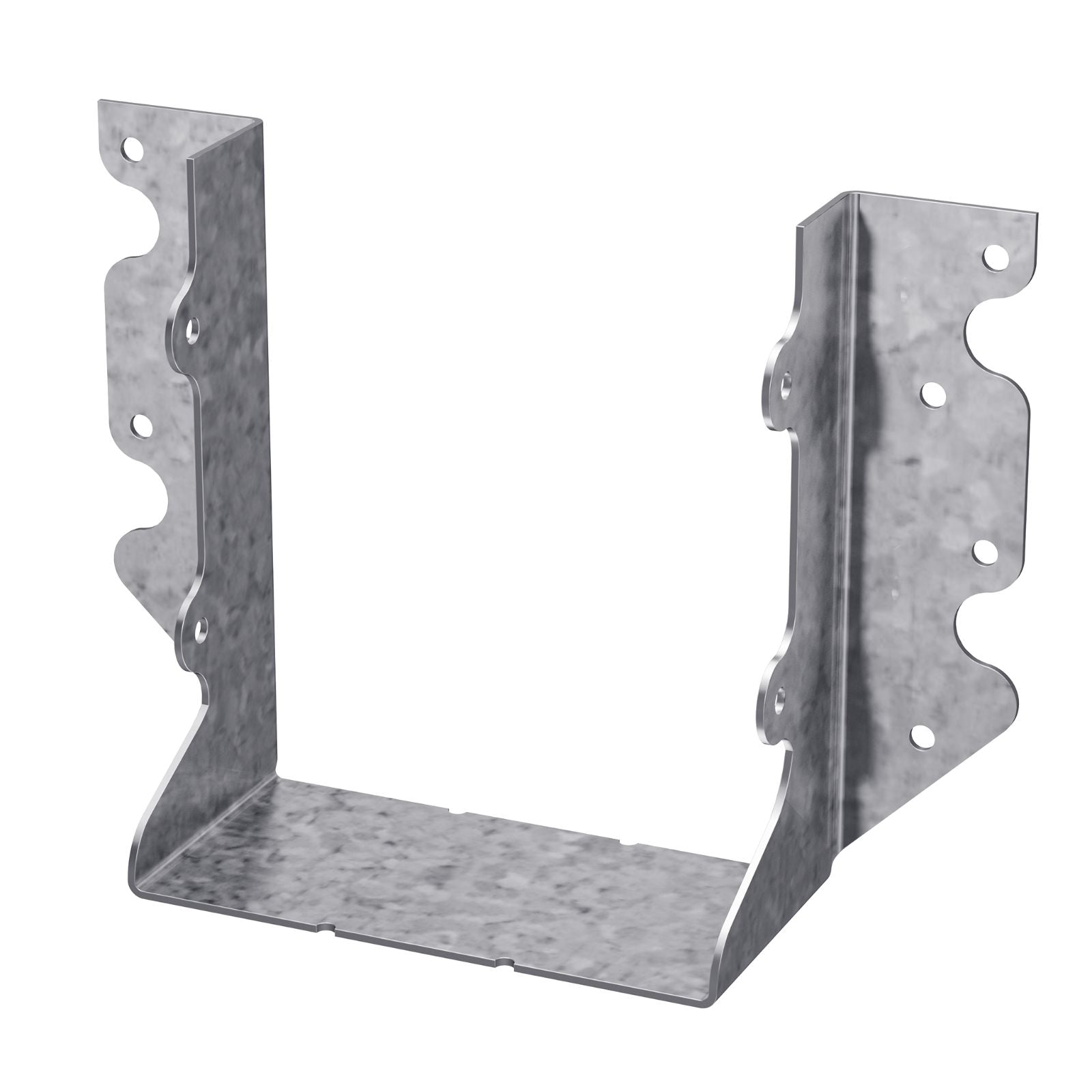

Simpson U46R Rough Cut 4x6 Face Mount Joist Hanger - G90 Galvanized
Simpson U46R Rough Cut 4x6 Face Mount Joist Hanger - G90 Galvanized
Couldn't load pickup availability

Description:
Description:
Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a joist that measures an actual 4x6". If you have a nominal joist measuring 3-1/2x5-1/2" you will need an U46 Joist Hanger
Simpson Strong-Tie U face mount hangers are a durable hanger designed specifically for use with rough cut lumber. The Strong-Tie U46R joist hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:
- Use all specified fasteners.
- Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
- Joists sloped up to 1/4:12 achieve load tables.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: 4-5/8"
Fasteners required: Header - (8) 0.162" x 3-1/2" NailsJoist - (4) 0.162" x 3-1/2" Nails
Width: 4"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: Rough 4X6
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
-Joists sloped up to 1/4:12 achieve load tables.
