SKU: CD18400C

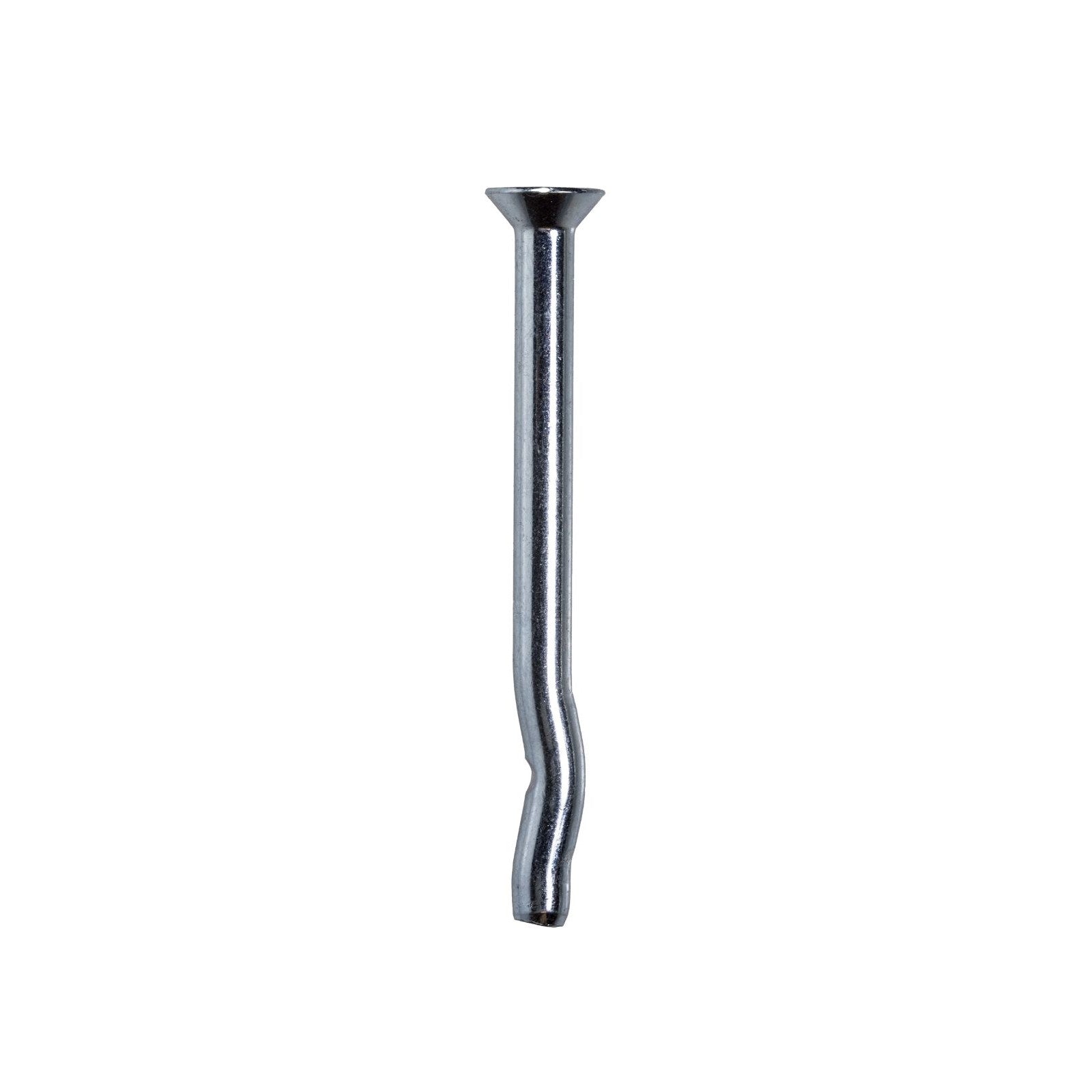

SimpsonCD18400C 3/16" X 4" Countersunk Head Crimp Anchor - Zinc, Pkg 100

SimpsonCD18400C 3/16" X 4" Countersunk Head Crimp Anchor - Zinc, Pkg 100!

  • SimpsonCD18400C 316 inch X 4 inch Countersunk Head Crimp Anchor Zinc Pkg 100

Continue Browsing

Crimp Drive Anchors
SKU: CD18400C

SimpsonCD18400C 3/16" X 4" Countersunk Head Crimp Anchor - Zinc, Pkg 100

$29.03

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 16 when you add 7 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Diameter: 3/16"
Length: 4"
Material: Carbon Steel
Drill bit size: 3/16"
Fixture hole size: 1/4"
Head type: Countersunk Head
Manufacturer name: Simpson Strong-Tie
Minimum embedment depth: 1-1/4"
Quantity: 100
Description
The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. The pre-formed curvature along the shaft creates an expansion mechanism that secures the anchor in place and eliminates the need for a secondary tightening procedure. This speeds up anchor installation and reduces the overall cost. The Countersunk head allows for a smooth surface when attaching wood or light gauge steel to concrete and grout-filled block.
Installation:
  • Warning: Industry studies show that hardened fasteners can experience performance problems in wet or corrosive environments. Accordingly, with the exception of the duplex anchor, use these products in dry, interior and non-corrosive environments only.
  • Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
  • Blow the hole clean of dust and debris using compressed air. Overhead application need not be blown clean. Where a fixture is used, drive the anchor through the fixture into the hole until the head sits flush against the fixture.
  • Be sure the anchor is driven to the required embedment depth. The rod coupler and tie-wire models should be driven in until the head is seated against the surface of the base material.

    • California Residents: WARNING

More
View full details

Continue Browsing

Crimp Drive Anchors

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Steven Boggs
Decent affordable Concrete fastners

These work really well in holding power on ICF (insulated concrete forms) however with the 2 inches of foam they bend easily if not hit squarely with a hammer. I found a 5mm sds bit worked best giving just that little bit bigger hole to drive them into.
