Terrier TPH 1-1/2 Ton Horizontal Pipe Lifting Clamp - Protective & Compact Pipe Handling Solution

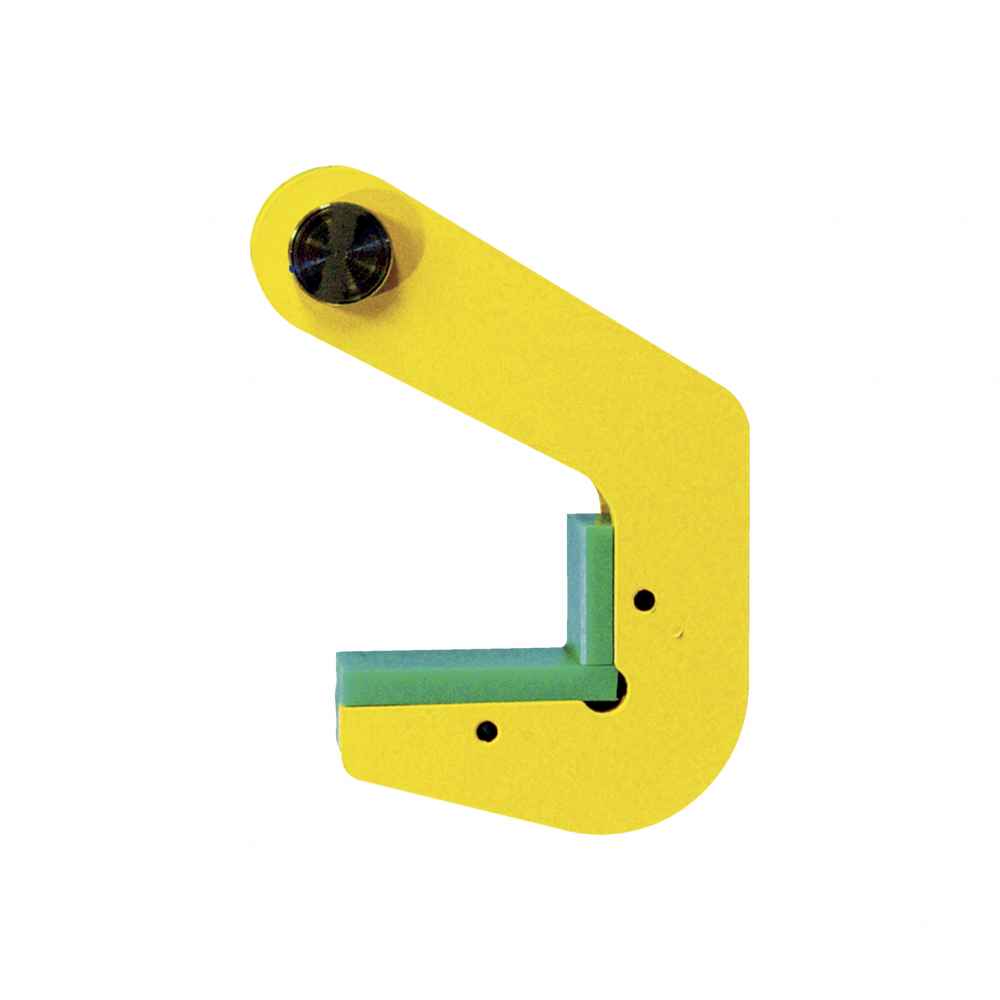

The Terrier TPH 1-1/2 Ton Horizontal Pipe Lifting Clamp (Model 960150) is purpose-built for safely lifting and transporting steel and concrete pipes in a horizontal position. With a compact body and high strength-to-weight ratio, this clamp delivers impressive lifting power with a low overall profile. Rated at 1.5 tons per pair and featuring a 0.63" eye diameter, it is ideal for both yard handling and jobsite use.

Surface-Safe Lifting for Steel and Concrete Pipe

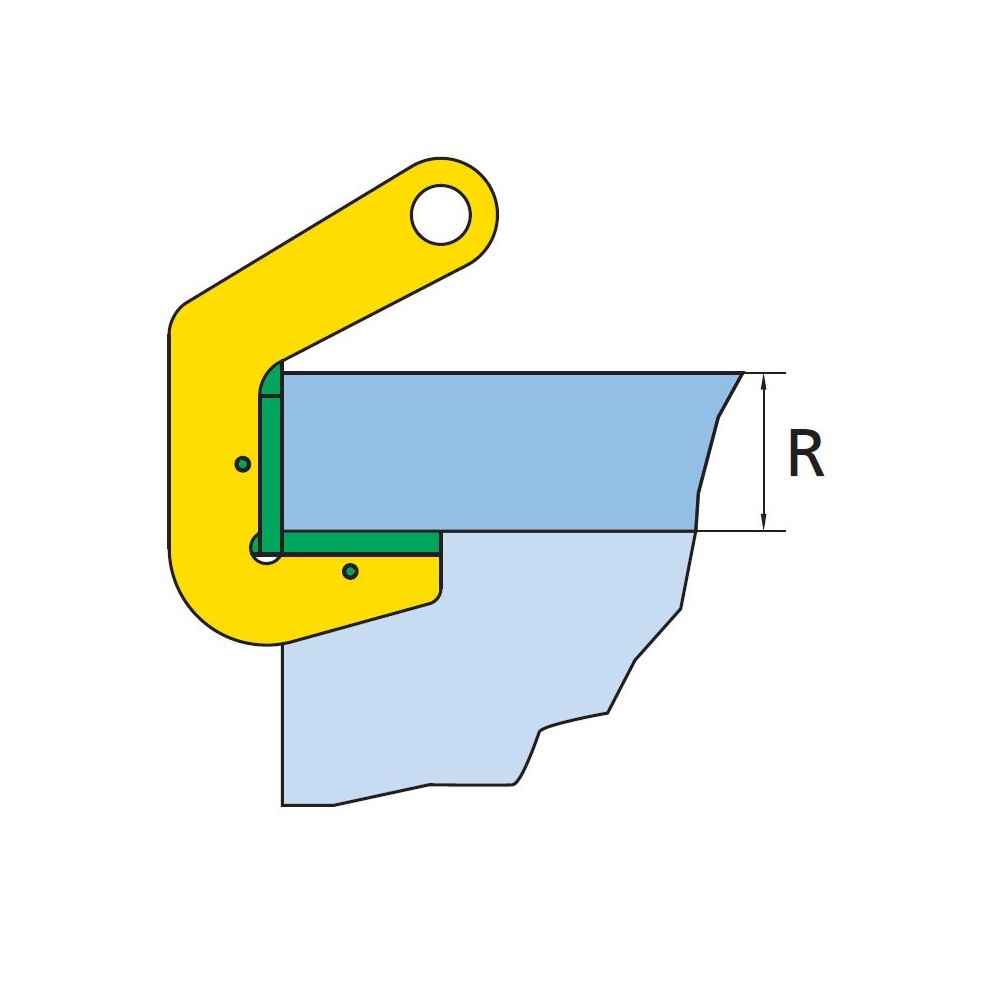

This clamp includes special plastic pad covers that help prevent surface damage to pipe coatings and finishes. Pads are easy to replace, keeping the clamp in service longer without compromising protection. For safe use, it must always be used in pairs. Lifting angles vary based on pipe wall thickness: if material is thinner than dimension "R", a 0-60° top angle is required; if material equals "R", lifting angles up to 90° are acceptable.

Key Features

• 1-1/2 Ton WLL (Per Pair): Rated for horizontal lifting of steel and concrete pipes using two clamps.
• Compact & Lightweight Design: Offers a high load capacity with a low-profile body.
• Protective Plastic Pads: Prevent surface damage to coated or delicate pipe exteriors-easy to replace.

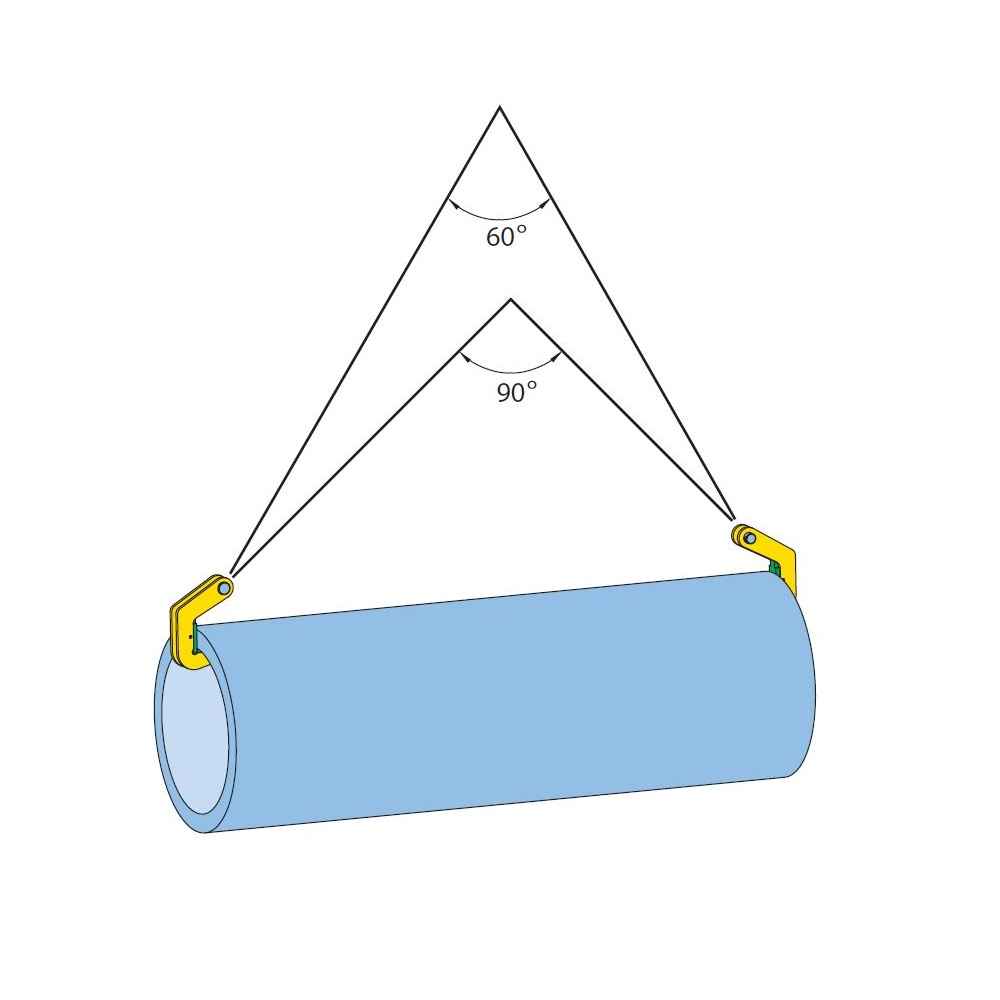

• Safe Lifting Angles: Use between 0-60° if wall is thinner than “R”, and up to 90° if wall thickness equals “R”.
• Must Be Used in Pairs: Clamp WLL applies when two clamps are used simultaneously.
• Eye Diameter - 0.63": Accepts standard rigging hooks and hardware.
• Proof-Tested to 2x WLL: Individually tested and shipped with certificate to meet jobsite compliance.
