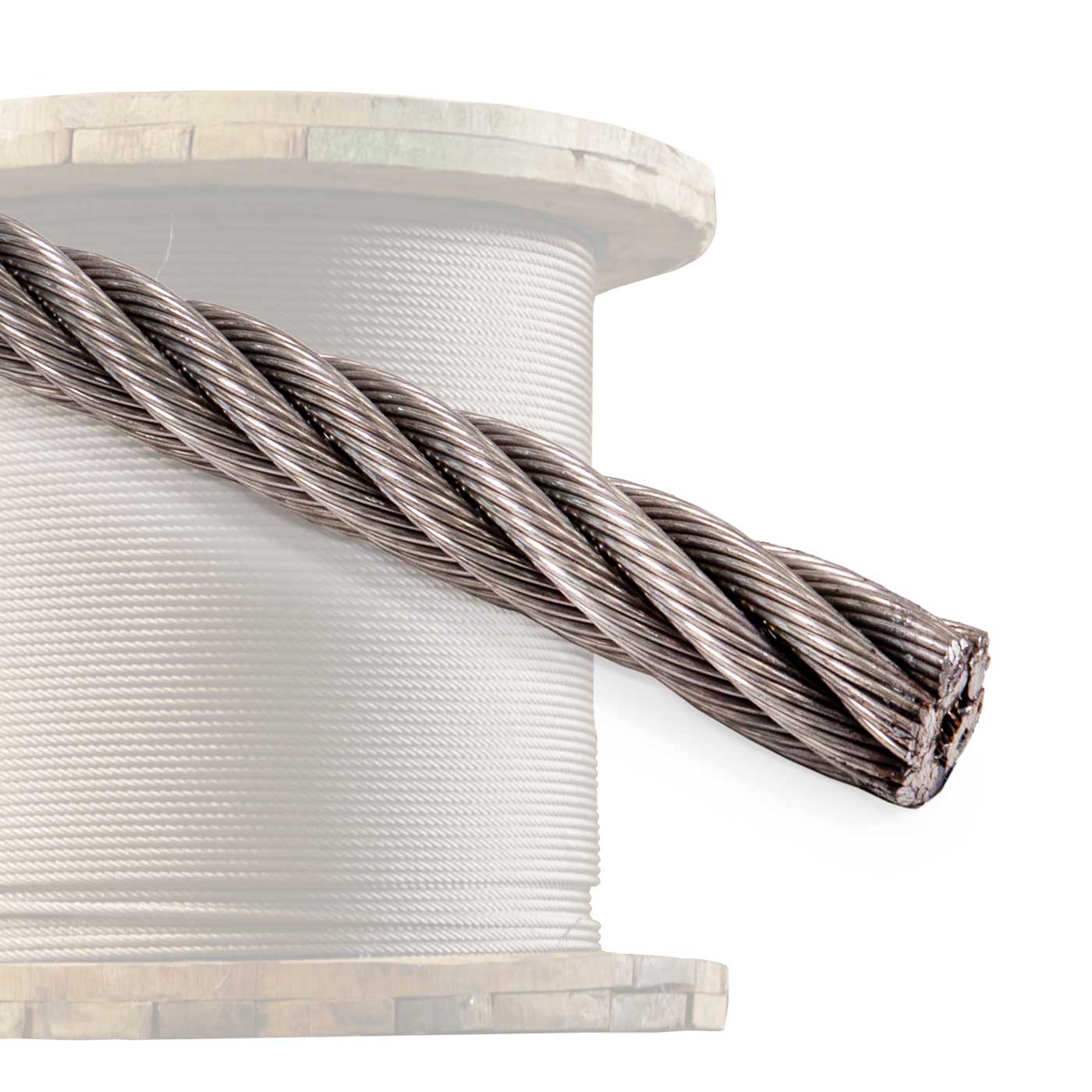

3/4" 6x19 Stainless Steel Wire Rope - Type 304 IWRC | 1,000' Coil
Specifications
3/4" 6x19 Wire Rope Cable | 304 Stainless
This 3/4" 304 stainless steel wire rope features a versatile 6x19 construction that balances flexibility, abrasion resistance, and corrosion protection. Commonly used for lifting, suspension systems, winch lines, and general rigging applications, it provides dependable performance in environments where rust resistance is important but marine-grade stainless steel is not required.
Corrosion-Resistant 304 Stainless Wire Rope for Rigging & Hoisting Applications
Manufactured from Type 304 stainless steel, this wire rope offers greater corrosion resistance than galvanized wire rope while maintaining higher strength and a more economical price point than Type 316 stainless steel. The 6x19 class construction provides excellent abrasion resistance and durability, making it a reliable choice for applications that experience regular wear and contact with sheaves, drums, or pulleys.

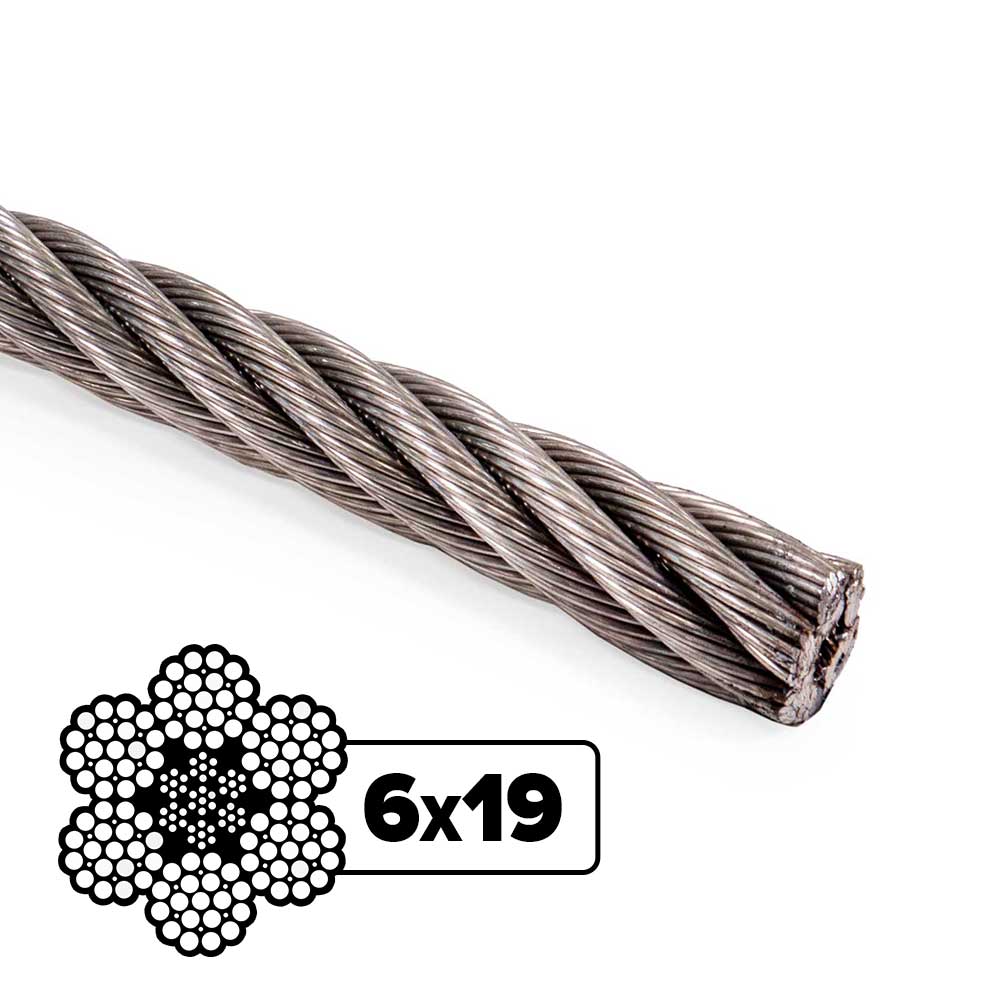

6x19 Wire Rope Configuration
The class of this wire rope is 6x19. These numbers nominally refer to the construction of the rope, indicating six outer strands surrounding the core and approximately 15-26 wires within each strand. Compared to 6x37 wire rope, the 6x19 construction offers improved abrasion resistance but less flexibility and fatigue resistance.
The Independent Wire Rope Core (IWRC) provides additional support and structural stability compared to fiber core alternatives. IWRC construction offers improved crushing resistance and performs well in elevated temperature environments, with a general operating temperature range of -40°F (-40°C) to 400°F (204°C).
Key Features
- Type 304 stainless steel provides excellent corrosion resistance for most indoor and outdoor applications.
- 6x19 construction delivers a strong balance of abrasion resistance and flexibility.
- IWRC core improves load support, stability, and resistance to crushing.
- More corrosion-resistant than galvanized wire rope while maintaining greater strength than Type 316 stainless steel.
- Suitable for lifting, suspension, winching, and general-purpose rigging applications.
- Meets Federal Specification RR-W-410 and ASTM A1023 dimensional and strength requirements.
- Available by the foot for custom-length applications.
Installation Tips
- Use properly sized wire rope clips, fittings, and end terminations rated for stainless steel wire rope applications.
- Inspect wire rope regularly for broken wires, deformation, wear, or corrosion, especially in demanding environments.
- Follow all applicable industry standards and manufacturer recommendations for installation, handling, and maintenance.
Accessories & More
Complete your wire rope assembly with compatible wire rope fittings and rigging hardware. We carry a variety of type 304 stainless steel accessories, including wire rope clips and wire rope thimbles, to help you create a secure and reliable assembly. For best results, use type 304 stainless steel components throughout your system, as mixing materials or finishes can lead to galvanic corrosion and reduced performance over time.
