7/8" 6x19 Wire Rope Cable | 304 Stainless

This 7/8" Type 304 stainless steel wire rope features a versatile 6x19 construction that delivers an excellent balance of flexibility, abrasion resistance, and corrosion protection. Commonly used for hoisting, suspension systems, winch lines, and general rigging applications, it is a dependable choice for environments where rust resistance and long-term durability are important.

Corrosion-Resistant Stainless Steel Cable for Rigging & Hoisting Applications

The 6x19 class is one of the most popular wire rope constructions due to its combination of strength, flexibility, and wear resistance. Compared to 6x37 wire rope, the 6x19 construction provides greater abrasion resistance, making it well-suited for applications where the rope regularly contacts drums, sheaves, and other equipment surfaces.

Type 304 stainless steel offers superior corrosion resistance compared to galvanized wire rope while maintaining greater strength than Type 316 stainless steel. This makes it an excellent choice for most industrial, commercial, and outdoor applications where rust protection is required without the added cost of marine-grade stainless steel.

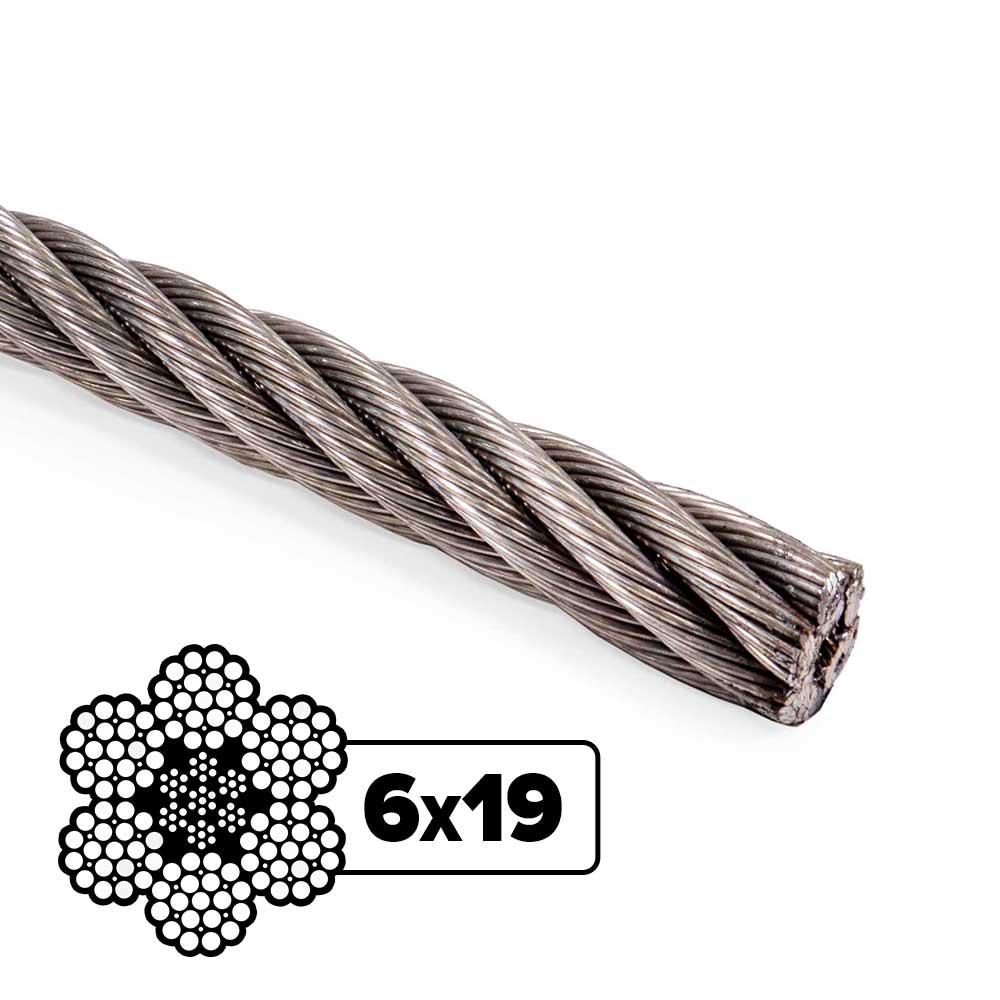

6x19 Wire Rope Configuration

The class of this wire rope is 6x19. These numbers nominally refer to the rope construction, consisting of six outer strands surrounding the core, with approximately 15-26 wires making up each strand. This configuration provides a strong balance of flexibility and abrasion resistance for general-purpose use.

Compared to a 6x37 construction, 6x19 wire rope offers improved wear resistance but slightly lower flexibility and fatigue resistance.

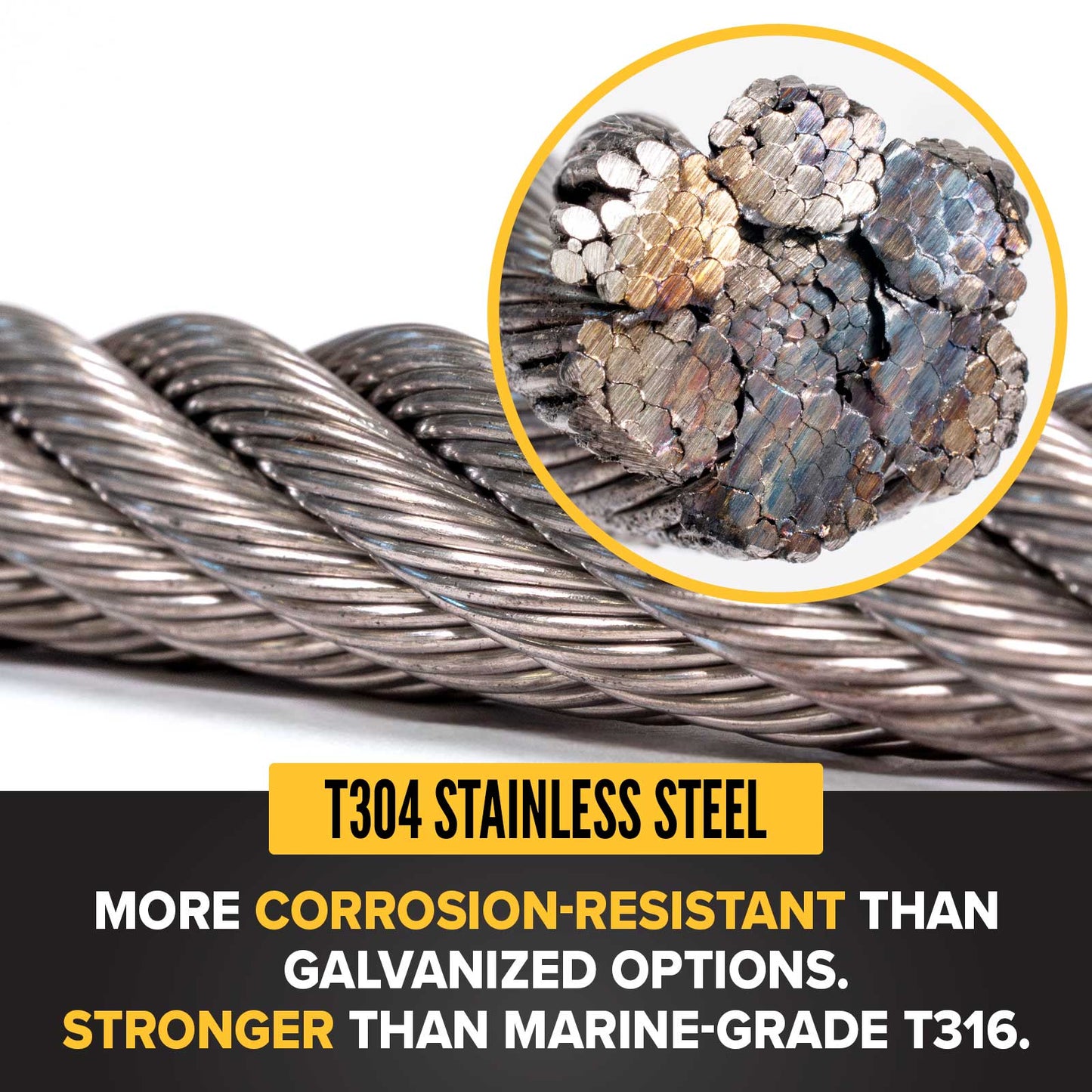

304 Stainless Steel & IWRC Construction

Type 304 stainless steel provides dependable corrosion resistance in a wide range of environments and is commonly selected for applications exposed to moisture, weather, or occasional corrosive conditions. It offers greater strength than Type 316 stainless steel while remaining a cost-effective stainless option.

The Independent Wire Rope Core (IWRC) provides greater structural support than fiber core constructions. IWRC wire rope offers enhanced crushing resistance, improved load stability, and reliable performance in temperatures ranging from -40°F to 400°F.

Key Features

• Type 304 stainless steel provides excellent corrosion resistance and durability
• Stronger and more cost-effective than Type 316 stainless steel
• 6x19 construction balances flexibility with abrasion resistance
• More wear-resistant than comparable 6x37 wire rope constructions
• IWRC core improves crushing resistance and load support
• Suitable for hoisting, suspension systems, winch lines, and general rigging applications
• Ideal for outdoor, commercial, and industrial environments where rust protection is needed
• Temperature range from -40°F to 400°F
• Meets RR-W-410 and ASTM A1023 dimensional and strength requirements
• Imported from a vetted supplier
• Certificate of Conformity available upon request

Accessories & More

Complete your wire rope assembly with compatible wire rope fittings and rigging hardware. We carry a variety of type 304 stainless steel accessories, including wire rope clips and wire rope thimbles, to help you create a secure and reliable assembly. For best results, use type 304 stainless steel components throughout your system, as mixing materials or finishes can lead to galvanic corrosion and reduced performance over time.
