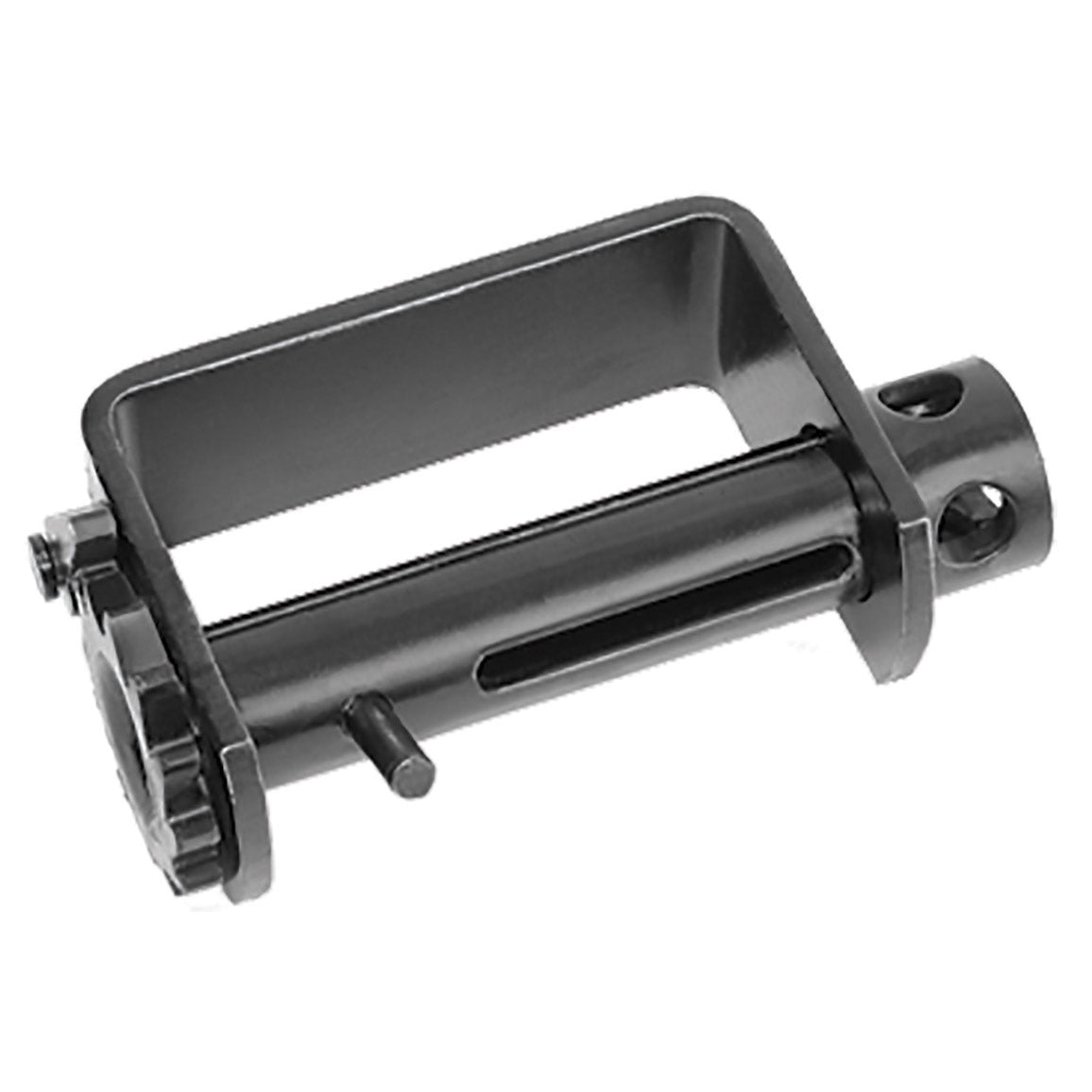

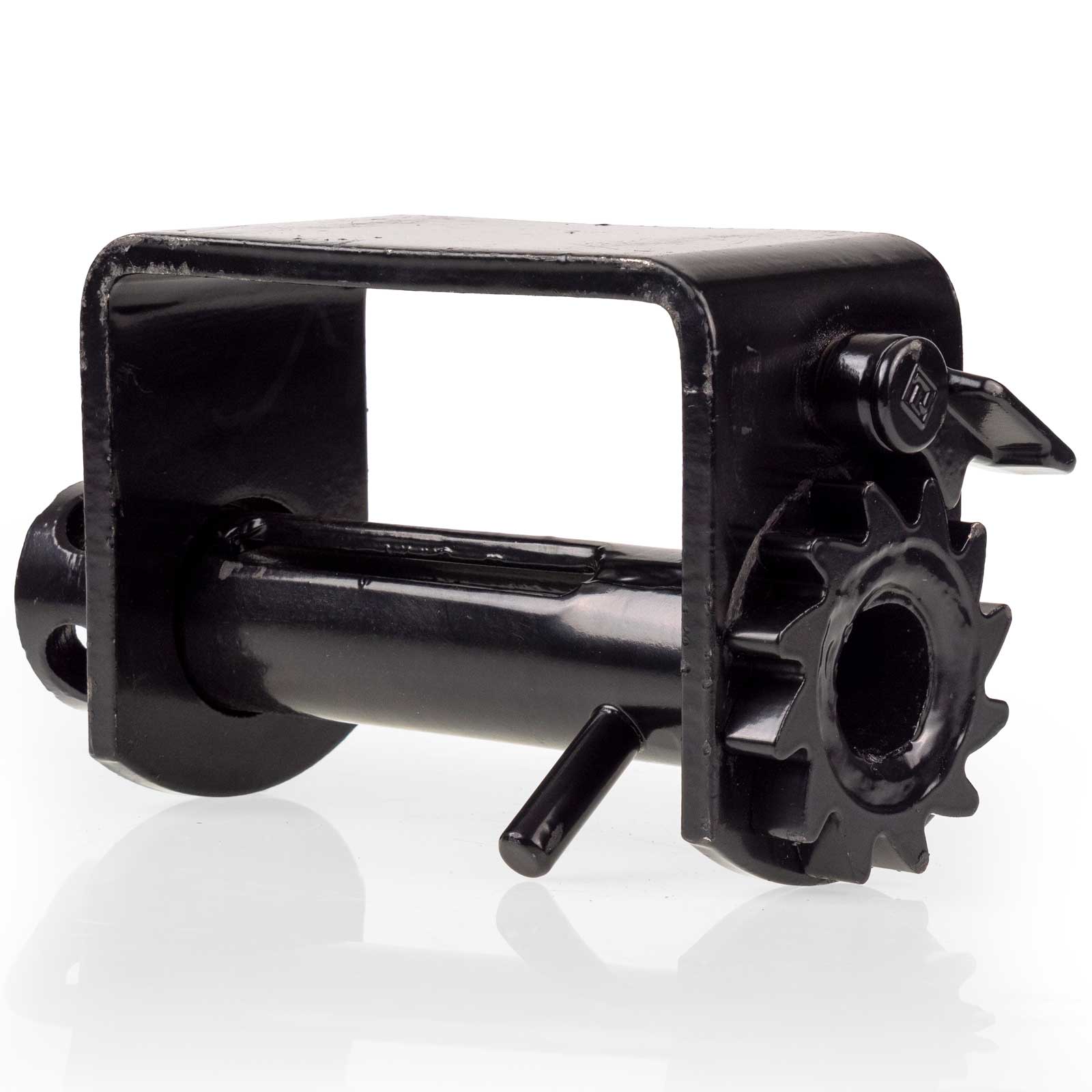

4" Weld-On Combination Truck Tie Down Winch (Bottom Mount)
4" Weld-On Combination Truck Tie Down Winch (Bottom Mount)!
4" Weld-On Combination Truck Tie Down Winch (Bottom Mount)

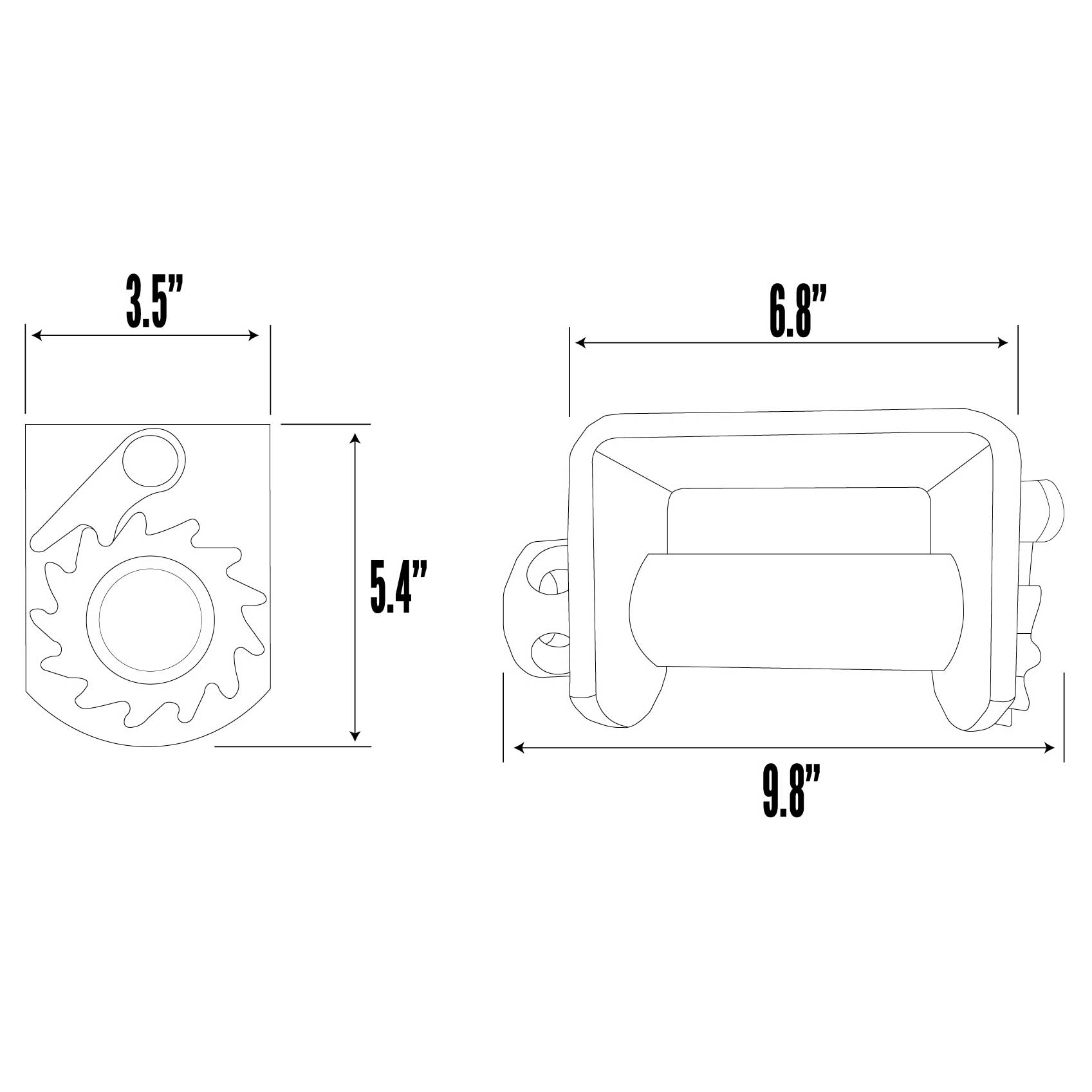

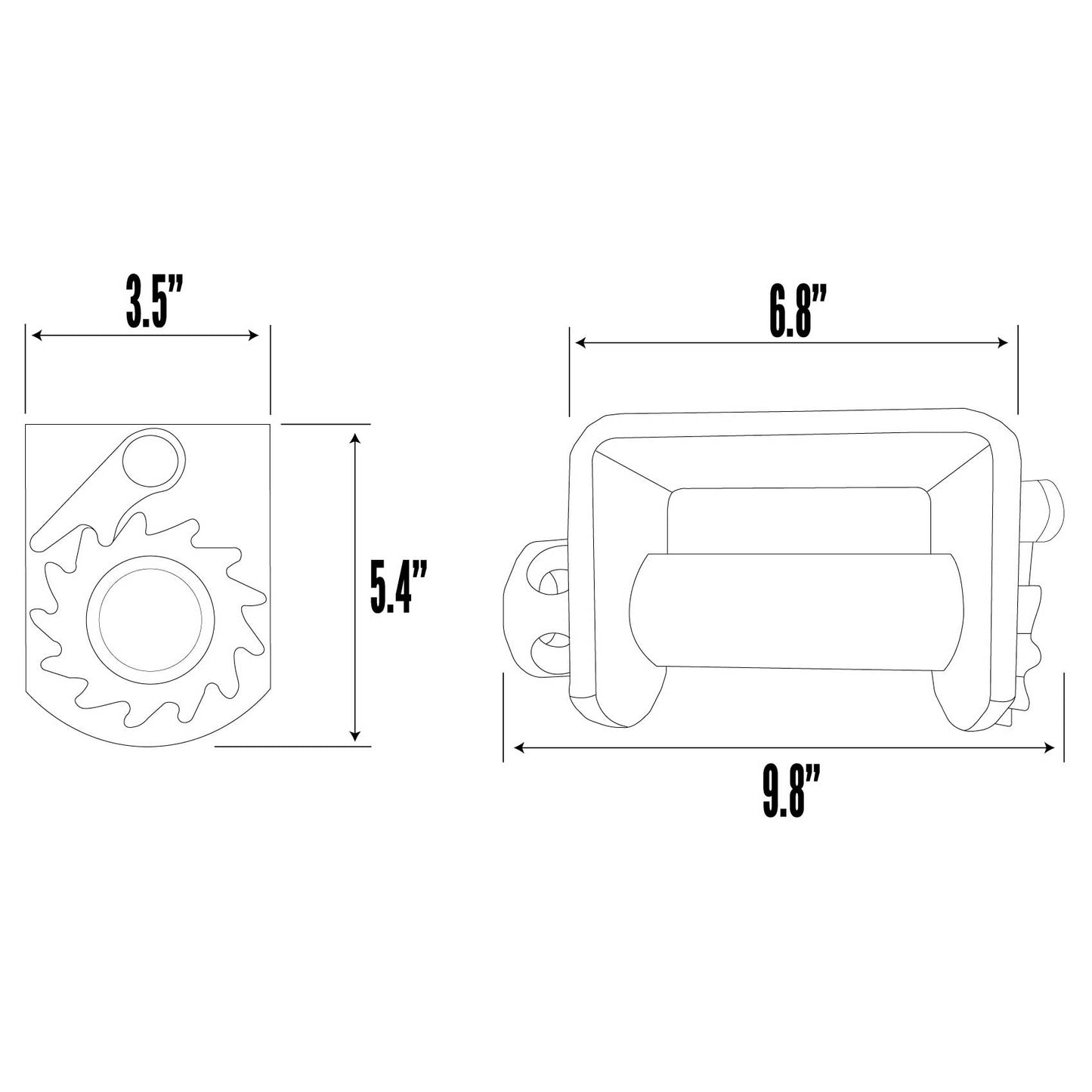

Specifications
This 4" weld-on combination truck tie-down winch is engineered for flexibility and durability. It supports either 4" wide webbing or wire rope/cable, making it a versatile choice for a wide range of securement setups.

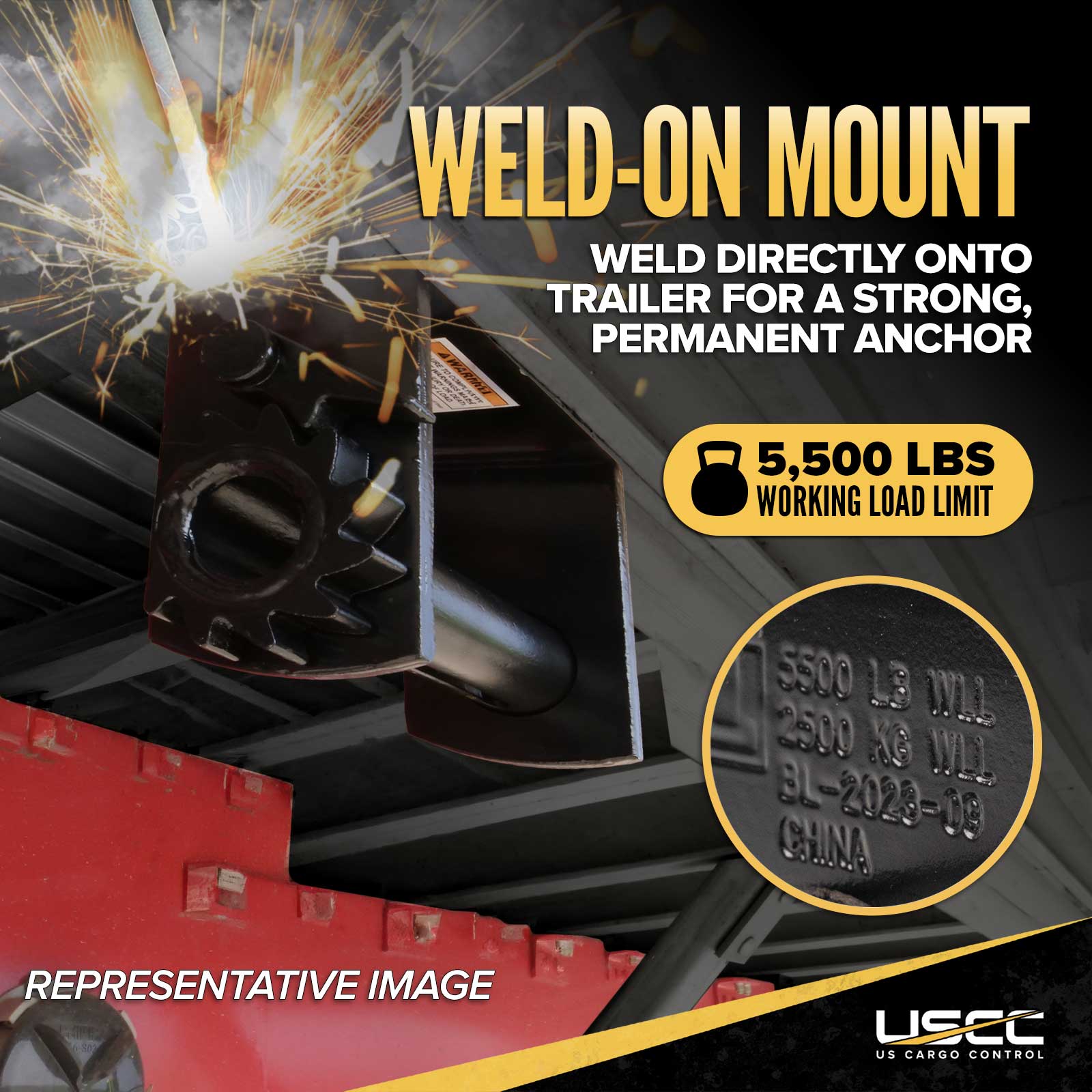

Designed for bottom mount applications, this winch welds directly to your trailer or truck frame for a permanent, heavy-duty installation. It stores up to 15 feet of 4" webbing and has a 5,500 lb working load limit, making it ideal for flatbeds, drop decks, and general freight hauling.
Key Features:
- Combination Compatibility: Accepts 4" webbing or wire rope/cable.
- Weld-On Installation: Permanently mounts to trailer or truck frames for secure bottom mount setup.

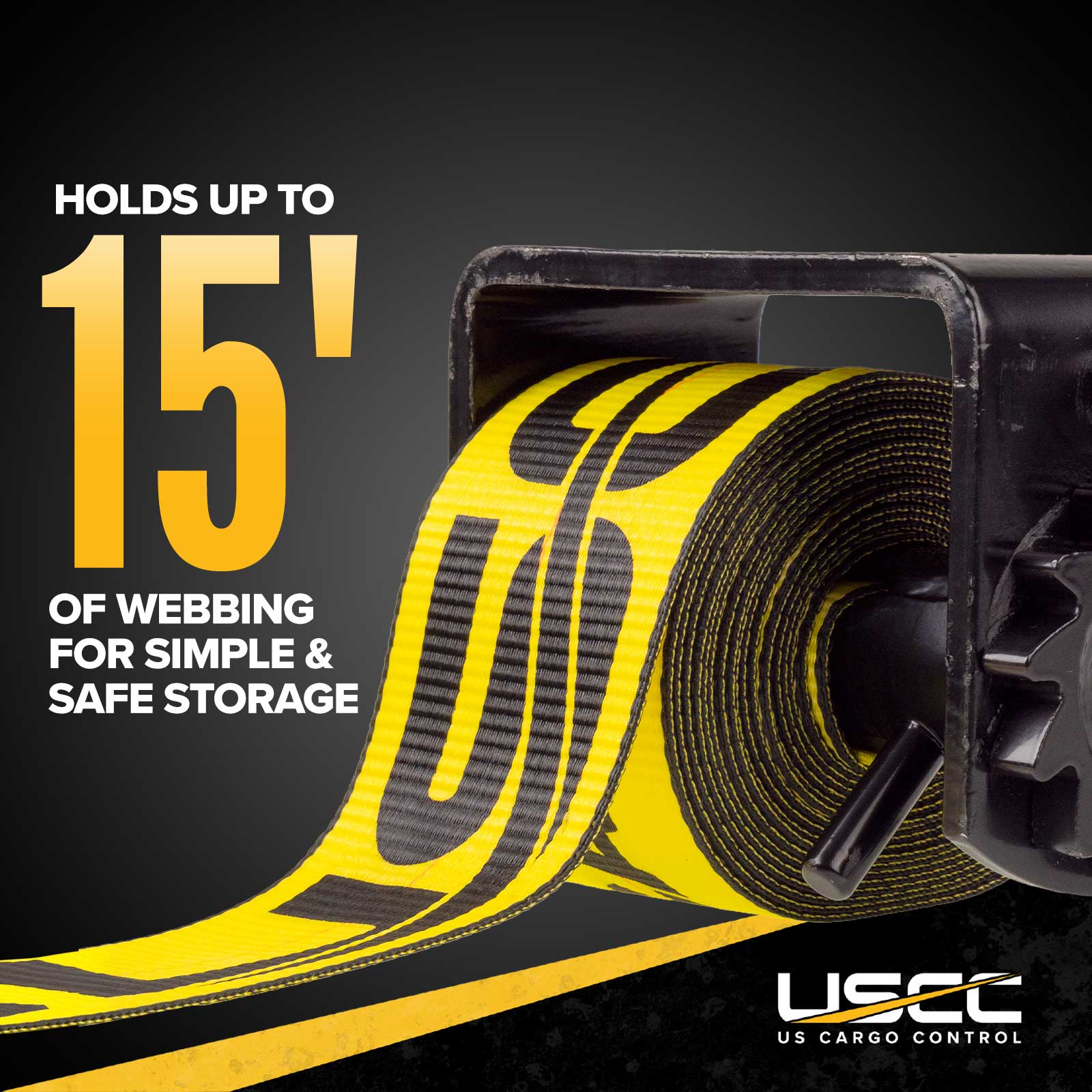

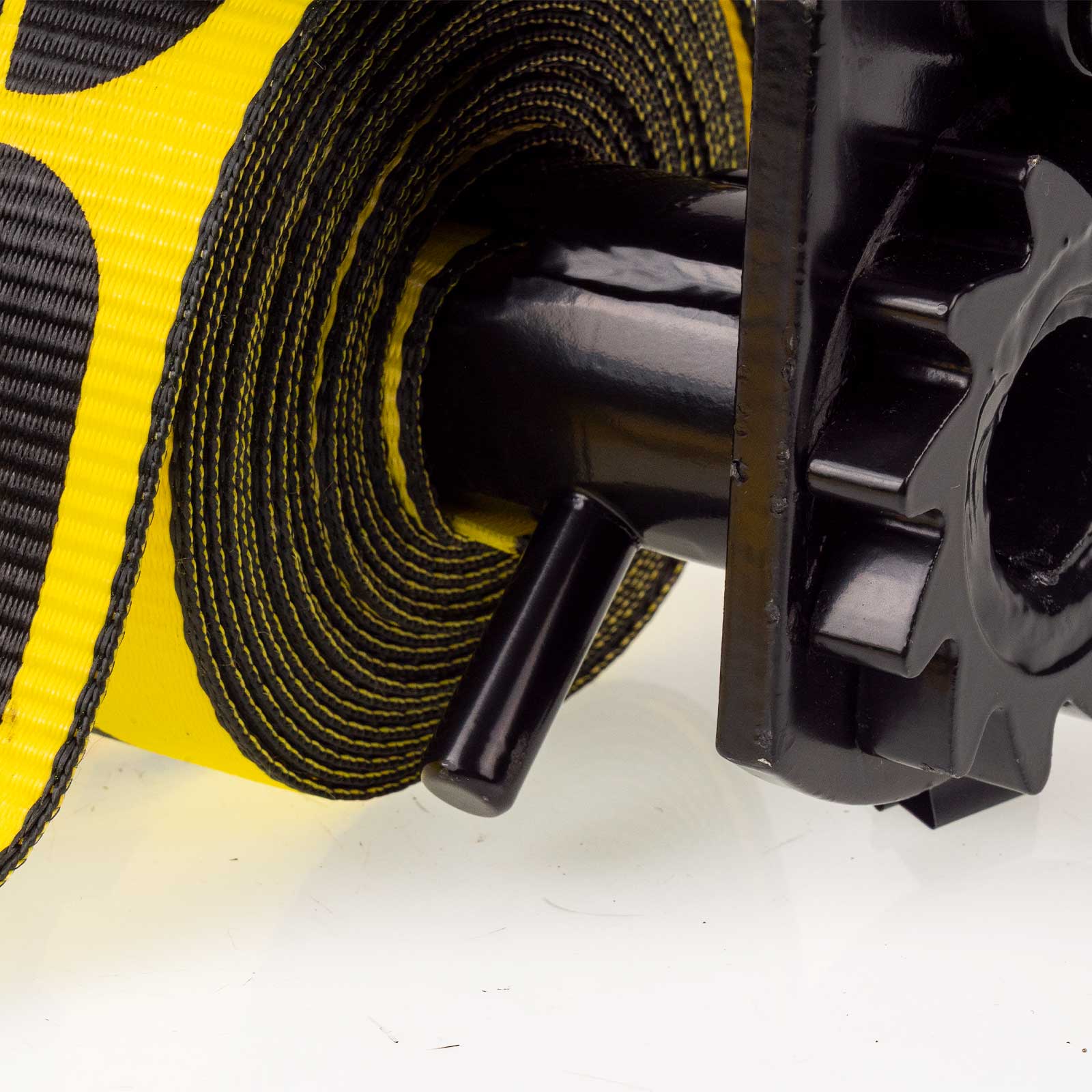

- Strap Storage Capacity: Holds up to 15 feet of 4" webbing.
- 5,500 lb Working Load Limit: Rated for heavy-duty cargo securement.
- Versatile Use: Ideal for mixed load applications requiring straps or cable.

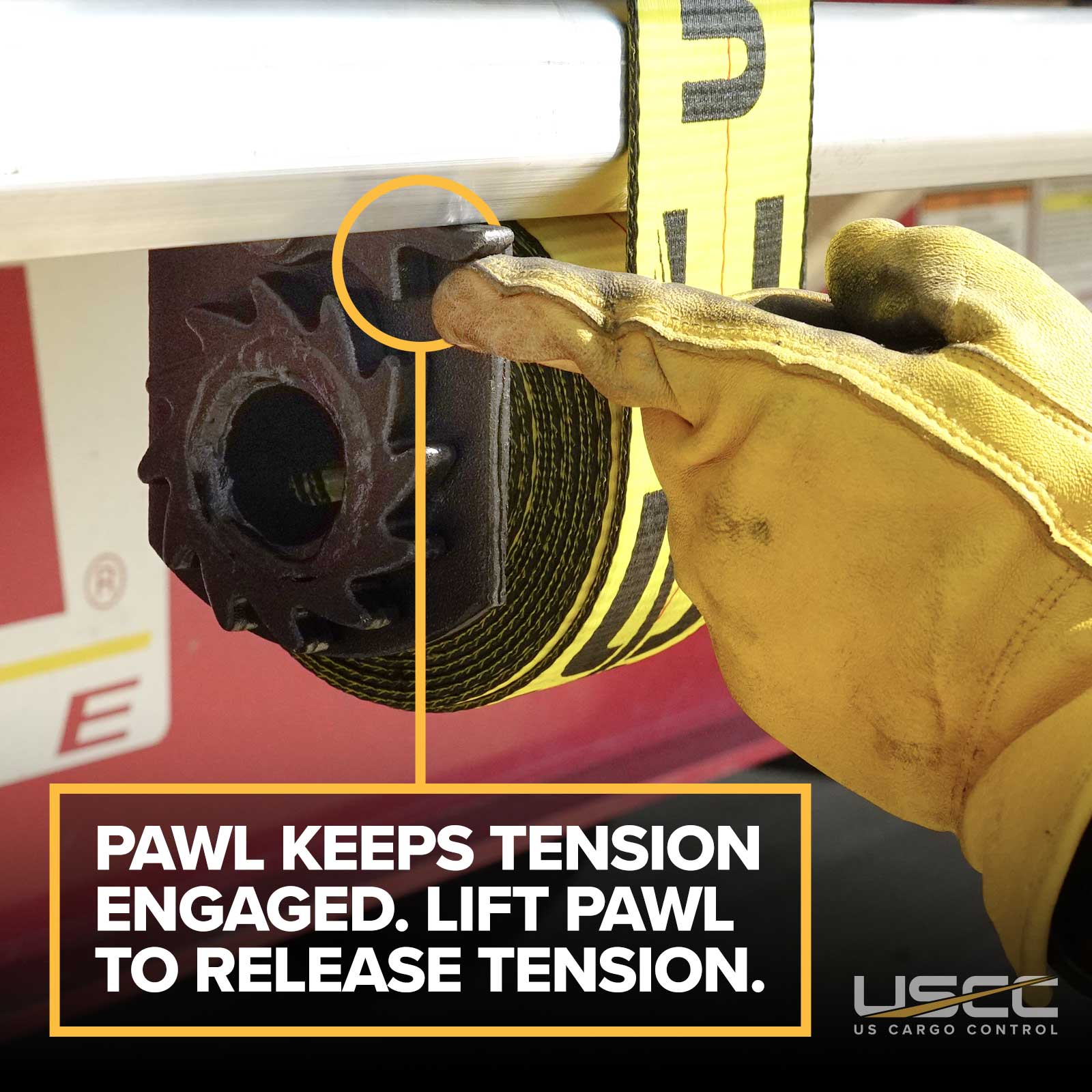

For tensioning, the WSTDA recommends in section 4.3.5 that "When using any winch, the winch mandrel shall have a minimum of two (2) and a maximum of four (4) wraps of webbing. Two to four wraps will appear like four to eight layers of webbing. Less than two wraps may result in strap slippage; more than four will place unnecessary strain on the winch. Excessive straps of webbing on the mandrel may reduce the working load limit (WLL) of the winch and may interfere with proper operation."
