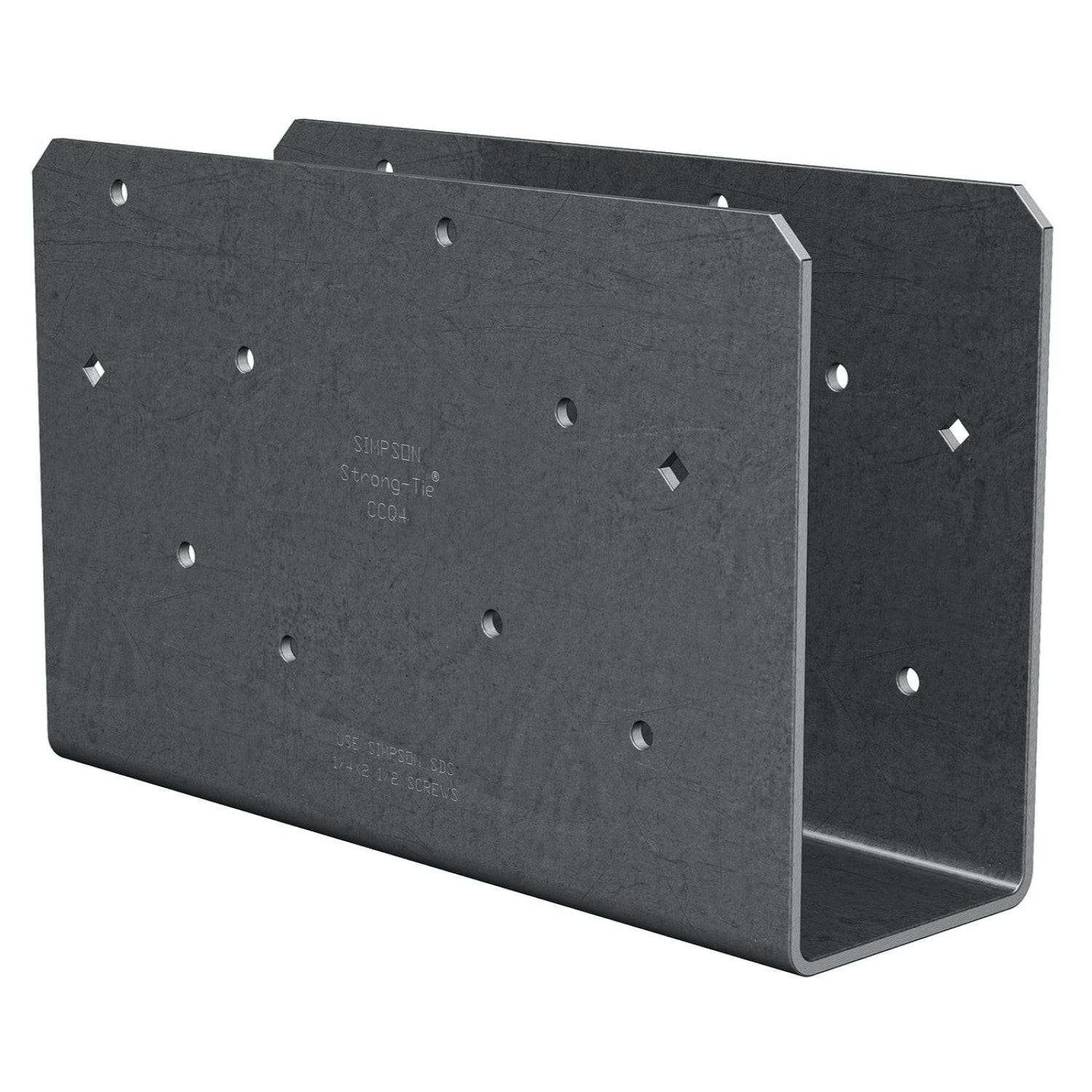

Simpson CCOQ8-SDS2.5 Column Cap Only Quick-Install 3 Gauge - No Coating

Simpson CCOQ8-SDS2.5 Column Cap Only Quick-Install 3 Gauge - No Coating

Regular price $208.29
Sale price $208.29 Regular price
0% off
Ships in 2-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

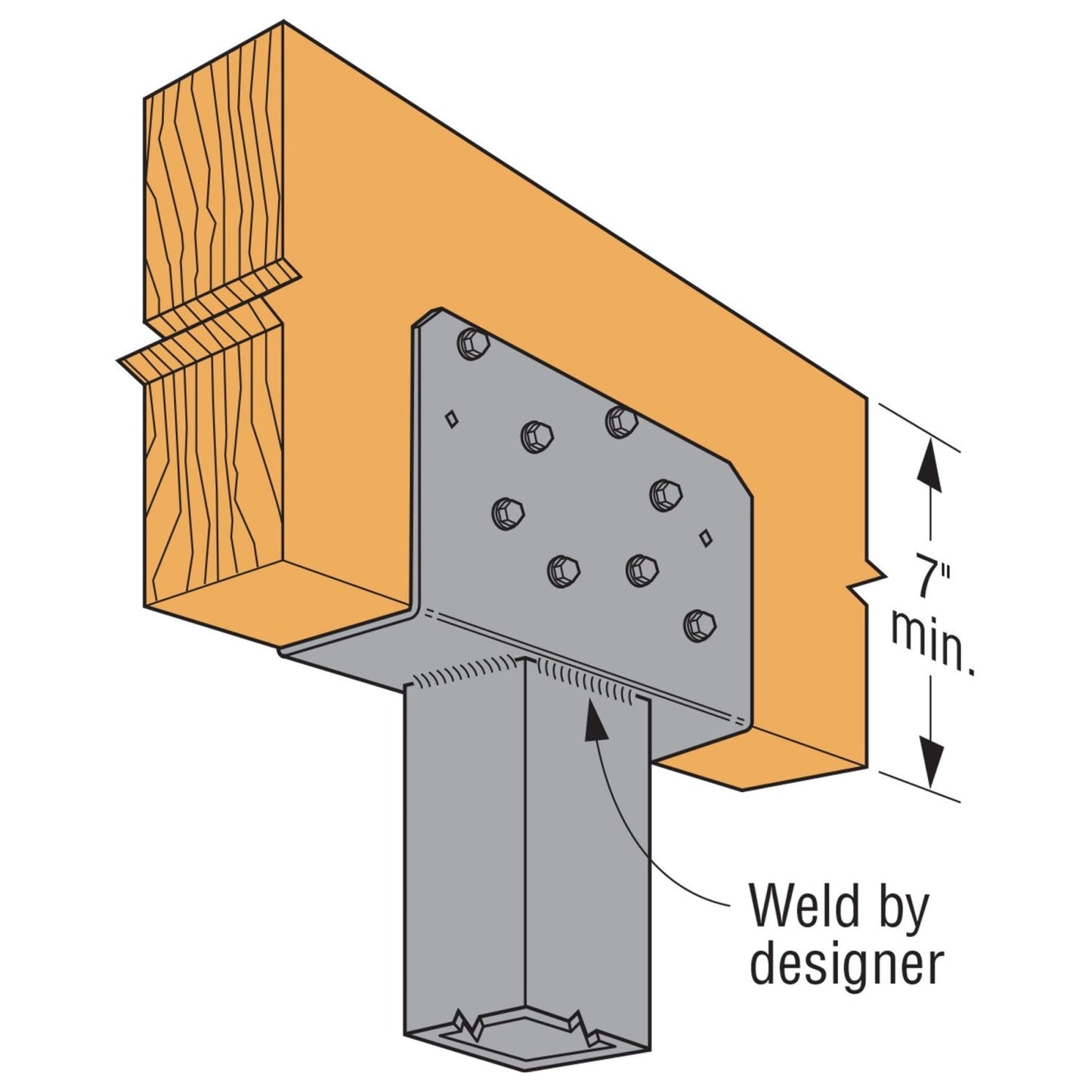

The Simpson CCOQ Column Cap Only, Quick-Install is designed to provide strong column-beam connections on top of steel columns. The column cap features a design without legs, enabling a field-welded attachment to steel columns and posts. The seat of the column cap provides additional surface area for bearing that extends beyond each side of the column. This helps to distribute the load from the beam and provide support for the connection. The CCOQ uses Strong-Drive® SDS Heavy-Duty Connector screws to provide fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails.

Key Features

  • The SDS screws provide a lower profile than standard through bolts
  • Diamond holes for temporary fastening
  • Fasten with 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the column cap.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

Specifications:


Height: 7"
Fasteners required: 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws
Thickness: 3 Gauge
Width: Beam 7-1/2"
Length: 11"
Manufacturer name: Simpson Strong-Tie Company Inc
Product Guide: View Spec Sheet
