SKU: CCQ8X-SDS2.5HDG

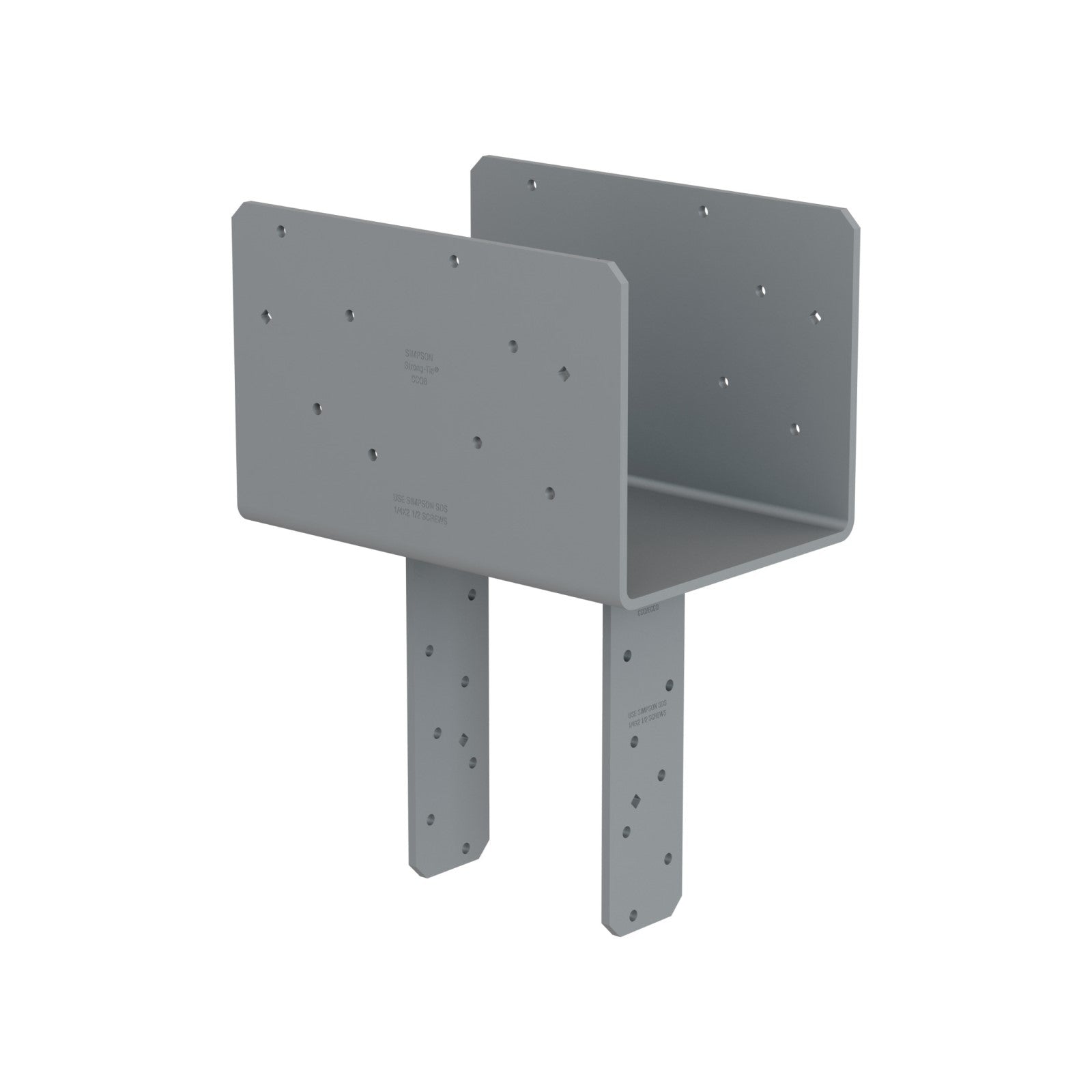

Simpson CCQ8X-SDS2.5HDG Column Cap for 8X Beam, Varaible Post W/SDS Screws – Hot Dip Galvanized, Custom Non-Returnable

Simpson CCQ8X-SDS2.5HDG Column Cap for 8X Beam, Varaible Post W/SDS Screws – Hot Dip Galvanized, Custom Non-Returnable!

Skip to product information
1 of 6
Call for Price

Request Bulk Pricing
Call to Order
Request Bulk Pricing
Ships in 21-28 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Hot Dip Galvanized
Beam size: 8X
Height: 7"
Manufacturer name: Simpson Strong-Tie
Thickness: 3 Gauge
Width: (See Image 2) W1: 7.5" - 8.8125"; W2: 3.5625" - 10.188"
Description

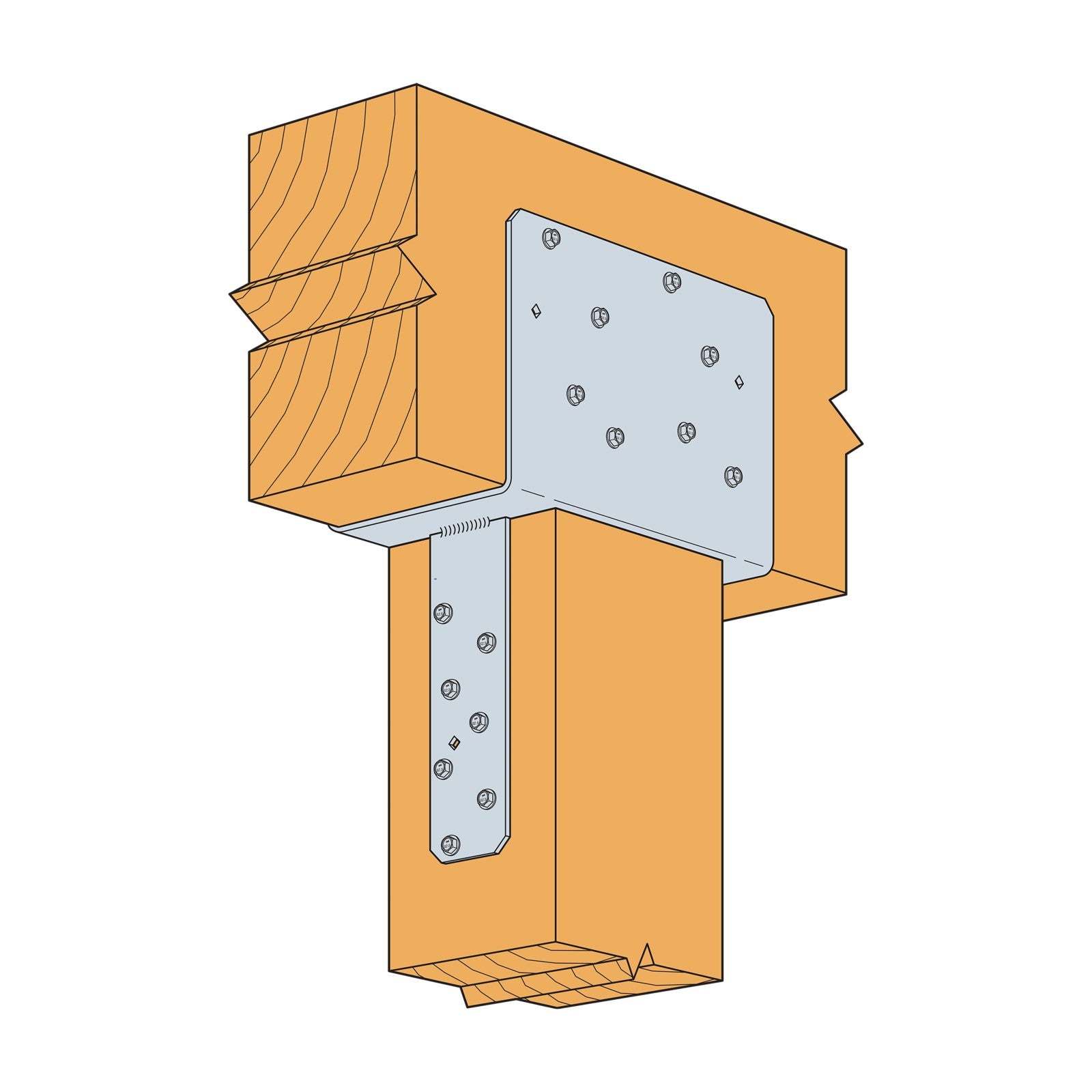

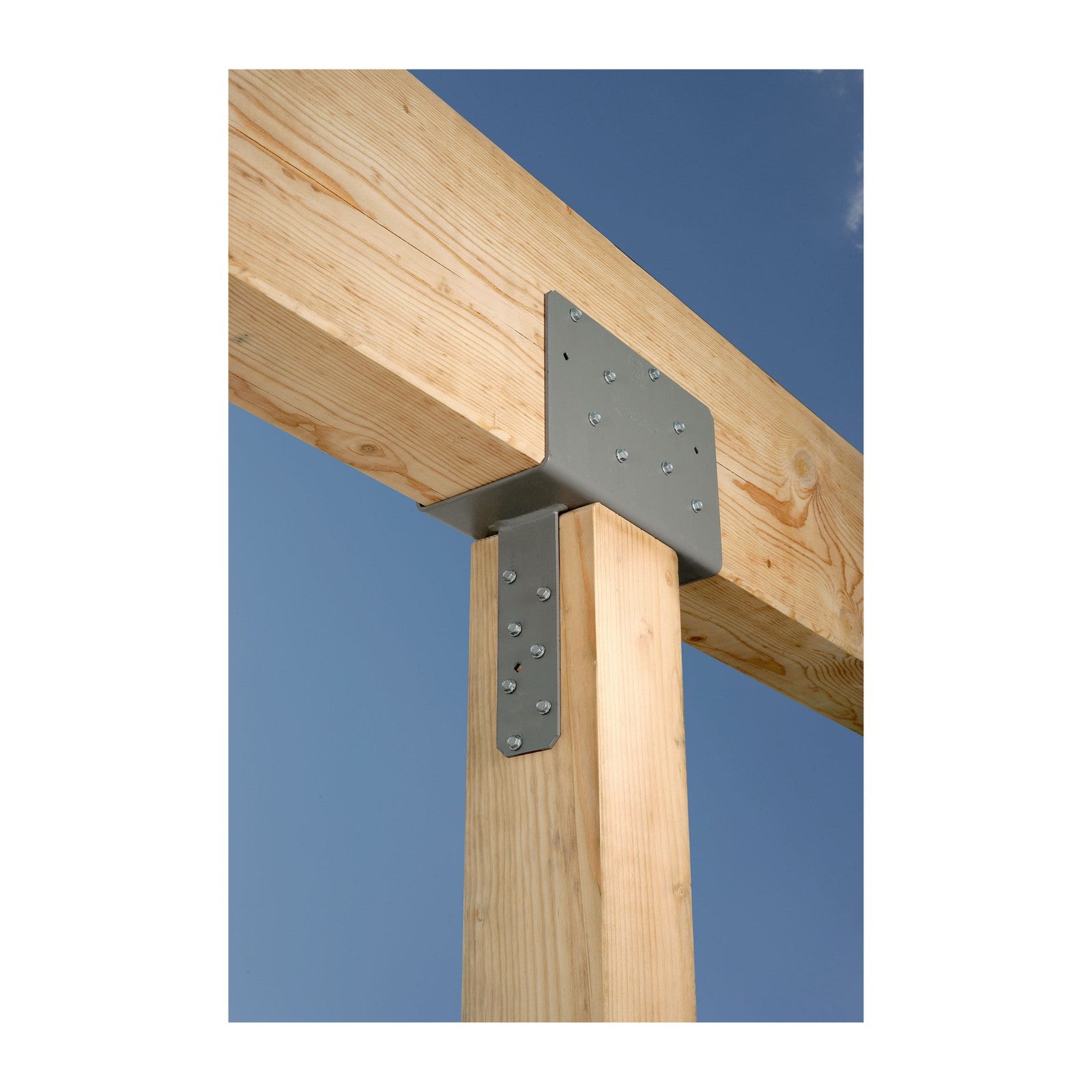

The CCCQ is designed to provide strong column-to-beam connections when there are multiple wood beams on top of a column. When properly installed, this cross-column cap helps to distribute the load from the intersecting beams and provides support for the connection. The CCQ8X-SDS2.5HDG come with Strong-Drive SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts and is special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.

Key Features

    Hot dip galvanized for added corrosion resistance.
  • Screws are configured to provide high uplift design values
  • Certified welds for confidence in strength and loading
  • Diamond holes to provide temporary fastening
  • Install 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided, in all round holes. (Lag screws will not achieve the same load.)
  • Available in widths up to 8" wide; additionally, many combinations of beam and post sizes can be manufactured.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
