Simpson CCQ66-SDS2.5HDG Column Cap w/SDS Screws - Hot Dip Galvanized

SKU: CCQ66-SDS2.5HDG

$197.61

  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

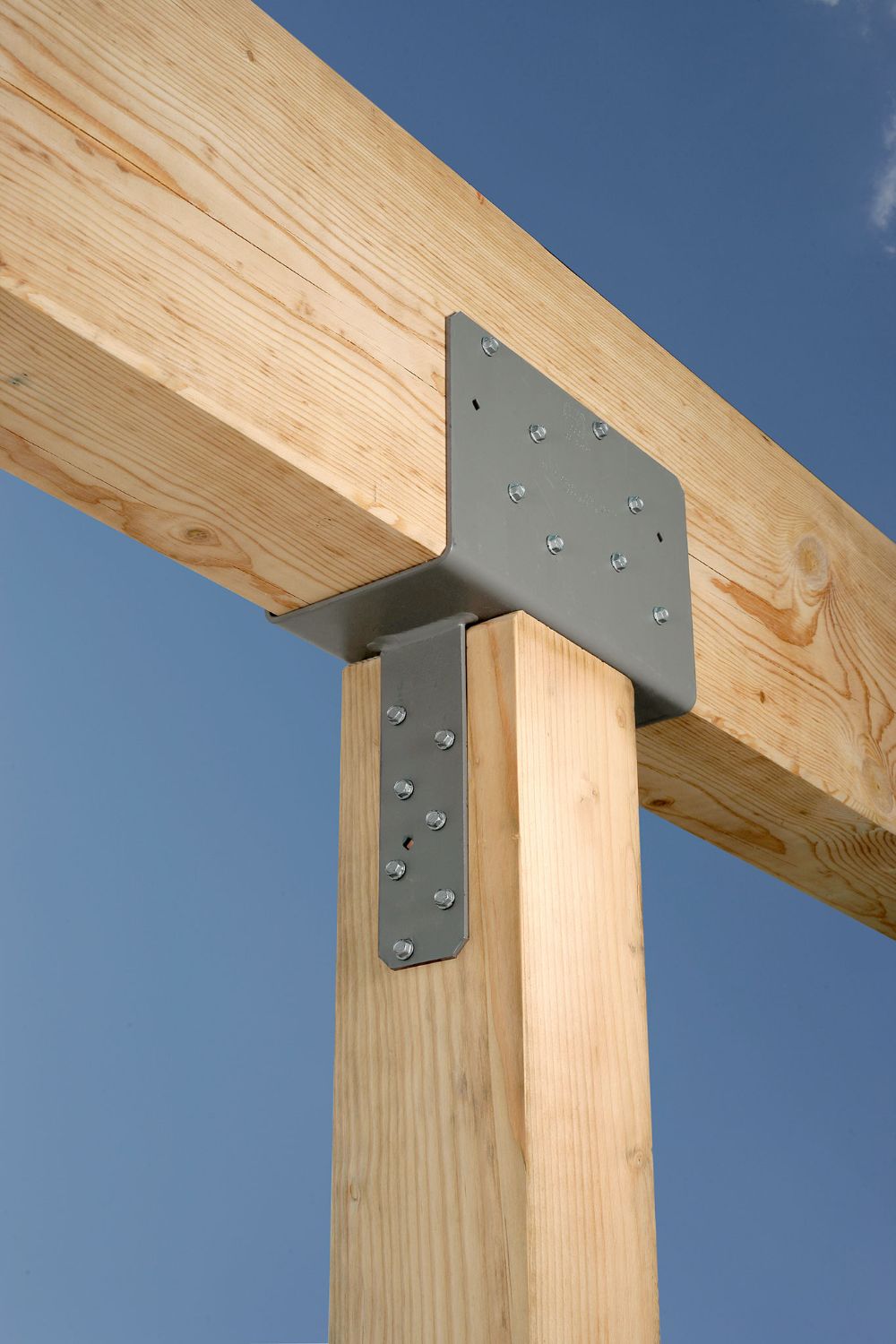

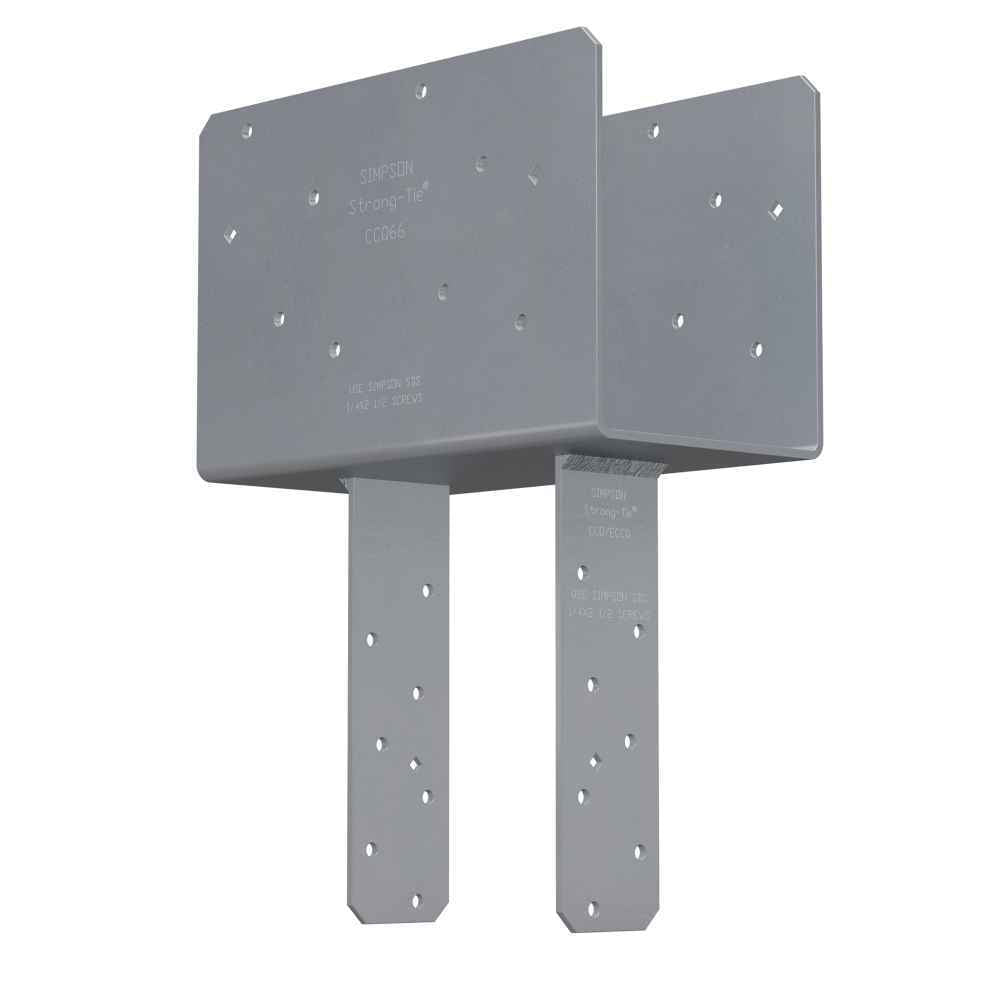

  • Simpson Strong-Tie CCQ Column caps provide a high-capacity connection for column-beam combinations. This design uses Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws to provide faster installation and provides a greater net section area of the column compared to bolts. The SDS screws provide for a lower profile compared to standard through bolts. The Strong-Tie CCQ66-SDS2.5HDG post base features a hot-dip galvanized coating. The minimum average coating weight is 2.0 oz./ft2 (per ASTM A123 total both sides). This product requires hot-dip galvanized fasteners (fasteners which meet the specifications of ASTM A153).

    Installation:

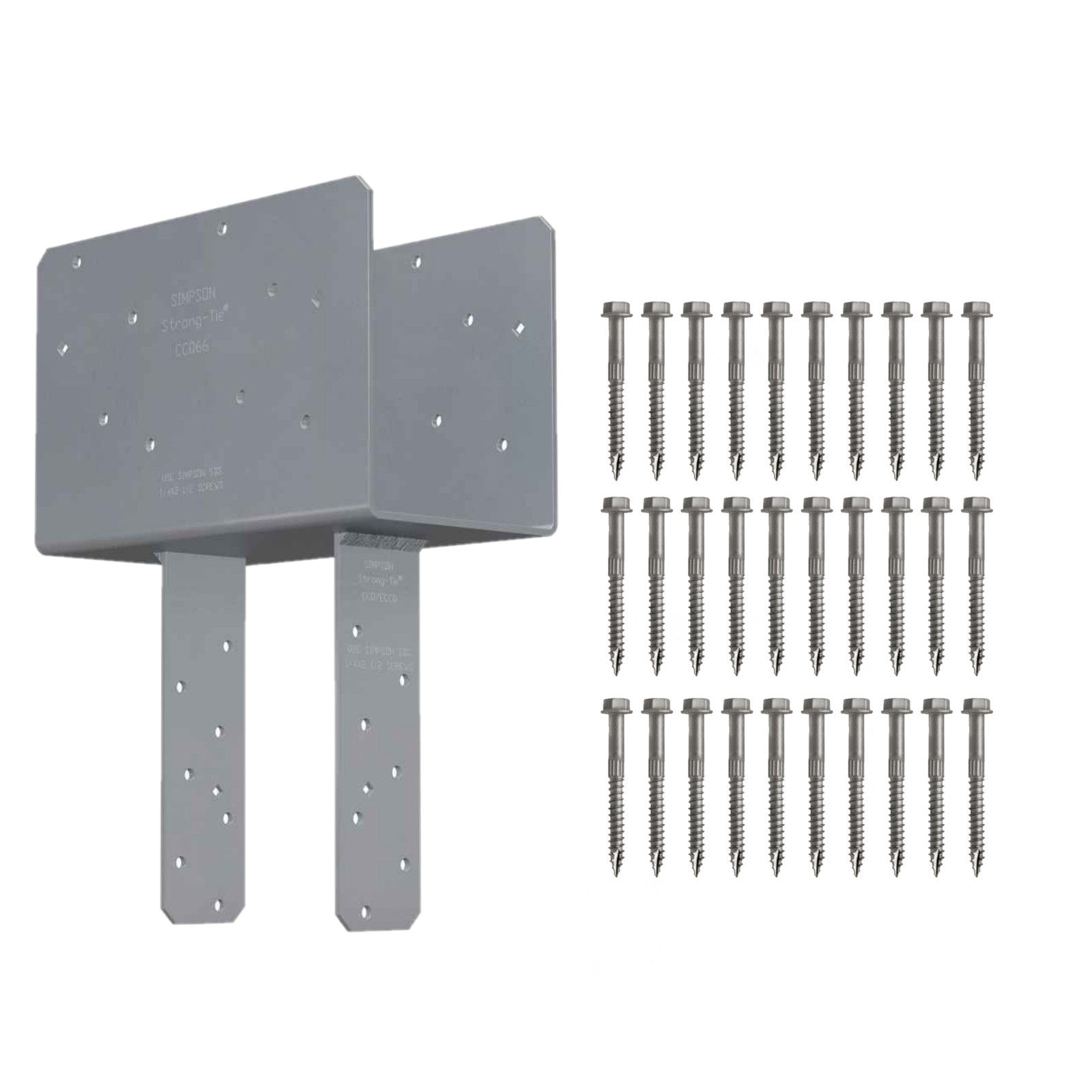

    • Install 1/4"x2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the column cap. (Lag screws will not achieve the same load.)
    • CCOQ and ECCOQ column cap only (no straps) may be ordered for field-welding to pipe or other columns. Dimensions are same as CCQ and ECCQ.
    • For rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified with any column size given. (Note that the W2 dimension on straps rotated 90° is limited by the W1 dimension.)

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

    Looking for something different? See the rest of our Simpson CCQ Column Caps.


    California Residents: WARNING

  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product
  • Simpson...

    Read More

  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product
  • Simpson Strong-Tie CCQ Column caps provide a high-capacity connection for column-beam combinations. This design uses Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws to provide faster installation and provides a greater net section area of the column compared to bolts. The SDS screws provide for a lower profile compared to standard through bolts. The Strong-Tie CCQ66-SDS2.5HDG post base features a hot-dip galvanized coating. The minimum average coating weight is 2.0 oz./ft2 (per ASTM A123 total both sides). This product requires hot-dip galvanized fasteners (fasteners which meet the specifications of ASTM A153).

    Installation:
    • Install 1/4"x2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the column cap. (Lag screws will not achieve the same load.)
    • CCOQ and ECCOQ column cap only (no straps) may be ordered for field-welding to pipe or other columns. Dimensions are same as CCQ and ECCQ.
    • For rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified with any column size given. (Note that the W2 dimension on straps rotated 90° is limited by the W1 dimension.)

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

    Looking for something different? See the rest of our Simpson CCQ Column Caps.


    California Residents: WARNING

    Show Less

    For Treated Lumber:
    yes

    Finish Spec:
    Hot Dip Galvanized

    Manufacturer Name:
    Simpson Strong-Tie

    Beam Size:
    6X

    Post Size:
    6X

    Thickness:
    7 Gauge

    Product Guide:

    Read More

    Show Less

    Customer Reviews

    Based on 2 reviews
    50%
    (1)
    50%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    C
    CRAIG RHINEHART
    Did the job for me

    The brackets are expensive, but certainly did the job.

    They arrived the day after I ordered.

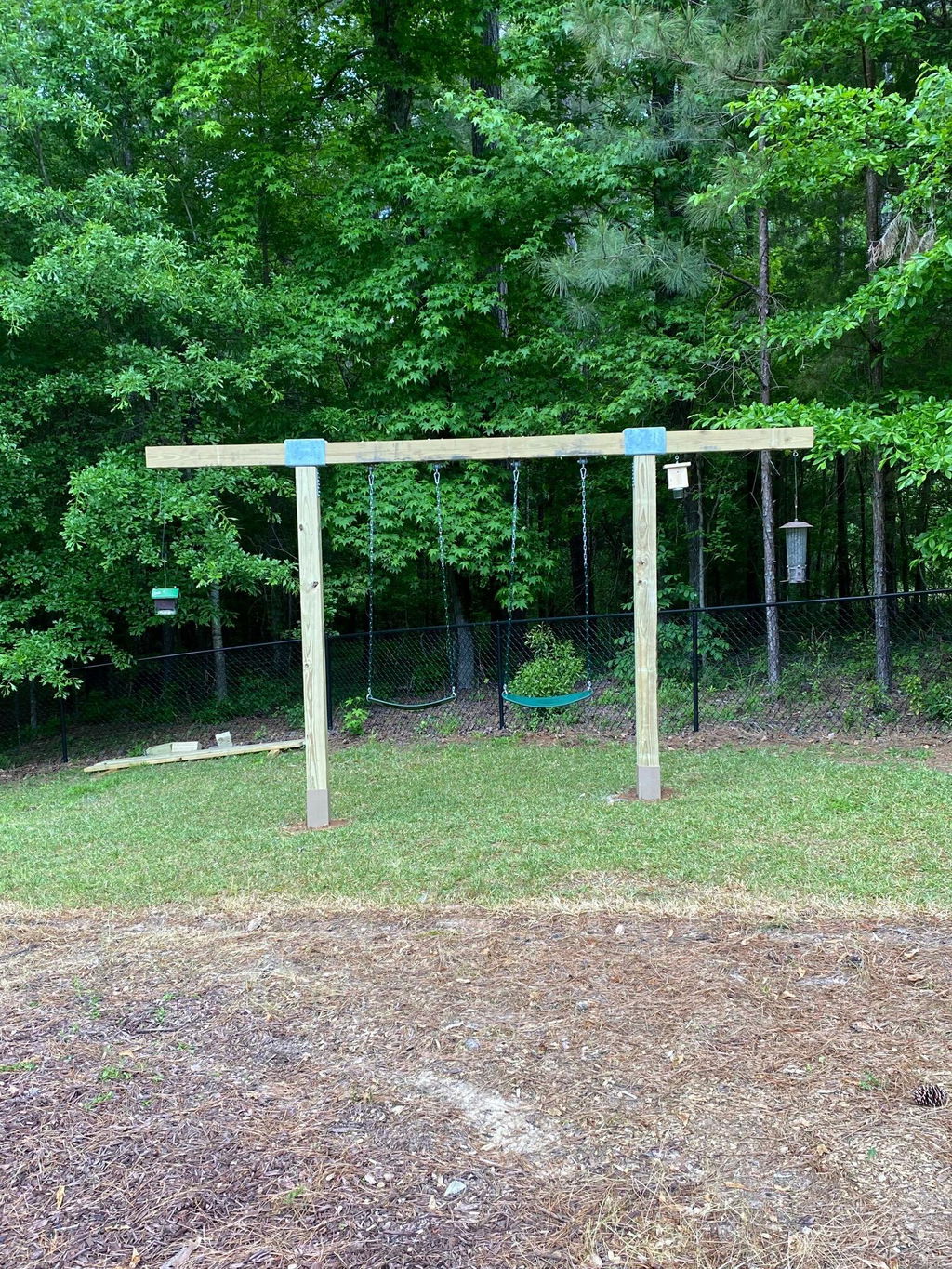

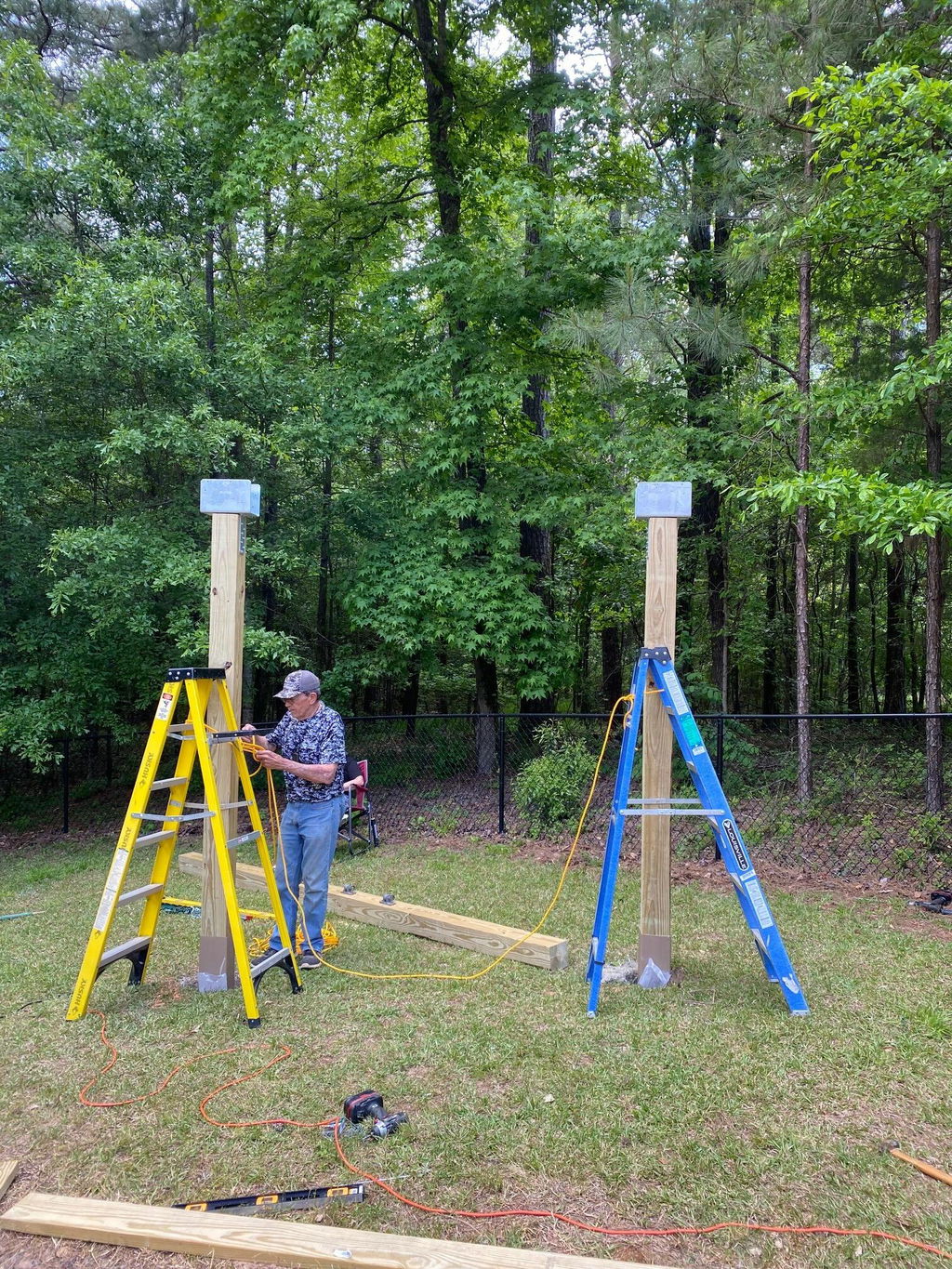

    It was difficult to get the brackets onto the Lowe's-purchased 6x6 posts and then to get the top beam into the brackets. The brackets were just a bit too snug. I had to use a 3-lb hammer and a lot of muscle (and ear plugs) to get them to fit together. That part of the installation was not fun.

    Also, once the top beam was in place the top set of holes were too high for the included screws to touch any wood. Not sure what happened there.

    Overall I am pleased.

    A
    Alexandre Downar

    Fast shipping. I recommend
