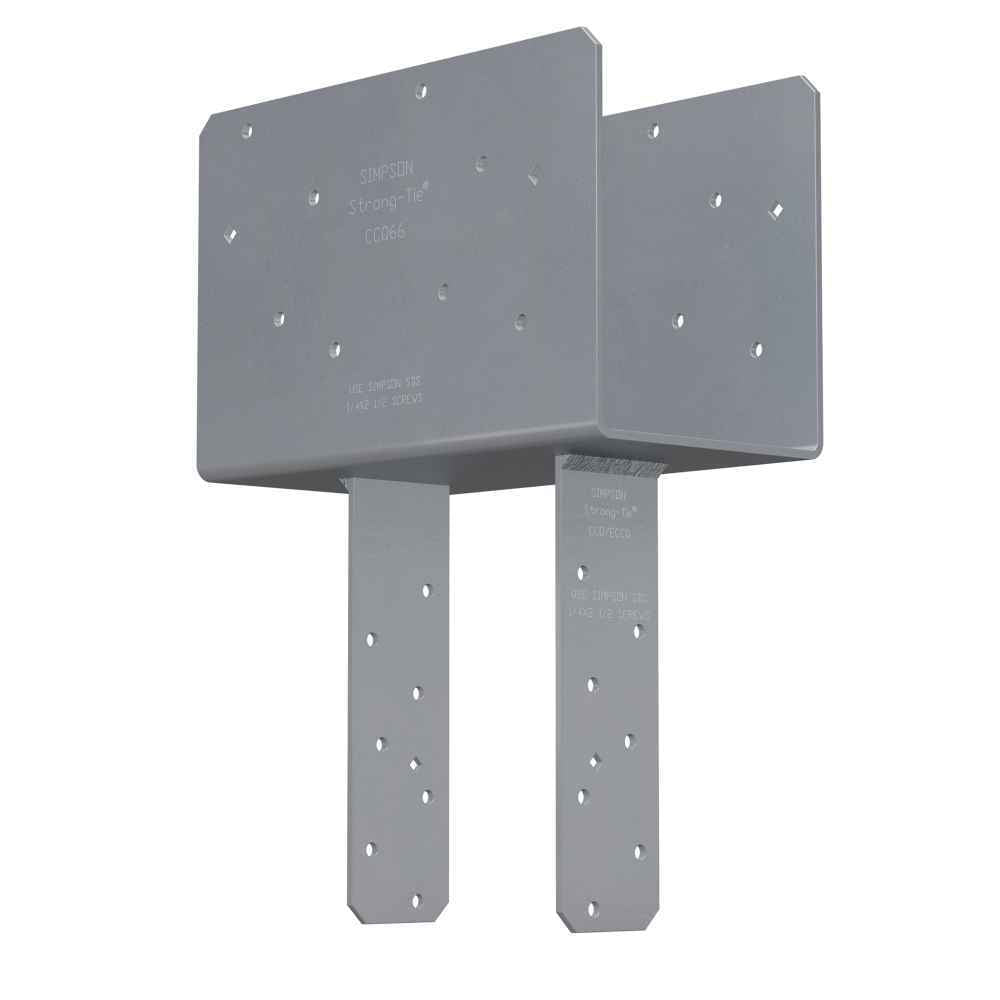

Simpson CCQ66SS-SDS2.5 Column Cap w/SDS Screws - Stainless Steel

SKU: CCQ66SS-SDS2.5
$558.31
Made to Order
Standard Lead Time 3-5 days.

  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

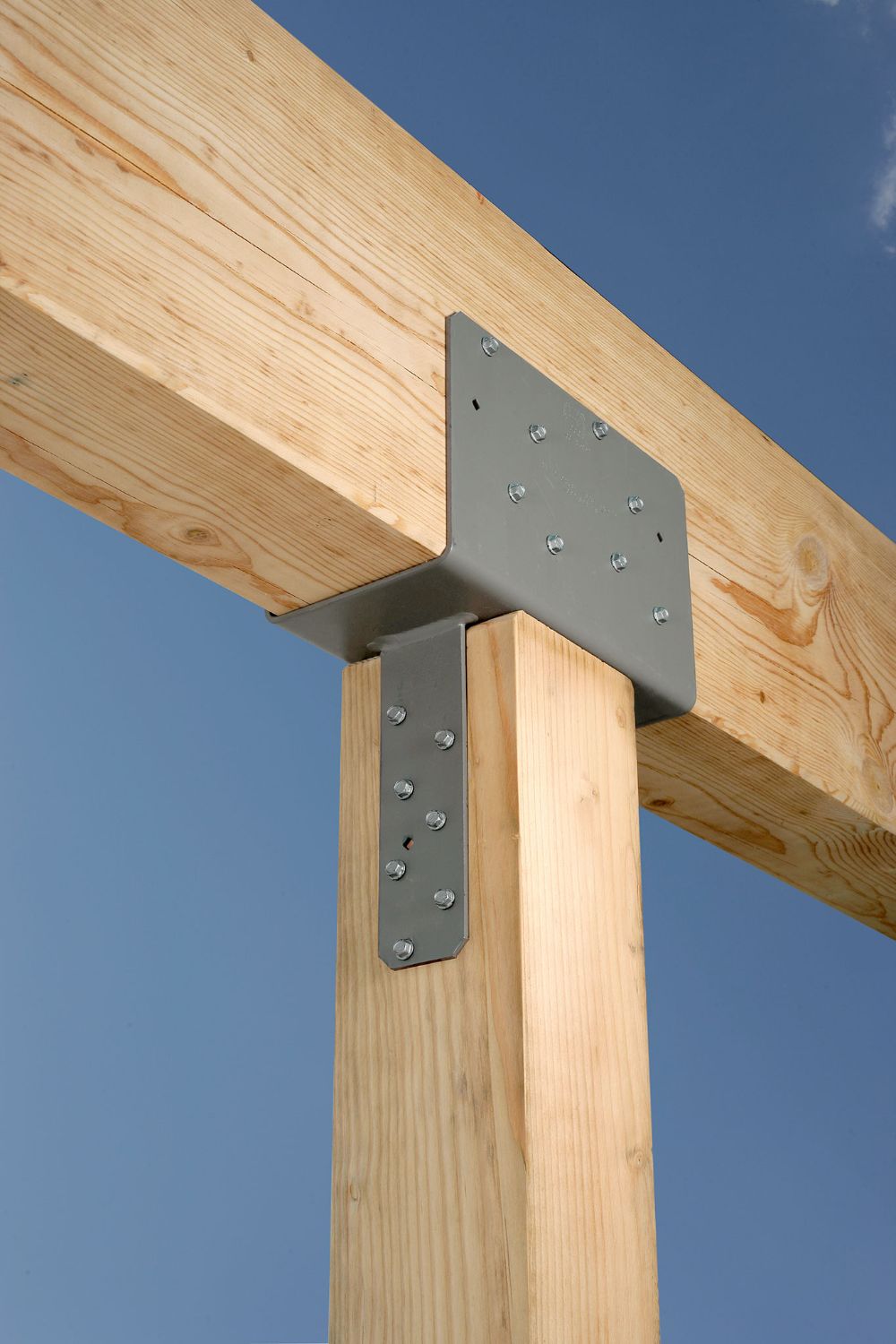

  • Simpson Strong-Tie CCQ Column caps provide a high-capacity connection for column-beam combinations. This design uses Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws to provide faster installation and provides a greater net section area of the column compared to bolts. The SDS screws provide for a lower profile compared to standard through bolts. The Strong-Tie CCQ66SS-SDS2.5 post base is made out of 316L stainless steel and offers maximum corrosion resistance in harsh exterior conditions.

    Installation:
    • Install 1/4"x2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the column cap. (Lag screws will not achieve the same load.)
    • CCOQ and ECCOQ column cap only (no straps) may be ordered for field-welding to pipe or other columns. Dimensions are same as CCQ and ECCQ.
    • For rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified with any column size given. (Note that the W2 dimension on straps rotated 90° is limited by the W1 dimension.)

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

    Looking for something different? See the rest of our Simpson CCQ Column Caps.


    California Residents: WARNING

  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product
  • Simpson...

    Read More

  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product
  • Simpson Strong-Tie CCQ Column caps provide a high-capacity connection for column-beam combinations. This design uses Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws to provide faster installation and provides a greater net section area of the column compared to bolts. The SDS screws provide for a lower profile compared to standard through bolts. The Strong-Tie CCQ66SS-SDS2.5 post base is made out of 316L stainless steel and offers maximum corrosion resistance in harsh exterior conditions.

    Installation:
    • Install 1/4"x2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the column cap. (Lag screws will not achieve the same load.)
    • CCOQ and ECCOQ column cap only (no straps) may be ordered for field-welding to pipe or other columns. Dimensions are same as CCQ and ECCQ.
    • For rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified with any column size given. (Note that the W2 dimension on straps rotated 90° is limited by the W1 dimension.)

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

    Looking for something different? See the rest of our Simpson CCQ Column Caps.


    California Residents: WARNING

    Show Less

    finish spec:
    316L Stainless Steel

    manufacturer name:
    Simpson Strong-Tie

    beam size:
    6X

    for treated lumber:
    yes

    post size:
    6X

    thickness:
    7 Gauge

    Product Spec Sheet:
