Shop more CJT Concealed Joist Ties
SKU: CJT3ZS

Simpson CJT3ZS Concealed Joist Tie w/ Short Pins - ZMAX Finish

Simpson CJT3ZS Concealed Joist Tie w/ Short Pins - ZMAX Finish

Regular price $51.03
Sale price $51.03 Regular price
0% off
shipping truck, lead time icon
Ships today when you order in the next 11 hours 36 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

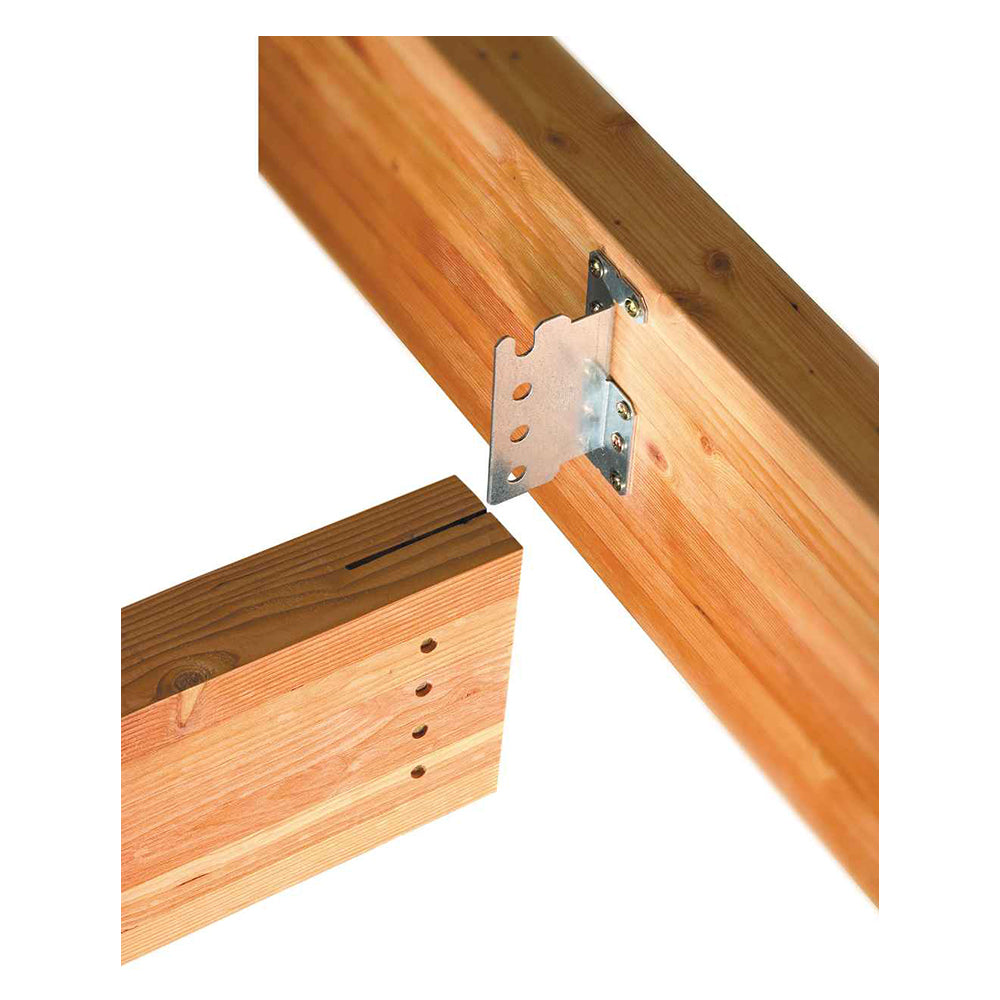

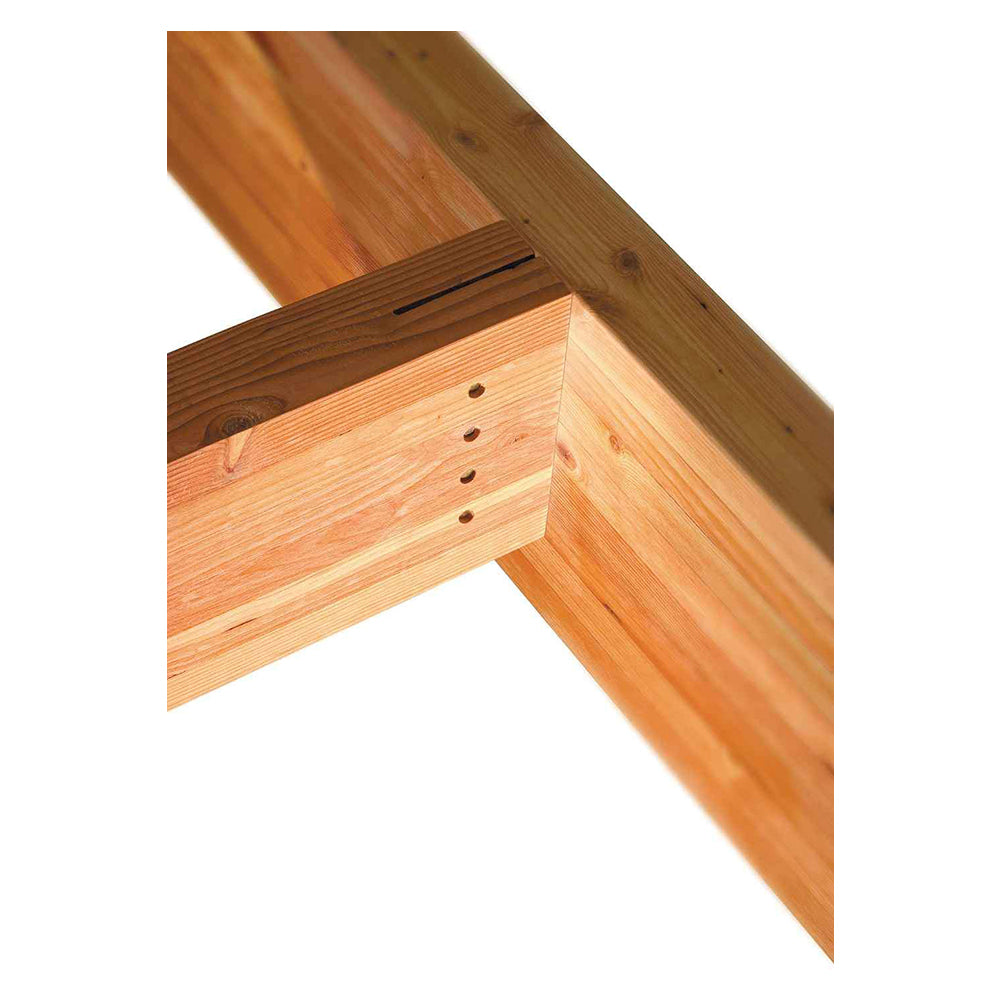

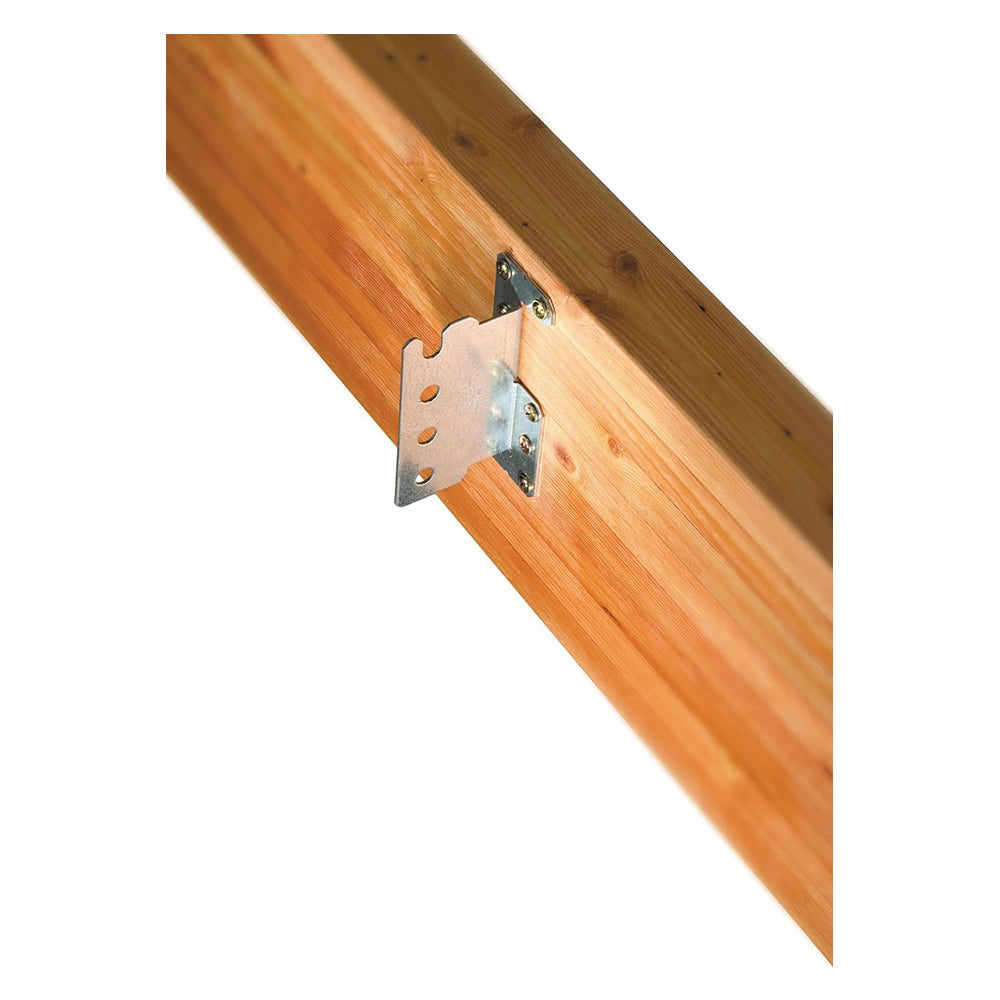

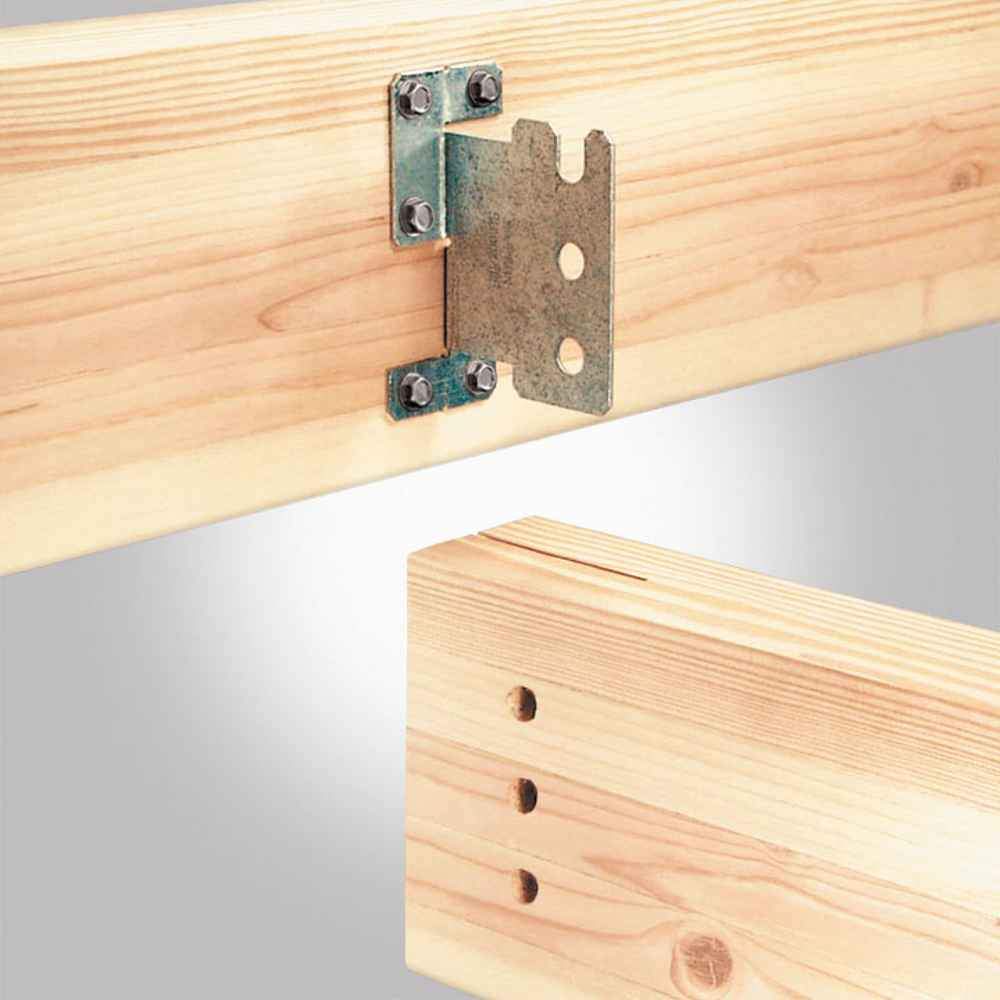

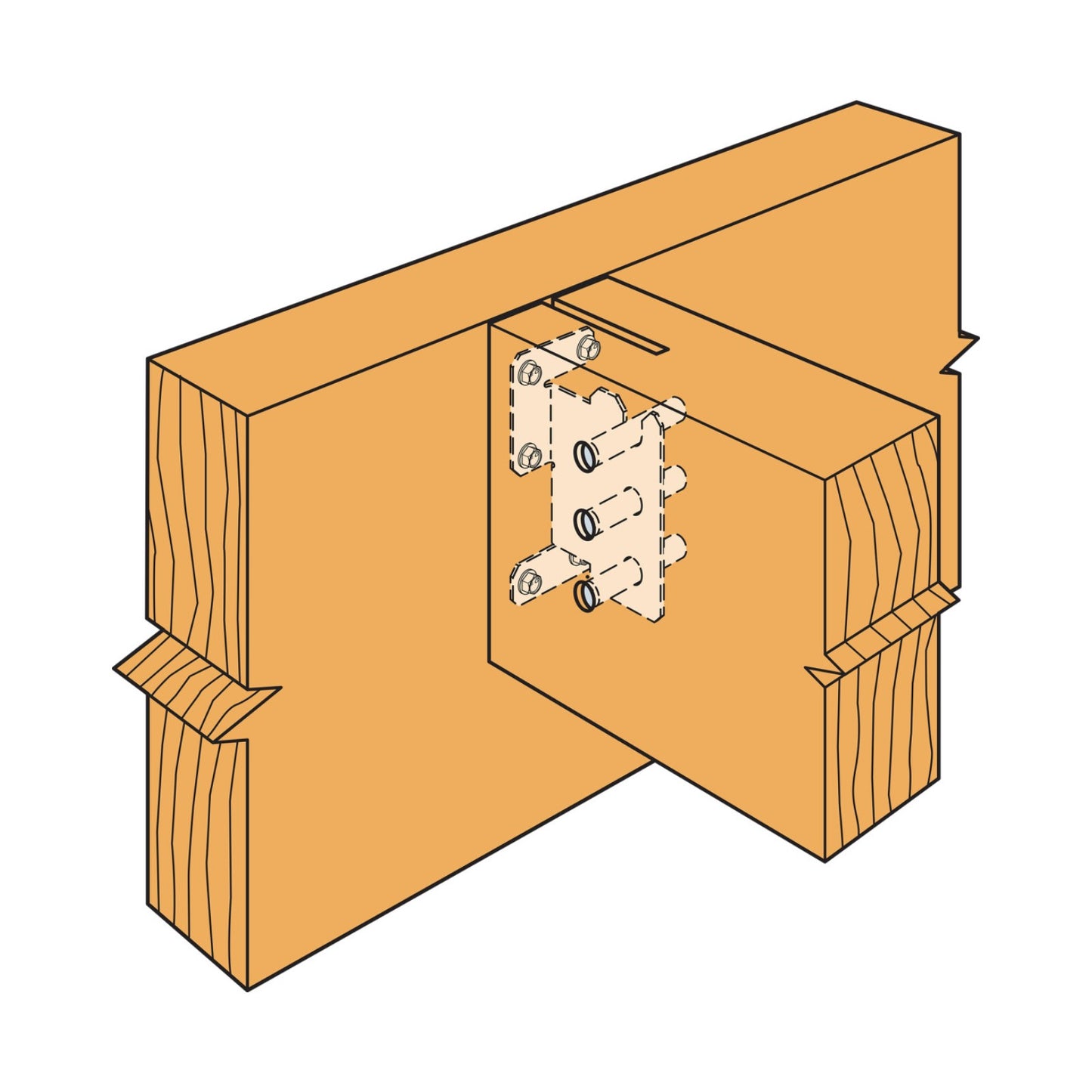

Simpson Strong-Tie CJTZ Concealed Joist Ties are designed to create a strong, concealed connection between a header/post and a beam. There are three preferred methods for installation: No routing of header/post or beam, routed header/post, or a routed beam. The package includes all necessary steel pins and Strong-Drive SDS Heavy Duty Connector Screws, and features a ZMAX coating, giving it greater corrosion resistance than a standard galvanized product.

Installation:
  • Use all specified fasteners.

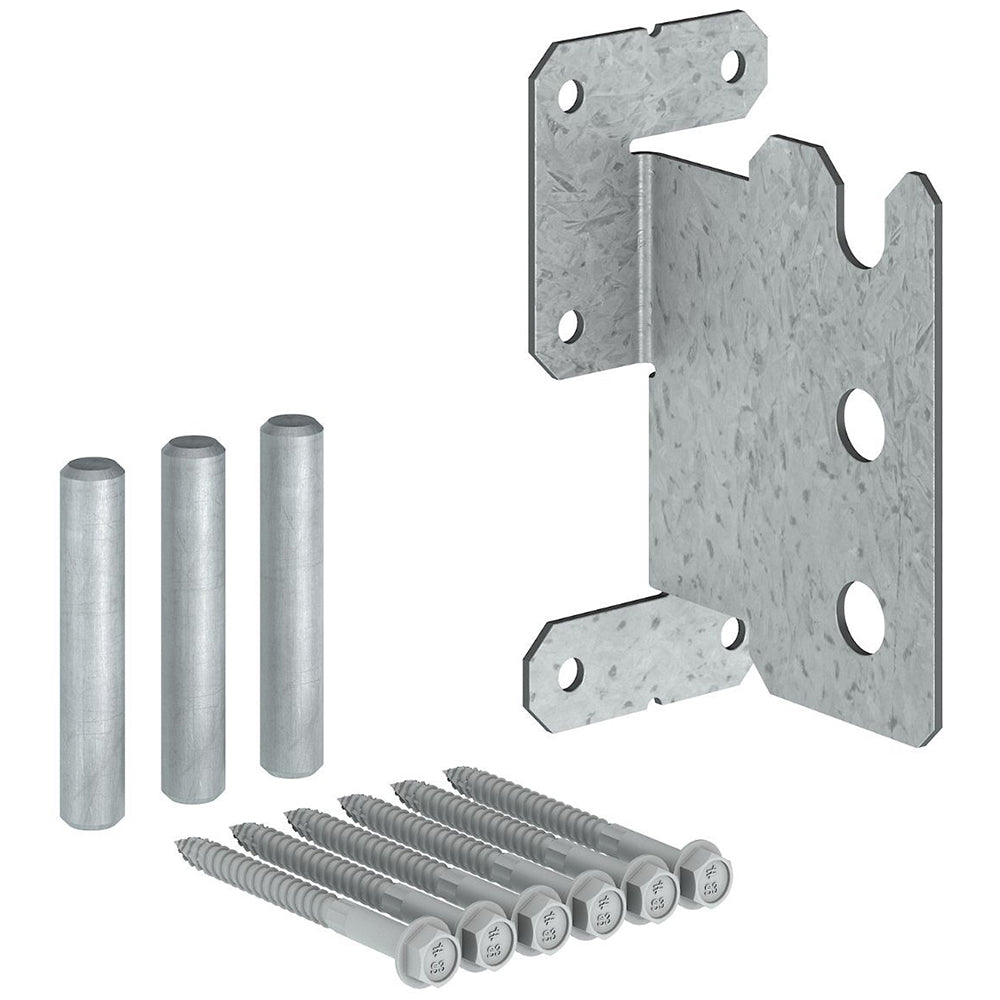

  • The CJTZ package is supplied with all dowels and screws required. Screws require a hex head driver.
  • Short pin versions are 2-3/4” in length, while Long pins are 4-3/4” in length.
  • Router end of beam for screw heads for flush installation.
  • The carried member may be sloped up or down to 45° with full table loads.
  • To provide maximum beam width for use with short dowels, center in beam.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners.
-The CJTZ package is supplied with all dowels and screws required. Screws require a hex head driver.
-Short pin versions are 2-3/4” in length, while Long pins are 4-3/4” in length.
-Router end of beam for screw heads for flush installation.
-The carried member may be sloped up or down to 45° with full table loads.
-To provide maximum beam width for use with short dowels, center in beam.
