Simpson EPC4Z 4X End Post Cap - ZMAX Finish
Simpson EPC4Z 4X End Post Cap - ZMAX Finish
Couldn't load pickup availability

Description:
Description:

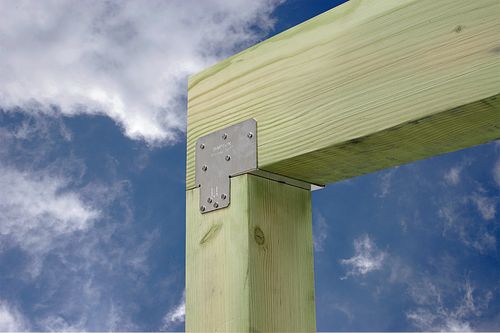

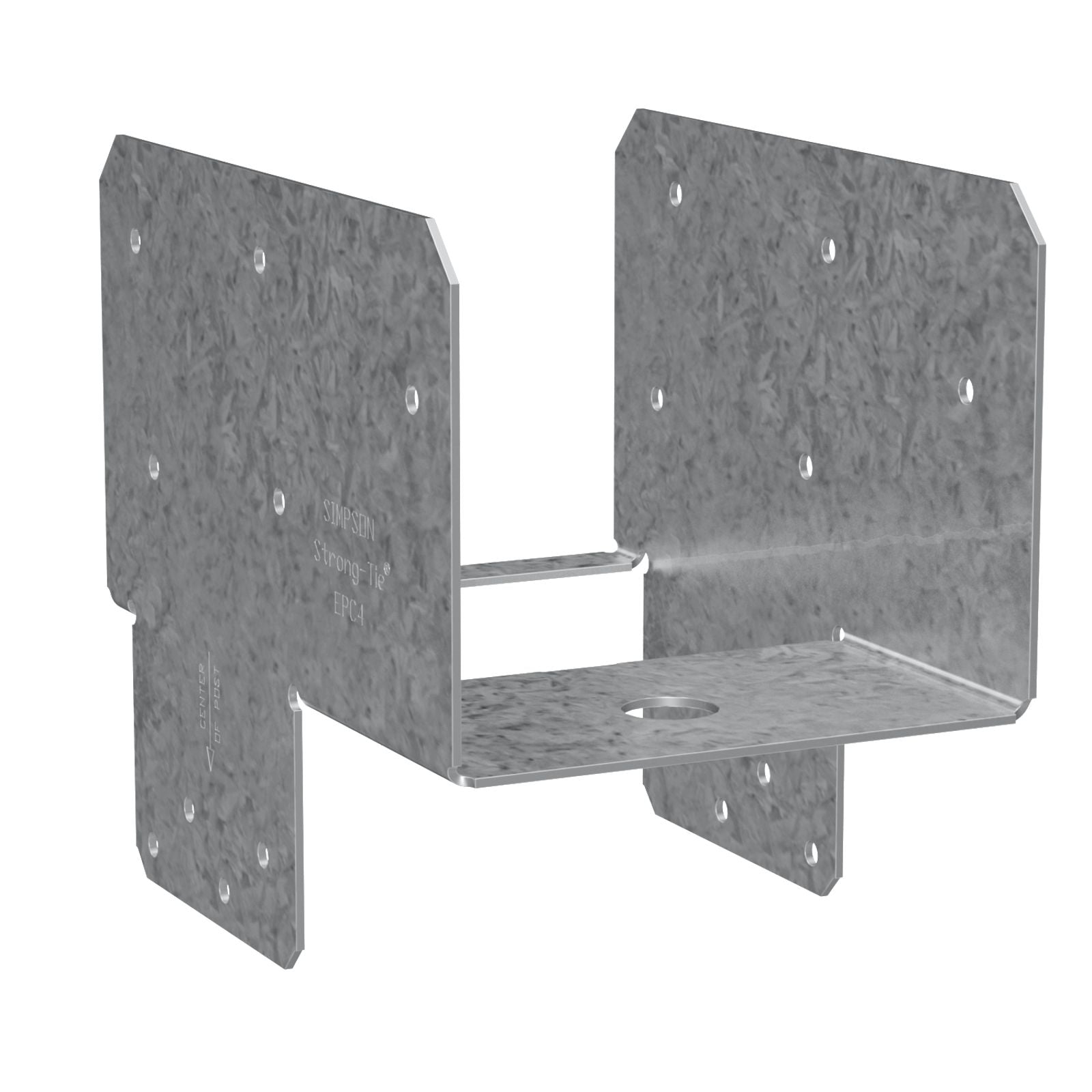

The Simpson Strong-Tie EPCZ series of post caps are used to attach the top of posts to beams. The next-generation EPC4Z post caps are designed with their post and beam flanges in-line so that one PC4Z model can accommodate several post sizes. The EPC4Znow uses easier-to-install 10d common nails. An alternate choice of fasteners is Strong-Drive® #9x1 1/2" SD Connector screws. The EPC4Z post cap is approved to be installed with the specified nails or with Strong-Drive SD connector screws. The Strong-Tie EPC4Z post base features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:
- Use all specified fasteners.
- Do not install bolts into pilot holes.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Looking for something different? See the rest of our Simpson PCZ & EPCZ Post Caps.
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: Beam - (10) 0.148 x 3" Nails OR (10) SD9112 Screws Post - (8) 0.148 x 3" Nails OR (8) SD9112 Screws
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-Do not install bolts into pilot holes.
