SKU: HGU3.63/11-SDS

Simpson HGU3.63/11-SDS Heavy Girder Face-Mount Hanger - G90 Galvanized

Simpson HGU3.63/11-SDS Heavy Girder Face-Mount Hanger - G90 Galvanized!

  • Simpson HGU Heavy Girder Face-Mount Hanger, G90 Galvanized
  • Simpson HGU Heavy Girder Face-Mount Hanger, G90 Galvanized
  • Simpson HGU Heavy Girder Face-Mount Hanger, G90 Galvanized
1 3

Continue Browsing

LGU/MGU/HGU/HHGU Girder Face Mount Hangers
SKU: HGU3.63/11-SDS

Simpson HGU3.63/11-SDS Heavy Girder Face-Mount Hanger - G90 Galvanized

$236.66

Request Bulk Pricing
Request Bulk Pricing
Ships FREE today when you add 1 and order in the next 56 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Fasteners required: All Fasteners Included
For Treated Lumber: No
Height: 11"
Joist size: 3-1/2"
Manufacturer name: Simpson Strong-Tie
Description

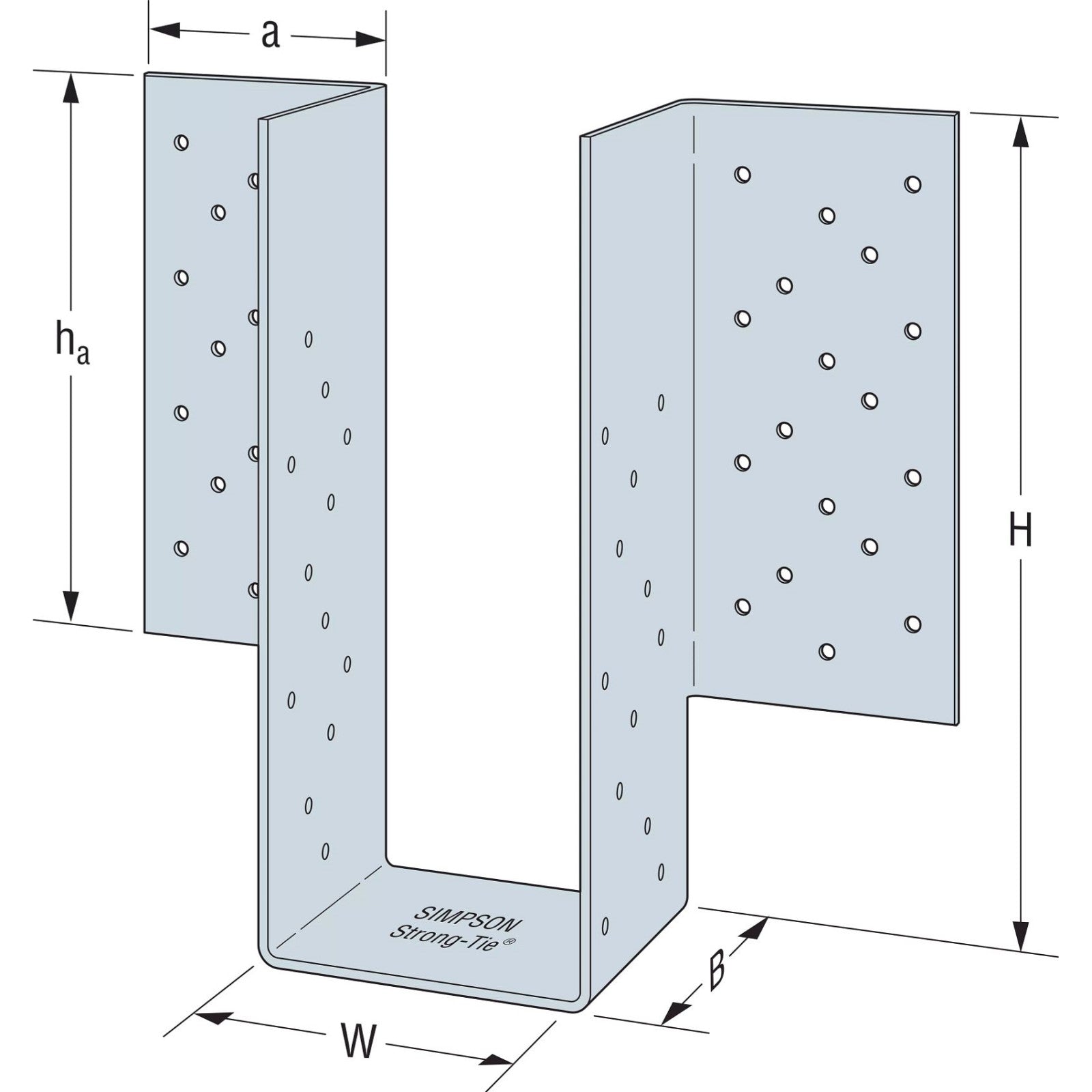

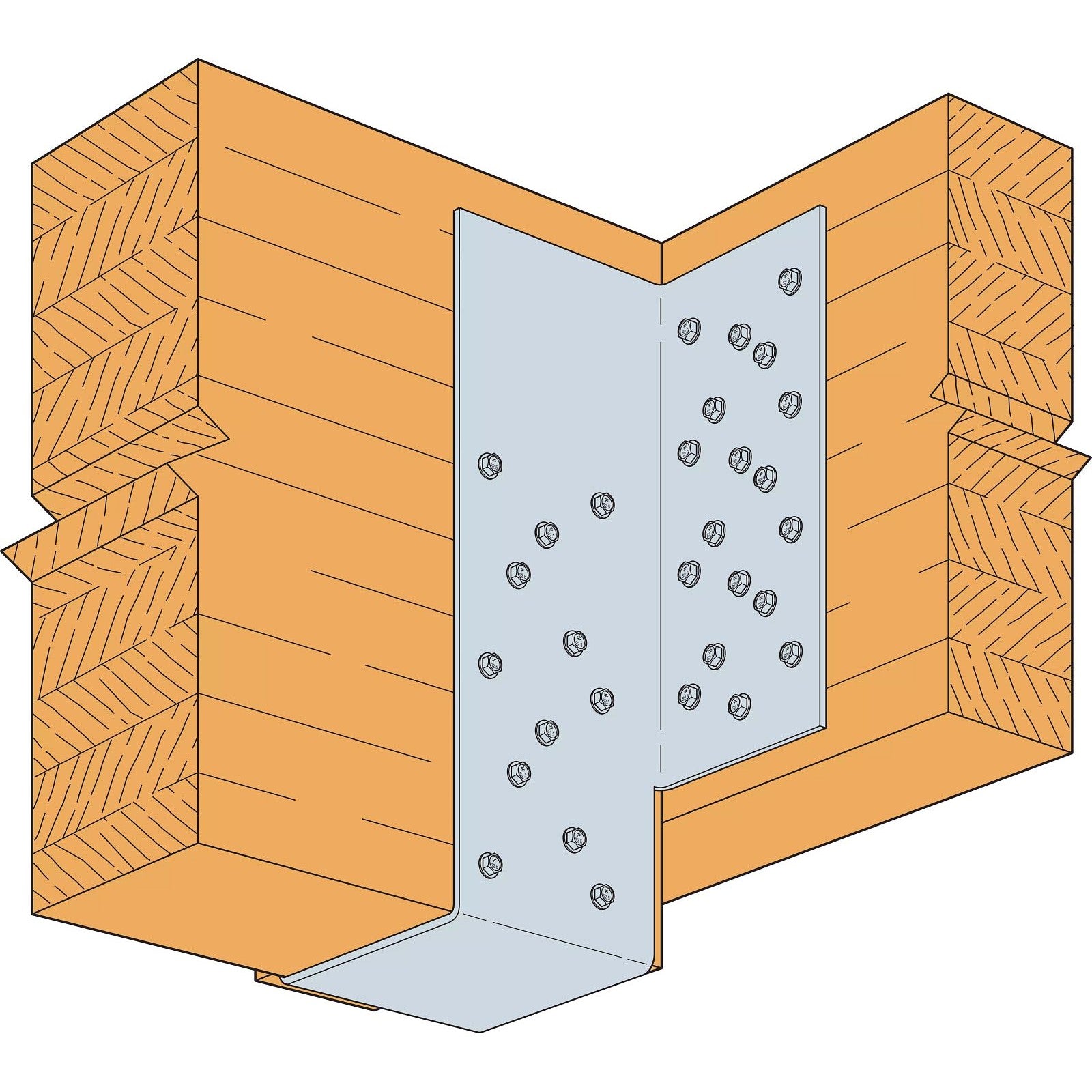

Simpson Strong-Tie HGU high-capacity girder hanger is a face-mount hanger used for retrofit on the framing members after they are temporarily placed into position. Installation made fast and easy, without predrilling, using Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws. The HGU is available up to 45° or with one flange concealed.
  • Use all specified fasteners.
  • HGU Heavy Girder Face-Mount Hanger can be installed with 1/4" x 2-1/2" SDS Heavy-Duty Connector Screws which come with GU series hangers.
    • These hangers may be replaced with 1/4" x 3-1/2" SDS or 1/4" x 5" SDS screws for two or three-ply LVL headers so that the load may be transferred to all plies instead of using the 1/4" x 2-1/2" SDS Face Screws that come with this HGU hanger. This option does not eliminate the need for uniform fastener requirements along the length of the two or three-ply header.
  • Multiple sizes are available for glulam or structural composite lumber.
  • HGU-series hangers are flame and temperature resistant.

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
