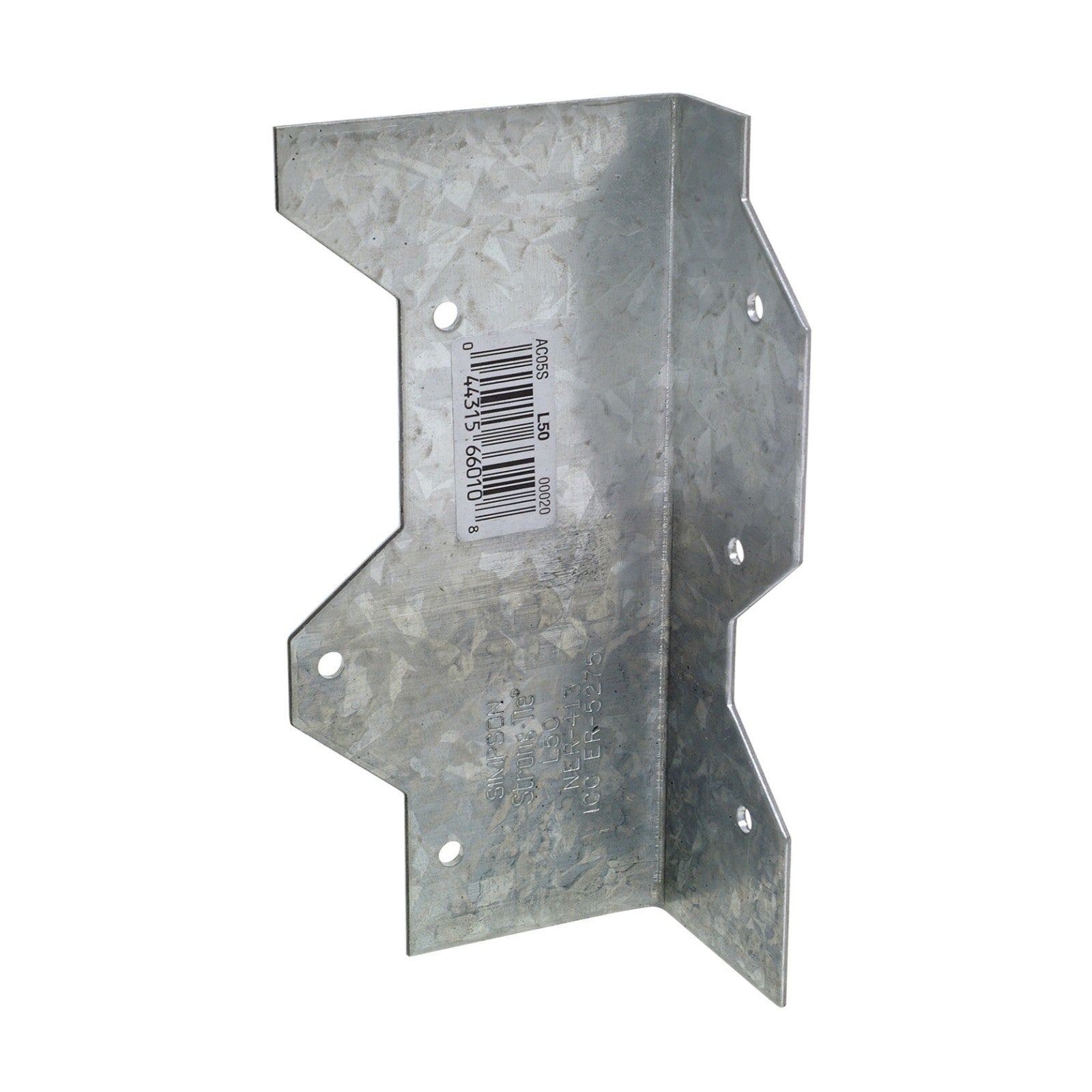

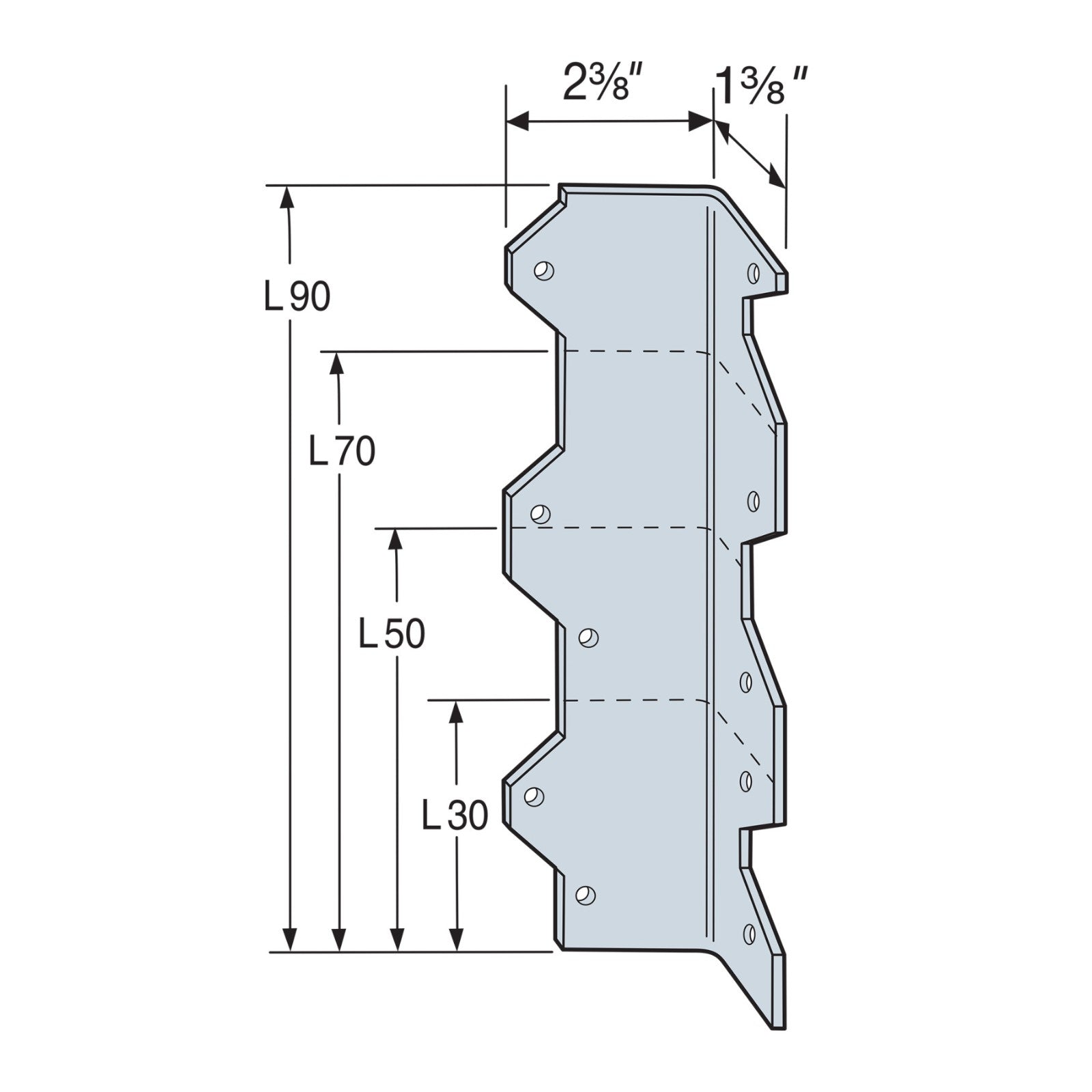

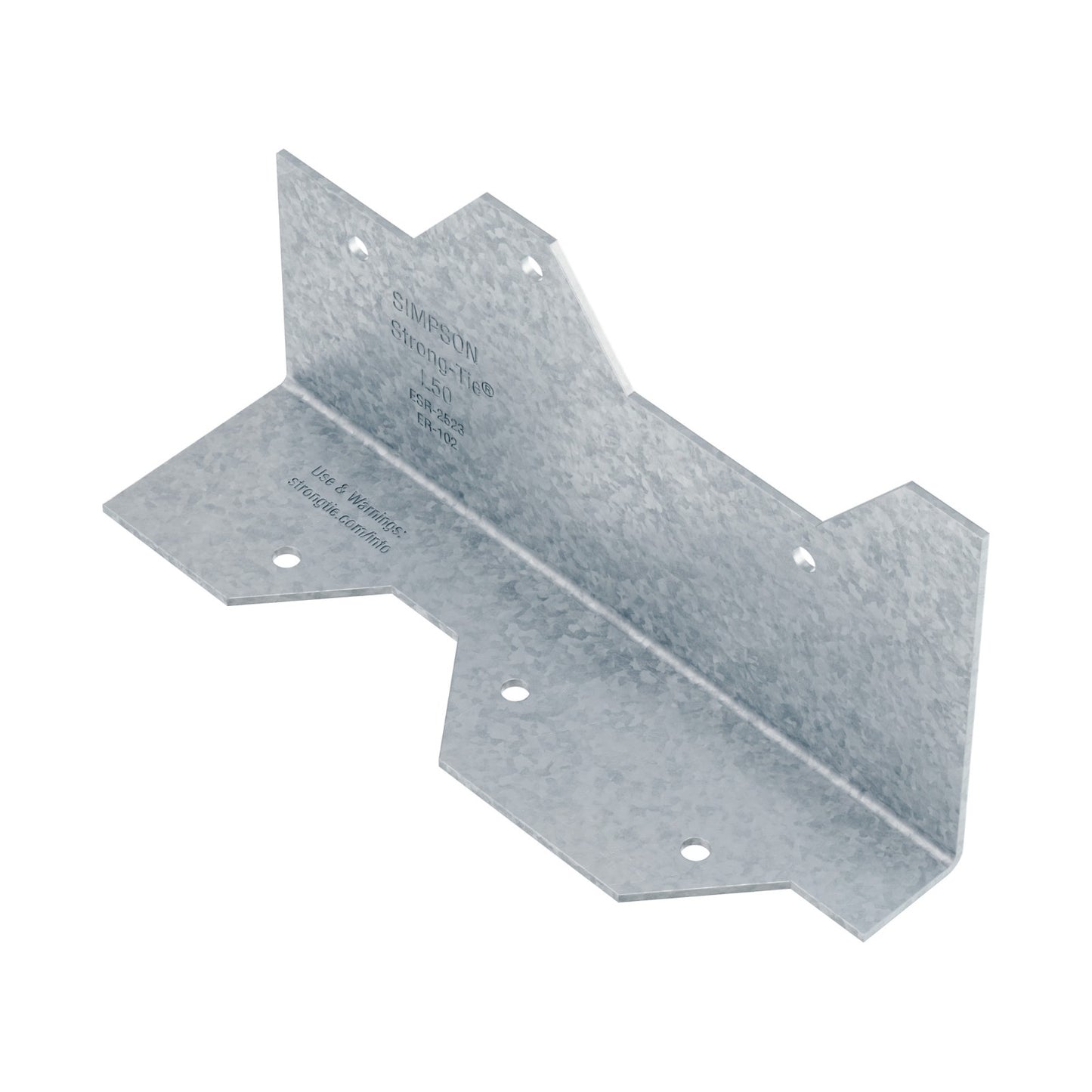

The Simpson L50 Reinforcing Angle is a 5" structural connector designed for light framing and general-purpose reinforcement applications. With a 90° angle and multiple pre-punched holes, this versatile bracket delivers reliable strength wherever two wood members need to be joined or stabilized.

Made from 18-gauge steel and finished with G90 galvanization, the L50 provides corrosion-resistant performance for indoor and protected outdoor environments. Whether you're framing a wall, reinforcing a joint, or anchoring a beam, this bracket offers a quick and code-compliant solution.

Key Features:

• 90° angle with multiple fastening holes for versatile installation
• Made from durable 18-gauge steel for structural reliability
• G90 galvanized finish offers corrosion protection
• Ideal for use in wood-to-wood connections
• Compact 5" leg length fits tight framing layouts

Applications:

• Reinforcing framing joints in walls, decks, or fences
• Bracing corners or intersections in wood structures
• General-purpose wood connection or repair
• Load transfer between perpendicular members

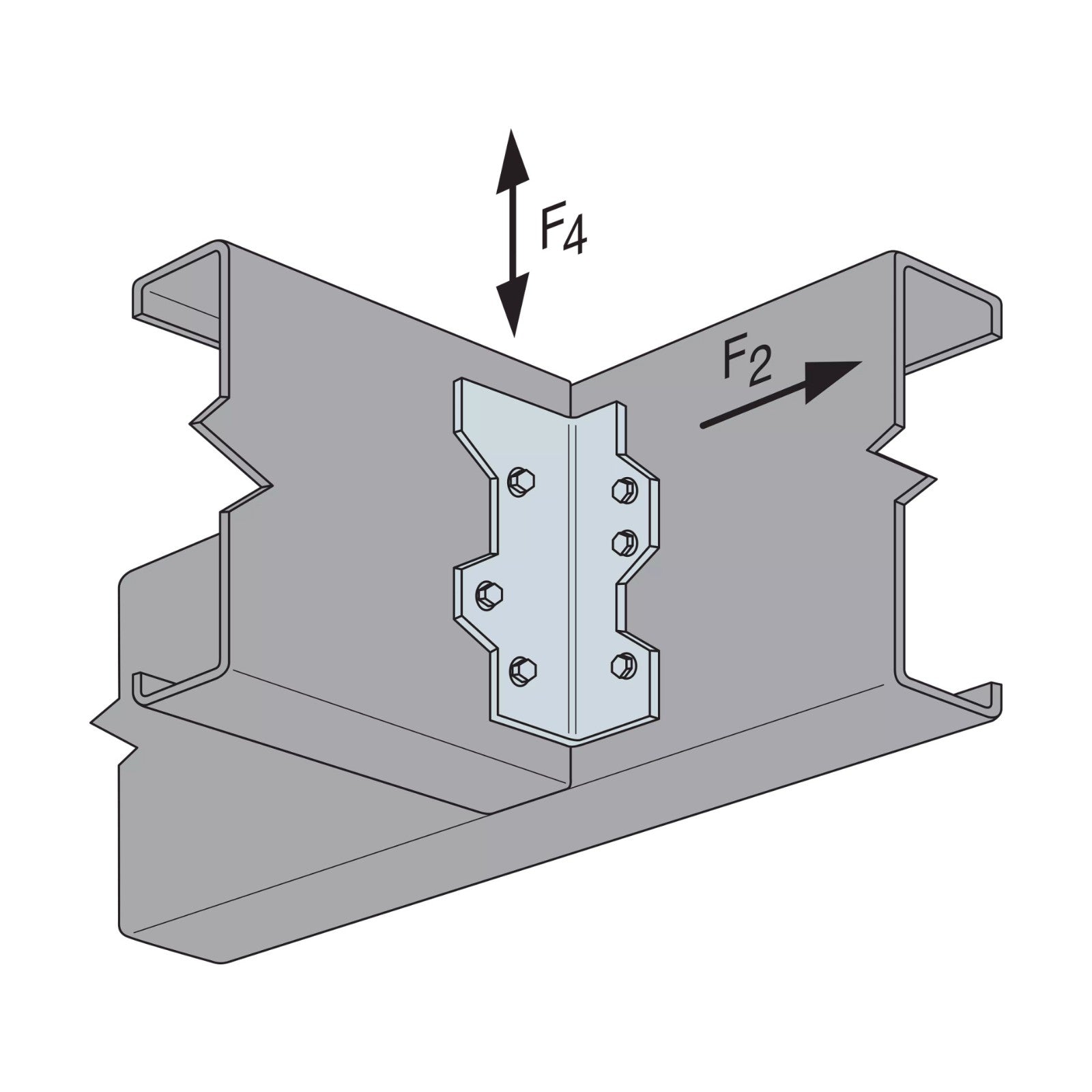

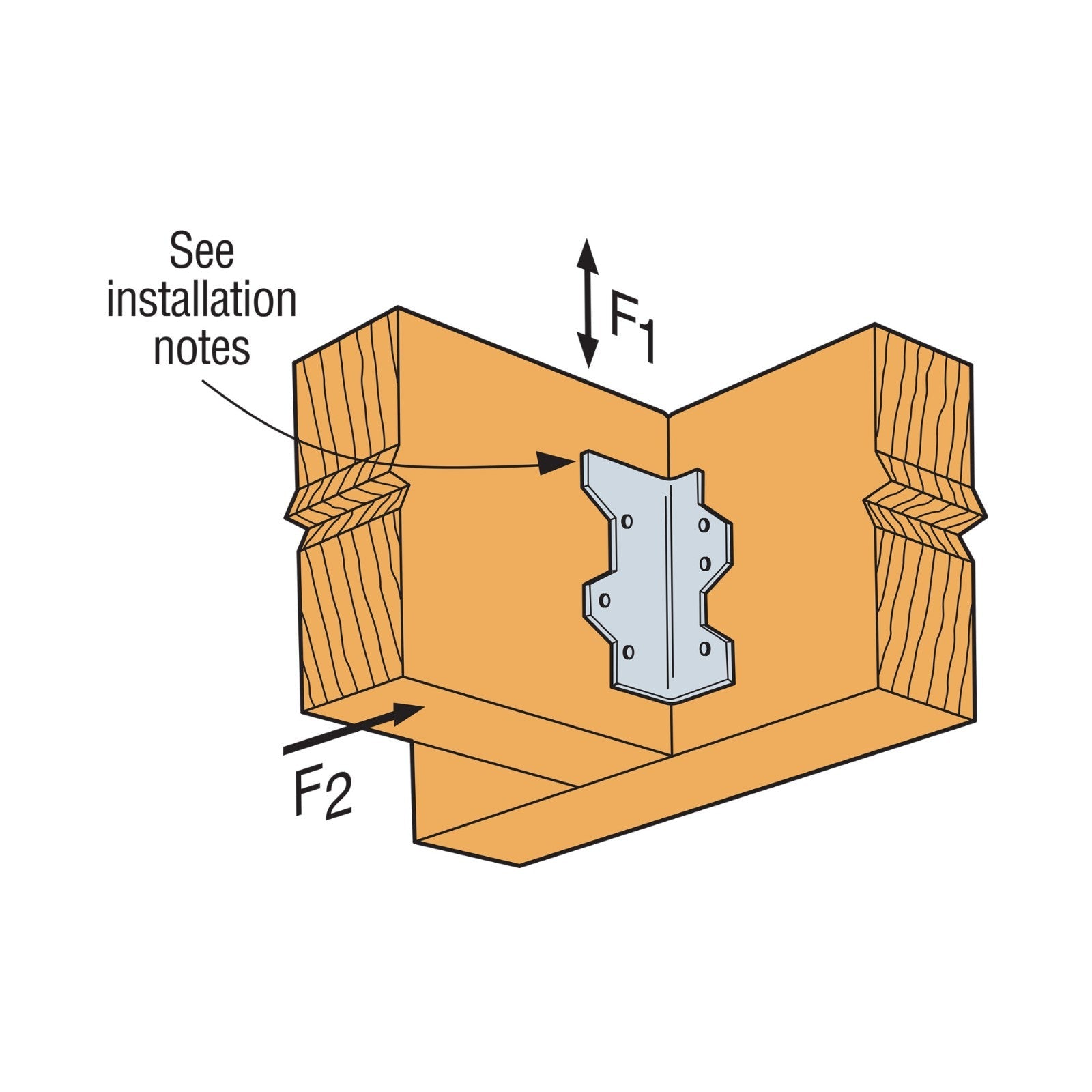

Installation:

1. Position the L50 at the corner or joint to be reinforced.
2. Use Simpson Strong-Tie® nails or compatible fasteners in all designated holes for full load capacity.
3. Ensure full contact between angle legs and wood surfaces.
4. Always follow local building codes and any engineered load requirements.
