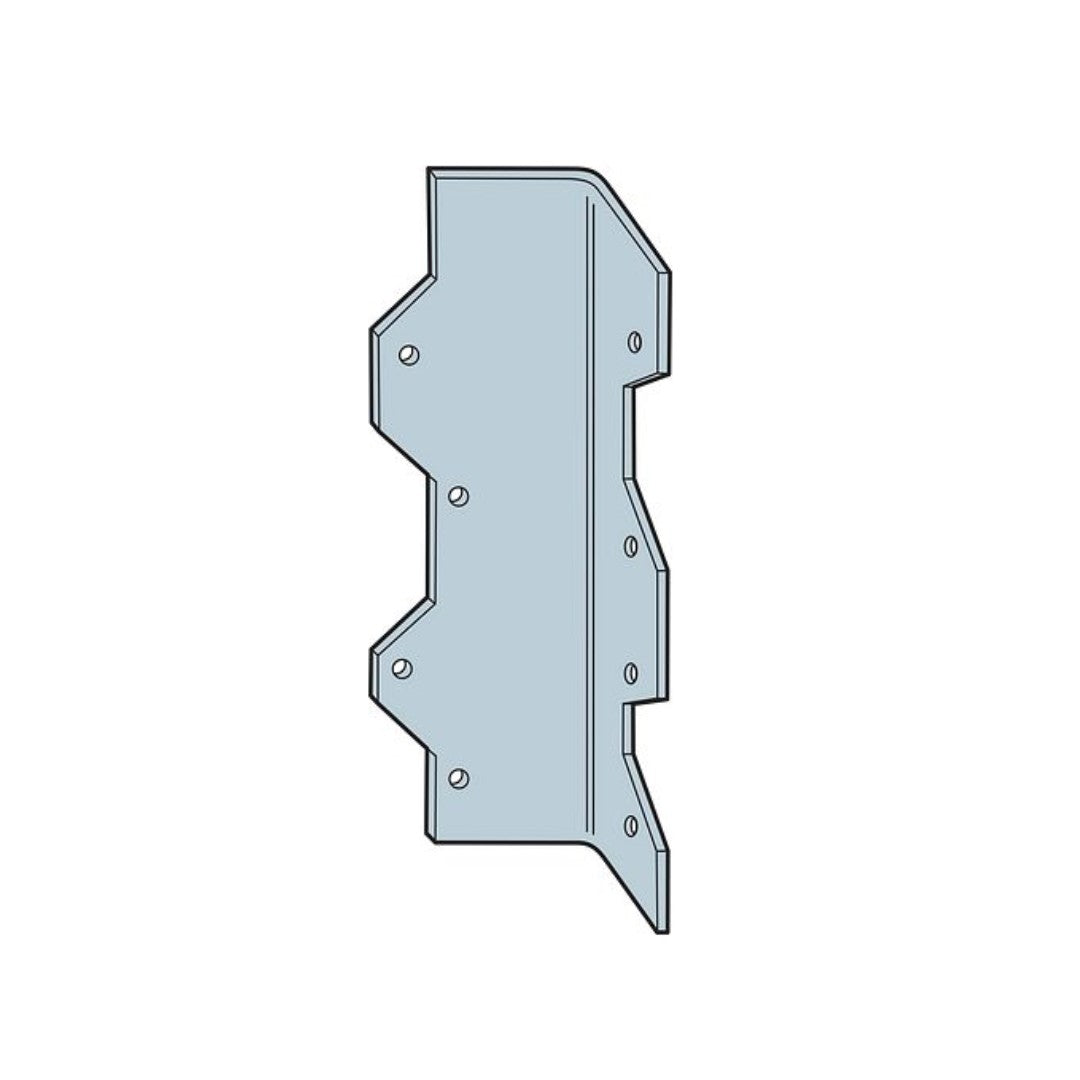

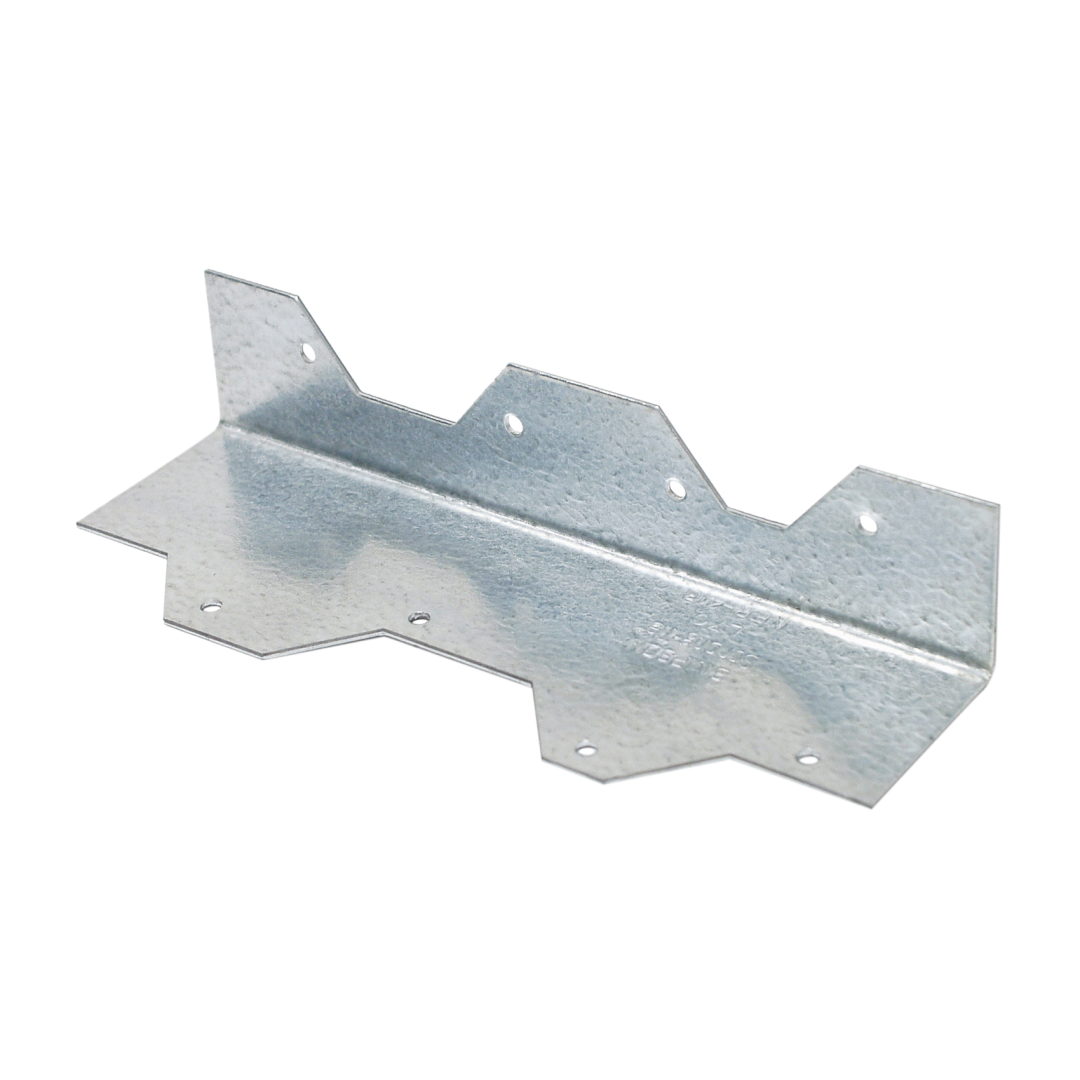

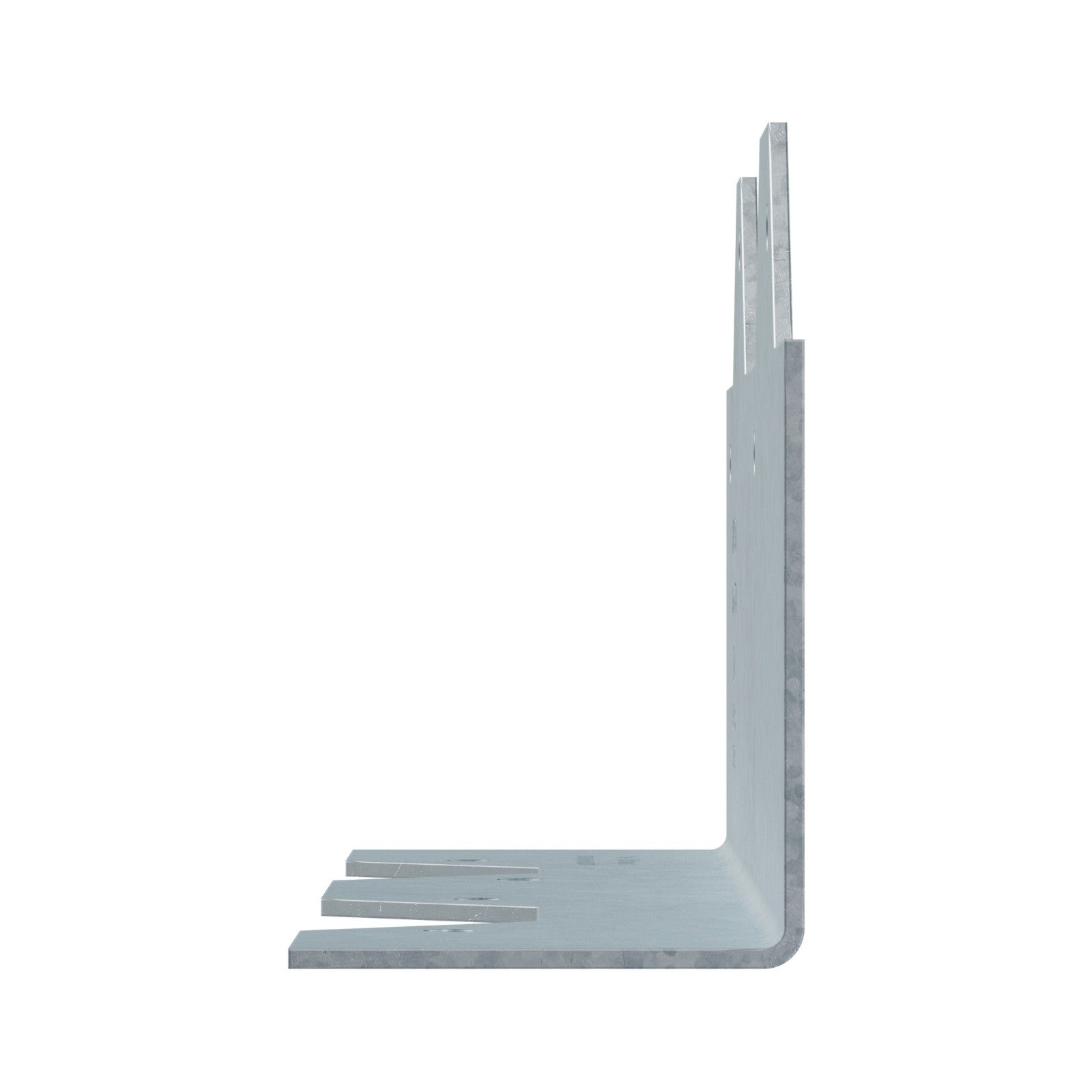

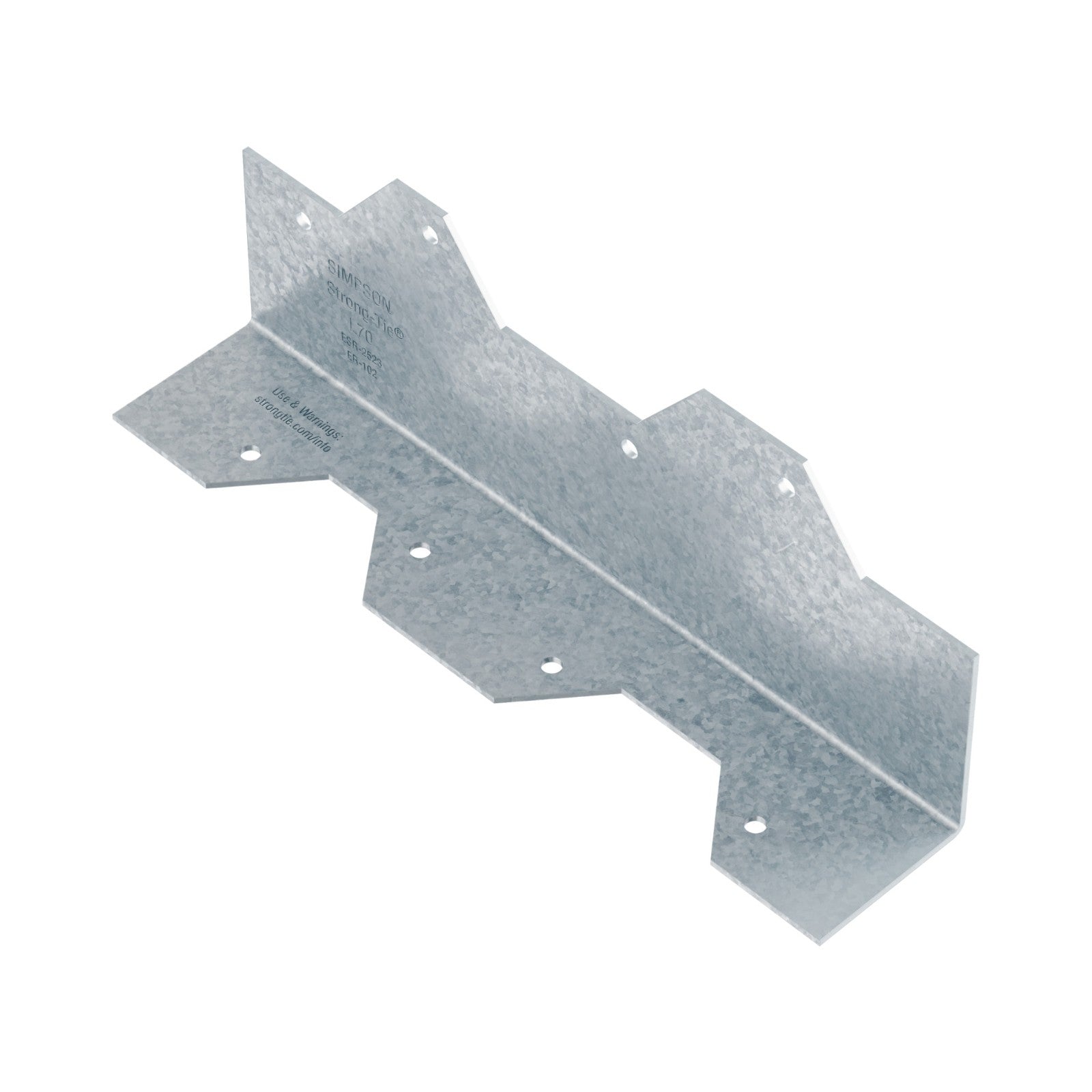

Simpson Strong-Tie L70 7" Reinforcing Framing Angle - G90 Galvanized
Lengths
Finish
Description
Description
Simpson Strong-Tie L-Shaped Reinforcing Angles are versatile, load-rated metal connectors engineered to strengthen and stabilize corner and joint connections across framing and structural applications. Built from durable 16-gauge steel with well-defined fastener locations, these angles deliver consistent, straight, and secure 90° connections without the guesswork of field-fabricated clip angles. Available in multiple lengths and corrosion-resistant finishes, they offer a reliable solution for reinforcing wood and light gauge steel connections on both residential and commercial builds.
Key Features
- Universal Reinforcing Design: Provides dependable support for a wide range of framing and structural connections.
- Staggered Fastener Pattern: Reduces the risk of wood splitting during installation.
- Multiple Sizes & Finishes: Choose the right length and corrosion protection to match your job requirements, from standard galvanized to enhanced ZMAX.
- Load Rated: Engineered and tested with tabulated load values that account for connection eccentricities, delivering consistent performance.
- Compatible with Standard Fasteners: Install with specified nails or Strong-Drive SD connector screws for secure fastening.
Applications
- Reinforcing 90° corner and joint connections in wood and cold-formed steel framing.
- Strengthening structural connections in decks, sheds, framing walls, and general construction projects.
- Providing an engineered alternative to onsite bent or field-built clip angles for improved reliability.
Installation

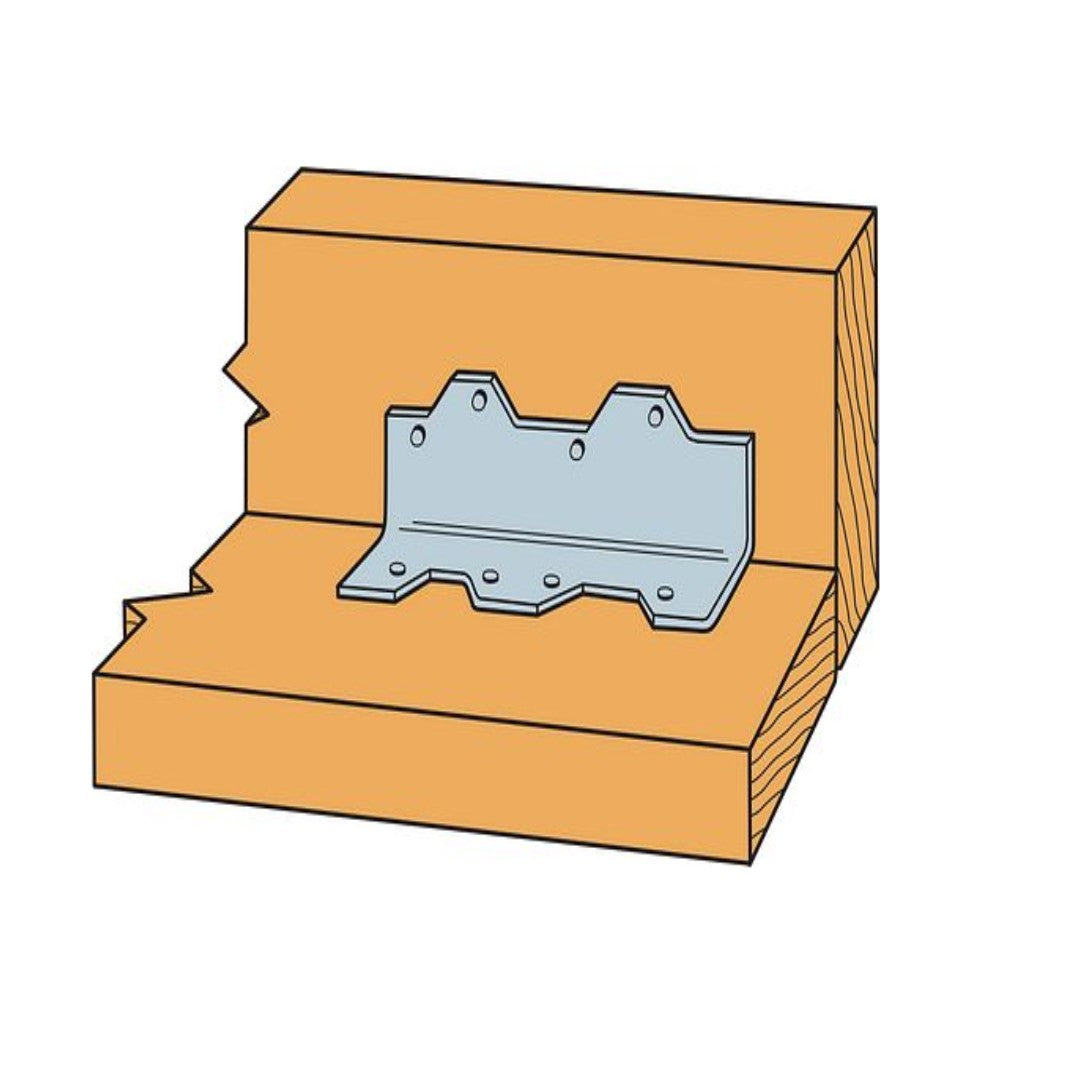

- Positioning: Place the L-shaped angle at the joint or corner requiring reinforcement.
- Fastening: Use all specified fasteners in the pre-defined hole pattern. For best performance, nail the wider leg into the joist or primary framing member first.
- Finish Considerations: Select ZMAX finish for enhanced corrosion resistance in exterior or treated lumber applications.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
Specifications
Specifications
(8) 0.148" x 1-1/2" Nails
Reviews (0)
Reviews (0)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Continue browsing
-
Choose the Right Angle Bracket for Your Load Requirements
Different angle brackets and framing angles are designed to handle varying levels of shear, uplift, and lateral forces. Choosing the proper load-rated angle bracket or corner brace helps ensure a code-compliant connection in structural framing.
-
Find the Right Size and Connection Type for Framing An
Framing angles and metal angle brackets are available in a variety of sizes, shapes, and hole patterns to fit specific wood framing connections. The correct angle hardware ensures proper alignment between joists, studs, beams, and plates.
-
Select the Right Finish for Your Angle Bracket Environment
Where the angle bracket or corner brace will be installed plays a major role in selecting the proper finish. Interior projects may only require standard galvanized angle brackets, while exterior or treated lumber applications may require higher corrosion protection.
