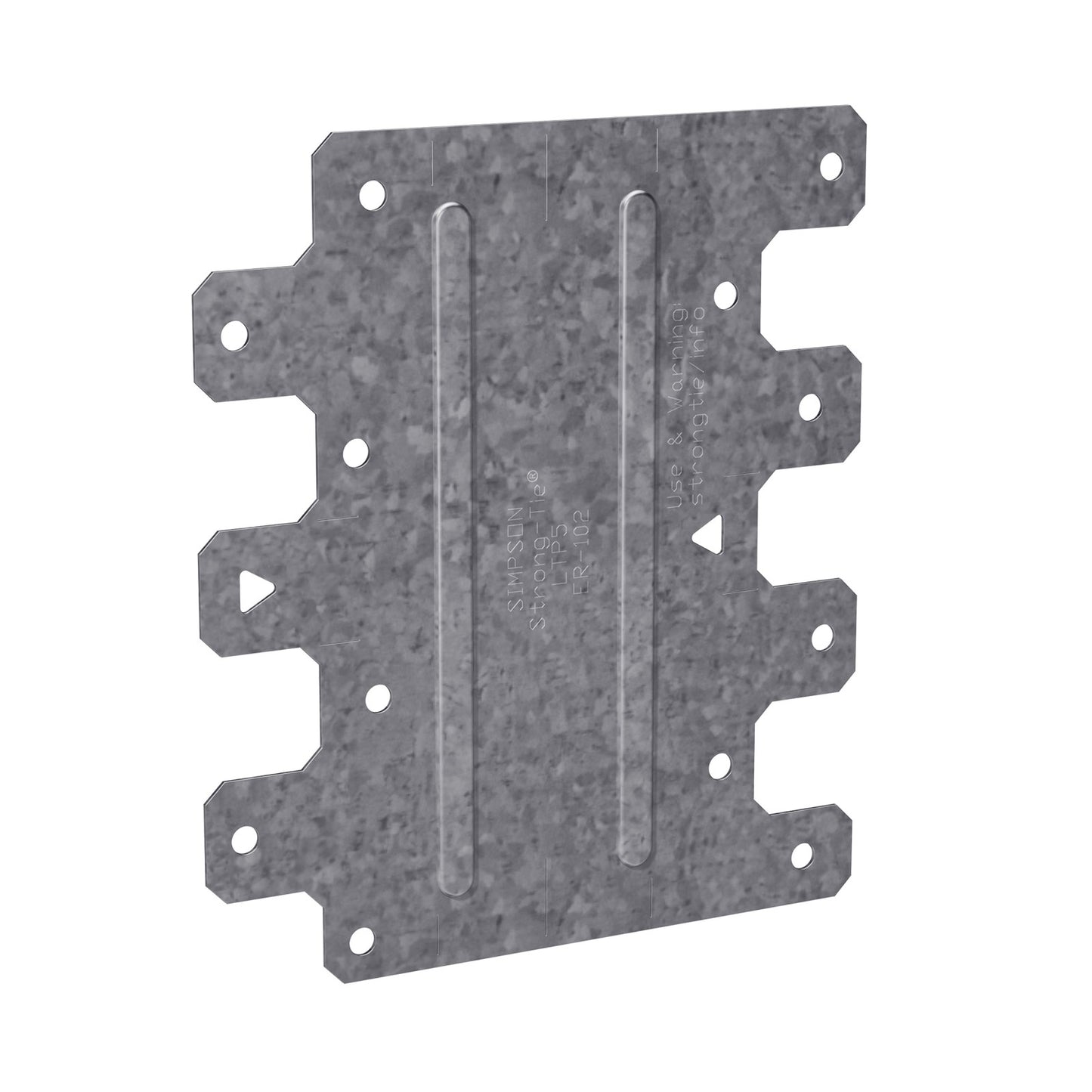

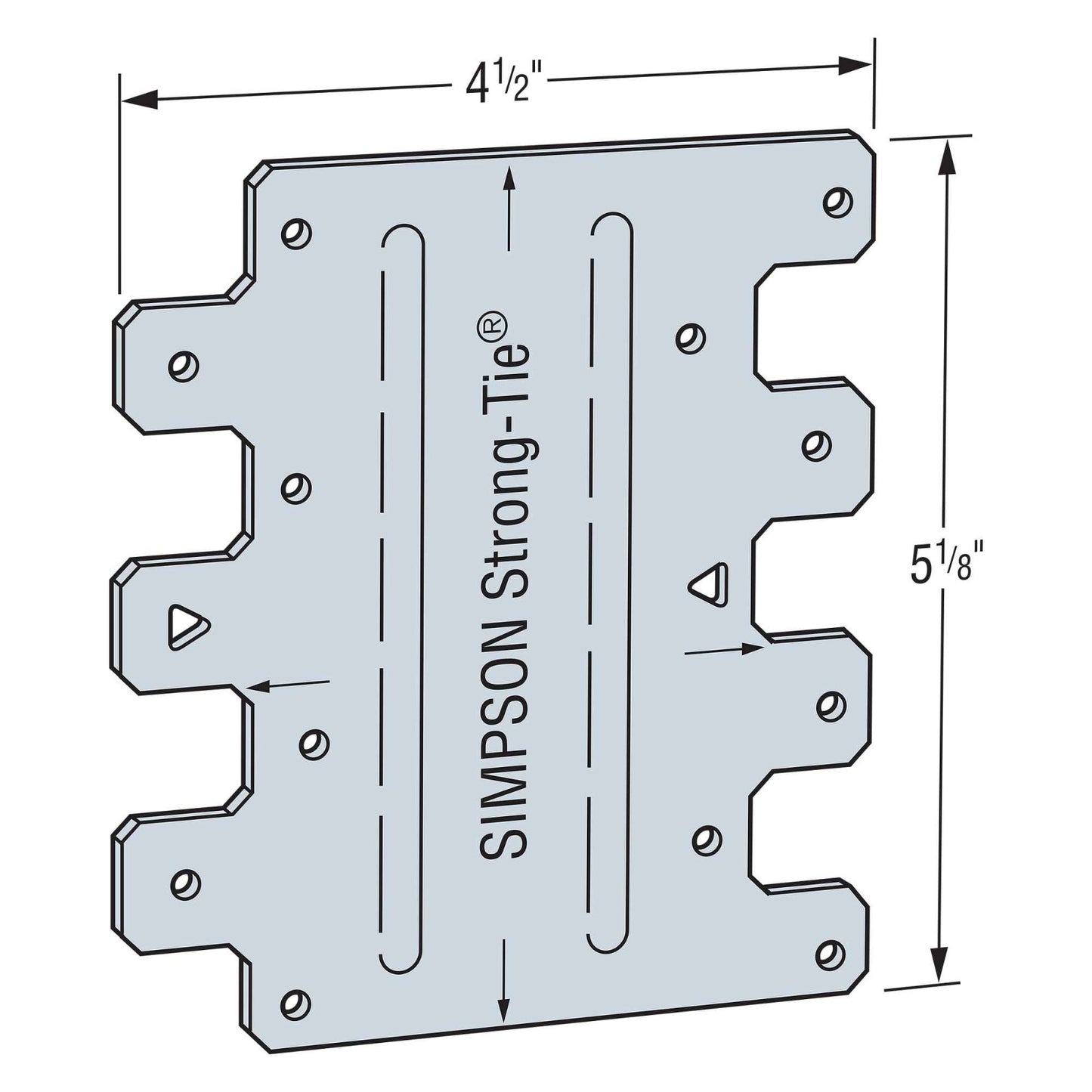

Simpson Strong-Tie LTP5 4-1/2" x 5-1/8" Lateral Tie Plate - G90 Galvanized
Simpson Strong-Tie LTP5 4-1/2" x 5-1/8" Lateral Tie Plate - G90 Galvanized!
Simpson Strong-Tie LTP5 4-1/2" x 5-1/8" Lateral Tie Plate - G90 Galvanized
Specifications
The Simpson Strong-Tie LTP Lateral Tie Plate is engineered to provide lateral strength and reinforcement in wood framing applications. Designed to resist tension and lateral forces, the LTP plate helps create a stronger, more stable connection between framing members, especially in areas subject to wind or seismic loads.
Manufactured from durable steel and formed with strategically placed fastener holes, the LTP distributes loads efficiently across the connection. Its low-profile design allows for easy installation on flat surfaces without interfering with other framing components. Whether reinforcing wall intersections, top plates, or floor framing members, the LTP plate delivers dependable structural support for residential and light commercial construction.
Available in multiple sizes to accommodate various framing needs, the LTP Lateral Tie Plate is a simple yet critical component for improving overall structural integrity.
Key Features
- Lateral Load Resistance: Designed to resist tension and lateral forces in wood framing connections.
- Low-Profile Design: Sits flush against framing members for clean, unobtrusive installation.
- Durable Steel Construction: Manufactured for strength and long-term performance.
- Pre-Punched Fastener Holes: Ensures consistent fastener placement and simplified installation.
- Multiple Size Options: Available in various dimensions to suit different framing configurations.
Applications

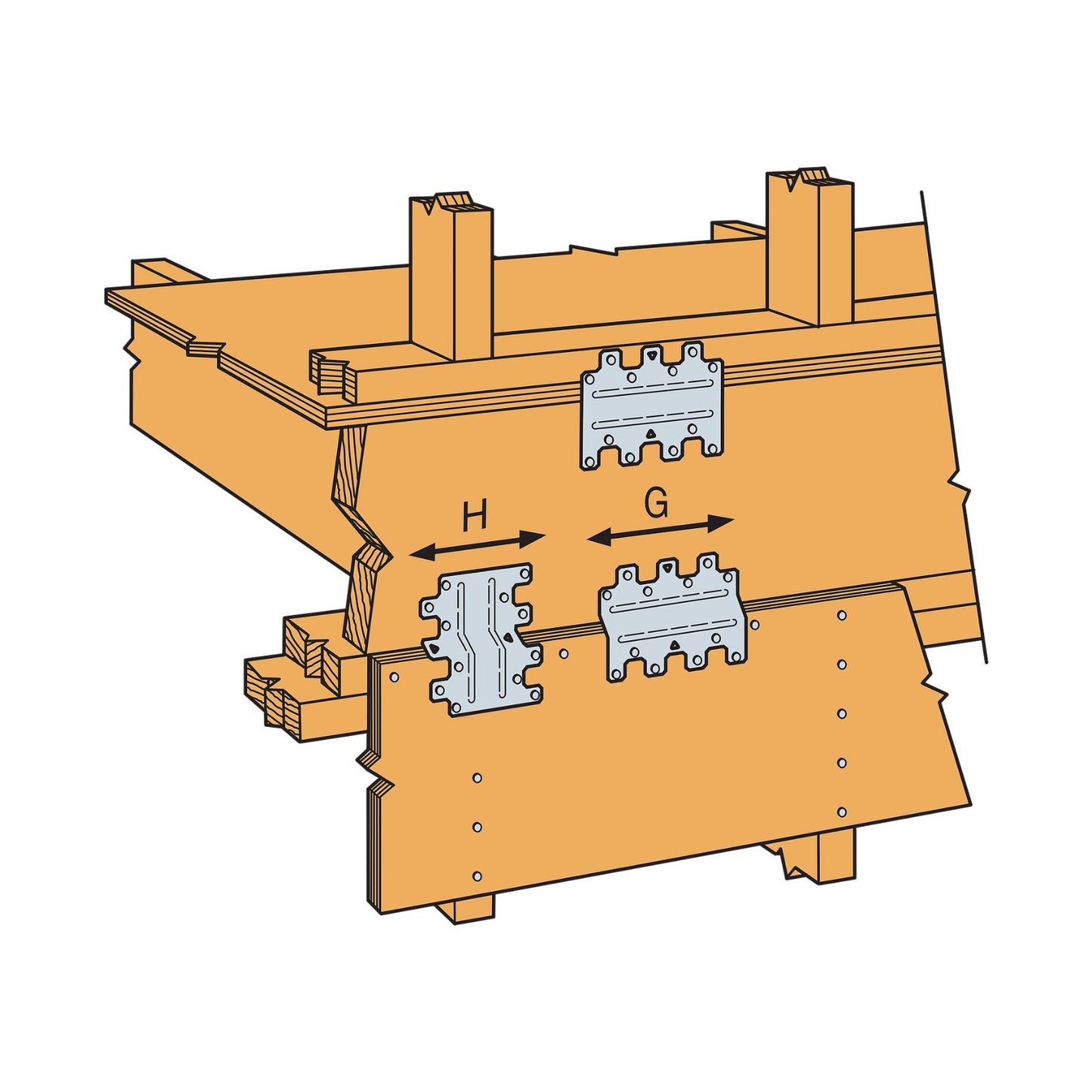

- Reinforcing wall-to-wall and wall-to-floor intersections
- Strengthening double top plate connections
- Tying framing members together to resist uplift and lateral forces
- Improving wind and seismic resistance in structural framing
- General wood framing reinforcement in residential and light commercial construction
Installation
Install the Simpson Strong-Tie LTP Lateral Tie Plate using the specified nails or approved fasteners for the selected model and application.
- Position the plate flat against the framing members being connected.
- Install the required number and type of fasteners in all designated holes to achieve published load values.
- Ensure members are properly aligned and fully seated before fastening.
- Follow Simpson Strong-Tie installation instructions and applicable building codes for best performance.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
