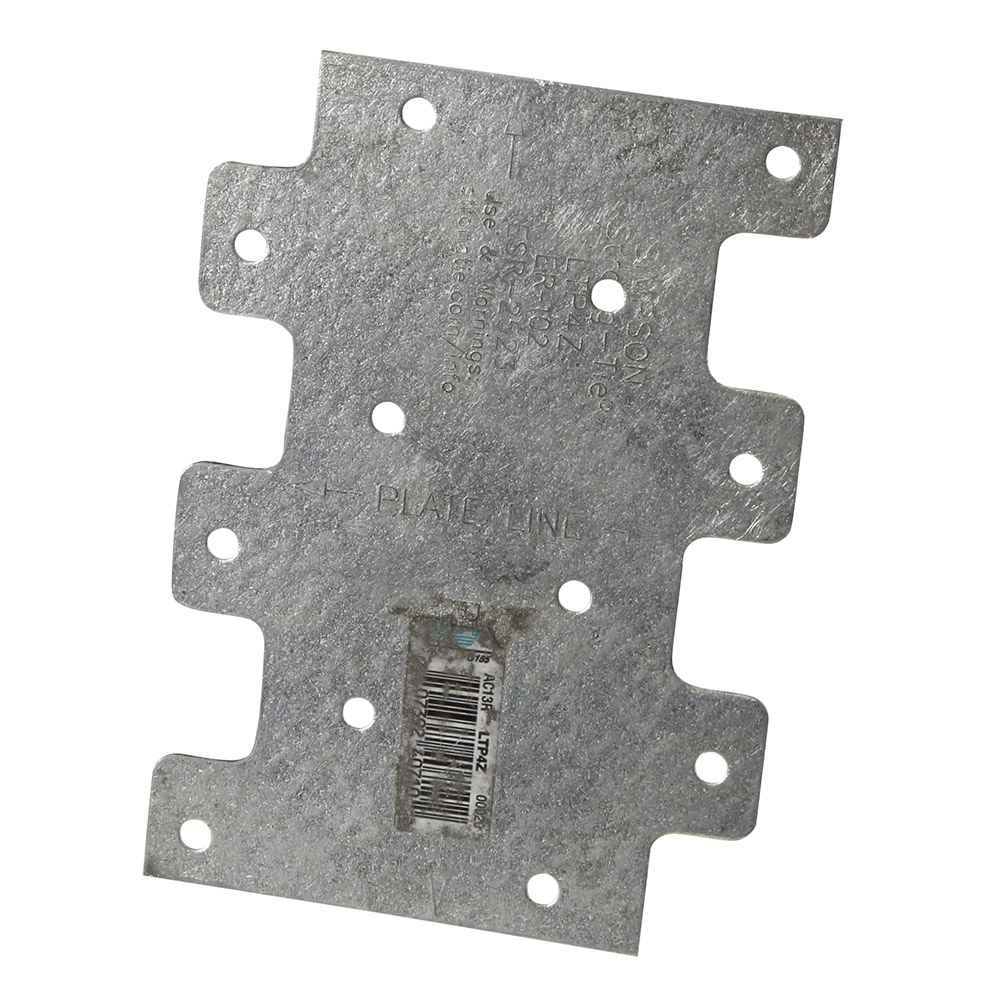

Simpson LTP4Z 3" x 4-1/4" Lateral Tie Plate - Zmax Finish

SKU: LTP4Z

$1.02

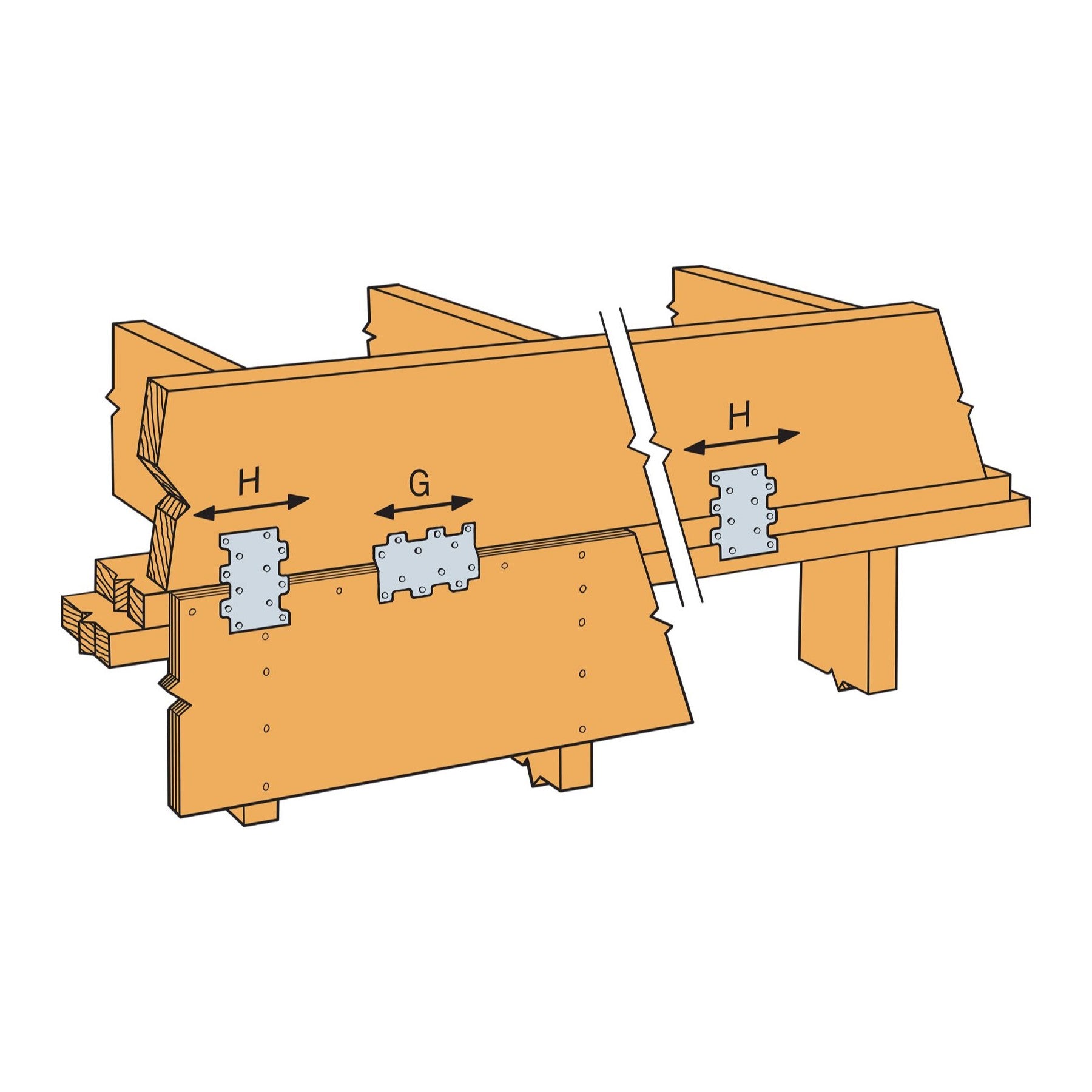

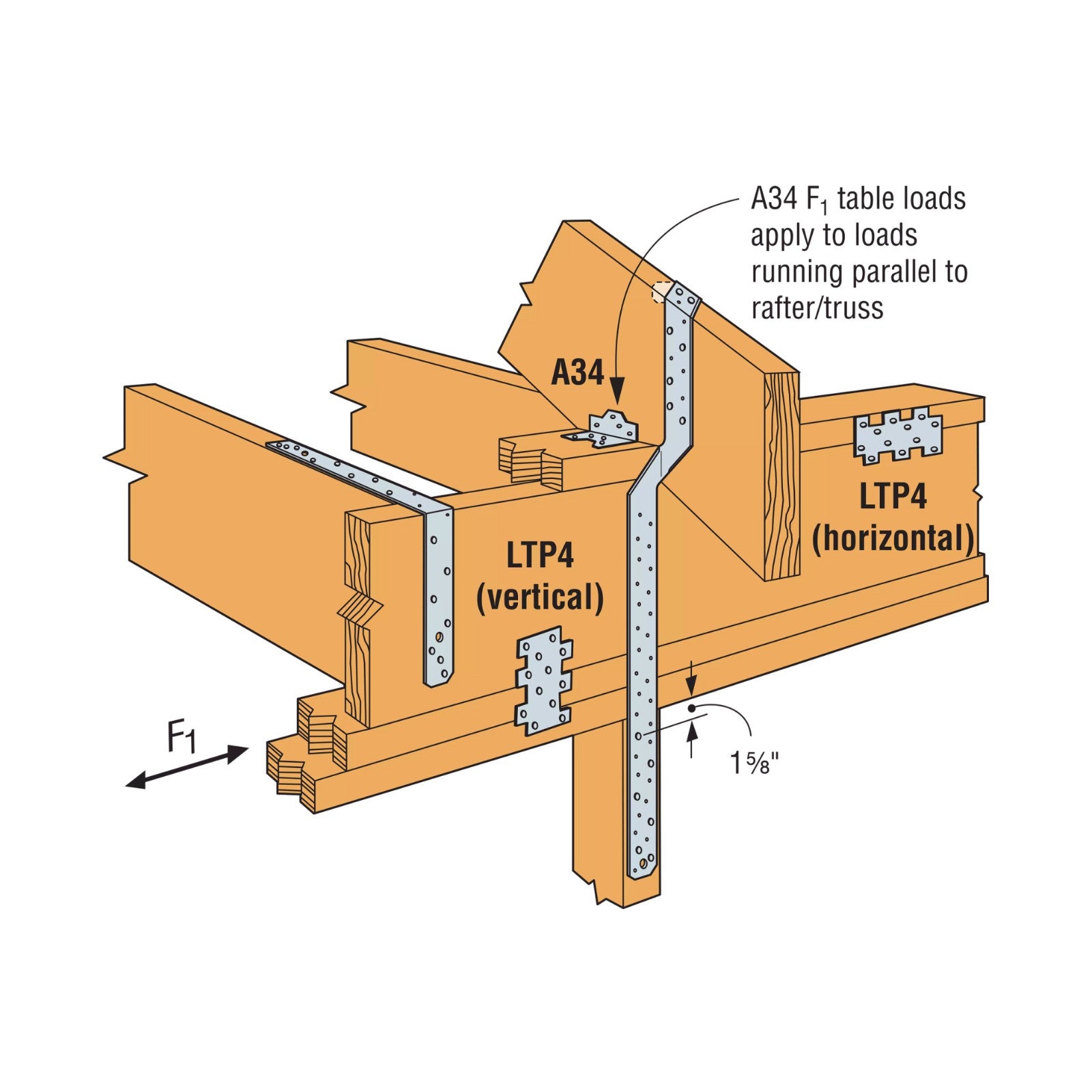

The LTP4 Lateral Tie Plate transfers shear forces for top plate-to-rim joist or blocking connections. Nail holes are spaced to prevent wood splitting for single and double top plate applications. May be installed over plywood sheathing. The Strong-Tie LTP4Z lateral tie plate features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values




California Residents: WARNING

The LTP4 Lateral Tie Plate transfers shear forces for top plate-to-rim joist or blocking connections. Nail holes are spaced to prevent wood splitting ...

Read More

The LTP4 Lateral Tie Plate transfers shear forces for top plate-to-rim joist or blocking connections. Nail holes are spaced to prevent wood splitting for single and double top plate applications. May be installed over plywood sheathing. The Strong-Tie LTP4Z lateral tie plate features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values




California Residents: WARNING

Show Less

Fasteners Required:
(12) 0.131" x -1-1/2"

For Treated Lumber:
yes

Finish Spec:
ZMAX

Manufacturer Name:
Simpson Strong-Tie

Thickness:
20 Gauge

Product Guide:

Read More

Show Less
