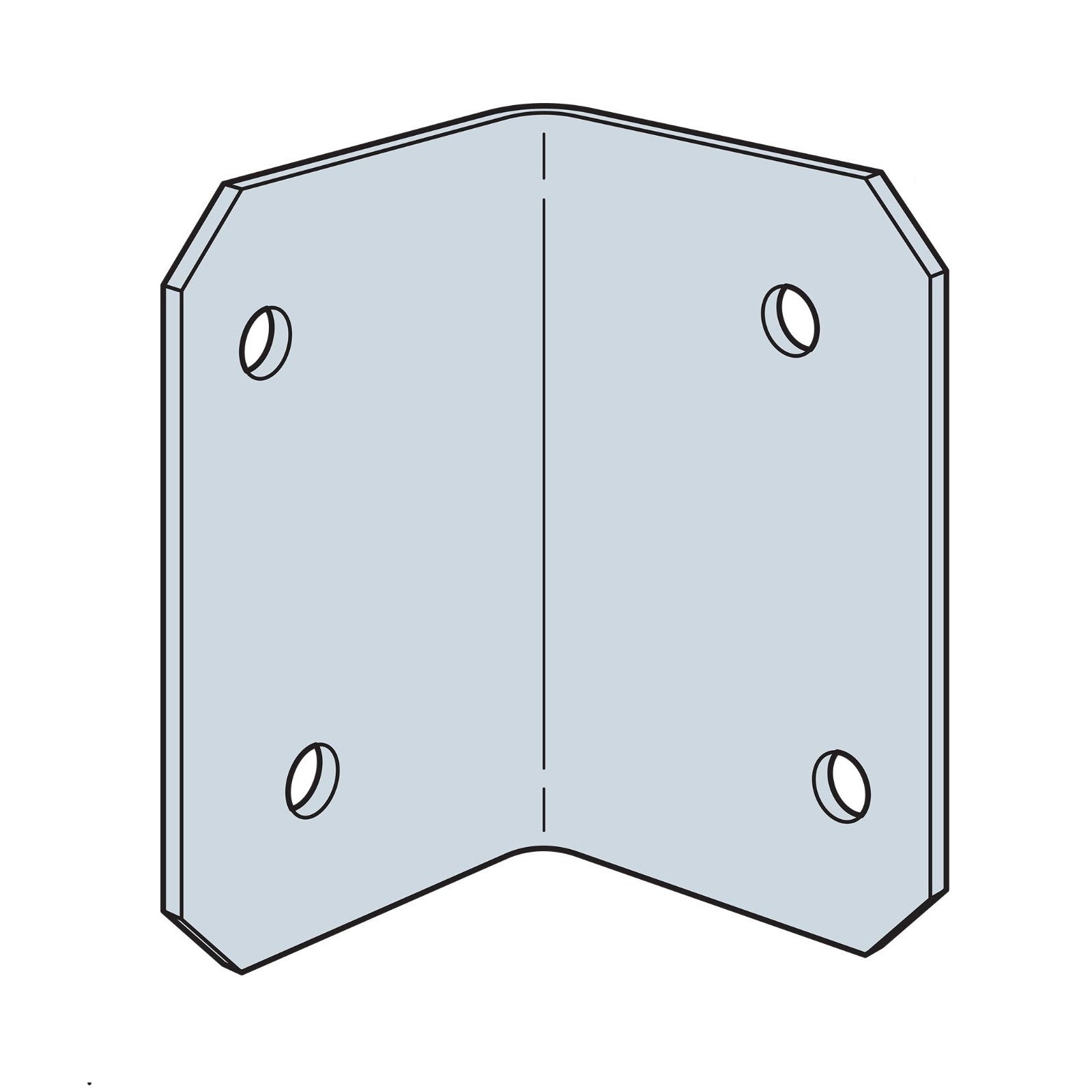

Simpson ML23Z 2" x 3" Medium L Angle - Zmax Finish

SKU: ML23Z
$1.62

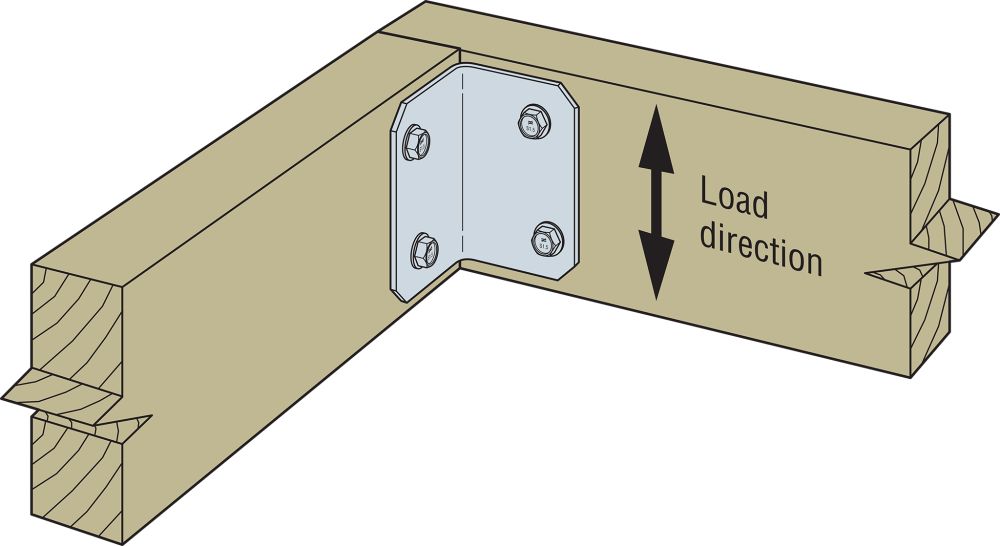

Strong-Tie ML angles provide a way to make a wide range of 90 degree connections. The ML angle combines strength and versatility through the use of Simpson Strong-Tie¨ Strong-Drive¨ SDS Heavy-Duty Connector screws. Fastener holes are staggered to minimize wood splitting and opposing hole patterns allows for back to back installation without fastener interference. The Strong-Tie ML23Z angle features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Simpson Strong-Tie 1/4" x 1-1/2" Strong-Drive SDS Heavy-Duty Connector screws are not provided with the angle.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Strong-Tie ML angles provide a way to make a wide range of 90 degree connections. The ML angle combines strength and versatility through the use of...

Read More

Strong-Tie ML angles provide a way to make a wide range of 90 degree connections. The ML angle combines strength and versatility through the use of Simpson Strong-Tie¨ Strong-Drive¨ SDS Heavy-Duty Connector screws. Fastener holes are staggered to minimize wood splitting and opposing hole patterns allows for back to back installation without fastener interference. The Strong-Tie ML23Z angle features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Simpson Strong-Tie 1/4" x 1-1/2" Strong-Drive SDS Heavy-Duty Connector screws are not provided with the angle.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

finish spec:
ZMAX

length spec:
3"

manufacturer name:
Simpson Strong-Tie

fasteners required:
(4) 1/4" x 1-1/2" SDS Screws

for treated lumber:
yes

material:
Carbon Steel

thickness:
12 Gauge

Product Spec Sheet:
