SKU: ML24Z

Simpson ML24Z 2" x 4" Medium L Angle - Zmax Finish

Simpson ML24Z 2" x 4" Medium L Angle - Zmax Finish!

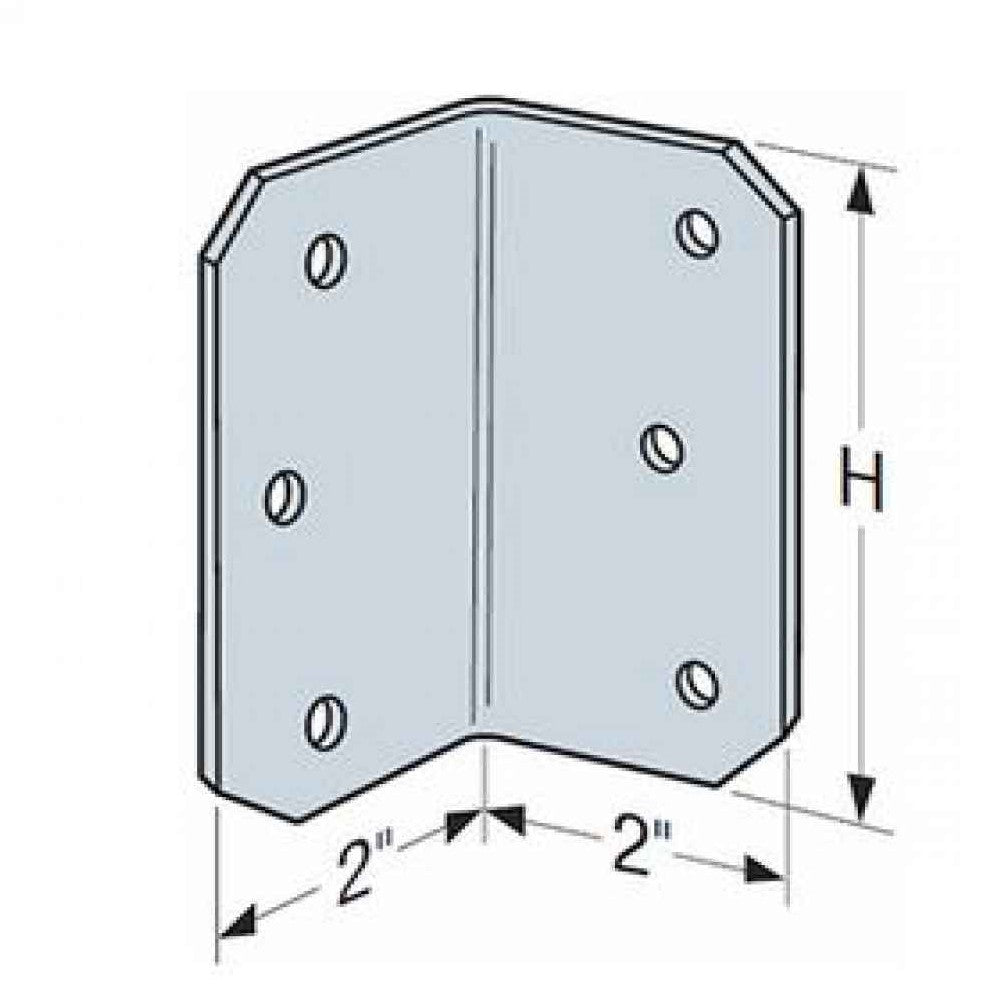

  • Simpson ML24Z 2 inch x 4 inch Medium L Angle Zmax Finish image 1 of 4

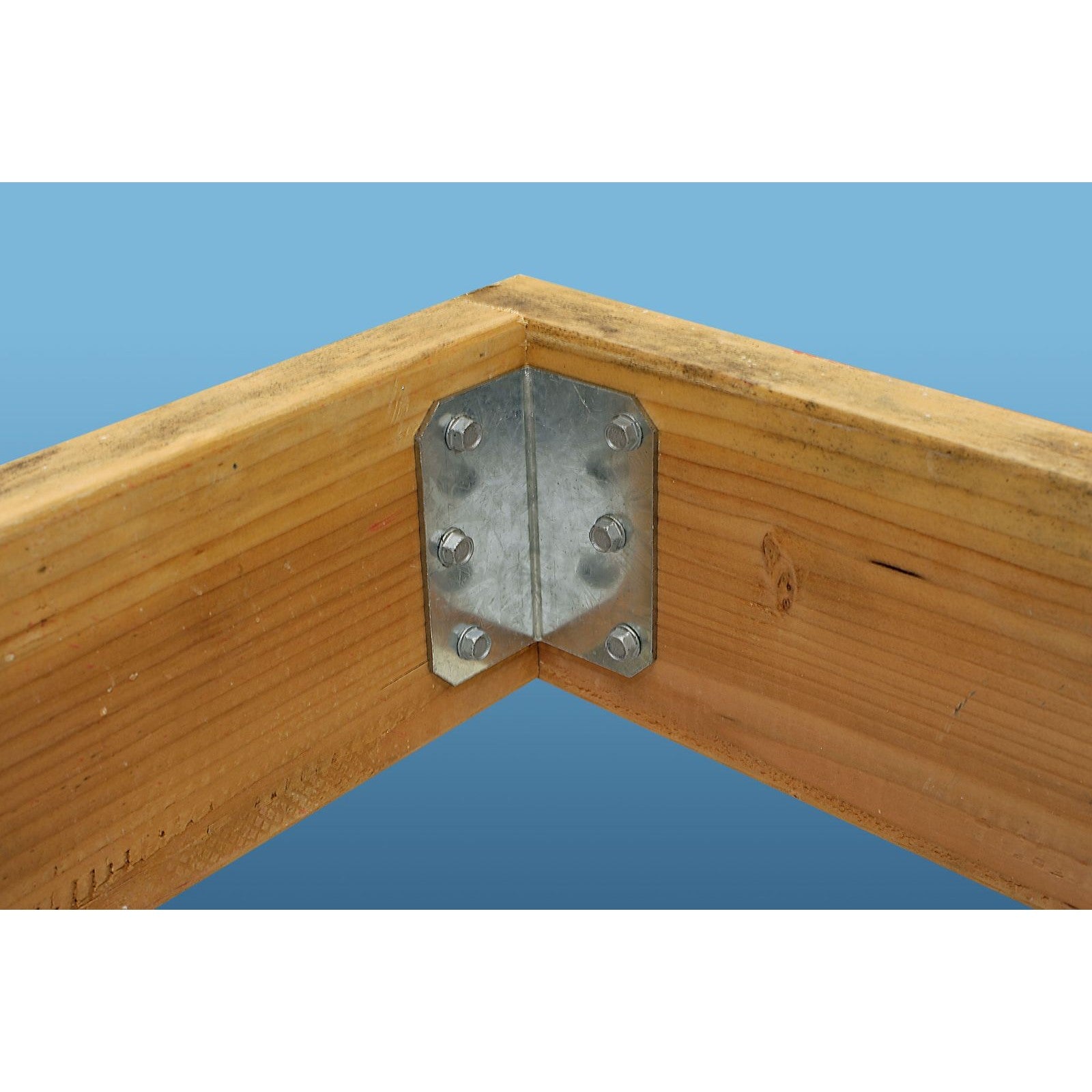

  • Simpson ML24Z 2 inch x 4 inch Medium L Angle Zmax Finish image 2 of 4

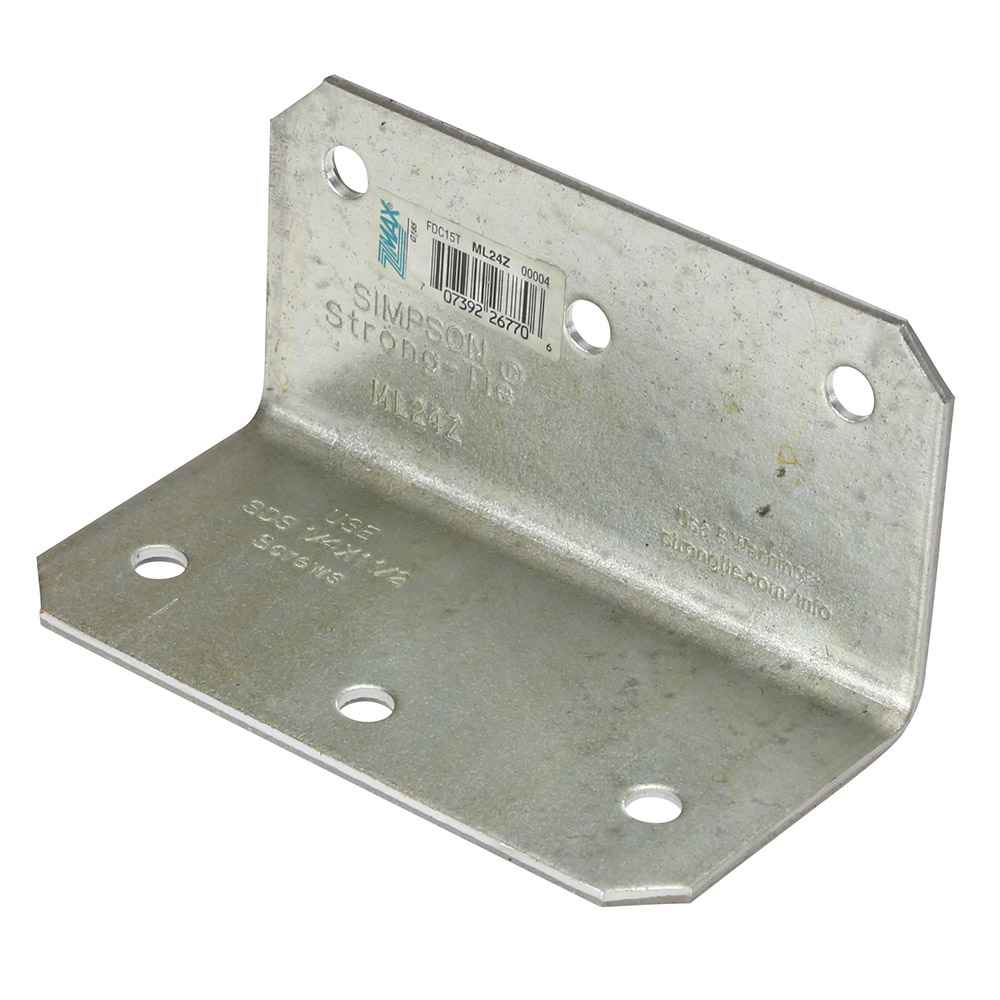

  • Simpson ML24Z 2 inch x 4 inch Medium L Angle Zmax Finish image 3 of 4

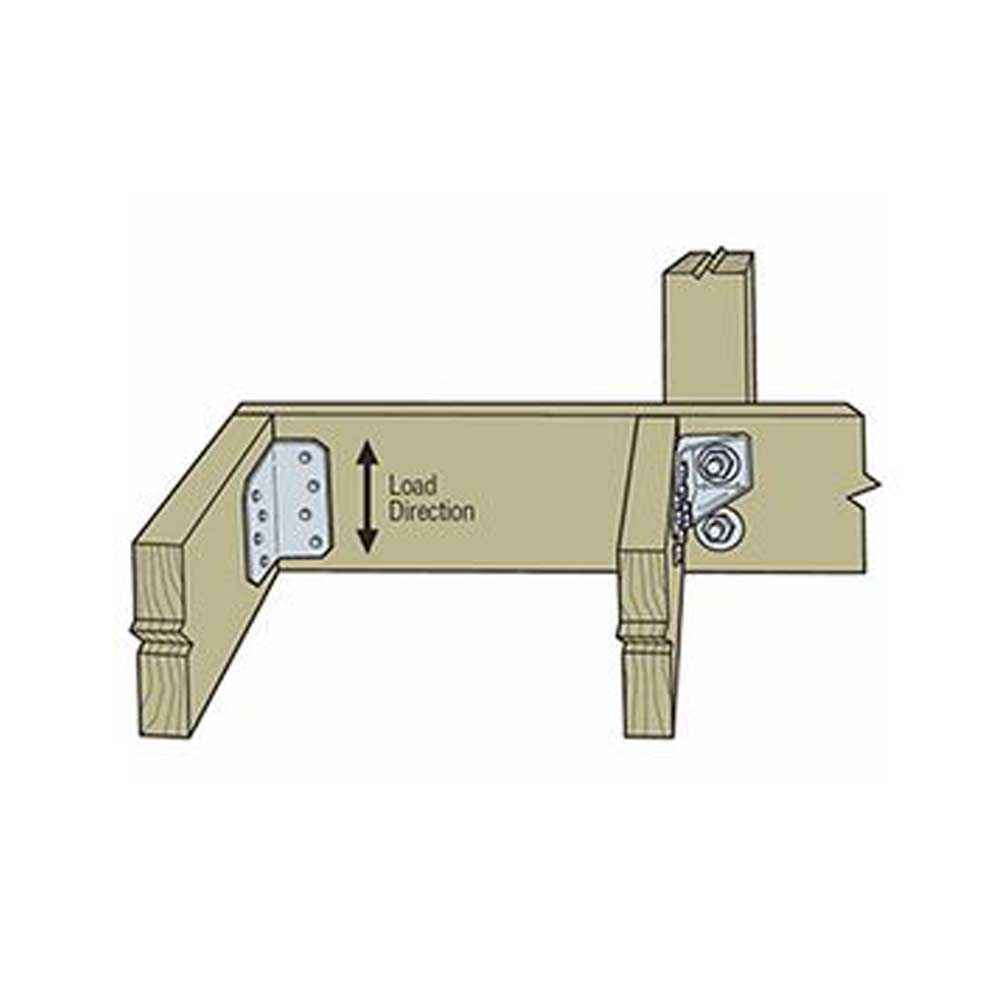

  • Simpson ML24Z 2 inch x 4 inch Medium L Angle Zmax Finish image 4 of 4
1 4

Continue Browsing

ML24/ML26 Angles
SKU: ML24Z

Simpson ML24Z 2" x 4" Medium L Angle - Zmax Finish

$2.64

Request Bulk Pricing
Request Bulk Pricing
Ships Dec 13
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Length: 4"
Fasteners required: (6) 1/4" x 1-1/2" SDS Screws
Manufacturer name: Simpson Strong-Tie
Description

Strong-Tie ML angles provide a way to make a wide range of 90 degree connections. The ML angle combines strength and versatility through the use of Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws. Fastener holes are staggered to minimize wood splitting and opposing hole patterns allows for back to back installation without fastener interference. The Strong-Tie ML24Z angle features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Simpson Strong-Tie 1/4" x 1-1/2" Strong-Drive SDS Heavy-Duty Connector screws are not provided with the angle.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

More
View full details

Continue Browsing

ML24/ML26 Angles

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
Paul Siemsen
High rating for deck use

Used Medium L Angle to join members of a floating deck grid. Appreciate the strength, screw hole offset, accurate dimensions, and engineering.
