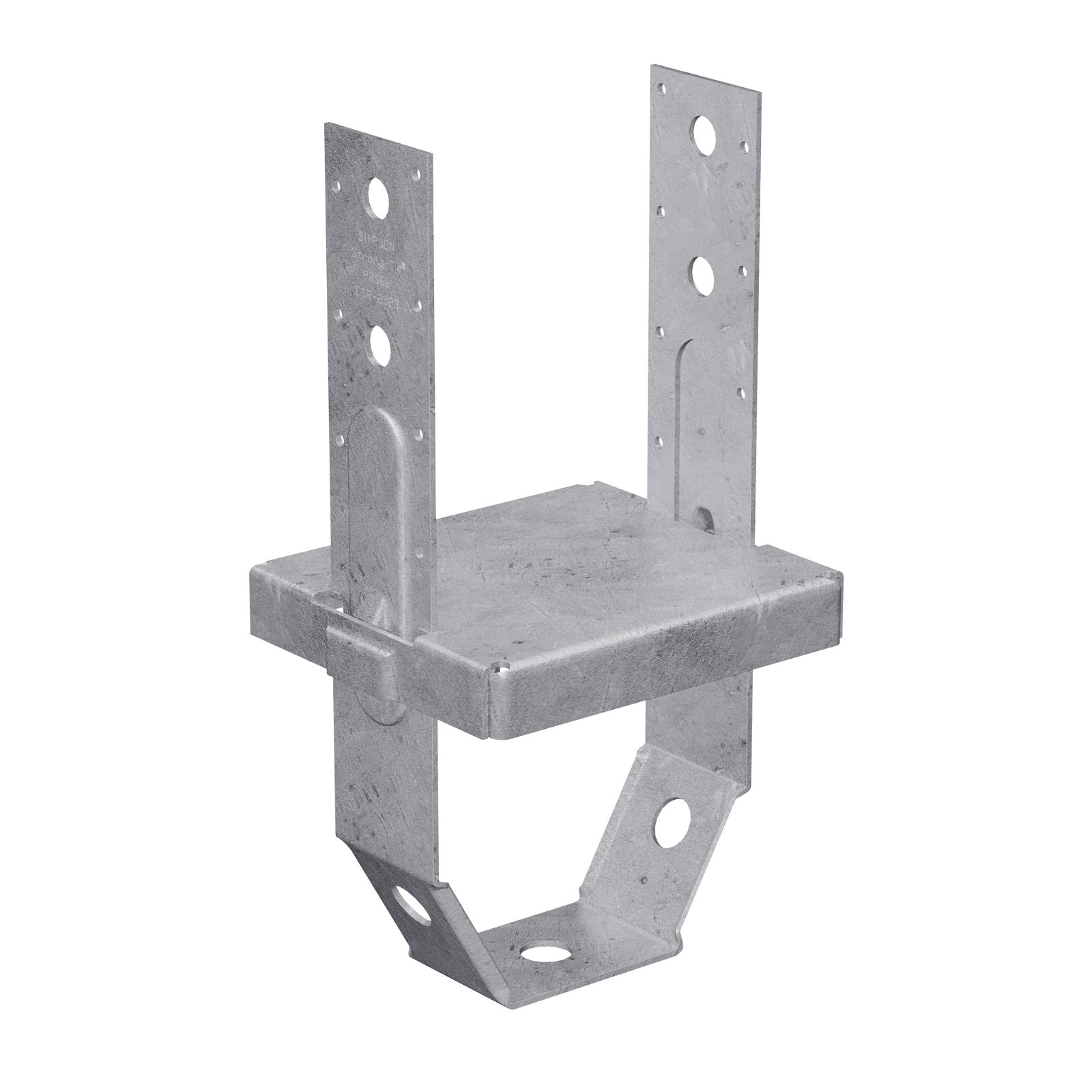

Simpson PBS66HDG 6x6 Post Base Stand Off - Hot Dip Galvanized

The Simpson PBS66HDG 6x6 Post Base Stand Off - Hot Dip Galvanized enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this post base is designed to be cast-in-place in concrete and provide a secure connection to the concrete.

This product is intended for use with 6x6 posts or columns but is also available for other post and column sizes.

Features:

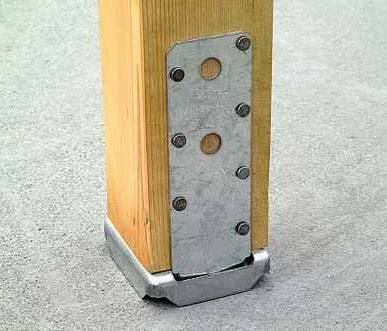

• Connection Type: Designed to be cast-in-place in concrete and provide a secure connection between a post.
• Lumber Size: Intended for use with 6x6 posts/columns.
• Material and Finish: Made from Steel for durability and finished with Hot Dip Galvanized coating.

California Residents: WARNING

-Use all specified fasteners.
-Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
-PB: Holes are provided for installation with either 16d commons or 1/2" bolts for PB66 and PB66R; all other models use 16d commons only. A 2" minimum sidecover is required to obtain the full load.
