SKU: ZN25300B

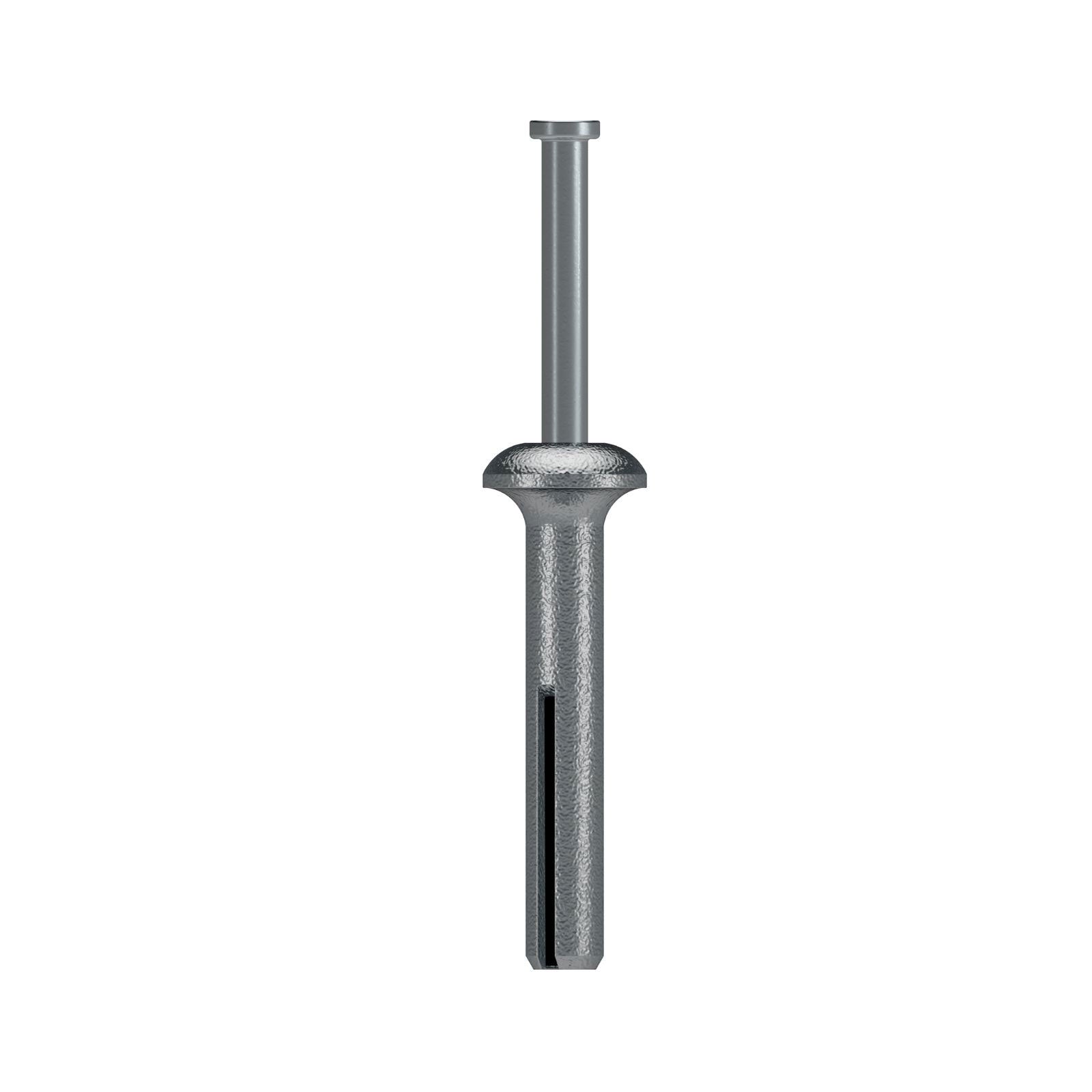

Simpson ZN25300B 1/4" x 3" Zinc Nailon Pin Drive Anchor - Zinc, Pkg 1000

Simpson ZN25300B 1/4" x 3" Zinc Nailon Pin Drive Anchor - Zinc, Pkg 1000!

  • Simpson ZN25300B 1/4" x 3" Zinc Nailon Pin Drive Anchor - Zinc, Pkg 1000

Continue Browsing

Zinc Wedge Anchors
SKU: ZN25300B

Simpson ZN25300B 1/4" x 3" Zinc Nailon Pin Drive Anchor - Zinc, Pkg 1000

$389.31

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 16 when you add 1 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Diameter: 1/4"
Finish: Zinc Plated
Length: 3"
Material: Carbon Steel
Drill bit size: 1/4"
Manufacturer name: Simpson Strong-Tie
Quantity: 1000
Description
Zinc Nailon anchors are low-cost, mushroom head anchors for applications under static loads. The anchors are easily installed by hitting a hammer on the head that drives the pin through the anchor, expanding the body of the anchor to hold it in place. Ideal for use in concrete, CMU, brick, and other base materials. Pin and head configuration is designed to make anchor tamper-resistant. This product is not for use in overhead applications.
Installation:
  • Drill a hole in base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to specified embedment depth, plus 1/4" for pin extension, and blow hole clean using compressed air. Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling.
  • Position fixture and insert Nailon anchor.
  • Tap with hammer until flush with fixture, then drive pin until flush with top of head.

    • California Residents: WARNING

More
View full details

Continue Browsing

Zinc Wedge Anchors

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
