SKU: ZN25300SS

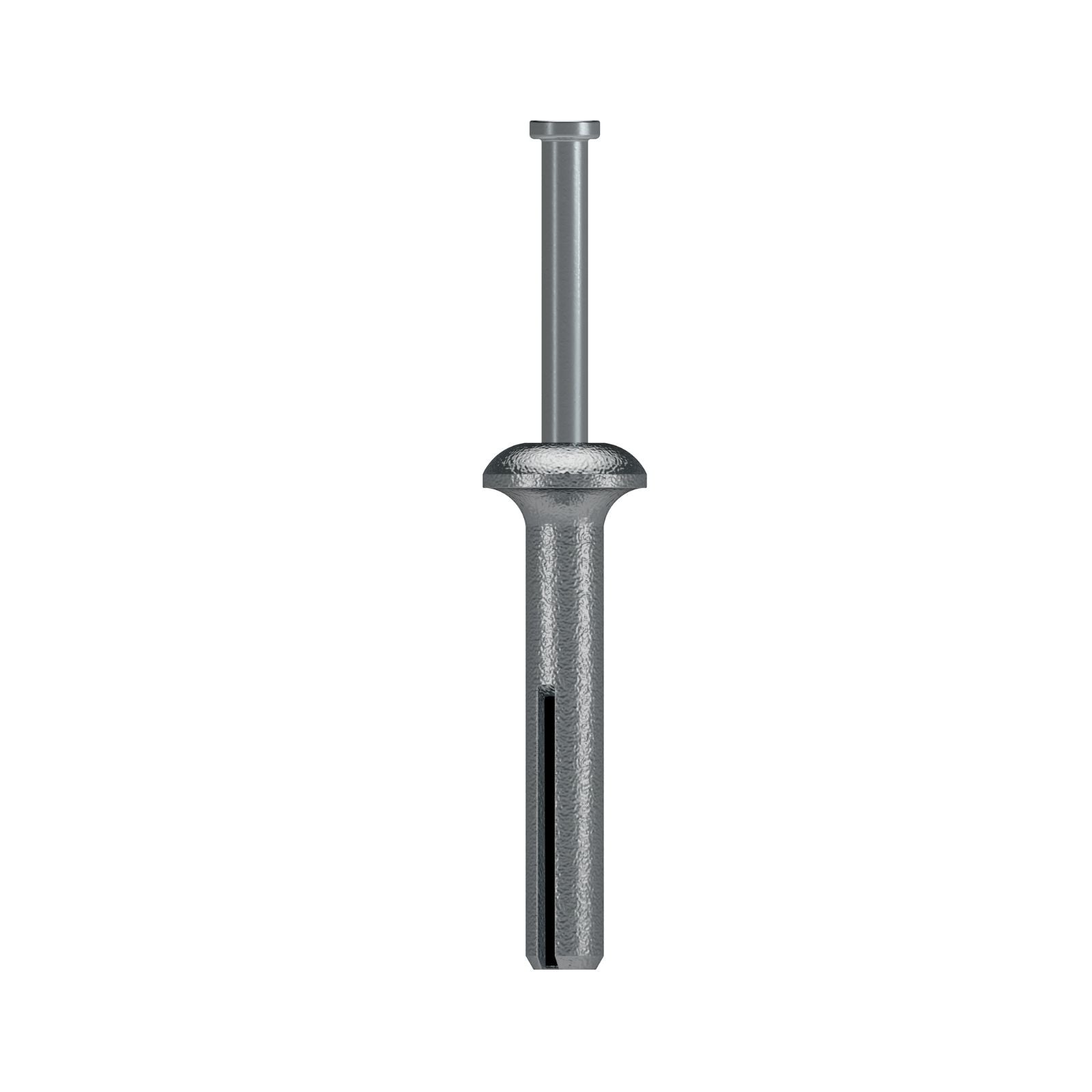

Simpson ZN25300SS 1/4" X 3" Zinc Nailon Pin Drive Anchor - 304 Stainless Steel, Pkg 100

Simpson ZN25300SS 1/4" X 3" Zinc Nailon Pin Drive Anchor - 304 Stainless Steel, Pkg 100

Regular price $55.52
Sale price $55.52 Regular price
0% off
shipping truck, lead time icon
Ships Mar 29 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

Zinc Nailon anchors are low-cost, mushroom head anchors for applications under static loads. The anchors are easily installed by hitting a hammer on the head that drives the pin through the anchor, expanding the body of the anchor to hold it in place. Ideal for use in concrete, CMU, brick, and other base materials. Pin and head configuration is designed to make anchor tamper-resistant. This product is not for use in overhead applications.
Installation:
  • Drill a hole in base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to specified embedment depth, plus 1/4" for pin extension, and blow hole clean using compressed air. Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling.
  • Position fixture and insert Nailon anchor.
  • Tap with hammer until flush with fixture, then drive pin until flush with top of head.

  • California Residents: WARNING

Specifications:

Material: 304 Stainless Steel
Drill bit size: 1/4"
Quantity: 100
Diameter: 1/4"
Length: 3"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet

Installation

-Drill a hole in base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to specified embedment depth, plus 1/4" for pin extension, and blow hole clean using compressed air. Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling.
-Position fixture and insert Nailon anchor.
-Tap with hammer until flush with fixture, then drive pin until flush with top of head.

View full details
