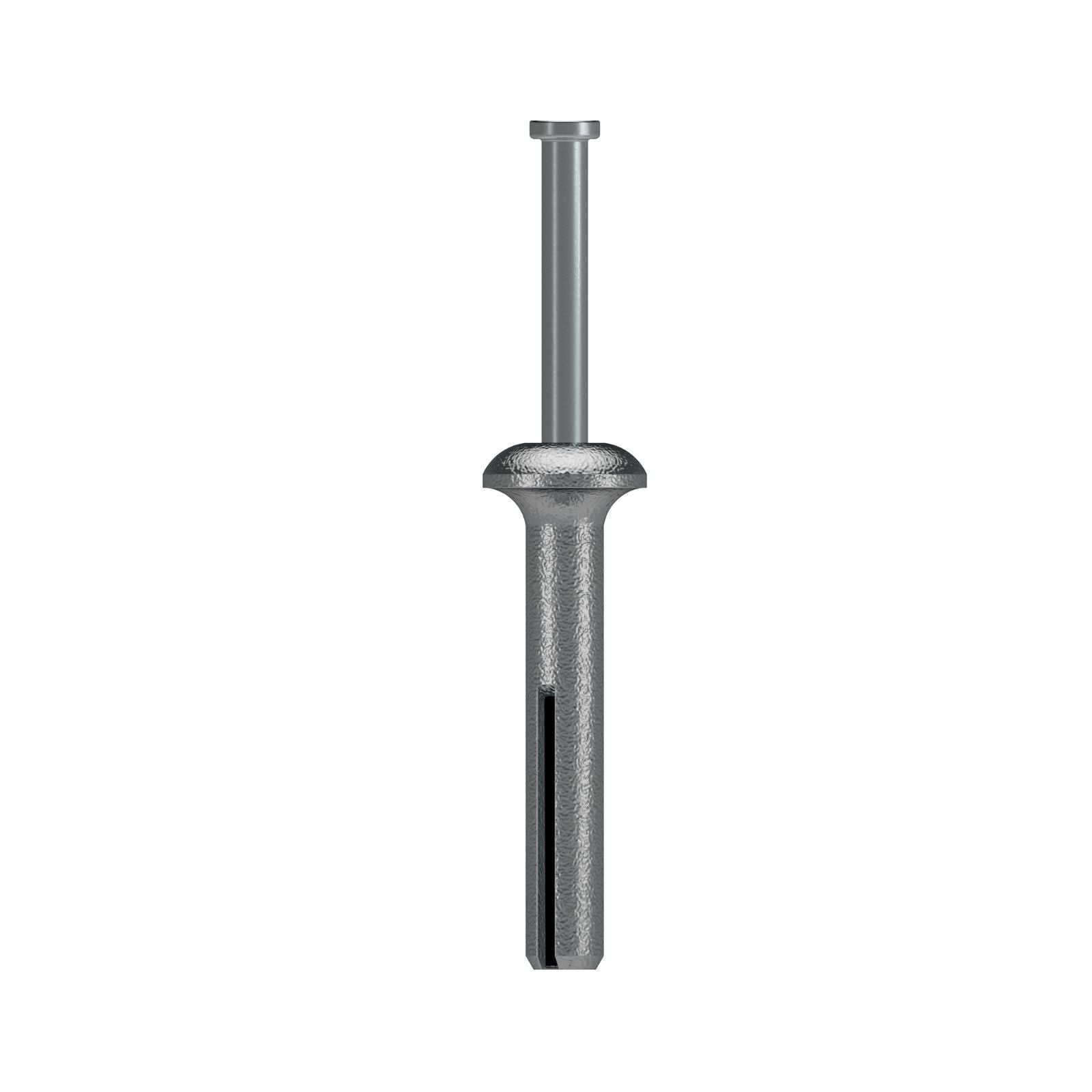

Simpson ZN25100SS 1/4" X 1" Zinc Nailon Pin Drive Anchor - 304 Stainless Steel, Pkg 100

Zinc Nailon anchors are low-cost, mushroom head anchors for applications under static loads. The anchors are easily installed by hitting a hammer on the head that drives the pin through the anchor, expanding the body of the anchor to hold it in place. Ideal for use in concrete, CMU, brick, and other base materials. Pin and head configuration is designed to make anchor tamper-resistant. This product is not for use in overhead applications.
Installation:

• Drill a hole in base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to specified embedment depth, plus 1/4" for pin extension, and blow hole clean using compressed air. Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling.
• Position fixture and insert Nailon anchor.
• Tap with hammer until flush with fixture, then drive pin until flush with top of head.



California Residents: WARNING

-Drill a hole in base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to specified embedment depth, plus 1/4" for pin extension, and blow hole clean using compressed air. Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling.
-Position fixture and insert Nailon anchor.
-Tap with hammer until flush with fixture, then drive pin until flush with top of head.
