3/4" 1x19 EHS Galvanized Guy Wire | Linear Foot
3/4" 1x19 EHS Galvanized Guy Wire | Linear Foot!
3/4" 1x19 EHS Galvanized Guy Wire | Linear Foot
Specifications

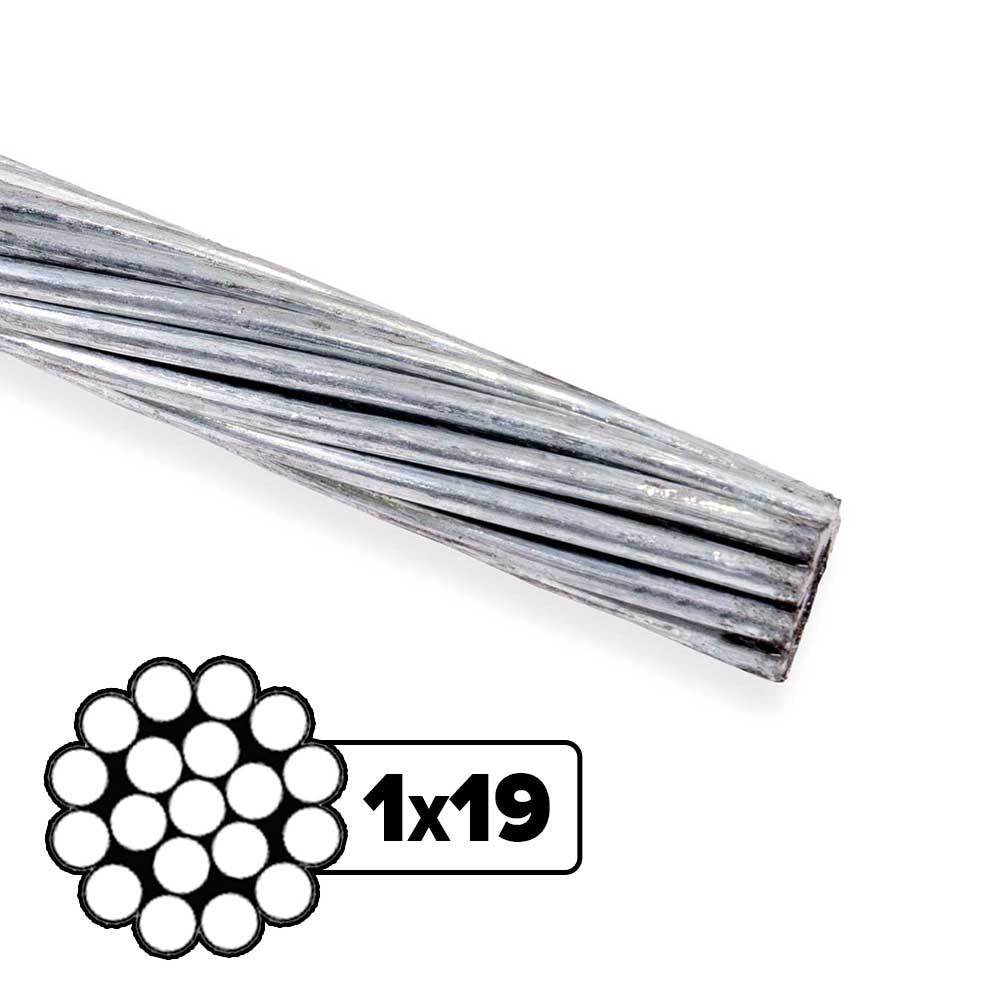

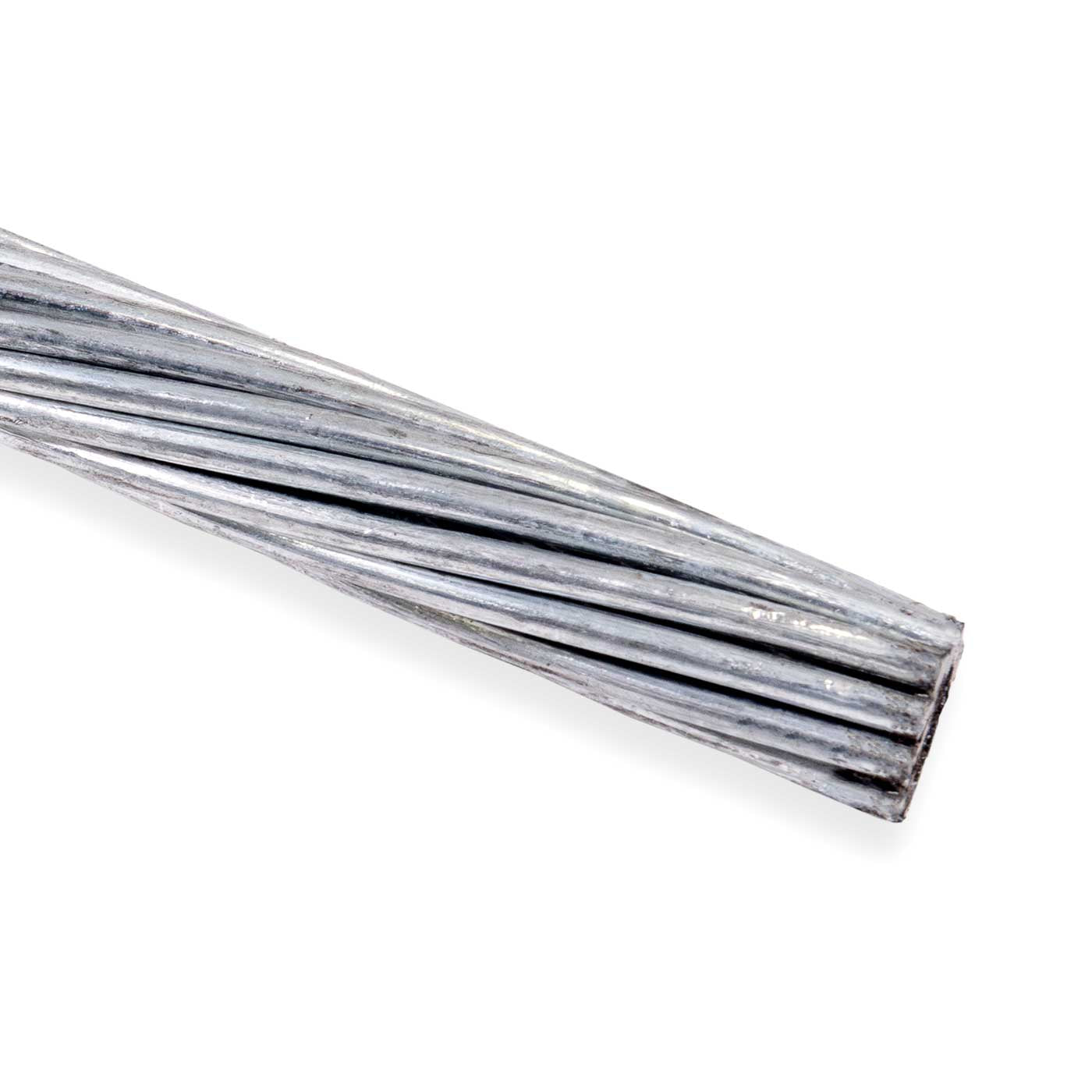

3/4" 1x19 Guy Wire for Towers
This 3/4" 1x19 guy wire is manufactured from Extra High Strength (EHS) steel and designed to provide reliable support and stability for antennas, communication towers, utility structures, and other free-standing installations. Its high-strength construction delivers excellent load-carrying capability with minimal stretch, making it ideal for structural support applications.
3/4" Galvanized Guy Wire for Tower & Structural Support Applications

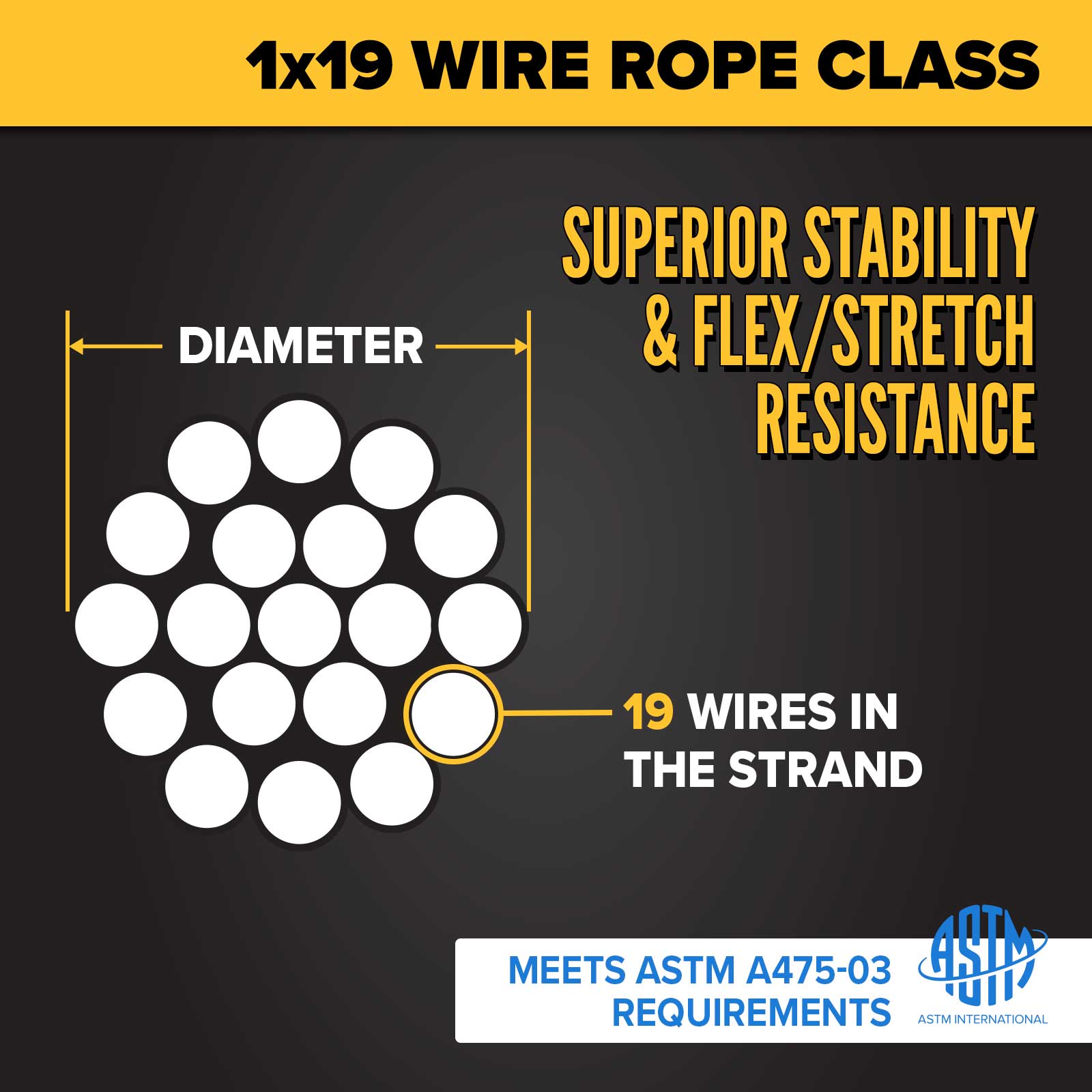

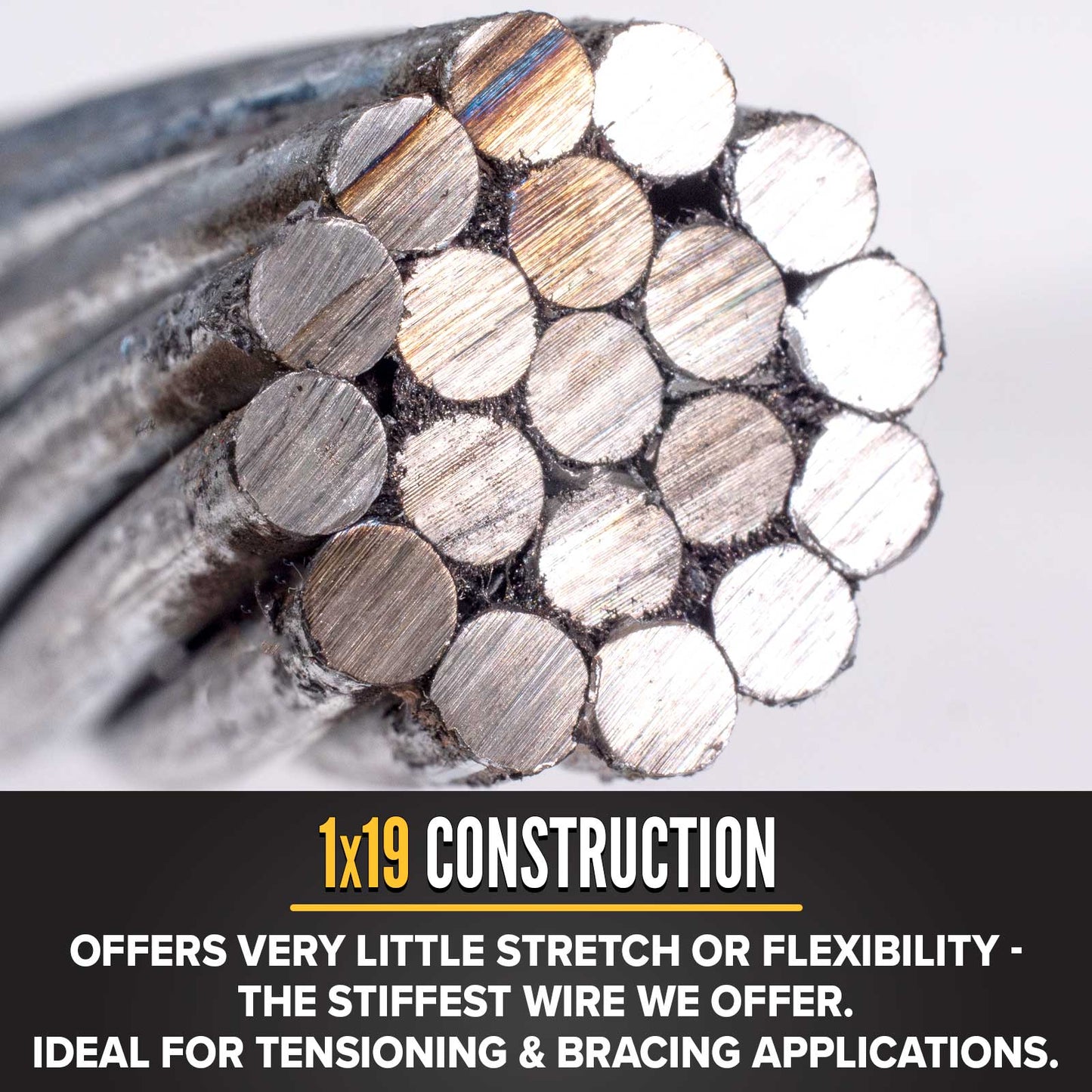

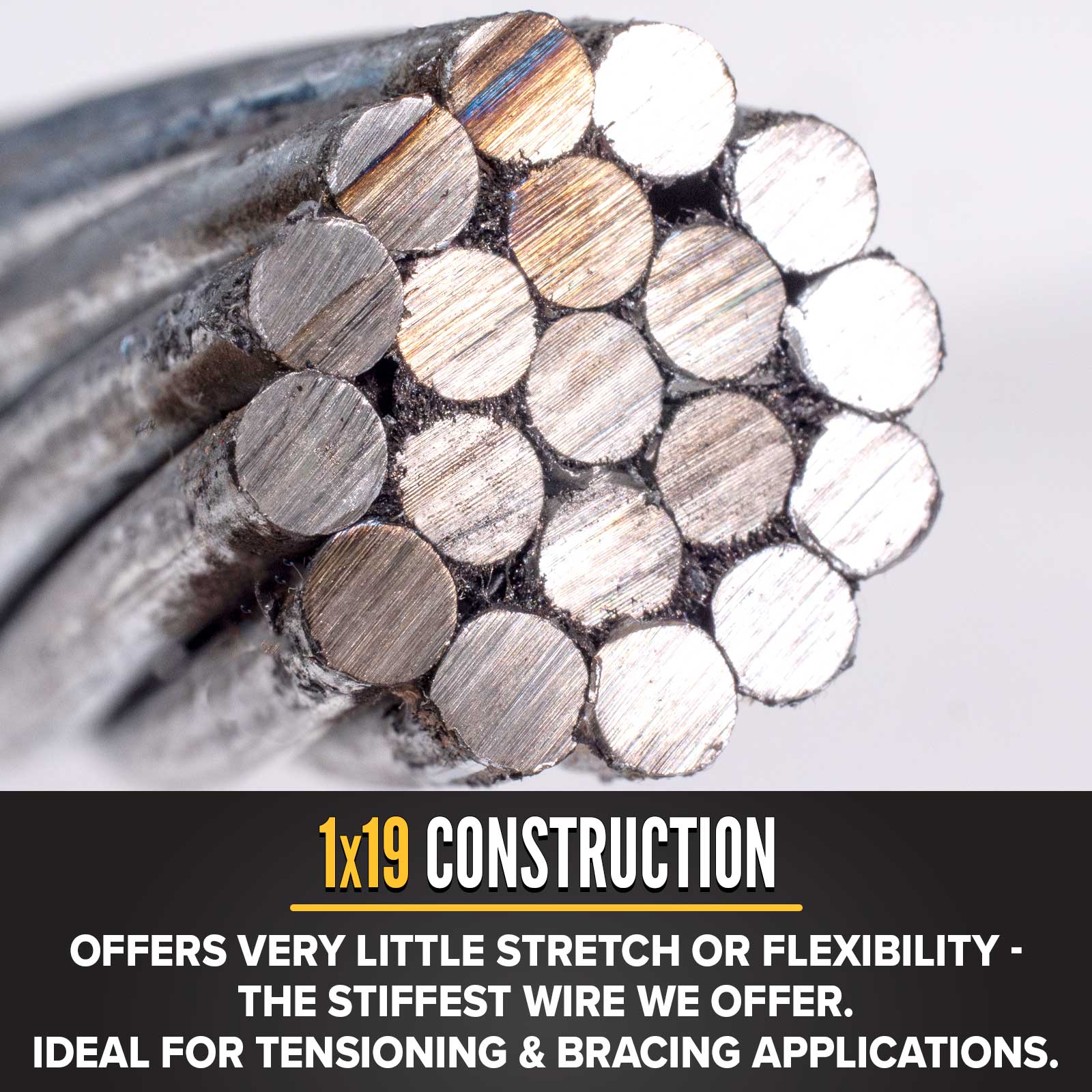

Featuring a galvanized finish for corrosion resistance, this 1x19 guy wire is built to withstand long-term outdoor exposure. The 1x19 construction consists of 19 individual wires formed into a single strand, providing greater flexibility and improved resistance to compressive forces compared to 1x7 guy wire, while still maintaining the rigidity and strength required for tower stabilization and structural bracing applications.
Key Features

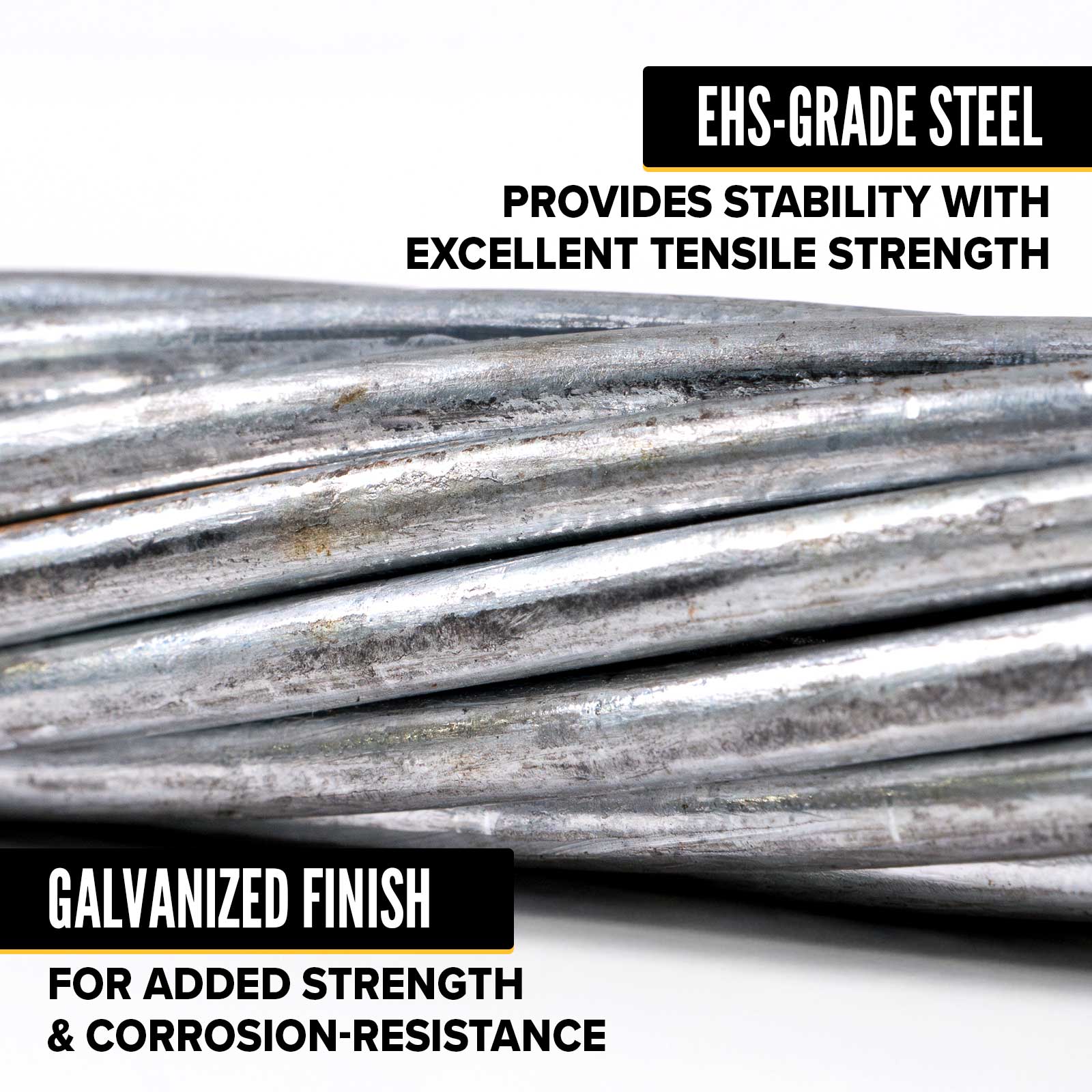

- EHS Steel Construction: Extra High Strength steel provides approximately 40% greater tensile strength than standard HS-grade wire.
- 1x19 Configuration: Offers excellent strength with greater flexibility than comparable 1x7 guy wire.
- Galvanized Finish: Protects against corrosion and environmental exposure for extended service life.
- Minimal Stretch: Helps maintain structural stability in permanent support applications.
- Standards Compliant: Meets ASTM A475 requirements for galvanized steel strand.
Common Applications
- Communication tower support systems
- Antenna guying applications
- Utility pole bracing
- Free-standing structure stabilization
- Structural support and reinforcement systems
Installation Tips
- Use guy wire grips, dead ends, and hardware specifically sized for the wire diameter and application.
- Inspect guy wire, anchors, and attachment hardware for corrosion, wear, or damage before installation and throughout service life.
- Follow applicable industry standards and manufacturer recommendations when installing tower and structural support systems.
Wire Rope by the Foot Ordering FAQ
Will my wire rope arrive as one continuous length?
Yes. The quantity you order will be supplied as one continuous, uncut length of wire rope. For example, if you order a quantity of 1,000, you will receive a single 1,000-foot length.
Can I order multiple separate lengths?
Yes. To receive multiple lengths, add each length to your cart as a separate line item. For example, if you need two 1,500-foot lengths, enter a quantity of 1,500 and add it to your cart twice. Each line item will be cut and supplied as a separate length.
Can I order lengths shorter than the minimum order quantity if the combined total exceeds the minimum?
Yes. If your combined order will exceed the minimum quantity requirement but you need shorter individual lengths, please call our team to place your order. One of our product experts will be happy to assist.
Accessories & More
Looking for additional components? Shop our full selection of guy wire hardware, including guy wire clamps for creating secure cable connections and guy wire tensioners for adjusting and maintaining proper tension in your guy wire system.
