Shop more U/LU/LUC Face Mount Joist Hangers

SKU: LU210

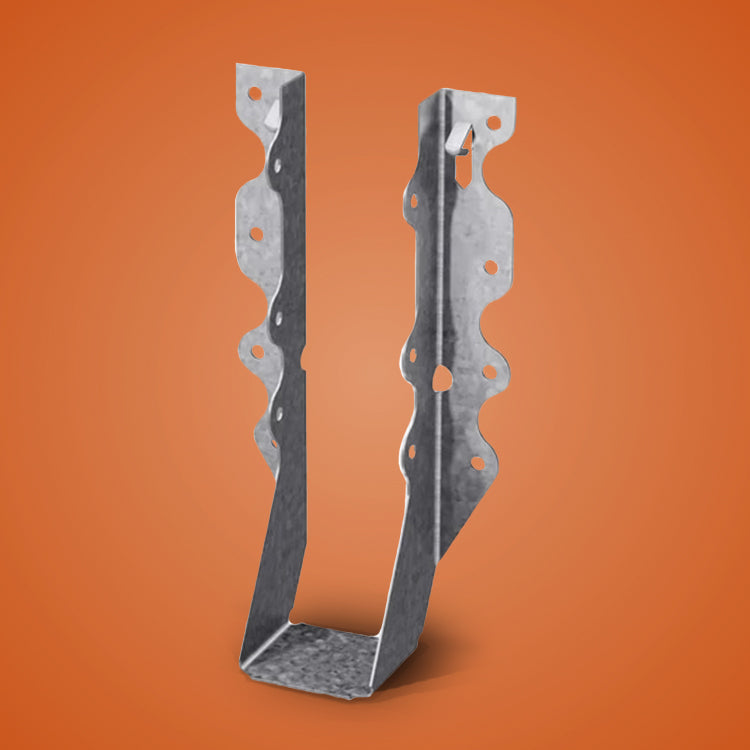

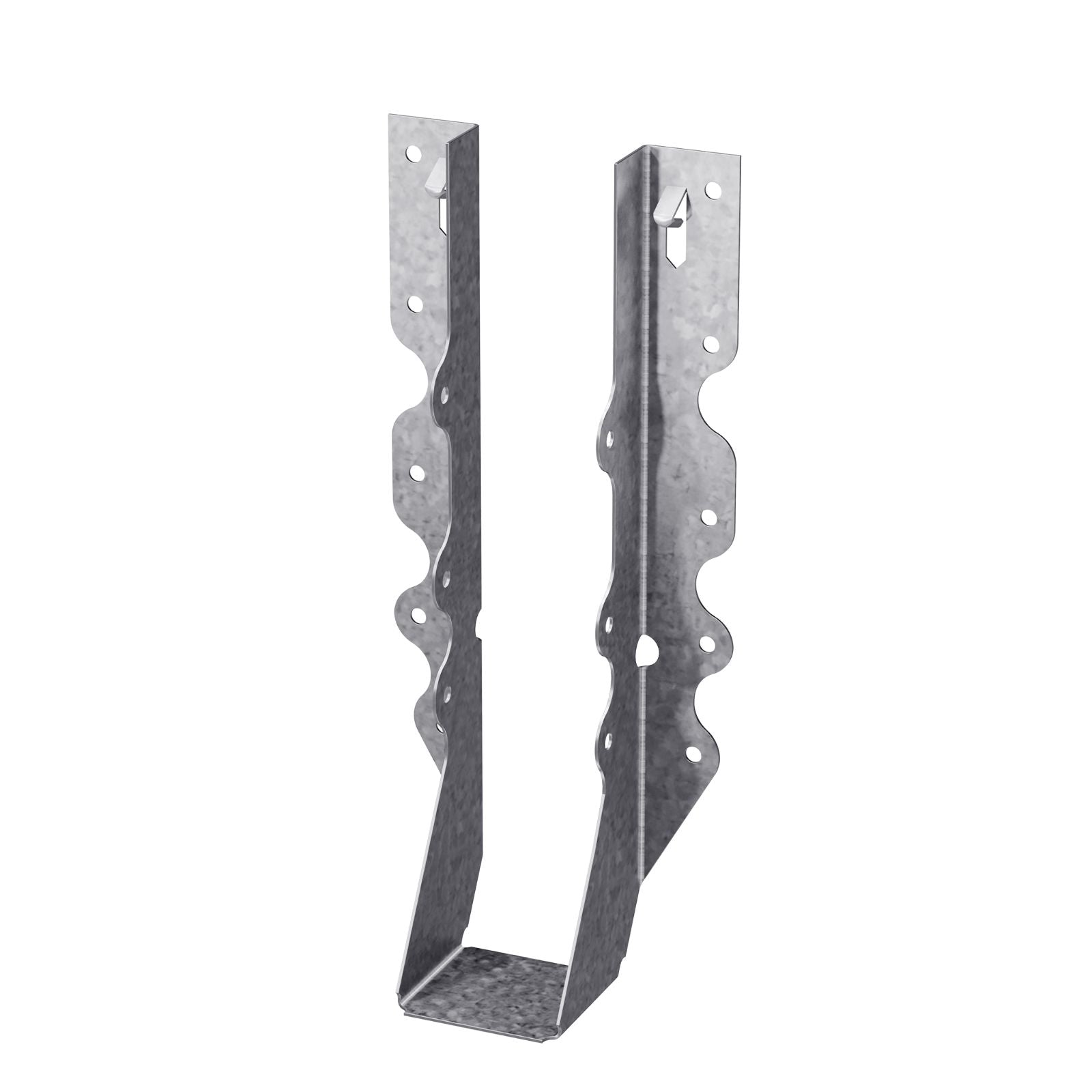

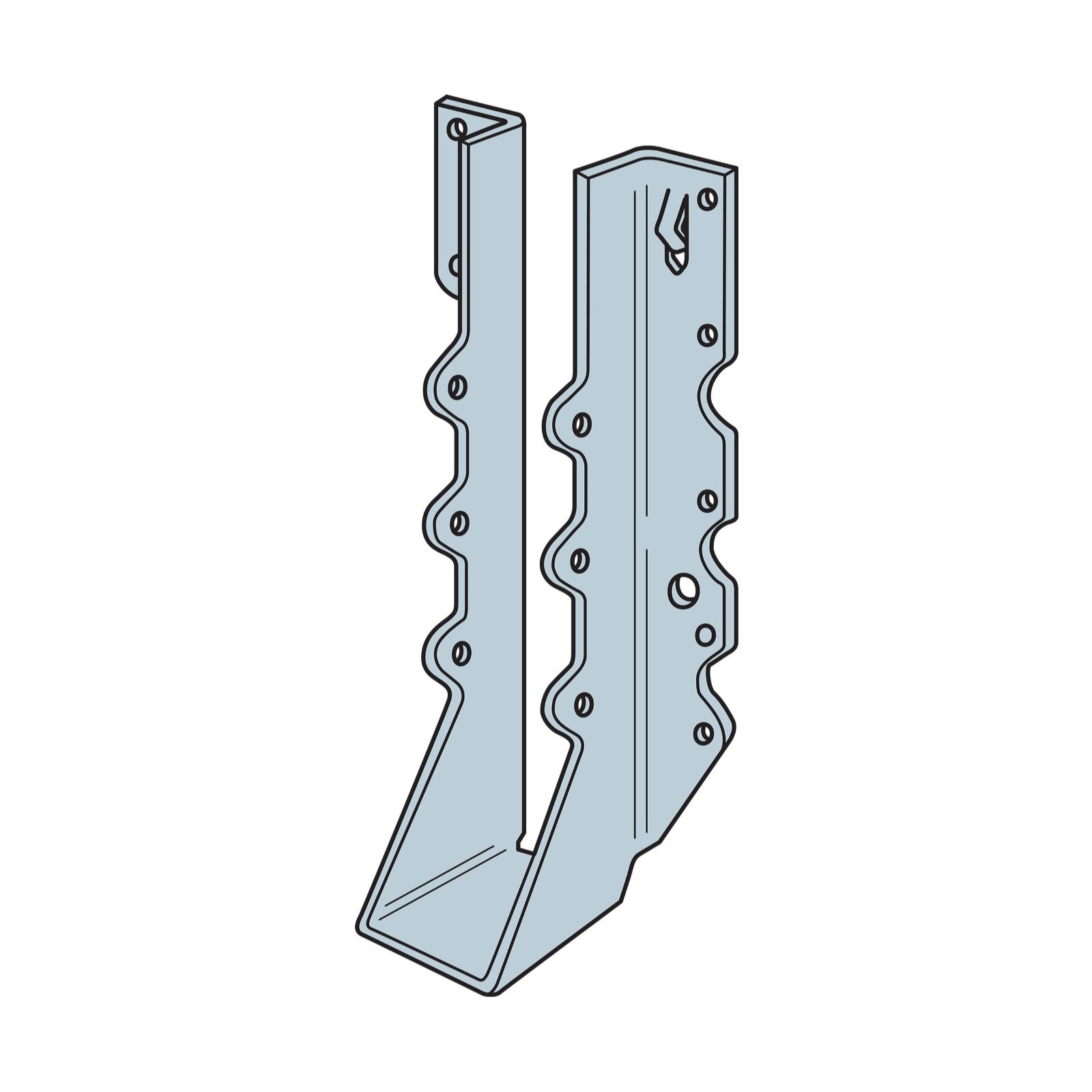

Simpson LU210 2x10 Face Mount Joist Hanger, G90 Galvanized

$1.41

0% off

Quantity

Description:

Simpson Strong-Tie LU hangers are a value engineered face mount joist hanger engineered for installation ease and design value. The Strong-Tie LU24R-18 joist hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

Installation:

Use all specified fasteners.
Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
Joists sloped up to 1/4:12 achieve load tables.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

Specifications:

Height: 7-13/16"
Fasteners required: Header - (10) 0.162" x 3-1/2" Nails Joist - (6) 0.148" x 1-1/2" Nails
Width: 1-9/16"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: 2X10
Product Guide: View Spec Sheet

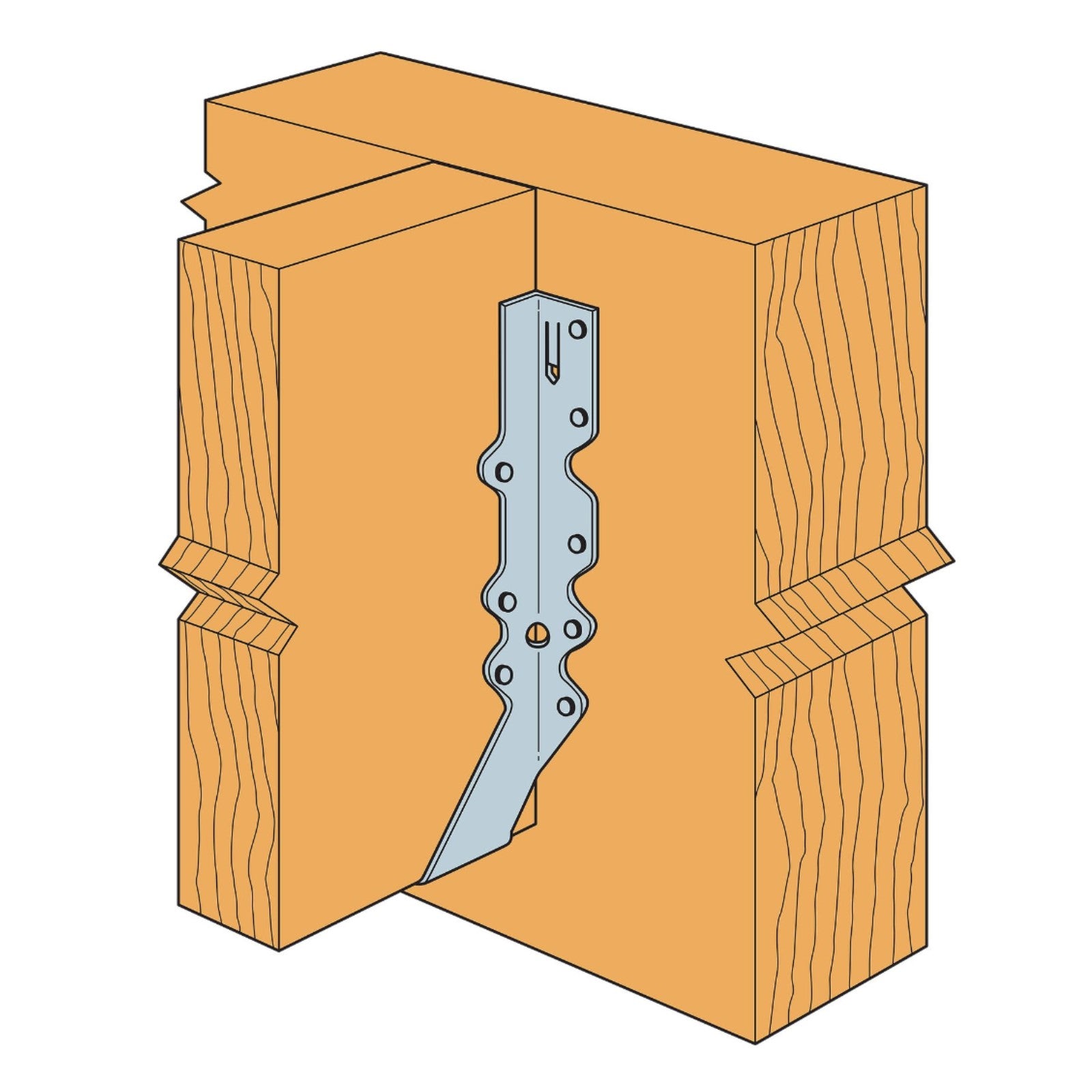

Installation

-Use all specified fasteners.
-Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
-Joists sloped up to 1/4:12 achieve load tables.

View full details
