SKU: LU210R-18

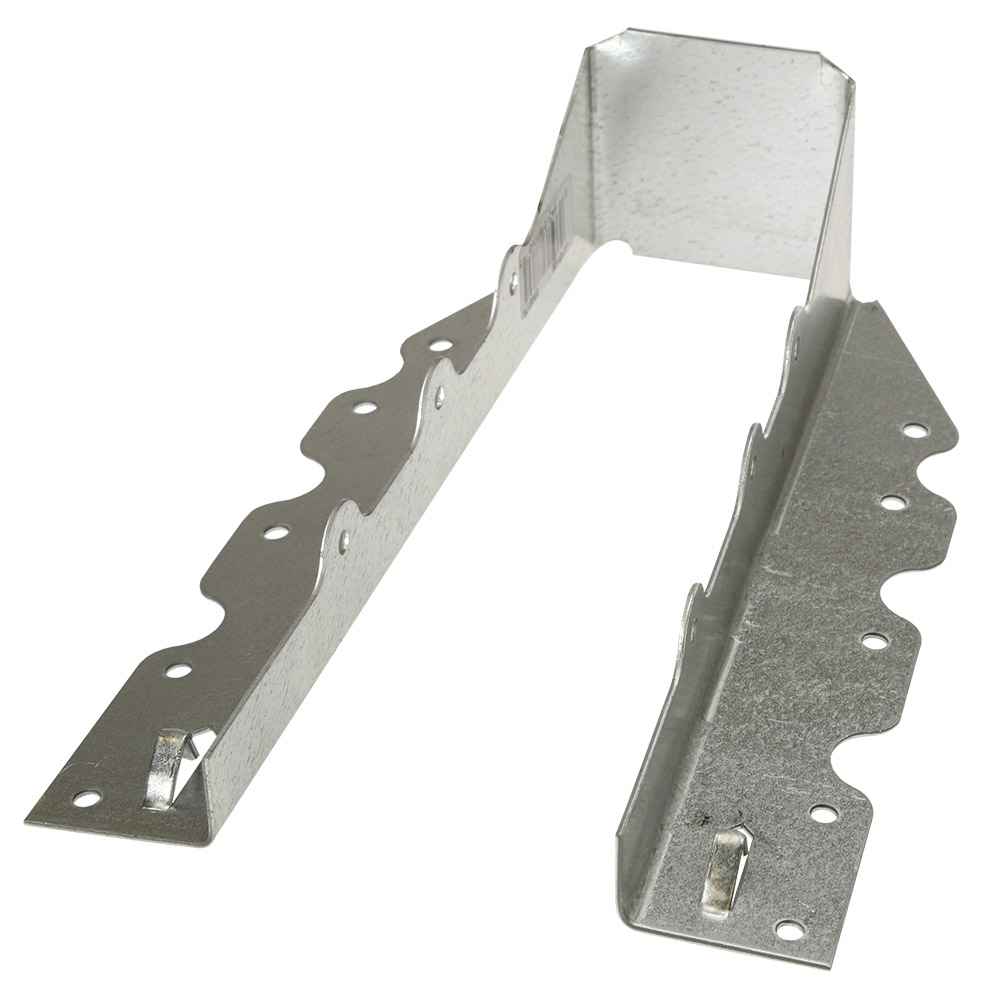

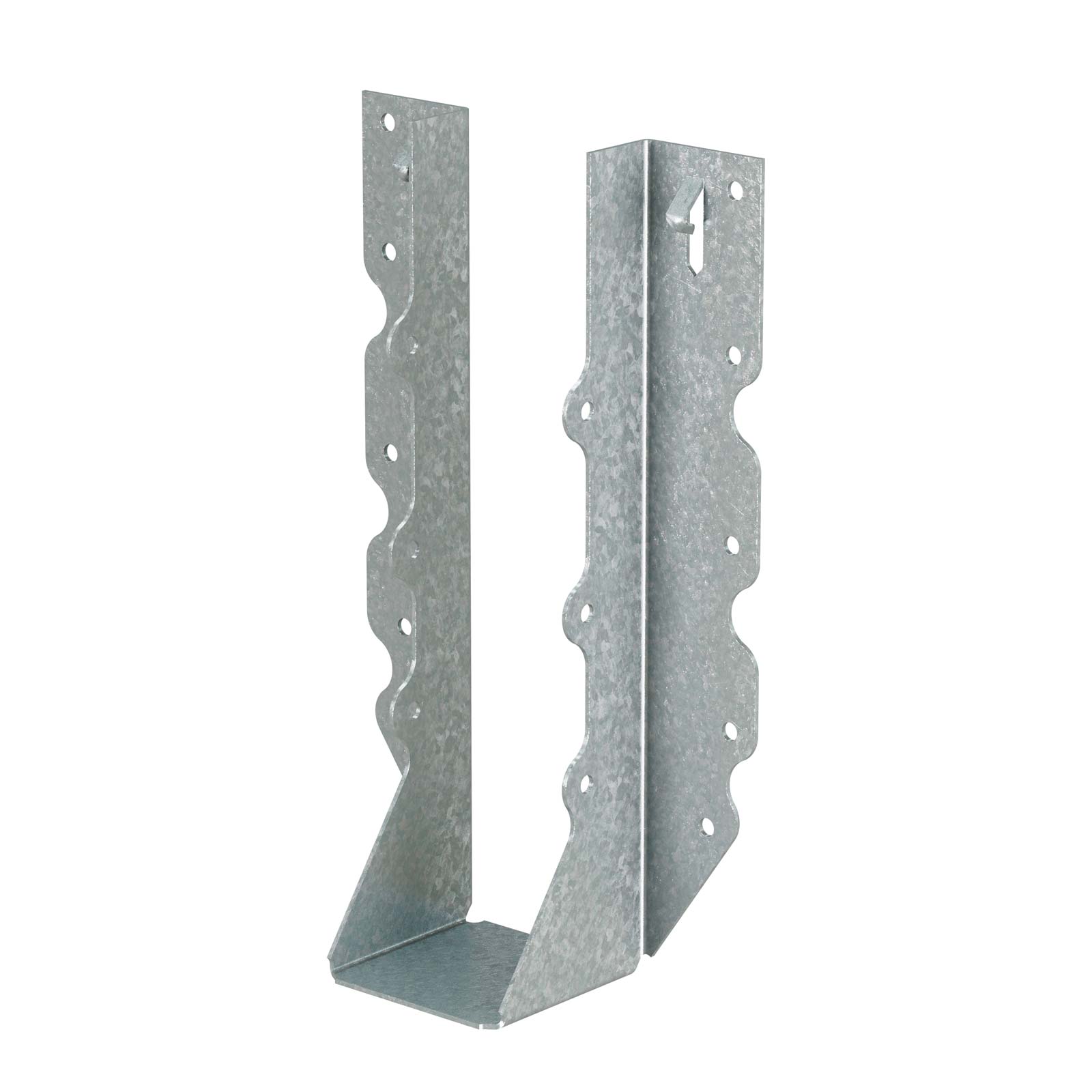

Simpson LU210R-18 Rough Cut 2x10 Face Mount Joist Hanger - G90 Galvanized

Simpson LU210R-18 Rough Cut 2x10 Face Mount Joist Hanger - G90 Galvanized!

  • Simpson LU210R18 Rough Cut 2x10 Face Mount Joist Hanger G90 Galvanized

Continue Browsing

UR/LUR Rough Cut Joist Hangers
SKU: LU210R-18

Simpson LU210R-18 Rough Cut 2x10 Face Mount Joist Hanger - G90 Galvanized

$6.32

Request Bulk Pricing
Request Bulk Pricing
Ships today, order in the next 9 hours 9 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Fasteners required: Header - (10) 0.162" x 3-1/2" Nails Joist - (6) 0.148" x 1-1/2" Nails
For Treated Lumber: No
Height: 7-9/16"
Joist size: Rough 2X10
Manufacturer name: Simpson Strong-Tie
Width: 2"
Description

Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a joist that measures an actual 2x10". If you have a nominal joist measuring 1-1/2x9-1/2" you will need an LU210 Joist Hanger


Simpson Strong-Tie LU hangers are a value engineered face mount joist hanger engineered for installation ease and design value. The Strong-Tie LU24R-18 joist hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
  • Joists sloped up to 1/4:12 achieve load tables.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
