Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a joist that measures an actual 2x4". If you have a nominal joist measuring 1-1/2x3-1/2" you will need an LU24 Joist Hanger

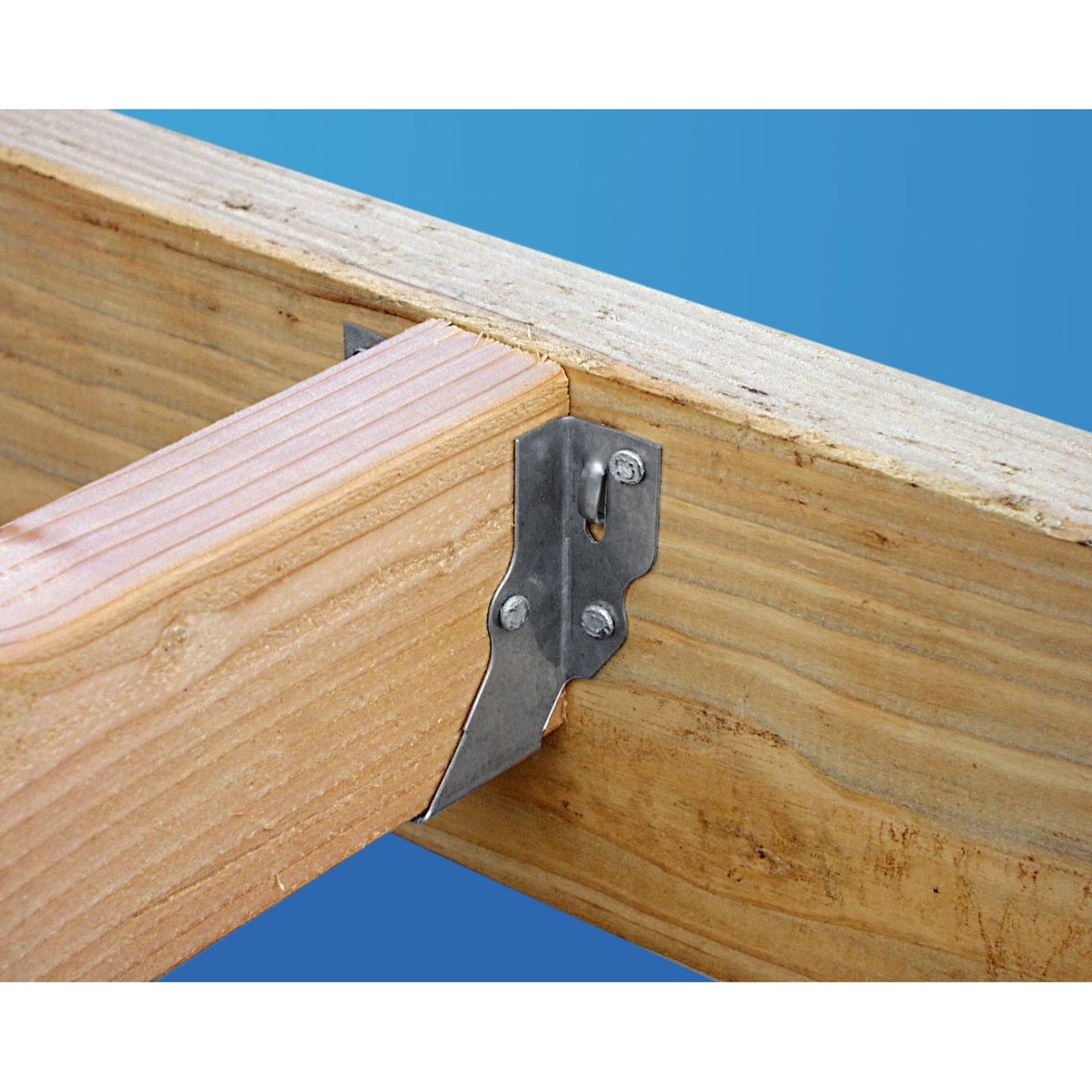

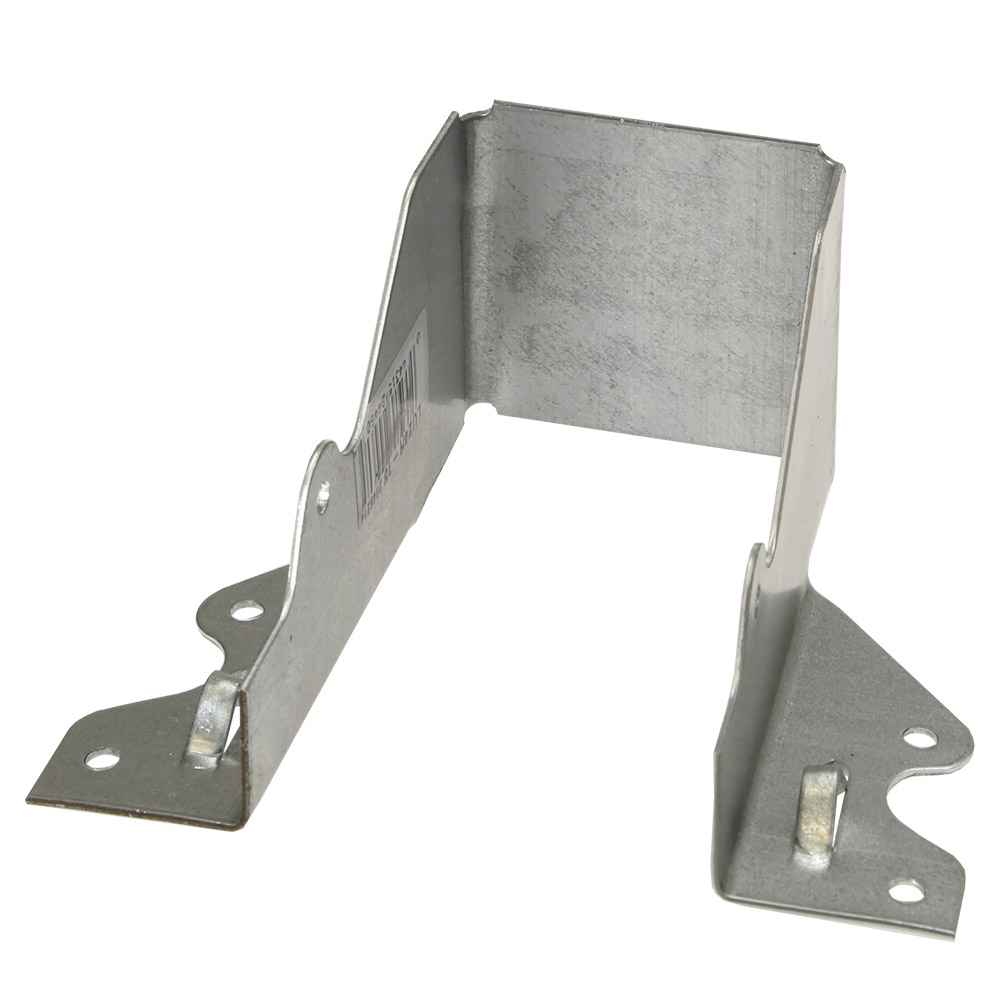

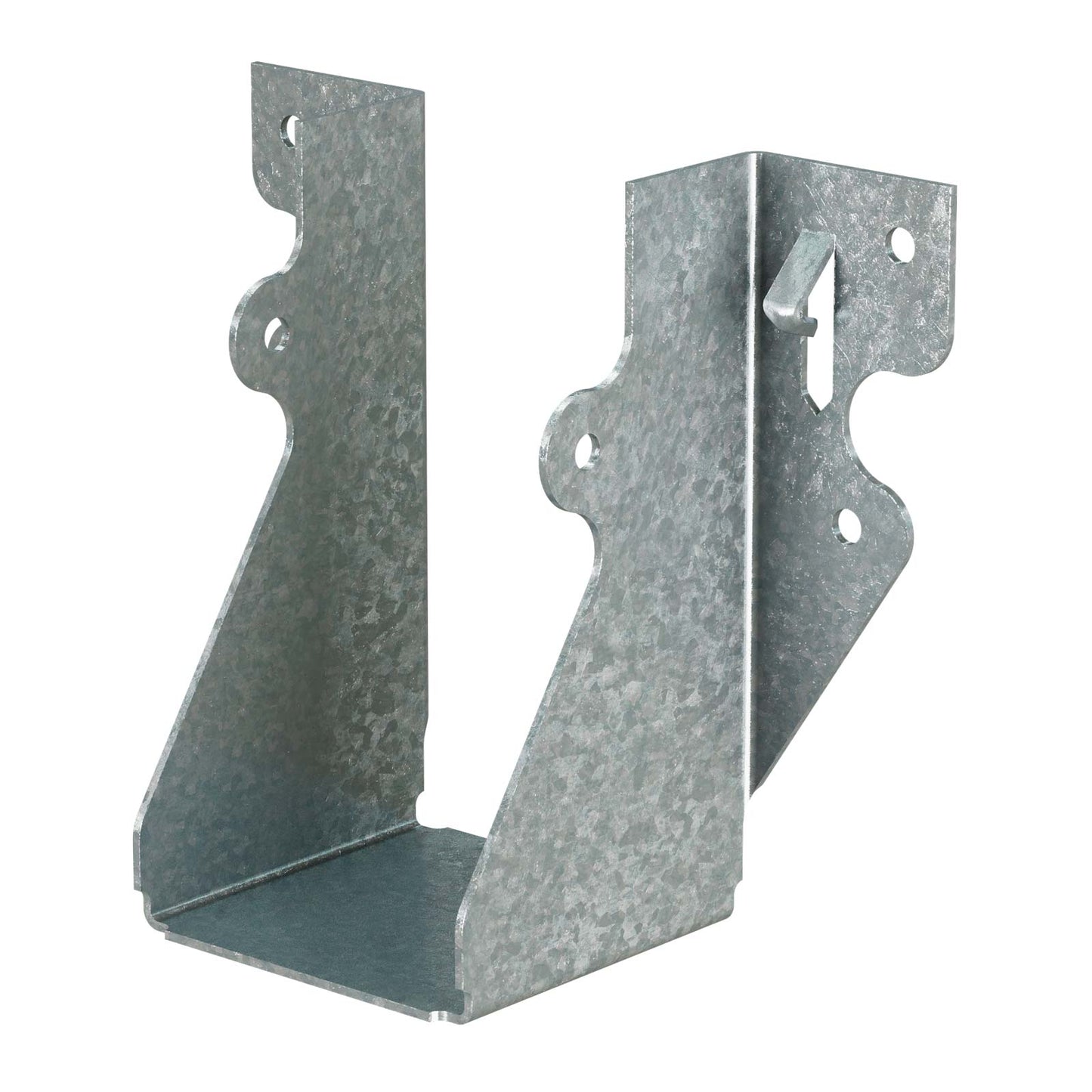

Simpson Strong-Tie LU hangers are a value engineered face mount joist hanger engineered for installation ease and design value. The Strong-Tie LU24R-18 joist hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:
- Use all specified fasteners.
- Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
- Joists sloped up to 1/4:12 achieve load tables.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a joist that measures an actual 2x4". If...
Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a joist that measures an actual 2x4". If you have a nominal joist measuring 1-1/2x3-1/2" you will need an LU24 Joist Hanger
Simpson Strong-Tie LU hangers are a value engineered face mount joist hanger engineered for installation ease and design value. The Strong-Tie LU24R-18 joist hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:
- Use all specified fasteners.
- Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
- Joists sloped up to 1/4:12 achieve load tables.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
specifications
Fasteners Required:
Header - (4) 0.162" x 3-1/2" Nails
Joist - (2) 0.148" x 1-1/2" Nails
For Treated Lumber:
no
Finish Spec:
G90 Galvanized
Height:
3-11/16"
Joist Size:
Rough 2X4
Manufacturer Name:
Simpson Strong-Tie
Thickness:
18 Gauge
Width Spec:
2"
