Terrier TSCC 1-1/2 Ton Universal Lifting Screw Clamp - 901500
Terrier TSCC 1-1/2 Ton Universal Lifting Screw Clamp - 901500!
Specifications

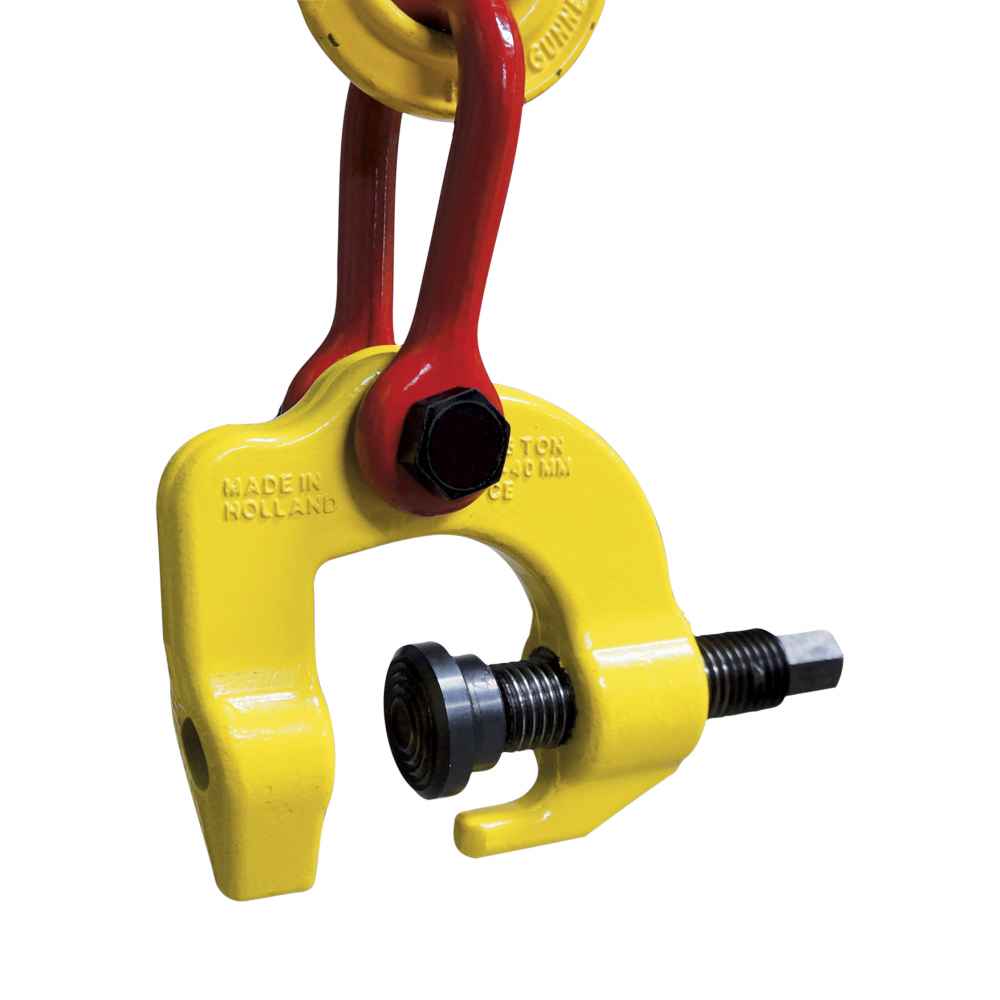

Terrier TSCC 1.5 Ton Universal Lifting Screw Clamp

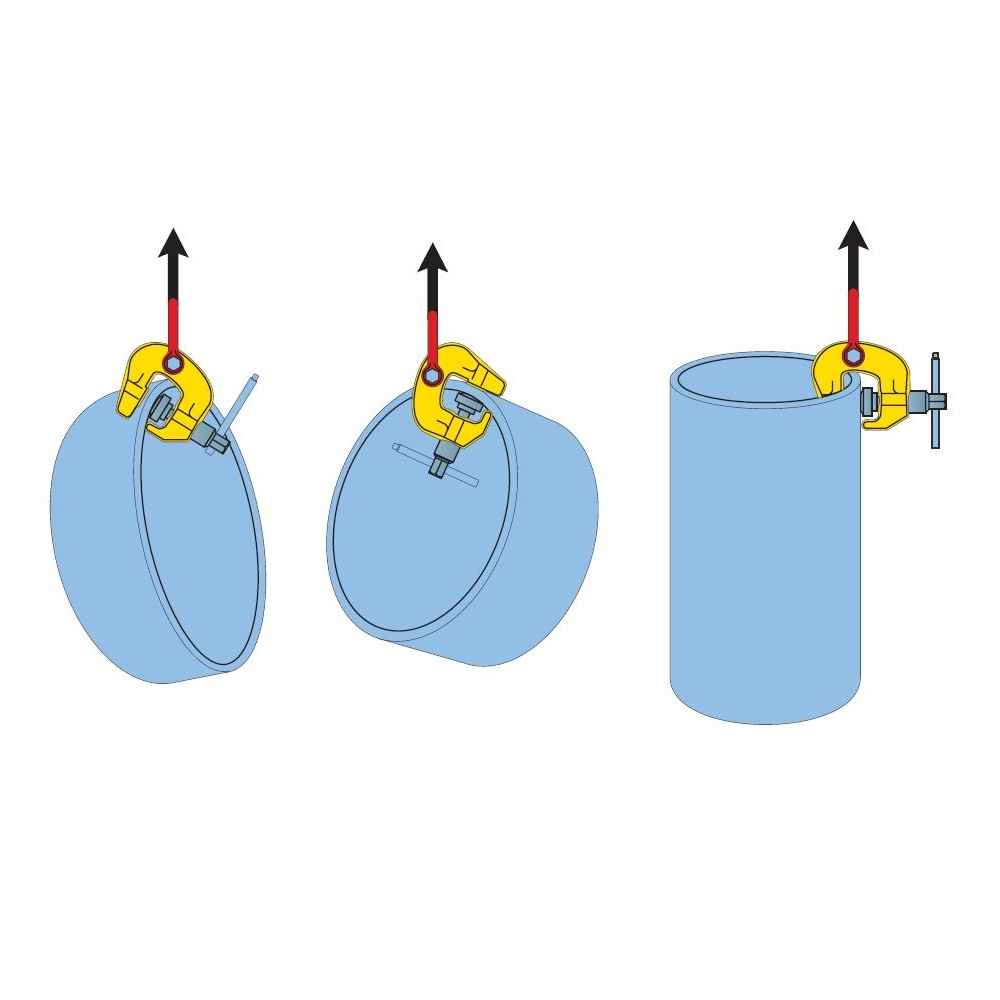

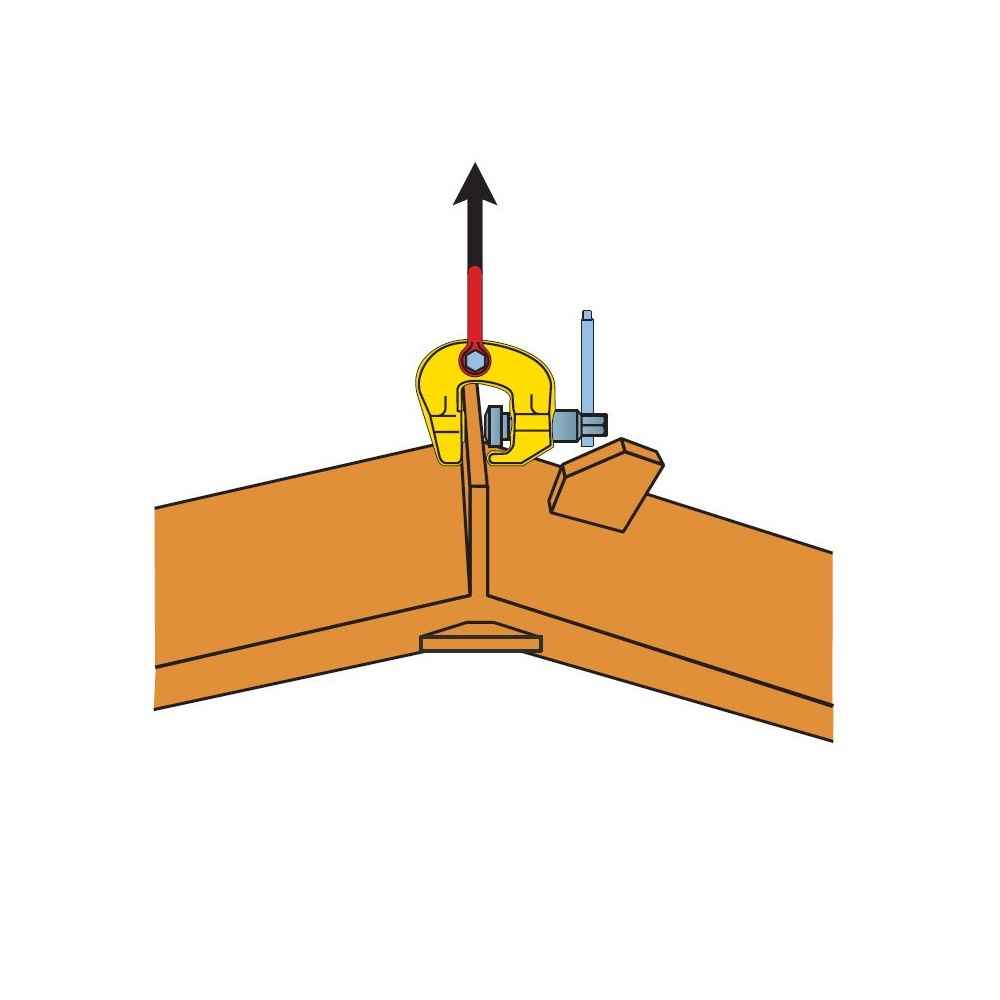

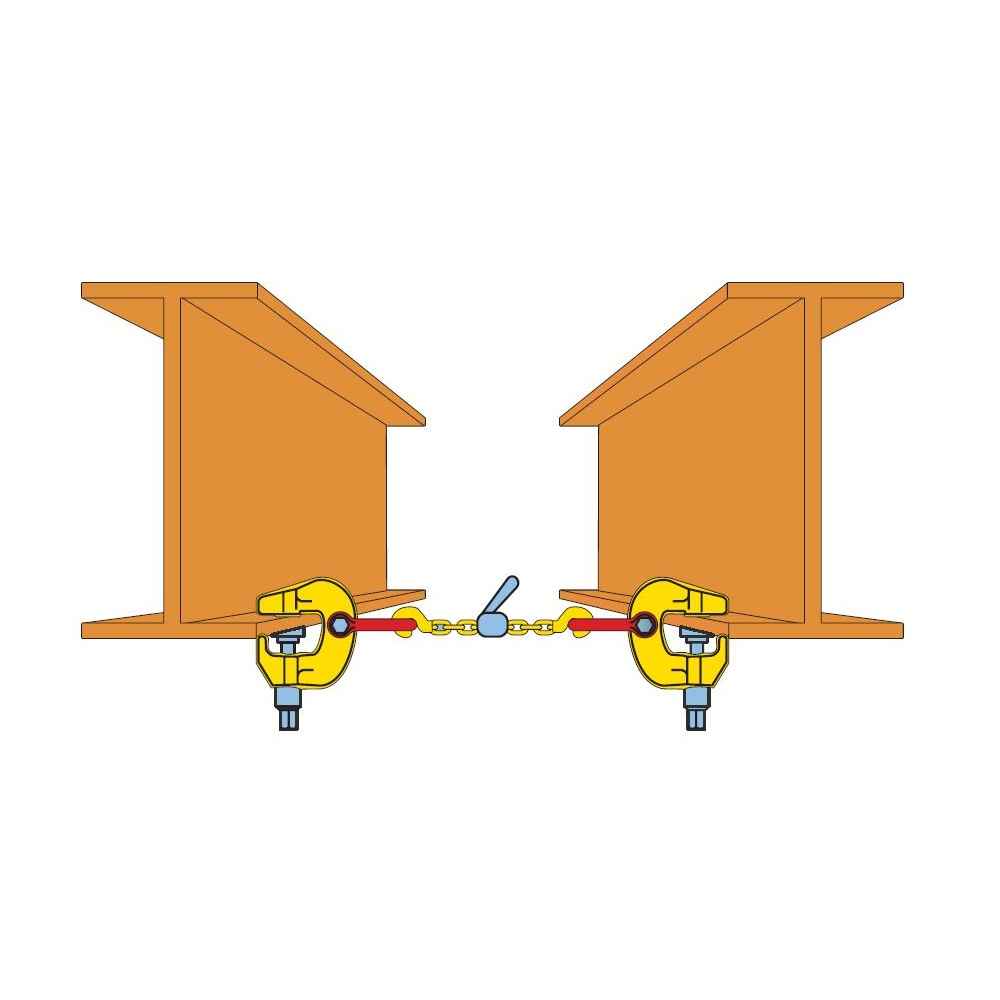

The Terrier TSCC 1.5 Ton screw clamp is a heavy-duty, multi-position lifting solution for structural steel handling. Designed for both vertical and horizontal lifting, this clamp features a threaded spindle with a movable cam that delivers precise clamping force. Its compact build and strong grip make it ideal for shop use, structural installs, and general steel fabrication work.
Secure, Versatile Lifting with Screw-Driven Clamping Force
Built to handle steel up to 37 HRC (420 Brinell), this clamp has no minimum working load limit and delivers consistent grip with only 40 Nm of torque. The articulated lifting eye adjusts with load direction, keeping the clamp stable in every lift. Tested to 2x its rated capacity and engineered with a 5:1 safety factor, it’s a dependable choice for pros who don’t cut corners on safety or performance.
Key Features
- 1.5 Ton Capacity: Handles mid-heavy loads for structural steel applications.
- Jaw Opening: Clamps onto material up to 1.18" thick.
- Articulated Eye: 1.5" lifting eye stays aligned with lift direction for safe handling.

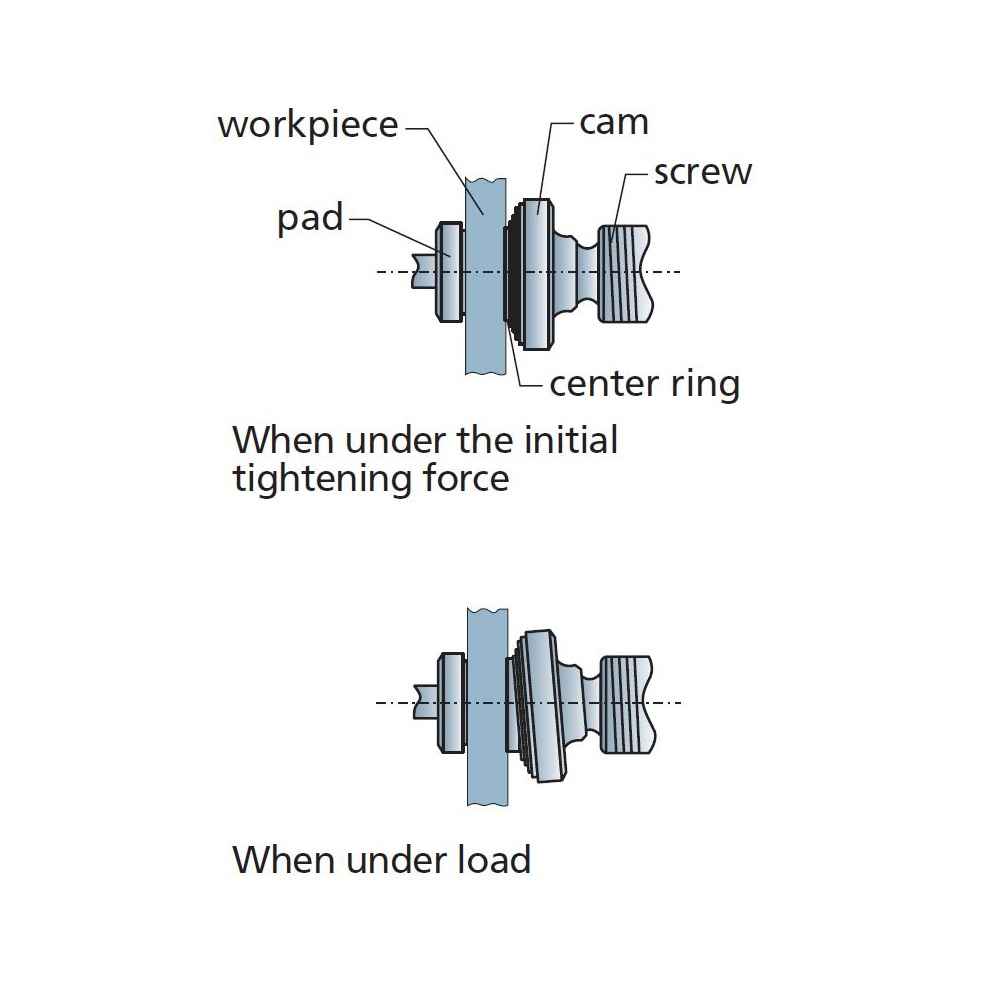

- Threaded Spindle Design: Moveable cam delivers controlled, high clamping force (≥40 Nm).
- No Minimum Load: Performs safely with both light and heavy components.
- Hardness Rating: Suitable for lifting steel up to 37 HRC / 420 Brinell.
- Tested & Certified: Proof-tested to 2x WLL, built with a 5:1 safety factor.
