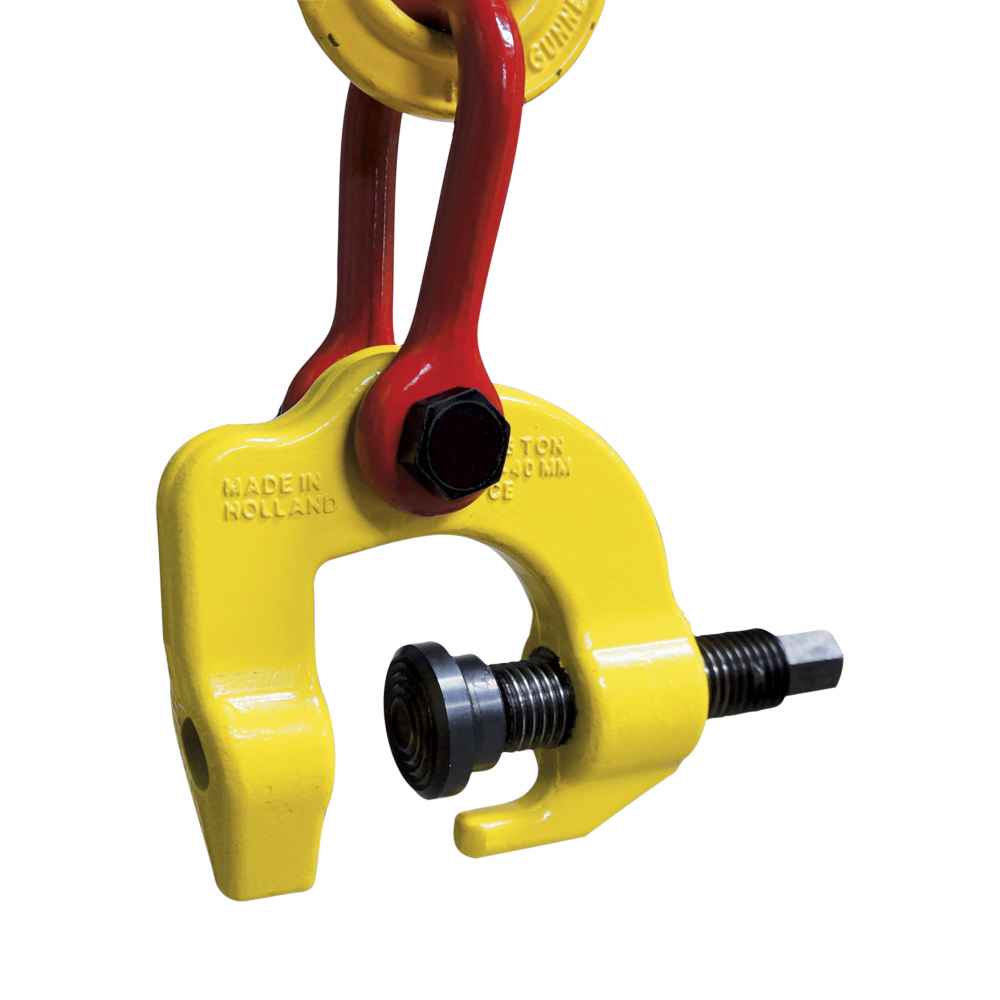

Terrier TSCC 6 Ton Universal Lifting Screw Clamp - 906000
Terrier TSCC 6 Ton Universal Lifting Screw Clamp - 906000!
Terrier TSCC 6 Ton Universal Lifting Screw Clamp - 906000
Specifications
WLL (tons): 6
The Terrier TSCC universal lifting screw clamp handles a wide variety of steel structures in both horizontal and vertical orientations, with an articulated lifting eye that keeps clamping force effective no matter what position the load is in. A moveable cam on the thread spindle delivers strong clamping force on the workpiece, and unlike most Terrier vertical clamps, it carries no minimum working load limit.
Key Features

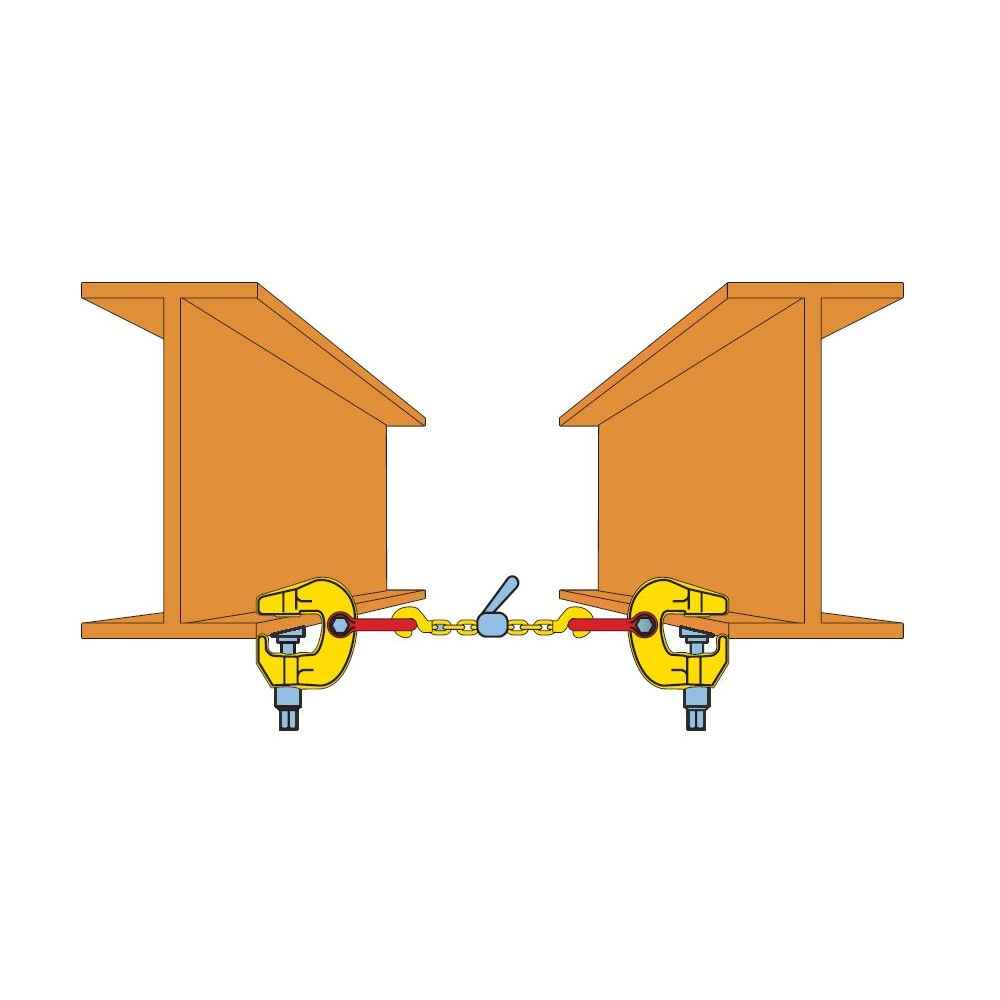

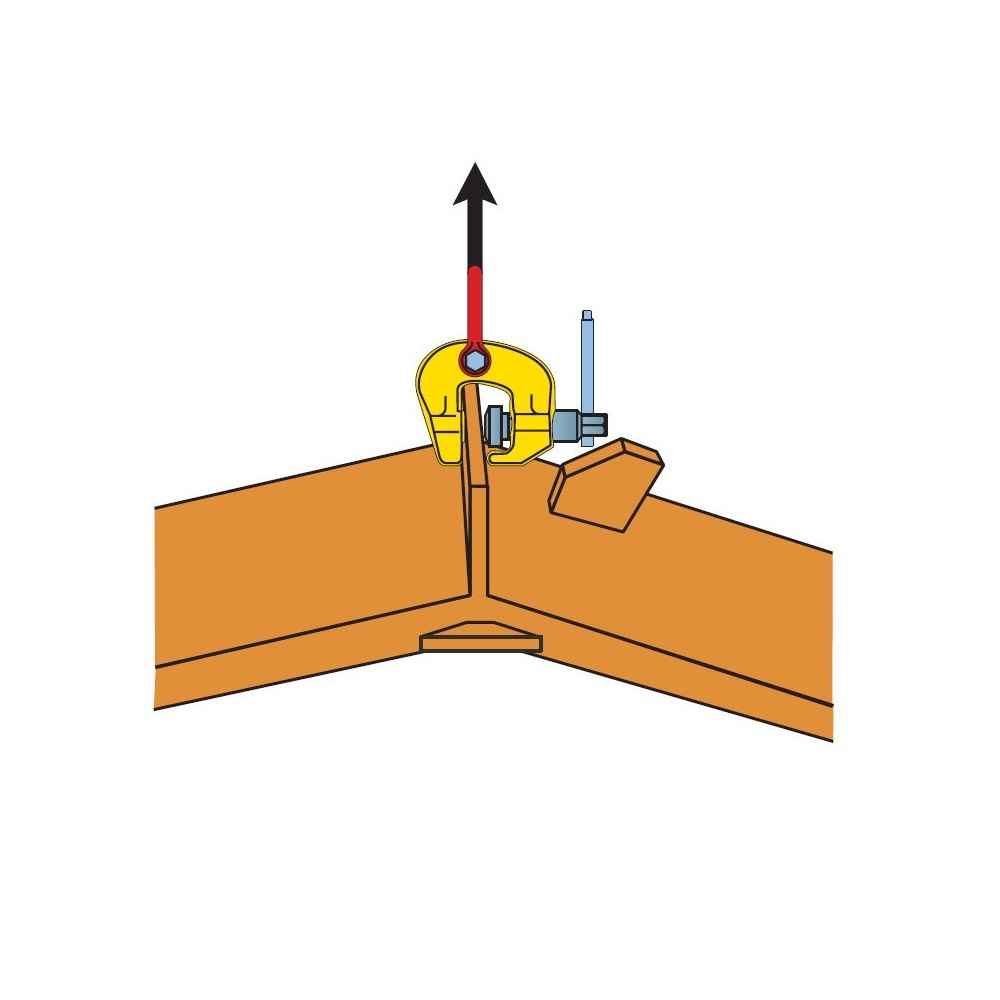

- Universal screw clamp for a wide variety of steel structures, usable horizontally or vertically

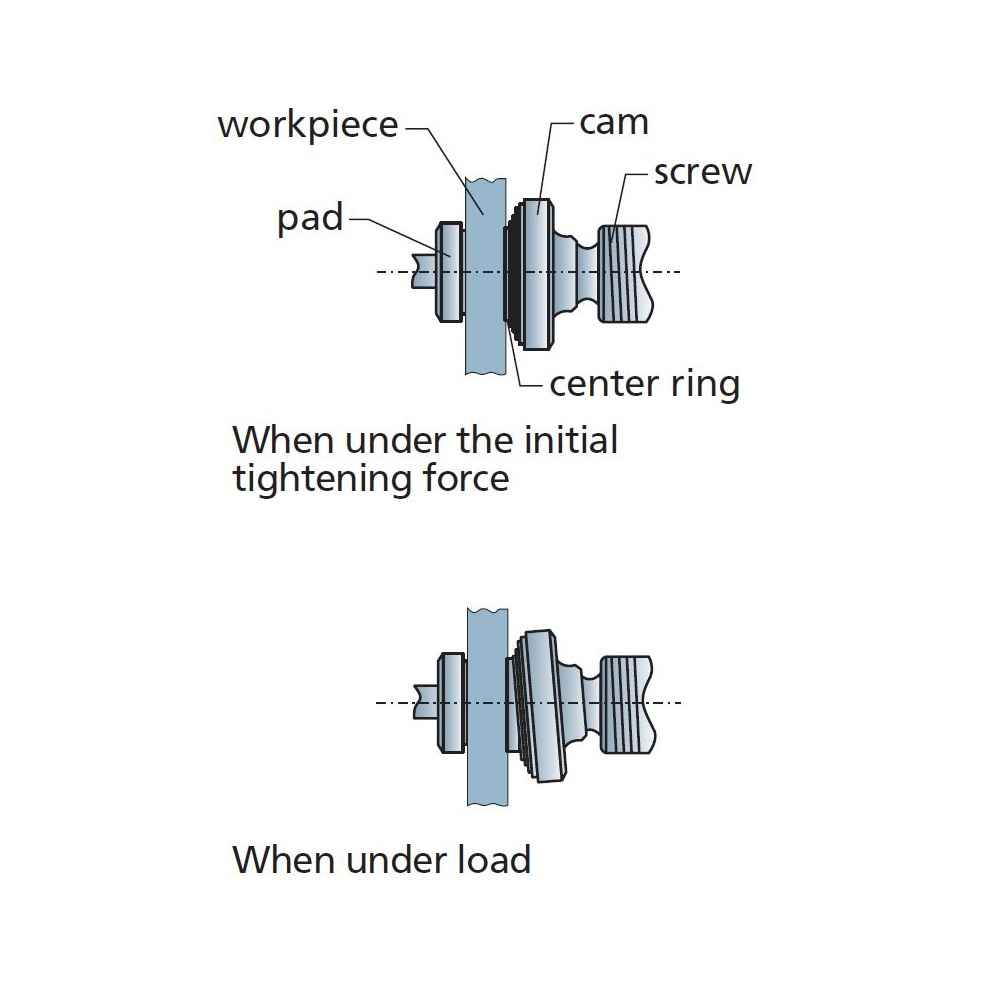

- Moveable cam on the thread spindle for powerful clamping force
- Articulated lifting eye maintains effective clamping force in every position
- Cam and pivot hardness suitable for material up to 37 HRC / 420 Brinell
- No minimum working load limit
- Tightening force of at least 10 Nm (3.687 lb-ft / 44.25 lb-in) on the 1/2-ton model, and at least 40 Nm (25.815 lb-ft / 309.78 lb-in) on the 1- to 6-ton models
Applications

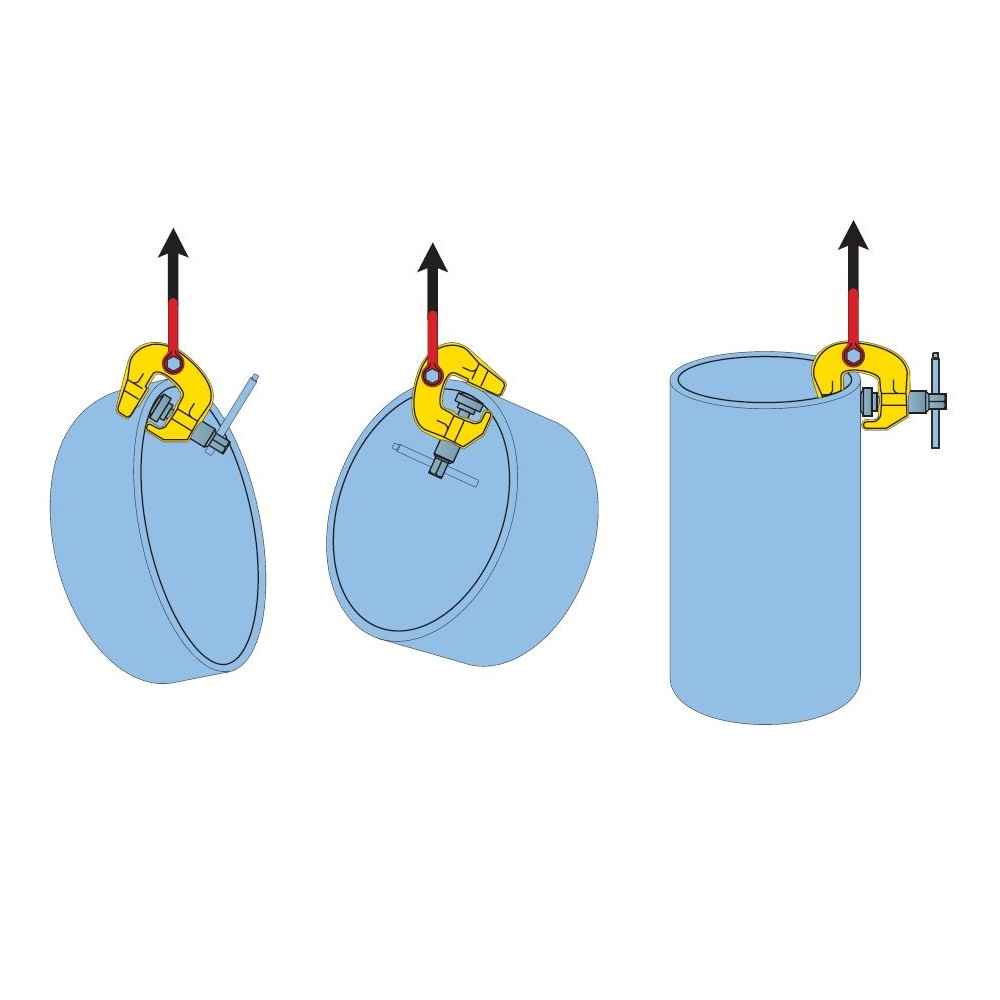

- Steel structure handling that shifts between horizontal and vertical lifts
- This terrier tscc clamp works across a full range of capacities without a minimum load restriction
- Universal screw lifting clamp use where positioning varies throughout the job
